Looky what I just made... s5-fd adapter!!!!!!
Carter 2.0
Joined: Jun 2004
Posts: 6,262
Likes: 7
From: Irvine Ca.
Originally Posted by iceblue
The HP drop from turbulance is a heat exchange and a lack of flow. Turbulance makes the air heat up from bouncing all around against each others moliculs.
Now I don't know exsactly how presure drop works I would like to know if someone cares to exsplain. But in a overlooked theory of it, I would see the first pressurised air pass the chamber and drop do to exspansion. After this void space is filled and presurised back up, would this mean there is no more constant presur drop? Where the drop only accurs in the firsts instance of the pressurised air passing the void space?
Now I don't know exsactly how presure drop works I would like to know if someone cares to exsplain. But in a overlooked theory of it, I would see the first pressurised air pass the chamber and drop do to exspansion. After this void space is filled and presurised back up, would this mean there is no more constant presur drop? Where the drop only accurs in the firsts instance of the pressurised air passing the void space?
Just kidding don't get your panties in a wad
Read about plenums and wave flow. Do a search on those two terms and you'll understand the properties of the plenum and what happens under "VACUUM" not pressure. There has been two threads on plenums lately that were very infromative.
Nipples
Joined: Mar 2004
Posts: 257
Likes: 0
From: San Jose, CA
Venturi's principle applies here. Larger diameters in tubing reduce the velocity of a given air flow within. So what we have here is a large change in intake velocities if the port matching isn't done well.
Joined: Jul 2002
Posts: 724
Likes: 0
From: 195 Miles West of Bridgeport, WA
Originally Posted by WonkoTheSane
You're almost there.. the only problem is that you're thinking of it at a constant pressure. No engine that I know of runs at a constant pressure. If you have a boost gauge, you can watch as you accelerate harder, the boost goes up, release the throttle, pressure goes down.. same on an NA, except with vaccuum.. harder you accelerate, the more vacuum you get. So you're theory would hold, except that the pressure inside an engine's intake is constantly changing.
Thread Starter
Locust of the apocalypse
Joined: Apr 2003
Posts: 2,553
Likes: 2
From: Directly above the center of the earth (York, PA)
Originally Posted by tcrown420
this is a little off topic, but how would you wire the FD TPS into the s5 harness? Supossedly the kit that comes from Japan (FEED) has a concetor to do this. Any ideas on the wiring?
The FD TPS is a full range TPS.. The s5 uses TWO TPS's.. one low range and one Full range.. I don't know how you would wire it in..
Also.. Keeping the stock computer means keeping the stock AFM.... Thus, the AFM is creating a restriction in flow that is counterproductive to doing the third gen UIM swap
99% of people who do this mod are also using a standalone.. I don't really see much point in doing it if you are keeping the stock ECU...
Thread Starter
Locust of the apocalypse
Joined: Apr 2003
Posts: 2,553
Likes: 2
From: Directly above the center of the earth (York, PA)
Originally Posted by limbar85
omg....awesome job man! now...for the people that do buy it (i may even be one sooner or later)...are u going to provide the gaskets or just let us buy it on our own?

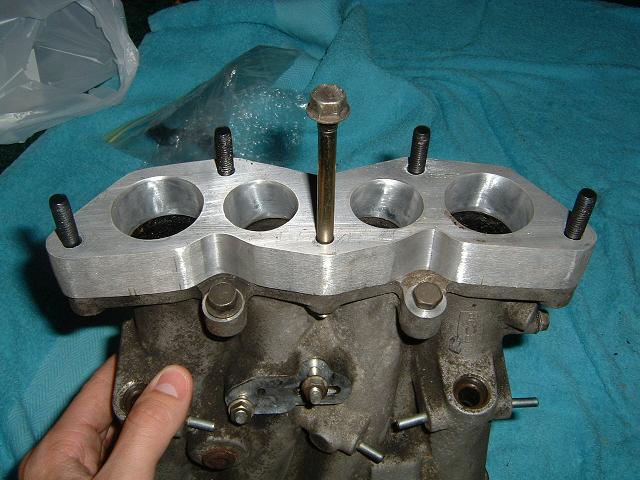

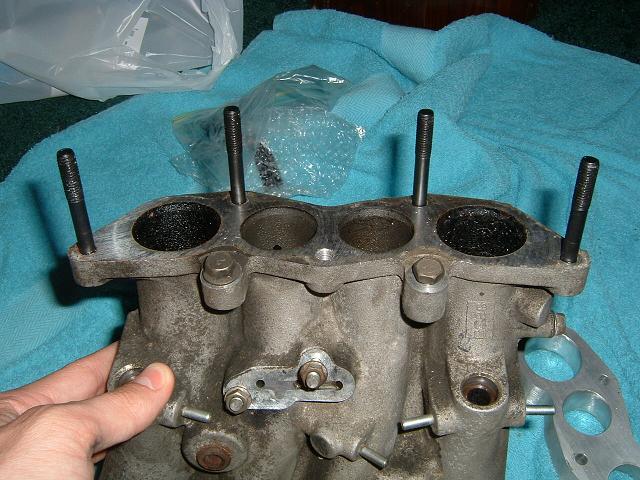

believe it or not.. each manifold is just a littel different, you can make an adapter to fit the stud pattern, but, to get the most out of it, you really should match all the runners together and smooth everything out..
Also I'm going to scrounge an s5 LIM so that I have one for fitment purposes.. This whole idea of shipping something out that matches the GASKETT.. is pretty un-nerving. I'd rather make sure it matches the LIM!!!
So yeah. gasketss would be included
Burning up Time
Joined: Sep 2004
Posts: 805
Likes: 2
From: Earth
Originally Posted by YearsOfDecay
KEEP IN MIND... I'm not planning on making these things in any quantity.. if someone wants one.. i'll make it.. but I'm not advertising here.. I just wanted to prove that you can make them yourself, rather than paying some goon in Japan 350 bucks and then waiting three months for it to get here!!!!!
Last edited by The Griffin; Jun 30, 2005 at 03:27 PM.
Joined: May 2001
Posts: 2,390
Likes: 2
From: San Francisco, CA
Originally Posted by YearsOfDecay
I've seen two of those FEED units from japan.. no connector
The feed adapter was a nice unit. It was 3/4" high vs. your 1" high adapter. The thicker the better in this case because it will reduce the sharp angle of transition of ports between the uim and lim, particularly with the primaries.
I ended up selling the Feed adapter and port matching the two manifolds and using aluminum filler rod on the inside of the primary runners of the lim to fill the void, smooth the transition and minimize ovaling of the runner (uses fd gasket). This is simply the best way to do it. The next best option is to use filler on the outside of the primary runners of the uim, nut this does not eliminate ovaling (uses fc gasket). Some day i'll do a write up.
Nice work btw
Last edited by RX-Heven; Jun 30, 2005 at 04:27 PM.
Joined: Jun 2001
Posts: 3,106
Likes: 0
From: London, Ontario, Canada
Originally Posted by iceblue
Are you saying this adapts a S5 LIM to a FD UIM?
Post the benafits and I may be interested in a S4 6pt to FD UIM
Post the benafits and I may be interested in a S4 6pt to FD UIM

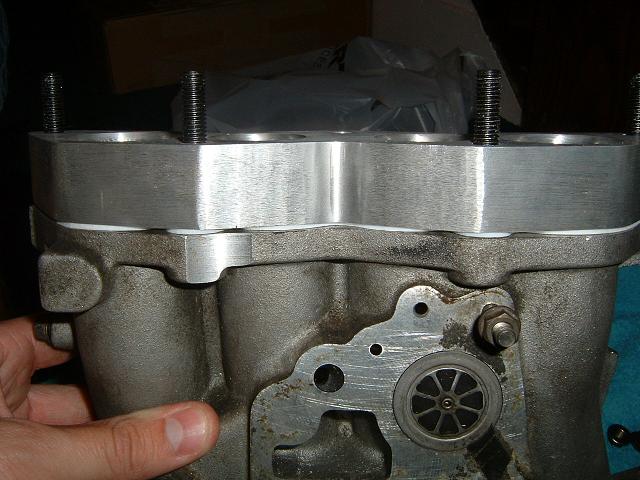

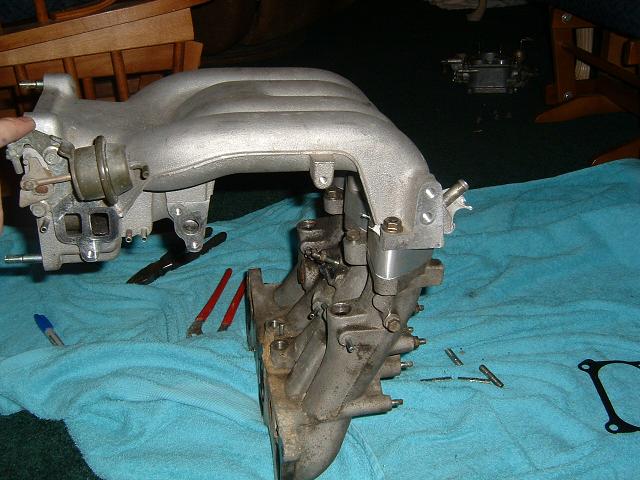

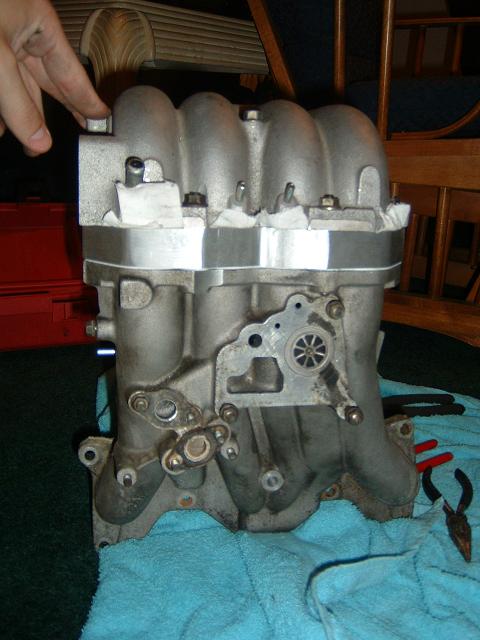

I took some time to test the fitment and mount the adaptor the other night. Everything went pretty smoothly, and nothing out of the ordinary. We will post up some pics shortly.
I'm doing this for the Flow, the space it creates, and looks. Gives much more space to work with compared to FC UIM's. Looks are much better, IMO, when comparing it to FC UIM's. With the design of the FD UIM the runners are longer and are said to have a better flow than FC UIM. Plus, I will need all the flow I can get with my setup
I'm doing this for the Flow, the space it creates, and looks. Gives much more space to work with compared to FC UIM's. Looks are much better, IMO, when comparing it to FC UIM's. With the design of the FD UIM the runners are longer and are said to have a better flow than FC UIM. Plus, I will need all the flow I can get with my setup
Thread Starter
Locust of the apocalypse
Joined: Apr 2003
Posts: 2,553
Likes: 2
From: Directly above the center of the earth (York, PA)
Originally Posted by RX-Heven
Wrong. I had one and it came with the connector. You can see pics of the adapter in the link of my sig.
The feed adapter was a nice unit. It was 3/4" high vs. your 1" high adapter. The thicker the better in this case because it will reduce the sharp angle of transition of ports between the uim and lim, particularly with the primaries.
I ended up selling the Feed adapter and port matching the two manifolds and using aluminum filler rod on the inside of the primary runners of the lim to fill the void, smooth the transition and minimize ovaling of the runner (uses fd gasket). This is simply the best way to do it. The next best option is to use filler on the outside of the primary runners of the uim, nut this does not eliminate ovaling (uses fc gasket). Some day i'll do a write up.
Nice work btw
The feed adapter was a nice unit. It was 3/4" high vs. your 1" high adapter. The thicker the better in this case because it will reduce the sharp angle of transition of ports between the uim and lim, particularly with the primaries.
I ended up selling the Feed adapter and port matching the two manifolds and using aluminum filler rod on the inside of the primary runners of the lim to fill the void, smooth the transition and minimize ovaling of the runner (uses fd gasket). This is simply the best way to do it. The next best option is to use filler on the outside of the primary runners of the uim, nut this does not eliminate ovaling (uses fc gasket). Some day i'll do a write up.
Nice work btw
Problem is.. Most of us lunkheads.. Me included.. don't have the equipment to do that!!!
God i want a TIG welder.......
Senior Member
Joined: May 2003
Posts: 400
Likes: 0
From: Tulsa
******'-A i want fd manifolds so badly...my friend and i were just talking about this exact same subject tonight. Only, we have a metal fabricator for a friend...that owns a shop, that likes to do custom projects on our cars so we can get word out for his shop. needless to say, its a nice resource to have. I knew it would improve flow, but i wasnt sure how restrictive the rest of the fc intake (aforementioned stock afm) would be. i dont have a stand alone ems either...now it seems sucky...maybe if the rtek2.0 comes out (lucky me with the s4 T-II) if they have it compatible with map, maybe a new project in the future?? anyway, looks damn good, cant wait to get the necessary flow upgrades for the fd mani's. damn those things are hot.
