Well I bought this 90 vert with no engine. Bought a core engine and rebuilt it. Almost ready to crank her but need some help on a few hose locations.

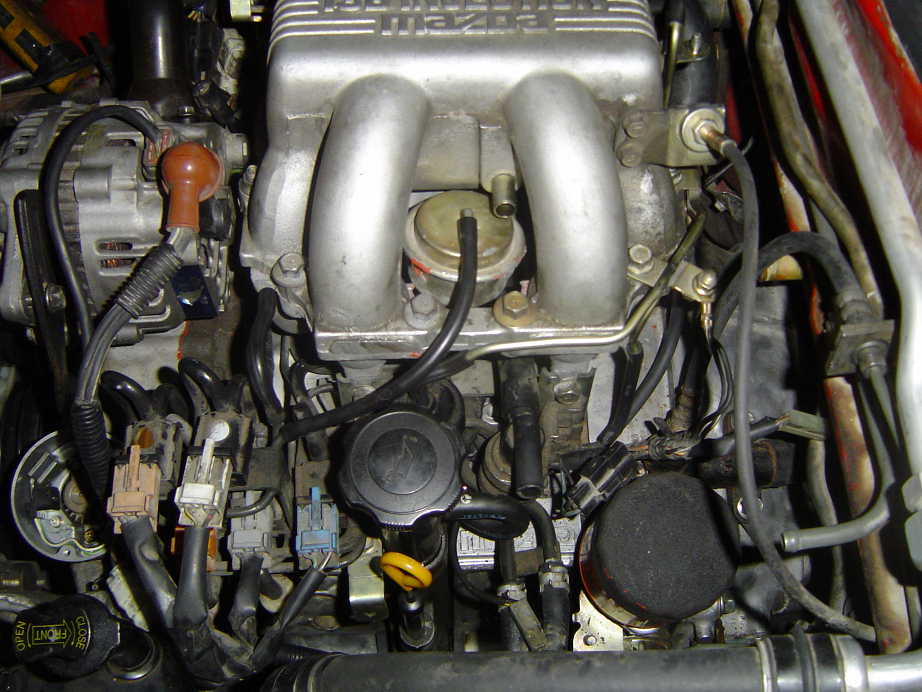

1. Nipples on UIM and near rat's nest that black nipple... where do they go?

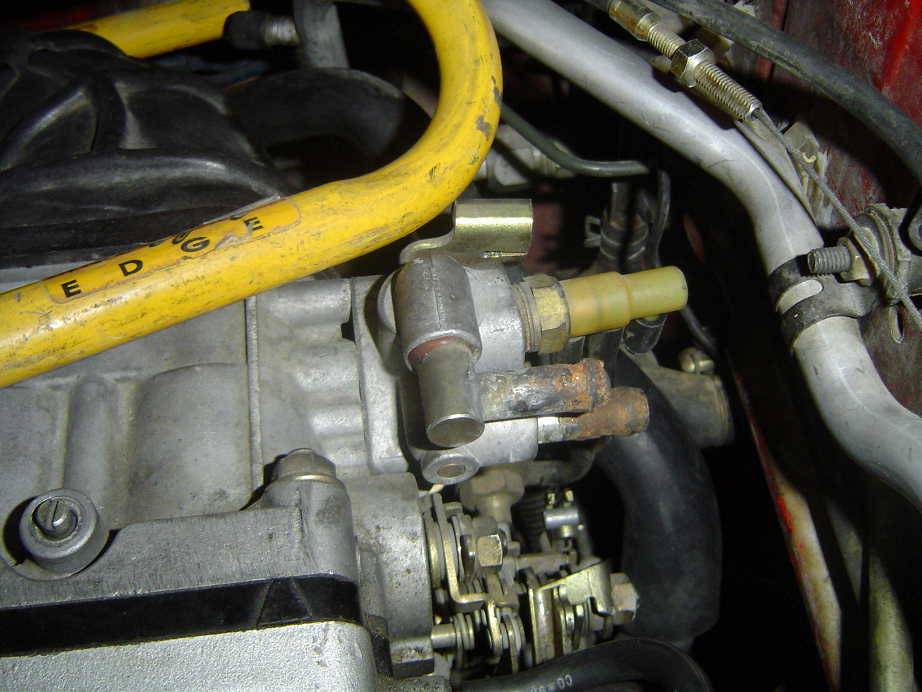

2. two nippes on UIM.... where do they go?

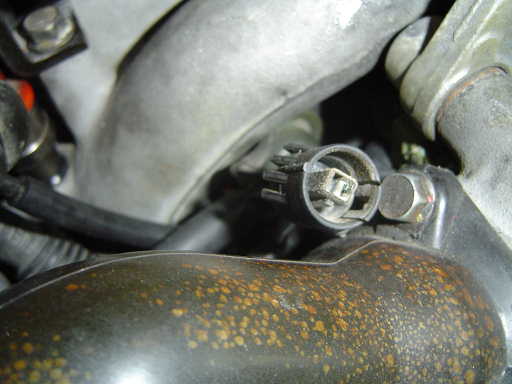

3. This plug is near my thermostat neck... where does it plug?

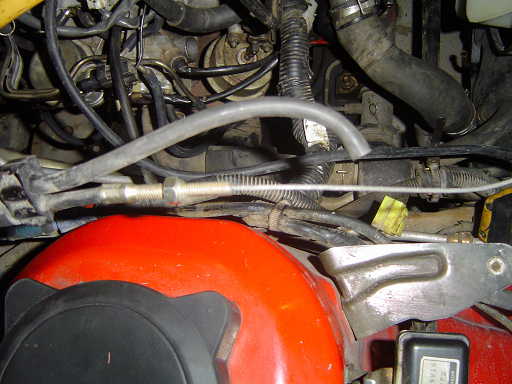

4. Cruise contol cable has a vucuum line also... where does this go?

Thanks for all the help...



1. that big black nipple by the oil filler neck connects to the big nipple (facing drivers side) on the UIM.

2. coolant nipples. not sure since i blocked mine off on my NA back in the day.

3. you could or could not have the thermoswitch on the back of your waterpump housing. if you have it, thats where it would go. if you dont have the switch, just leave it unplugged and tie it down somewhere.

4. anywhere you have an open vacuum nipple, thats just the vacuum signal for the cruise control actuator.



So the two coolant nipples on the firewall side of the uim I can block off?



i think those colent nipples loop to each other but i dont remember



bump
