a little progress(fmic and hybrid turbo install)

not running yet will be soon
before

after

engine

engine is dirty but its only 15 degrees outside
btw
I've been looking for pictures of how the turbo to cooler pipes are ran because this is for the td06 kit and i can't clock the turbo enough to run the right pipes.

Last edited by blue87t2; Feb 10, 2007 at 05:50 PM.

Feb 10, 2007 | 06:17 PM

88rxn/a

tom port.. AKA streetport

iTrader: (6)

Joined: Jan 2005

Posts: 4,658

Likes: 0

From: ludlow, pa

cleaner than my engine bay!!!
(for now

)
looks good though!

Feb 10, 2007 | 11:39 PM

JWteknix

Rotary Freak

iTrader: (2)

Joined: Mar 2006

Posts: 2,515

Likes: 5

From: Wayne NJ

yeah im putting my new bnr stg 4 hybrid on tomorrow then next week i have to run pipes to my fmic too i just have to wait for my adaptor to come in from the machine shop to put the fd uim on my tII best of luck man btw your engine bay is pretty clean i have half the amount of stuff in my engine bay and yours is still cleaner lol

Feb 11, 2007 | 03:56 AM

FrankV702

Rotary Freak

iTrader: (14)

Joined: May 2006

Posts: 1,575

Likes: 11

From: Las Vegas

What FMIC do you have? if you want I can snap you some pics of my HKS IC so you can see the way the piping from the turbo to the inlet is? its not to hard.. You can leave the turbo just like that and pretty much put a U bend going down towards the bottom of the car. Let me know if you want pics.

Feb 11, 2007 | 09:38 AM

blue87t2

Thread Starter

Full Member

Joined: Jun 2005

Posts: 143

Likes: 1

From: Lincoln NE

If your willing to take some pics that would be great I have a couple ideas in mind. ITs the trust 2 row kit.

Feb 11, 2007 | 11:16 AM

JWteknix

Rotary Freak

iTrader: (2)

Joined: Mar 2006

Posts: 2,515

Likes: 5

From: Wayne NJ

im using a custom set up with a large npr intercooler

Feb 11, 2007 | 02:31 PM

blue87t2

Thread Starter

Full Member

Joined: Jun 2005

Posts: 143

Likes: 1

From: Lincoln NE

Quote:

Originally Posted by JWteknix

im using a custom set up with a large npr intercooler

i would use a large core but i'm not going to be running anyomre than 16psi. The turbo is the limiting factor.

Trending Topics

Help me analyze my v-mount cooling system!

21

781
MB Hood For Sale

10

466
Ttt steering rack thoughts

20

888
Is it the AC expansion valve? check my sanity

5

234
Rx-lights or Sakebombgarage moonbeam?

19

1.1k

Feb 11, 2007 | 02:49 PM

JWteknix

Rotary Freak

iTrader: (2)

Joined: Mar 2006

Posts: 2,515

Likes: 5

From: Wayne NJ

yeah i just put my turbo on and hooked every thing up im soo stoked i cant wait to drive in and i will be boosting low until i get my 1600s and after that im goin meth injection so i can boost higher

Feb 11, 2007 | 03:05 PM

FrankV702

Rotary Freak

iTrader: (14)

Joined: May 2006

Posts: 1,575

Likes: 11

From: Las Vegas

Quote:

Originally Posted by blue87t2

If your willing to take some pics that would be great I have a couple ideas in mind. ITs the trust 2 row kit.

alright.. Ill go out and take some in a few. its the same IC I have. mine is just the HKS version..

Feb 11, 2007 | 04:15 PM

#10

blue87t2

Thread Starter

Full Member

Joined: Jun 2005

Posts: 143

Likes: 1

From: Lincoln NE

Quote:

Originally Posted by FrankV702

alright.. Ill go out and take some in a few. its the same IC I have. mine is just the HKS version..

thanks that should help a bunch

I have to make some customs pipes so i have at least 2 weeks before i can start it.
this kit just sold on ebay..lot of money for the old kit
http://cgi.ebay.com/ebaymotors/ws/eB...6061149&rd=1,1

Feb 11, 2007 | 05:01 PM

#11

FrankV702

Rotary Freak

iTrader: (14)

Joined: May 2006

Posts: 1,575

Likes: 11

From: Las Vegas

Thats the exact same kit I just bought about a week ago.. I bought it for A LOT less then then thta though.. and it was brand new..

Feb 11, 2007 | 05:20 PM

#12

FrankV702

Rotary Freak

iTrader: (14)

Joined: May 2006

Posts: 1,575

Likes: 11

From: Las Vegas

heres some pics. Hope they help.

Feb 11, 2007 | 09:36 PM

#13

7dust

Irregular Here

iTrader: (14)

Joined: Dec 2003

Posts: 3,075

Likes: 4

From: Alvin, TX

Is that an S4 HKS kit?

Mine is S5.

Clean install though. Mine isn't so shiney.

Of course I think my kit had been through several previous owners before I got it. Maybe some new silicone connectors and T-bolts would help.

Attached Thumbnails

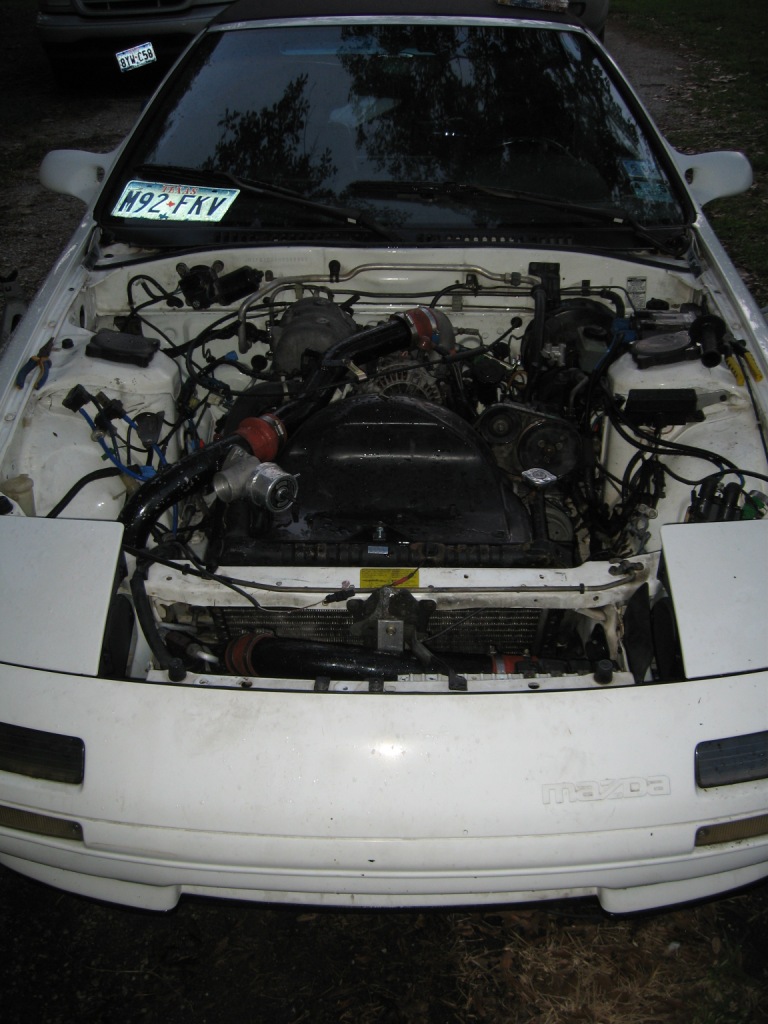

a little progress(fmic and hybrid turbo install)-img_3717.jpg

Feb 12, 2007 | 02:40 AM

#14

FrankV702

Rotary Freak

iTrader: (14)

Joined: May 2006

Posts: 1,575

Likes: 11

From: Las Vegas

Quote:

Originally Posted by chaosseven

Is that an S4 HKS kit?

Mine is S5.

Clean install though. Mine isn't so shiney.

Of course I think my kit had been through several previous owners before I got it. Maybe some new silicone connectors and T-bolts would help.

Is there a difference between an S4 and a S5 kit? The guy I bought it from had it on a S4. I took it off.. and it fit just the same on my S5 (thats what I have, a S5). It does have a S4 turbo on it now. Im sending it out tomorrow to BNR to get a stage 4 upgrade done to it.
