The last ball-joints I'll ever need
06-30-12, 06:54 PM
#1
Fast-Trash
Thread Starter
The last ball-joints I'll ever need

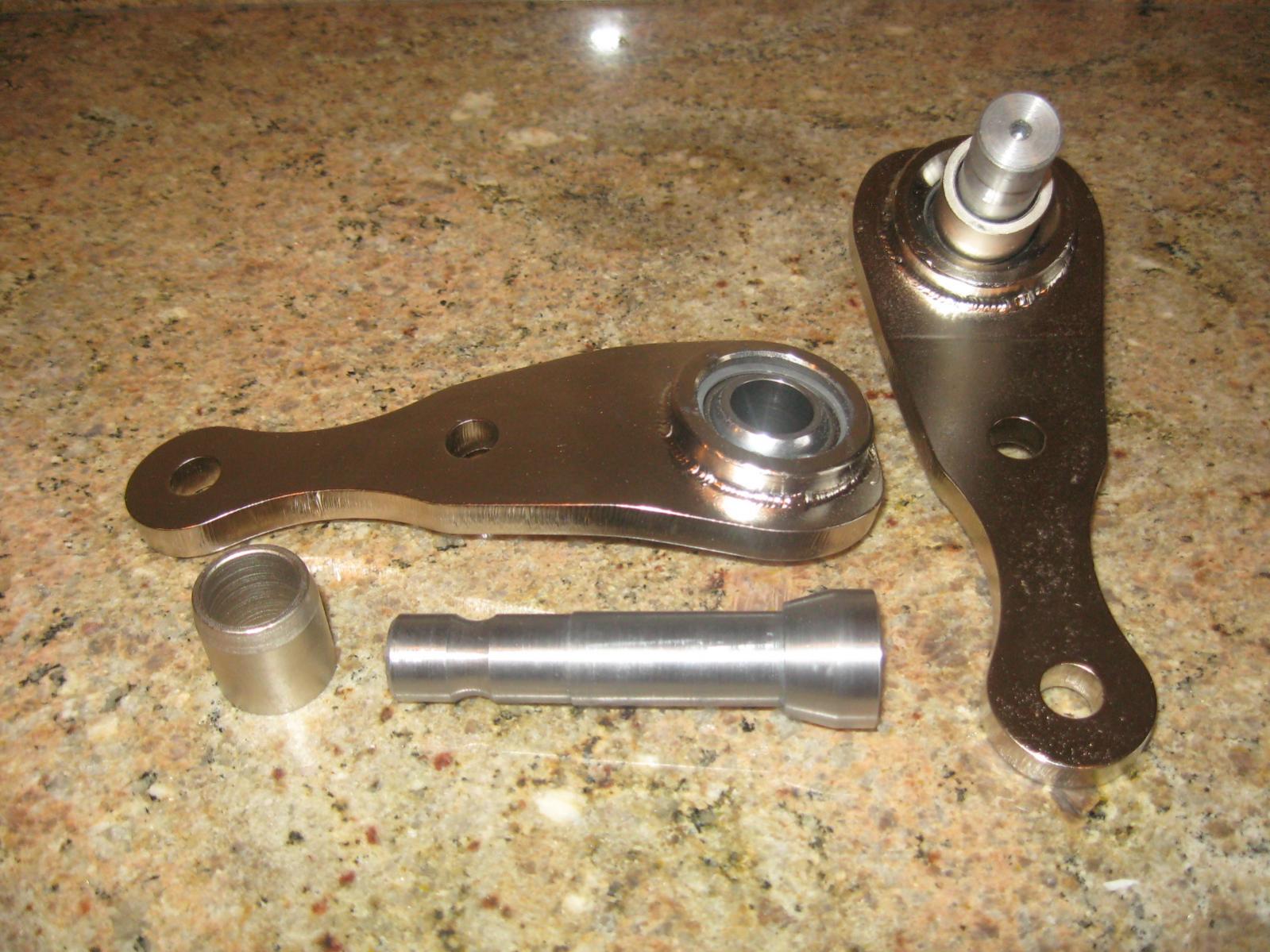

Just got done cutting these for an FC subframe installed in an FB (hence the offset). Replaceable uni-ball ball-joints with high-misalignment spacers fitted into 1/2" cold-rolled steel plate. Designed them in CAD and cut them using a MACH3 3-axis plasma table. Pretty happy with the results so far. Just a little TIG'ing and drilling left and I'm done. What do you guys think?
07-01-12, 01:35 AM
#4
Fast-Trash
Thread Starter
Here's a couple more pics. TIG work isn't the prettiest in the world, but it's strong. Should be 100% assembled tomorrow.
Thinking about making a few more sets to sell, or maybe just the pre-cut blanks. This uni-ball hardware is expensive!
Thinking about making a few more sets to sell, or maybe just the pre-cut blanks. This uni-ball hardware is expensive!
07-01-12, 06:08 PM
#6
Fast-Trash
Thread Starter
Done with all the shop work. Probably going to have to clearance the edge for fitment, then drill the mounting holes. The stock balljoints have about a 10 degree bend in them, but I'm getting so much angle with the high-misalignment spacers it's not a problem.
Trending Topics
07-07-12, 02:44 AM
#14
Fast-Trash
Thread Starter
Sorry for not replying in a while. I'm in Nevada trying to finish up some work so I'm 1900 miles away from my car.
I used a suspension analysis program to model the TII suspension. My main focus was identifying the change in caster incurred by moving the ball-joint back an inch, so I didn't pay much attention to anything else. I should probably model the 10-to-15mm added length to check for issues, but my gut tells me it shouldn't be a problem. I'll check when I get back to my terminal.
The vertical offset is the same. I had to correct for the lack of the 10 degree angle bend that exists in the stock ball-joint. I doubt I could add more vertical height without trying to reproduce the bend, but I can take some vertical height out (up to 3/4").
Suggestions always welcome. Will update when I have more data.
I used a suspension analysis program to model the TII suspension. My main focus was identifying the change in caster incurred by moving the ball-joint back an inch, so I didn't pay much attention to anything else. I should probably model the 10-to-15mm added length to check for issues, but my gut tells me it shouldn't be a problem. I'll check when I get back to my terminal.
The vertical offset is the same. I had to correct for the lack of the 10 degree angle bend that exists in the stock ball-joint. I doubt I could add more vertical height without trying to reproduce the bend, but I can take some vertical height out (up to 3/4").
Suggestions always welcome. Will update when I have more data.
07-10-12, 11:43 AM
#15
the bolt holes that connect them to the hub look pretty small... they would worry me.
I'm running one of the first sets of AWR roll center correcting ball joints. They're really nice and have more or less the same design, but with no misalignment spacers and a bend.
they're also using a pretty large dowel and a spacer instead of the smallish bolt you're using.
I'm running one of the first sets of AWR roll center correcting ball joints. They're really nice and have more or less the same design, but with no misalignment spacers and a bend.
they're also using a pretty large dowel and a spacer instead of the smallish bolt you're using.
07-10-12, 11:57 PM
#16
Fast-Trash
Thread Starter
Just got home yesterday night, and couldn't wait for the test fit. I went ahead and clamped the joints into position, installed the bolts and spacers, and ran through the travel. I'm pretty happy with the results; The joints are not maxed-out in any position, including full-droop. As expected, the misalignment spacers made the 10 degree bend in the stock joint completely superfluous. Clearance on the brake rotor is good, but may require notching or removal of stock backing plates. Most importantly (for me), the wheelbase has been restored to original length. I am a happy camper.
07-11-12, 12:41 AM
#17
Fast-Trash
Thread Starter
the bolt holes that connect them to the hub look pretty small... they would worry me.
I'm running one of the first sets of AWR roll center correcting ball joints. They're really nice and have more or less the same design, but with no misalignment spacers and a bend.
they're also using a pretty large dowel and a spacer instead of the smallish bolt you're using.
I'm running one of the first sets of AWR roll center correcting ball joints. They're really nice and have more or less the same design, but with no misalignment spacers and a bend.
they're also using a pretty large dowel and a spacer instead of the smallish bolt you're using.
Second, Those are 1/2" Grade-8 bolts, the same bolts used on the A-arms of long-travel off-road cars (including mine). I checked the book on all the hardware from the cups, spacers, uni-ball, sleeves and bolts (Minimum Yield and Tensile strength, Static Axial, Radial, and Dynamic Oscillating Radial Load). Everything on this joint is so overbuilt it's almost comical. Have some faith in the math, my friend.
That said, I probably won't be able to compete with AWR on price so this may end up just being another one-off part. What did they cost, if you don't mind me asking?
07-11-12, 08:57 AM
#18
yeah, but the bolt is also in single shear... quite a bit of it when turning or braking. the shear strength of a 1/2" grade 8 bolt is 17870 lbs... is that enough? I don't know. but I'd be a little worried if I was on a track in a high speed corner with race tires and hit a bump...
AWR's kit is $400 for both ball joints + you'll need spaced out tie rods because your bump steer will go to crap when you space out the arm.
AWR's kit is $400 for both ball joints + you'll need spaced out tie rods because your bump steer will go to crap when you space out the arm.
07-12-12, 12:51 PM
#19
Senior Member
iTrader: (1)
Join Date: Dec 2001
Location: Salt Lake City
Posts: 655
Likes: 0
Received 0 Likes
on
0 Posts
the stock ball joint has a groove machined into the shaft that gets inserted into the bottom of the steering knuckle and has a bolt that will go thru the knuckle and keep the ball joint in. Is that bolt on the knuckle not needed anymore?
07-12-12, 08:29 PM
#21
Fast-Trash
Thread Starter
On mine there is a threaded collar with the machined groove. I didn't install the clamp bolt during my test fit simply because it wasn't necessary to test the up-travel.
07-19-12, 12:38 AM
#25
Senior Member
iTrader: (3)
Join Date: Sep 2004
Location: San Luis Obispo, CA
Posts: 548
Likes: 0
Received 0 Likes
on
0 Posts
Thanks. Did they use a Metric bearing, or SAE?
Also taking notice of your tie-rods. Did you cut them shorter and thread them with SAE thread to make that work?
Also taking notice of your tie-rods. Did you cut them shorter and thread them with SAE thread to make that work?
