88 SE

For anyone interested. I buoght a Allata subscription for 1988 Non turbo RX7's, should apply to all 2nd gens.

I have access to all the TSB's, so if yuo need one, just ask and ill post it.

J-Rat

iTrader: (2)

Shoot man, Post all the 88 TSBs!

88 SE

.
0101899 990528 Year 2000 - Computer Systems Compliance
K00598 981231 A/T Cooler/Line - Flushing Procedure
F01498 981209 Throttle Adjustment Screw - Adjustment Precaution
G00198 981022 Battery - Dies In A relatively Short Period Of Time
S0901898 980729 Door Weatherstrip - Wind Noise Around Doors
B00398 980716 Engine - Oil Leak At Rear Stationary Gear O-Ring
N00198 980415 Steering Wheel - Slightly Off Center.
N00196 980415 N00196 - 04/15/98
ST00198 980223 Star Tester - New Version Program Cards
T01397 970619 Wiper Motor - Inoperative/Circuit Breaker Operation
U00897 970519 A/C System - Tracer Dye Leak Detection
T00797 970425 Air Bags - Replacement After Deployment
ST00297 970327 Special Tools - Storage Cabinet System
AD00397 970225 Speedometer - Replacement Procedure
AD00297 970218 Technical Assistance Hotline
U00996 961021 A/C Refrigerant - Recommendations
E00296 960627 Reconditioned Anti-Freeze - Recommendations
F01496 960606 Fuel - California Reformulated Gasoline
F01396 960524 Fuel Volatility - Driveability Concerns
AD00295 951106 Vehicle - Storage Management
ST00895 951024 A/C - R134a Training/Equipment Requirements
F00595 950616 Intake Manifold - Rough Idle After Replacing Gasket
ST00295 950427 Required Tools - Inventory List
B00595 950328 HLA - Noise After Long Storage
U00195 950215 Receiver Dryer - Replacement Criteria
N00195 950119 Pre Alignment - Specifications
ATRATB294 950101 A/T - Drive Axle and Wheel Lug Nut Torque Specifications
N00394 941223 Alignment - Background Information & Specifications
ST00294 941116 Tools - Shipment Of NGS Program Card Version 2.0
ST00394 941028 Brakes - Use On Car Brake Lathe to Correct Judder
E00194 941021 Coolant - Propylene Glycol Based Not Recommended
K00294 941004 A/T - Diagnostic Procedures
AD00794 940808 Recall Policy - NHTSA Adminstrative Notice
AD00594 940705 Key - Replacement Guidelines
B00494 940621 Engine - Partial Repair Components Available
U00194 940428 A/C - 0 Ring Replacement
G00293 930916 Electronic Devices/Electrical - Diagnosis and Repair
R00793 930916 Suspension - Excessive Negative Rear Camber
Q00593 930603 Tire Chains - Installation Precautions
F00593 930428 Emission Inspection Test - Proper Preparation
F00193 930111 Fuel Injector - Cleaner Kit for Improved Performance
S05892 921223 Seat Belts, Rear 3 Point - Availability
AD02892 921130 Emissions - Proof of Recall Correction Certificate
W02892 920723 Fuel System, M/T - Manual Revisions
J00492 920707 M/T - Hard Shift to 2ND Gear After Cold Start
ATRATB113 920501 A/T - E4N71B, L4N71B, 4N71B No 4th Gear
ATRATB078 911101 A/T - How To Use A Pressure Gauge
F01091 910402 EGI Control Unit - Remanufactured Exchange Program
00791 910213 Engine, Rear Oil Seal - Prevent Damage While Assembling
B00791 910213 Engine Rear Oil Seal - Damage Prevention
U00790 901219 A/C - Receiver Drier Fuse Plug Elimination
ATRATB028 901001 A/T - Engine Vacuum Testing
ST00290 900801 A/T - Proper Control Unit Connection
D00290 900706 Engine, Rear Oil Seal - Revised to Prevent Oil Leak
R00490 900615 Strut, Front - Squeaking or Groaning Noise
T00390 900615 Cruise Control - OE Replacement Recommended
G00190 900608 Tools - Correct Use of Timing Light on DLI System
ST00190 900423 Tools, Special - Modification
AD00690 900316 Service Collateral - Now Available Through HELM
E00190 900214 Coolant - Reconditioned Antifreeze, Not Recommended
ATRATB9002006 900201 A/T - Choosing the Right ATF
407389 891229 Engine Controls - Misfire and Hesitation Over 6000 RPM
1508889 891229 Antenna Mast - Inoperative
1508989 891229 Audio Storage Tray - May Not Stay Closed
1407389 891108 Seat Belt, Rear 3 Point - Installation
ATRATB8930 891001 A/T - Math Part II
ATRATB8927 890901 A/T - Twenty Steps To Successful Repairs
ATRATB8923 890801 A/T - Math Formulas Part I
405989 890719 EGI Control Unit - Remanufactured Parts Available
706189 890606 A/T - Driven Plate Parts Catalog Revision
706289 890606 M/T - Hard Shift In Low Temperatures
1507889 890505 Audio System - Troubleshooting
1406789 890329 Static Electricity Shock - Recommended Antistatic Sprays
405489 890220 Fuel - Use of Regular Unleaded Gasoline
1507388 881226 Audio Storage Tray - Does Not Stay Closed
1507188 881130 Window Regulator - Improper Operation
502088 881129 Battery, Maintenance Free - Charging & Testing
501888 881017 Engine - Hard Cold Start
405288 881017 Turbocharger Flange - Hairline Cracks
6008088 880919 Vehicle - Proper Use of Corporate Logo
0501788 880727 Battery - Current Draw
1603388 880630 A/C - Diagnosis & Repair of Refrigerant Leaks
1603488 880630 Refrigerant - Importance of Correct Charge Level
3000488 880616 Alignment - Specifications
1101288 880609 Brake Calipers, Pad, Etc. - Revised
404988 880505 EGI Control Unit - Revised to Accomodate Fuel Injectors
404888 880505 Catalytic Converter - Rattle Noise
1602988 880502 A/C - Kit Installation
800388 880422 Companion Flange & Propeller Shaft - Alignment Marks
404788 880422 Water Temperature Switch - Rough Idle
404688 880418 Fuel Injectors - Air Bleed Sockets
501388 880411 Battery, Maintenance Free - Characteristics of MF Type
403988 880202 Air Injection - Rough Idle or Stall After Cold Start
600687 880201 Clutch Disc - Revised
1505988 880201 Heater Control - Unable to Adjust Air Temperature
1505688 880101 A/C - System Repair
501288 880101 Battery - Factory Added Sediment Mistaken for Sulfate
1505788 880101 Audio Set - Identification Number
403587 871119 Engine - Speed Increases Excessively at Cold Starting
403387 871103 Fuel Injector - Checks for Proper Installation
403887 871101 Engine - Troubleshooting Hard Start After Heat Soak
1505187 871001 Wiring Diagram - New Style
6006687 870901 Vehicle - Beginning VINS
ATRATB8754 870901 A/T - Front Bushing Wear
1200487 870901 Original Equipment - Tires Listed
6006487 870801 Tires- Customer Assistance
ATRATB8748 870801 A/T - Slipping or No-Shift/Metal Sealing Rings

88 SE

If ya want details of any of those, lemme know and ill post it.

J-Rat

iTrader: (2)

Kool...Good stuff..

Thanks Man!

akageals

I'd like to see the details on the "water temp. switch - rough idle" and the "Air Injection - Stall after cold start".

Thanks,

Todd

88 SE

Category 4
Applicable Model/s 1986-1988 RX-7
Subject ROUGH IDLE
Bulletin No. 047/88
Issued 4/22/88
Revised



DESCRIPTION

If a customer complains of a rough idle, check the water temperature switch and related wiring. The water temperature switch wiring could be damaged and may not be detected while checking voltages with the engine off.

Should you encounter the above condition, refer to the following procedures.

CHECKING PROCEDURE

1. Connect the engine signal monitor to the control unit. Refer to the 1987/1988 RX-7 Workshop Manual, page 4A-30 or 4B-31.

2. Warm up the engine to normal temperature.

3. Monitor voltage at terminal 1H for correct voltage under the following conditions:

- engine off, key on
- engine idling
- engine acceleration and deceleration in neutral

NOTE:
The voltage should be below 1.5V with warm engine.

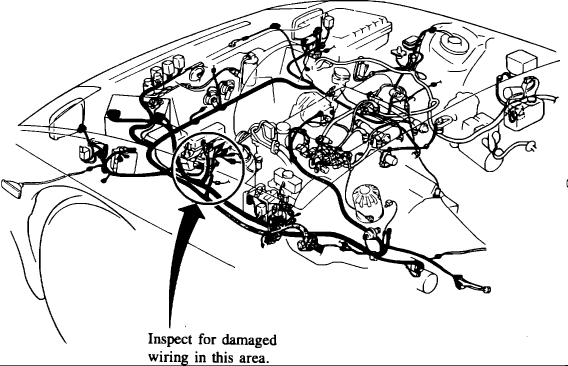

4. If any voltage fluctuation is noted, inspect the water temperature switch wiring especially near the radiator where the harness is tie-wrapped to the oil cooler lines.

5. If open or damaged wire is found, repair as needed.

88 SE

Category Applicable Model/s Subject Bulletin No. 039/88
4 1987-1988 ROUGH IDLE OR STALL Issued 2/2/88
RX-7 Turbo AFTER COLD START Revised




DESCRIPTION

If you encounter a vehicle with a rough idle or stall after cold start, this may be due to air leakage of the anti-afterburn valve located in air control valve. Test for this problem according to the procedure shown in this bulletin.
PARTS INFORMATION

PART NUMBER DESCRIPTION

N332 13 990 Air Control Valve



INSPECTION PROCEDURE

1. Start the cold engine and run it at idle.
2. Disconnect the air hose (air pump to air control valve) at the air pump.
3. Place a finger over the air hose opening.
4. Replace die air control valve, if air is sucked into the air hose at idle.

JumpyRoo

Can we get a glimpse at what the ancients had to say about

ATRATB8927 890901 A/T - Twenty Steps To Successful Repairs ?

JumpyRoo

Man, you should just post the whole thing. People would sticky it in a second

88 SE

TSB 89-27 (Sept)

SUBJECT: TWENTY STEPS TO SUCCESSFUL TRANSMISSION REPAIR

1. As you start work on a transmission, read your ATRA bulletins pertaining to that transmission. (If you do this every time, before you know it you'll have the bulletins memorized.)

2. Clean the entire transmission, including the valve body.

3. Check pumps, valve bodies, and cases for warpage.

4. Flat file pumps, valve bodies, and cases. (Just a few strokes with the file to knock off high spots and handle burrs.)

5. Check all pump gear clearances.

6. Check planet pinion endplay and side to side motion.

7. Soak all planet assemblies.

8. Soak all friction material for 15-30 minutes.

9. Sand, tumble, or replace all steel plates.

10. Re-surface all drums on which a band rides.

11. Replace all rotating oi1 control rings.

12. Check all oil control rings, and rubber products in their bores for proper fit.

13. Replace all major support bushings and bushings that control lube oil.

14. Pre-lubricate all bushings and thrust washers.

15. Pre-lube pumps.

16. Pre-fill torque converters.

17. Use available manuals to find specifications.

18. Set correct clutch and band clearances

19. Take the time to set total unit endplay

20. Use a torque wrench on all pumps and valve bodies.

88 SE

I might just stick em all up on a webpage, seeing as how im allowed to duplicate them for "educational, non-profit" uses

88 SE

bump: for anyone interested

silverrotor

iTrader: (1)

Glad to see this posted. Keep em coming.

Henrik

I'de like to see:

N00195 950119 Pre Alignment - Specifications
N00394 941223 Alignment - Background Information & Specifications
403387 871103 Fuel Injector - Checks for Proper Installation

Thanks!

Henrik
87TII

88 SE

Pre Alignment - Specifications
Bulletin No.: 001/95
Issued: 1/19/95
Revised:

CategoryN

Applicable Model/s
See Below

Subject:
ALIGNMENT SPECIFICATIONS

NOTE :This bulletin was originally released as Cat. N, # 003/94. Replace the original bulletin with this revised copy.

APPLICABLE MODELS

All models except Navajo and 1994 and on B-Series

DESCRIPTION

This bulletin provides background information on standard specification and measuring conditions for wheel alignment.

Measured values are not absolute. Variations occur between technician, equipment and the condition of the vehicle at the time of measurement. To avoid unnecessary adjustments, specifications and measurement conditions have been changed in the workshop manual. These changes are described below.

NOTE :Changes in the specifications do not imply that alignment tolerances have increased during production. Vehicle alignment is set to the median specifications during production and technicians should also use median specifications during alignment adjustment.





NEW SPECIFICATIONS

NOTE :Each vehicle varies in specification median.

VEHICLE PREPARATION AND CONDITION

1. The vehicle should have:

^ No Passengers

^ No Luggage

^ Gas Tank Full, Radiator and Engine Oil To The Specified Levels

^ Spare Tire, Jack And Tools Stored In Designated Areas

^ Tire Pressure Checked And, If Necessary, Adjusted.


NOTE :If the specifications are different (depending on load conditions), adjust the pressure for the lightest load.






2. The table contains examples of front caster specifications based on fuel tank level.

3. Follow the operating procedures specified for the alignment equipment being used.

4. Prior to measuring the current settings, firmly push the vehicle bumper up and down to stabilize the vehicle's height.

Blowtus

did a webpage of this ever get up??

F1blueRx7

iTrader: (5)

R00490 900615 Strut, Front - Squeaking or Groaning Noise

I really need to see that one jon... Thanks a bunch!!

-Mike

crazzykid277

where is the fuel ajustment on the engine where is the air/fuel screw?? plz help

WadeMCarter

hahaha check the date of the last post...

bikeboy23332

off subject ?

my 88 won't rev over 3500 rpm
