Jacobs FC1000 ignition box
01-01-05, 02:21 PM
#1
Jacobs FC1000 ignition box
Has anybody used the Jacobs fc1000 ignition system on there cars? http://store.summitracing.com/defaul...25143&x=16&y=7
How does it compare to MSD and Crane ignitions? I've heard of a few people using them on RX7's with good results and saying it was better than MSD or Crane.
How does it compare to MSD and Crane ignitions? I've heard of a few people using them on RX7's with good results and saying it was better than MSD or Crane.
01-01-05, 02:26 PM
#2
Full Member
Join Date: Apr 2004
Location: Newark, NJ
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
i have one and am happy with it. easy to install, looks good.
def noticable inprovement in spark and a cleaner burn.
i felt a good increase in torque
dunno how it compares to an msd or crane
def noticable inprovement in spark and a cleaner burn.
i felt a good increase in torque
dunno how it compares to an msd or crane
01-01-05, 08:38 PM
#6
Full Member
Join Date: Apr 2004
Location: Newark, NJ
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 95nracer
Did you use the same instructions for your fc1000 as the instructions for MSD 6A on Reteds site?
installation is extremely easy man, it comes with detailed instructions for all year rx-7s in the box .. at least it did when you buy from http://www.rx7.com/store/rx7/fcignition.html
if you dont buy from rx7.com and have any problems with installation pm me and ill send you the instructions
01-01-05, 08:53 PM
#7
Temple of Cornd0g

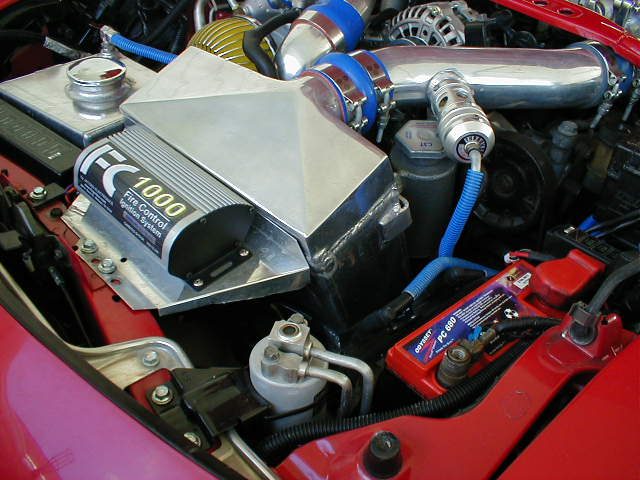

I'm powering each LX91 single post lead coil with a FC1000. The other FC1000 is underneath the one you see. May have to upgrade your coil as any ignition amp can burn up the stock coil. Go the less costly route with a dual post Accel coil and one FC1000. RP says they've seen fewer failures with the Jacobs vs. MSD, Crane, etc. Just splice into the harness and use all-weather connectors so that you can bypass the box should the need arise, ie. box failure.
ECU > ignitor > FC1000 > coil.
ECU > ignitor > FC1000 > coil.
Last edited by mark57; 01-01-05 at 09:00 PM.
Trending Topics
01-02-05, 01:09 PM
#9
Temple of Cornd0g
Rotary Pro Pack burned up two stock lead coils, so I went to two single-post coils that eventually caused to Pro Pack to burn up. I should've used a single dual post coil or two Pro Packs. FC1000/2000 are regarded to be much more bullet-proof.
Look carefully at the championship Captain America car. They had four Rotary Packs in there; major mega-sparkage goin' on.
Look carefully at the championship Captain America car. They had four Rotary Packs in there; major mega-sparkage goin' on.
01-02-05, 03:38 PM
#10
Damn that is alot of sparkage!
Thanks for the info.
I tried looking for a dual post coil with igniter but I couldn't find any. I looked around Accel and Crane in the summit site but I couldn't find any. Where can I find one?
Thanks for the info.
I tried looking for a dual post coil with igniter but I couldn't find any. I looked around Accel and Crane in the summit site but I couldn't find any. Where can I find one?
Last edited by Silverfc88; 01-02-05 at 03:40 PM.
01-02-05, 04:26 PM
#11
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by mark57
I'm powering each LX91 single post lead coil with a FC1000. The other FC1000 is underneath the one you see. May have to upgrade your coil as any ignition amp can burn up the stock coil. Go the less costly route with a dual post Accel coil and one FC1000. RP says they've seen fewer failures with the Jacobs vs. MSD, Crane, etc. Just splice into the harness and use all-weather connectors so that you can bypass the box should the need arise, ie. box failure.
ECU > ignitor > FC1000 > coil.
ECU > ignitor > FC1000 > coil.
01-03-05, 01:00 AM
#12
Lives on the Forum
I don't like the Jacobs stuff cause of their over-the-top advertising.
Some of their (old) claims were too good to be true.
I prefer the Crane Cams HI-6.
Due to rising prices, the Mallory Hyfire VI for $120 is a good option - check Jegs.COM.
There have been problems with the FC1000 box - do a search, it should pop up.
About the only "plus" about the Jacobs products is the "lifetime guarantee" they offer on some of their units, otherwise all thes CDI boxes all work about the same.
If one of them claims theirs is "better", be wary.
Be careful about making implication of the Jacobs stuff on the RX7.COM race car.
There is this thing called "sponsorship" that tends to skew on what products are the "best"...
-Ted
Some of their (old) claims were too good to be true.
I prefer the Crane Cams HI-6.
Due to rising prices, the Mallory Hyfire VI for $120 is a good option - check Jegs.COM.
There have been problems with the FC1000 box - do a search, it should pop up.
About the only "plus" about the Jacobs products is the "lifetime guarantee" they offer on some of their units, otherwise all thes CDI boxes all work about the same.
If one of them claims theirs is "better", be wary.
Be careful about making implication of the Jacobs stuff on the RX7.COM race car.
There is this thing called "sponsorship" that tends to skew on what products are the "best"...
-Ted
01-03-05, 09:27 AM
#13
Temple of Cornd0g
Originally Posted by Kenteth
functional, but i think you need to buy a grinder :P
Originally Posted by 95nRacer
I tried looking for a dual post coil with igniter but I couldn't find any. I looked around Accel and Crane in the summit site but I couldn't find any. Where can I find one?
(Edit for flames...Keep it friendly)
Last edited by Aaron Cake; 01-04-05 at 02:14 PM.
01-03-05, 10:44 AM
#14
Locust of the apocalypse
Join Date: Apr 2003
Location: Directly above the center of the earth (York, PA)
Posts: 2,553
Likes: 0
Received 1 Like
on
1 Post
My Buddy Ott had an FC-1000 on his third gen bumping up the primary spark.... Worked great for him... Its going in my car next week cause he stepped up a notch.
01-03-05, 11:18 AM
#15
Yeah I've heard different opinions on the fc1000 ignitions, but most of them have been good from what I've heard. So I'm going to try it. I like to be different anyways.
I might try using the stock T2 coil for now. I'm going to try and find a dual post coil and have it laying just in case. I don't know if I can I've looked around on different sites like accel, msd and crane and the only one I've found was on the accel site and it was a gm replacement dual coil.
I might try using the stock T2 coil for now. I'm going to try and find a dual post coil and have it laying just in case. I don't know if I can I've looked around on different sites like accel, msd and crane and the only one I've found was on the accel site and it was a gm replacement dual coil.
01-03-05, 12:37 PM
#16
Temple of Cornd0g
Jeg's has this.....http://www.jegs.com/cgi-bin/ncommerc...13&prmenbr=361
I'm told that the TII lead coil is stout.
I'm told that the TII lead coil is stout.
01-03-05, 06:18 PM
#19
Former Moderator. RIP Icemark.
Originally Posted by mark57
I just received the latest Summit catalog and don't see the two-post coils either. I will check into this further.Res ipsa loquitor and thanks for your input. The Fantasy Island Technical Advisor knows all. Don't wussy out on us; by all means slam every product carried by Rotary Performance.Chris made 402 WHP for me.
RETed made a seashell necklace and sold it to a tourist for $4.02, enough for a Happy Meal at McDonald's on the big island.
I should yank that Jacob's **** and use whatever the **** RETed uses on his pile.
Please confine your remarks to something appropriate.
You'll be on the watch list for a while now, so be on your best behavior when posting.
01-03-05, 07:02 PM
#20
Temple of Cornd0g
