these pics suck... I have more but they are to big to upload.

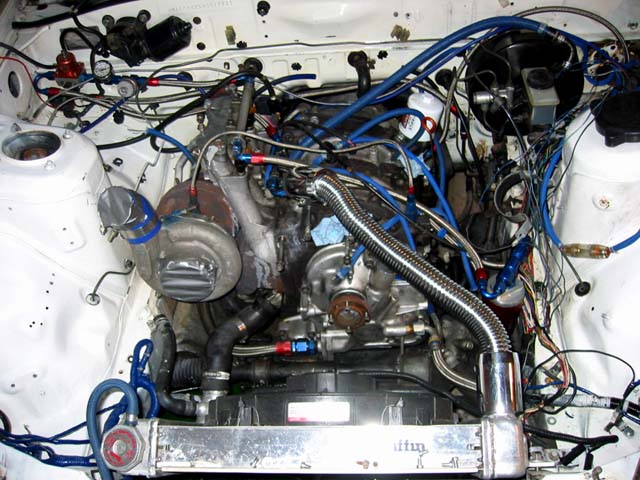

heres mine... its still a work in progress



You car is badass. I'll give you props again



Thanks dude...



cleaner now i spent a few hours the other day.



its just a mockup so i make sure that it can clear the radiator and oil cooler and hood.



Hey 13btII, your pic strikes a familiar sight to me. I'm interested in your current mods, future mods, setup, and personal reactions to the differences between the TMIC and your FMIC. Im aiming toward a streetable low 13sec seven. Your bay looks like it has one of my next steps. Thanks a bunch!!!

DAMN THERE ARE SOME SWEET BAYS OUT THERE, KEEP EM COMING!!!

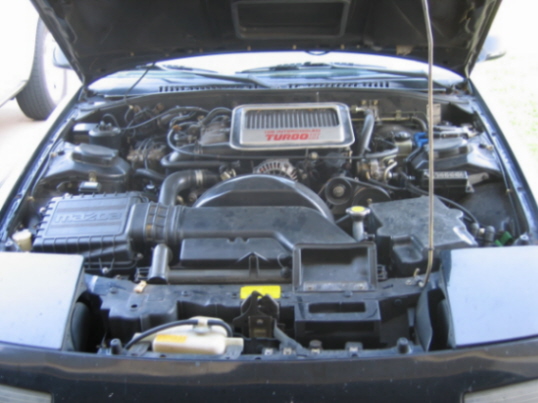

Here's mine. Just a plain old stock TII - for now. I've only had this one for about three and a half months.



That picture turned out worse than I thought. Oh, well. That won't be a problem once I finally get my website up and running and I won't have to shrink images so much.



Hey Rx-Heven, that's looking pretty damn sweet. Do you have the bottom of your 20b taped off, or is it sealed and are you gonna do dry sump with it?





where they hell did everything go, damnnnnnnn. you can fit a baby in there, you know if one "happens" to fall in there.



Heres my work in progress with the turbo being test fit:



As you can see, I have a pissload of work to do



There are some incredibly sexy engine bays on here

That 20b is teh sex



It already is dry-sumped. You can see the external pump on the front cover if you look closely. The bottom plate is a custom 3/4" cnc'd aluminum anti-sheer plate (better than dowelling) that is in place of the oil pan.



soon to be sold. then turbo gsl-se project



here goes mine larger this time.



My project in the works.



I'm not even going to post my engine bay pics, you guys put my engine to shame! Very nice setups!!!



as soon as i break in the motor i'll let you know. i only have 450 miles on it



[QUOTE=Slammedblk7]here goes mine larger this time.



holy turbine batman! What kind is that??



Here is mine. It's a big mess right now. Hoping to be done early May.



Your FC looks In better shape than mine eViLRotor. I doubt that my FC will be done for the Ottawa meet - let alone the Summer.

Anyway, here are repost pics of my former setup.



I don't think you guys would care to see a stock S5 NA motor, so I won't post mine.



Just testing the space



oh....well then



Tegheim- Are you going to clock the compressor housing or are your IC pipes going to be set up like that?
