Interior Fuse Box
10-05-04, 04:42 PM
#1
Interior Fuse Box

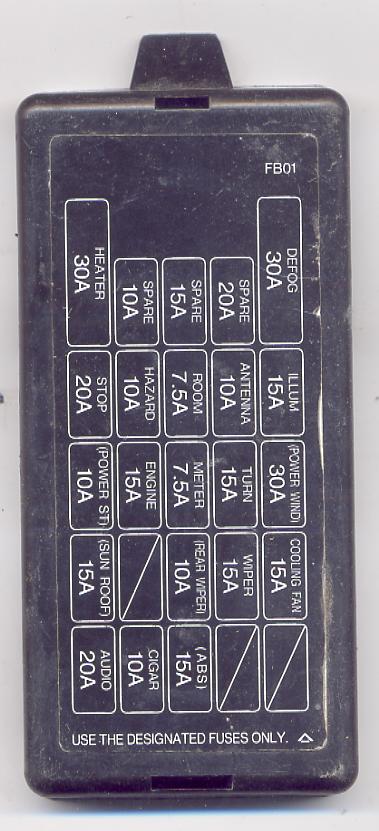

i dont have a cover for my interior fuse box so i dont have a diagram or know which fuses do what or what kind of fuse goes where, etc. Could someone take a picture of their fuse box cover and maybe post it here or email me it? I already checked 2 FSM's and a Haynes manuel and didnt find anything.
I have an 87 GXL, so i guess any s4 gxl fusebox? im not very good with electricity
I have an 87 GXL, so i guess any s4 gxl fusebox? im not very good with electricity
Last edited by JabroninWARRIOR; 10-05-04 at 05:08 PM.
10-05-04, 07:05 PM
#3
Former Moderator. RIP Icemark.
Originally Posted by JabroninWARRIOR
i dont have a cover for my interior fuse box so i dont have a diagram or know which fuses do what or what kind of fuse goes where, etc. Could someone take a picture of their fuse box cover and maybe post it here or email me it? I already checked 2 FSM's and a Haynes manuel and didnt find anything.
I have an 87 GXL, so i guess any s4 gxl fusebox? im not very good with electricity
I have an 87 GXL, so i guess any s4 gxl fusebox? im not very good with electricity
It has the fuse box covers listed as well as many other helpful and common questions.
Thread closed because you should have read the FAQ for FC thread first.
