littlebit421

There are two vacuum lines coming from the bottom of the intake tube, one goes to the back of the throttle body area, where does the other one go and can someone please up load a picture.

clokker

iTrader: (2)

Neither of those are vacuum lines, they are both metered air feeds.
One feeds the OMP injectors, the other feeds the BAC and AWS.

littlebit421

[QUOTE=clokker;12230275]Neither of those are vacuum lines, they are both metered air feeds.
One feeds the OMP injectors, the other feeds the BAC and AWS.[/QUOTE

I have one that is still hooked up and the other one has been capoed off. I was just trying to figure out exactly where it goes to make it right.

insightful

the second one is capped off, the OMP injectors get air from the UIM via the phenolic spacer by the throttle body on both turbo and non turbo models. i assume the capped smaller line is for some non USDM market cars.

littlebit421

This is what I was talking about I wasn't sure if it was important for this to be hooked up somewhere.

As you can see the smaller one is capped, both of them come off the bottom of the intake tube. The car does run fine no issues just wanted to know if it needed to go somewhere.

littlebit421

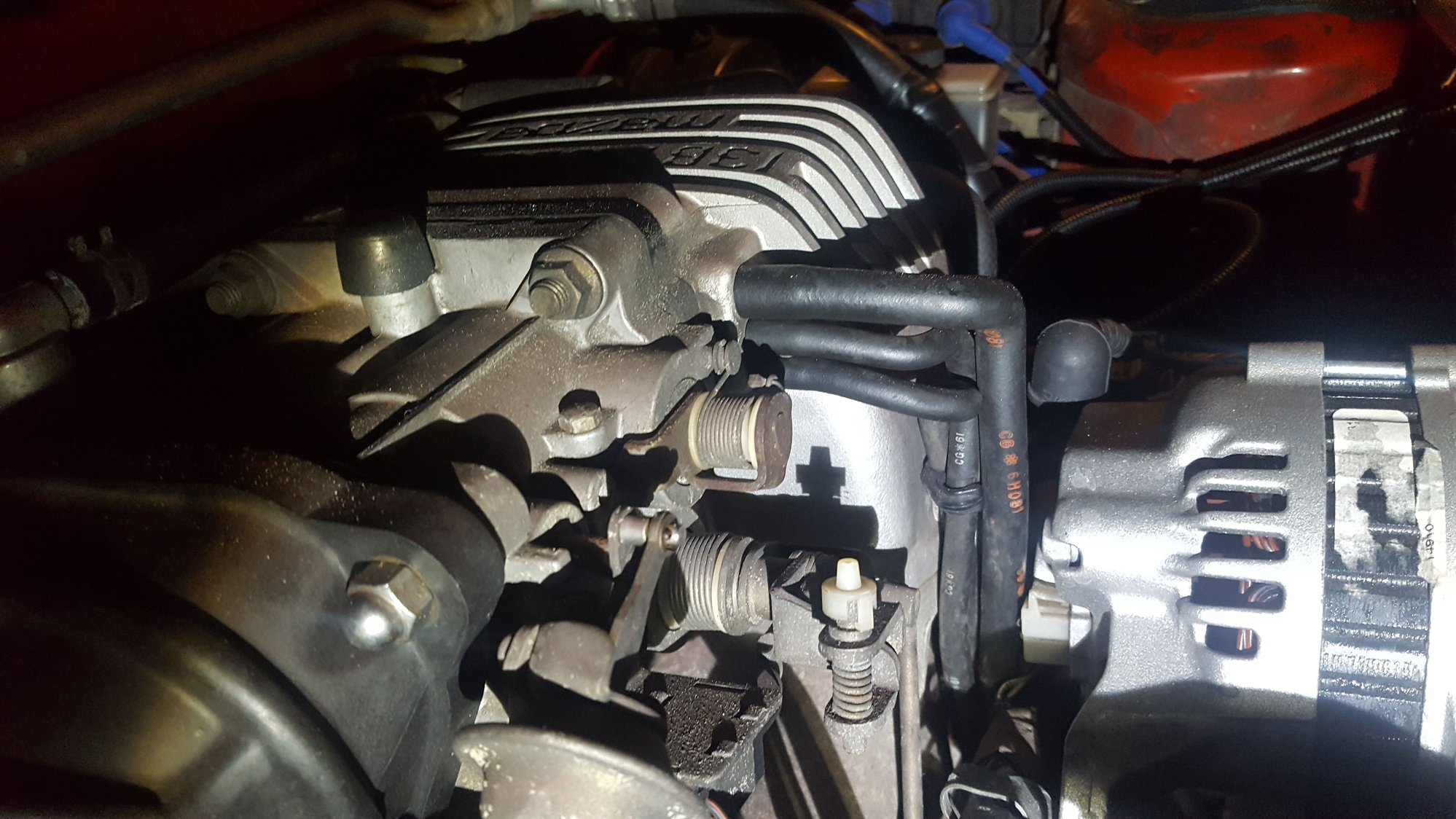

This is what I am not talking about. And I thought one of these lines is what fed the OMP injectors.

insightful

yes, that is all correct, i was merely correcting clokker. the fat line on top in the second picture feeds the oil metering nozzles.

clokker

iTrader: (2)

My description is exactly correct for a S5 NA.

littlebit421

So I do not need to worry about the capped tube on the bottom of the intake tube?
