Intake hoses connect to?
08-04-11, 08:59 PM
#1
Full Member
Thread Starter
iTrader: (1)
Join Date: Nov 2010
Location: United states
Posts: 71
Likes: 0
Received 0 Likes
on
0 Posts
Intake hoses connect to?
hey i am havving some technical difficulties figuring out some vacuum lines on a 1990 s5 na rx7.. im installing the stock intake box and i cant figure out where the two hoses connect to... one goes to the BAC but where does the other one connect to??????
08-05-11, 10:23 AM
#4
Yes, pictures would be very helpful.
If you're talking about the 2 metal connections on the bottom of the black plastic intake tube between the AFM and TB, I think the 2nd one just gets left capped. Or at least it is on an S4 NA.
If you're talking about the airbox itself, there's only the one connection for the air pump inlet.
If you're talking about the 2 metal connections on the bottom of the black plastic intake tube between the AFM and TB, I think the 2nd one just gets left capped. Or at least it is on an S4 NA.
If you're talking about the airbox itself, there's only the one connection for the air pump inlet.
08-05-11, 11:46 AM
#5
Full Member
iTrader: (2)
Join Date: Nov 2007
Location: Rhode Island
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts

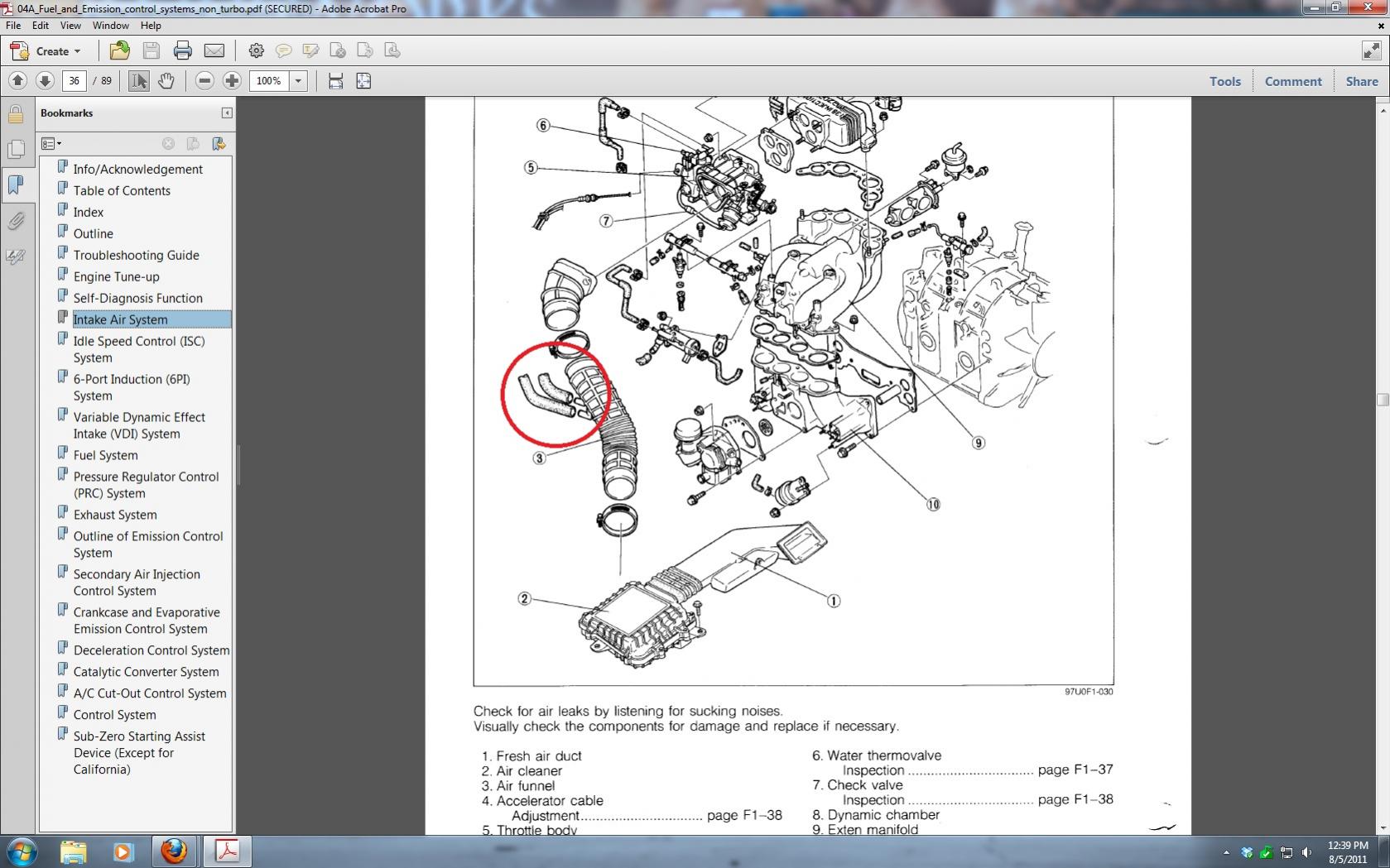

I think you mean these two hoses on what the FSM calls the air funnel. One goes to the BAC. I'm not really sure where the other one goes but I think it runs to the back of the engine and under the UIM. Then it connects either somewhere under the UIM or on the other side of the engine near the solenoid rack.
08-05-11, 01:44 PM
#6
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,604 Likes
on
1,847 Posts
AWS is the second one
