Installing Hks Afr problem
I have a 90 Rx7 N/A and I was installing the Afr and now have problem. I start the car and it shut of right away. It just like when you have the AFM unplugged turn on then off. I think I got confused on the wiring cause on the diagram it has P(afr) and a spot for P(fcd). It said to cut wire and put yellow to the ecu and white going away from ecu. So I cut the P(afr) and did it to that wire, are you suppose to use both P wire on a non turbo or just one? Then which one? Also on the diagram there is a U location but I didnt see anything to connect to it just a spot shaded on the diagram. Everything else seems to work right. Thanx for you help guys.
#3
Rotorphile.
Join Date: Mar 2002
Location: Richmond/NoVA
Posts: 1,296
Likes: 0
Received 0 Likes
on
0 Posts

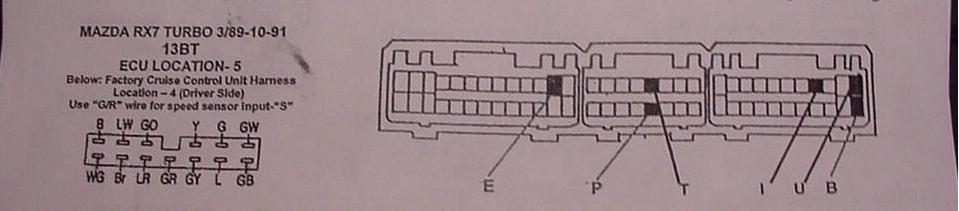

The diagram I have only has one "P," right below the "T" for S5's.
"U" is unused.
Recheck your wiring for problems and make sure the dip switches on the back are set right.
"U" is unused.
Recheck your wiring for problems and make sure the dip switches on the back are set right.
