Improving factory intake
Pretty straight forward. I want to maximize the stock intake.

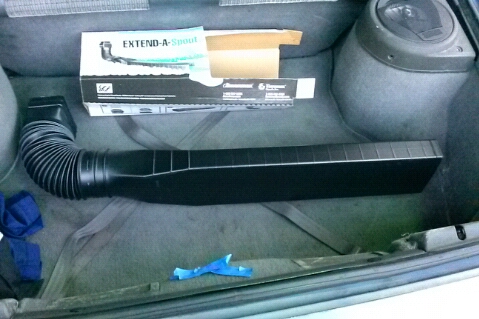

First pic is the rain gutter down spout extension I got at Home Depot. I first saw this thing about three years ago and immediately knew I want to try this. Now I have stock car to try it out.

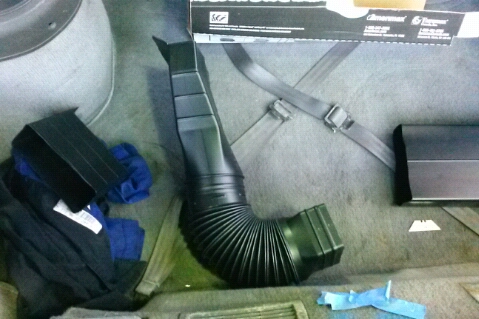

Second pic it the piece trimmed up and ready to go.

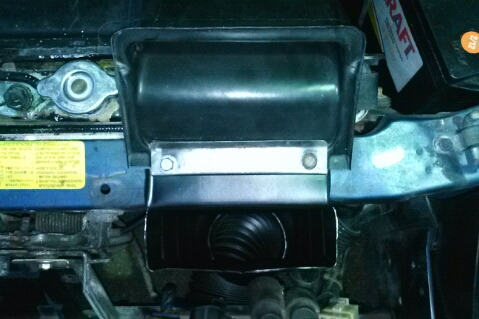

Third is the duct outlet.

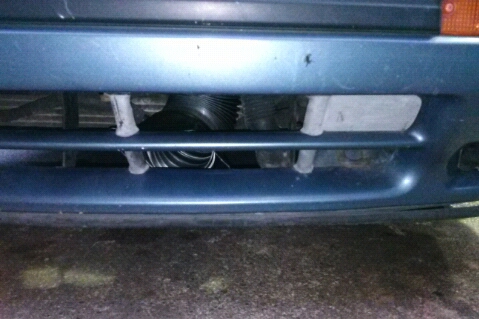

Fourth, the inlet. Its not secured in the shot, so it looks wonky.

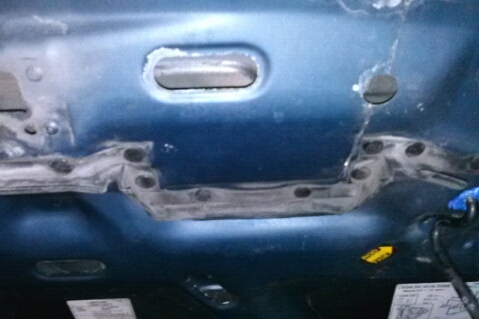

Last is the area oh the hood that needs to be trimmed back and boxed in. I believe this area and the horrific turn into the air flow meter are the biggest bottlenecks of the intake (pre manifold.) Im going to attack the hood tomorrow.
As for the lower half of the air box, I know what needs to be done. I just have to get the parts together.
First pic is the rain gutter down spout extension I got at Home Depot. I first saw this thing about three years ago and immediately knew I want to try this. Now I have stock car to try it out.
Second pic it the piece trimmed up and ready to go.
Third is the duct outlet.
Fourth, the inlet. Its not secured in the shot, so it looks wonky.
Last is the area oh the hood that needs to be trimmed back and boxed in. I believe this area and the horrific turn into the air flow meter are the biggest bottlenecks of the intake (pre manifold.) Im going to attack the hood tomorrow.
As for the lower half of the air box, I know what needs to be done. I just have to get the parts together.
