Identify please(pic)

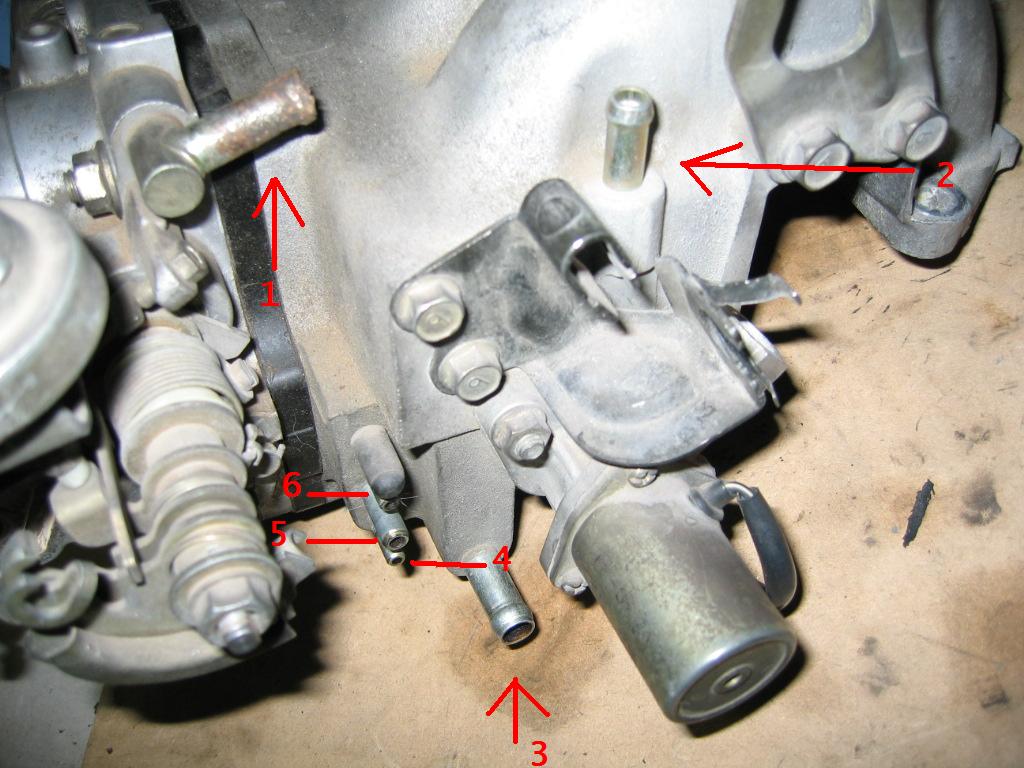

https://www.rx7club.com/attachment.p...7&d=1200940367

in this pic can someone identify these by number?

1
2
3 brake booster hardline on fire wall connects to here?
4
5
6

Reply Like

09-11-08, 06:47 PM

ITSWILL

Wiring Nightmare

iTrader: (12)

Join Date: Dec 2007

Location: Ortonville, MI

Posts: 1,707

Likes: 0

Received 1 Like on 1 Post

1 goes to the bac( thing on the intake manifold with an injector style clip going to it)

Reply Like

09-11-08, 07:02 PM

MDD0101

slowmotion

Thread Starter

Join Date: May 2004

Location: Hamden, Ct

Posts: 955

Likes: 0

Received 0 Likes on 0 Posts

thanks, had that hooked up right..just making sure with these..

Reply Like

09-11-08, 07:36 PM

K-Tune

FD Daily

iTrader: (26)

Join Date: Jul 2003

Location: Gulf Breeze, FL

Posts: 3,308

Likes: 0

Received 13 Likes on 13 Posts

1 coolant line to BAC
2 goes to bottom of stock top mount intercooler
3 never seen that, but all of my motors are j-spec
4 injector bleed
5 oil injection spider
6 dont know

my brake booster hooks to a fitting on the LIM near the firewall.
