Mushiki

That's it.

Anyone has a picture of the fuel filter location, for a S4 FC?


Thanks in advance!



-Dan

need RX7

iTrader: (4)

back driver side corner of the engine bay, bottom side. Kind of near where the tranny tunnel opens up. Just follow the fuel lines.

TongassT

Why? If you can't find it, locate your brake booster, then go straight down. It's cramped so any picture of it you get will be fuzzy and pretty useless. Most cameras cannot focus that closely.

Mushiki

Great, thanks a lot

The FSM's weren't helpful at all, hehe

jaggermouth

iTrader: (1)

really?

Spock

iTrader: (2)

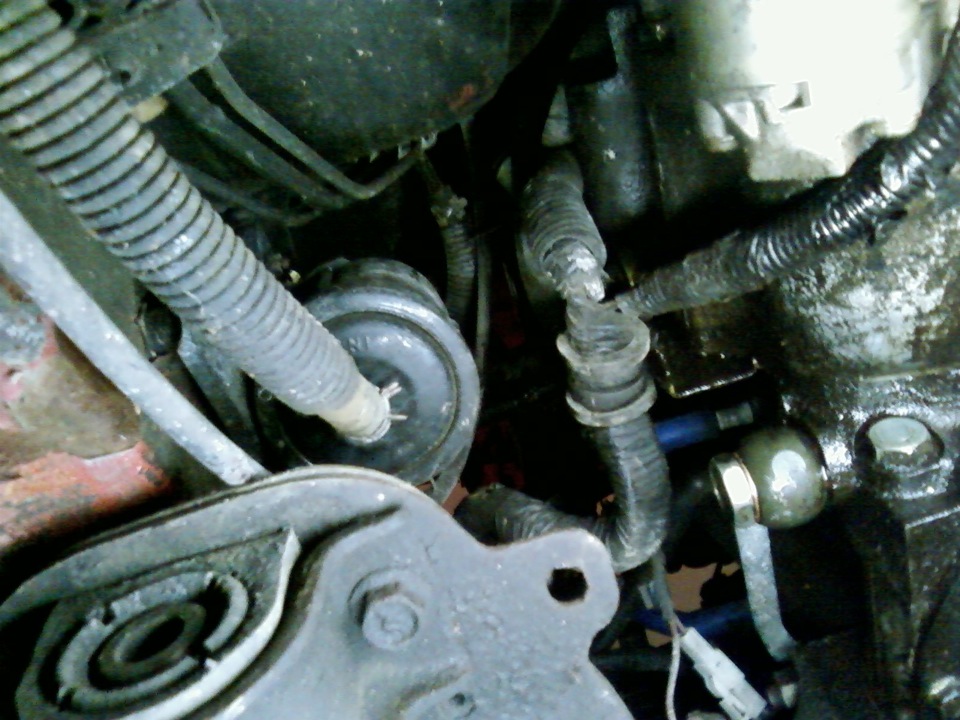

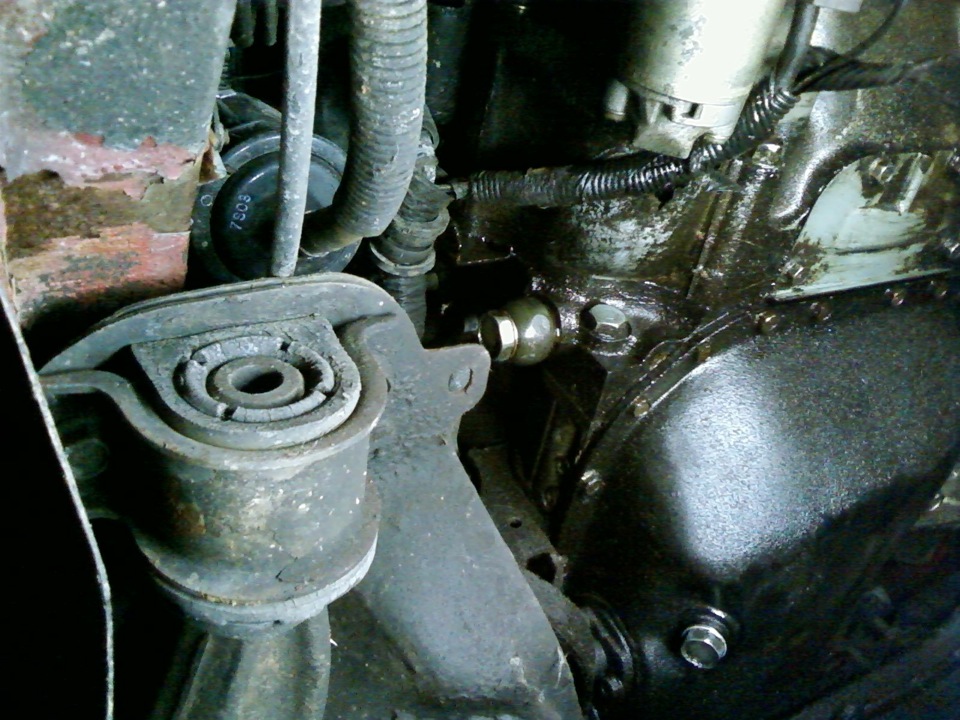

Here I took these with my cell but I think they should give you an idea. Basically you are looking right behind the drivers side front wheel. You can see the oil pan in the one I hope that will give you some orientation.

311unity13B

^^^ holy oil leaks batman! haha, i have the same problem, i am too damn lazy to fix it. but Your fuel lines look like they could use a replacing, its easy and very cheap

Spock

iTrader: (2)

LOL...yeah I know. I just got the car. I think a lot of that is from previous owners being messy changing the oil. Working on one thing at a time. Brakes are the priority right now since I need them for inspection. Why do you say fuel lines need to be replaced? just curious I haven't even looked at them...yet.

Go48

iTrader: (7)

Cheap is relative. Make sure you use high-pressure fuel line intended for fuel injection systems. Make sure the hose has stamped on it that it is for that application. BTW, it is pretty damn expensive. If you find cheap hose, it ain't the right stuff.

need RX7

iTrader: (4)

+1. It was $5 a foot when I had to buy 6 feet of it.
