I need to bypass the fuel relay for the car to stay on.. why??
#2
Must...scrub...parts...
First guess would be that it's broken. not sure how much you know about electronics, but a relay is like an electromatic switch. that's why they click, its the solenoid in them moving. If it's not burnt out, then whatever circuit that activates the relay has a problem, and that's gonna be harder to find.
#3
Full Member
Thread Starter
Join Date: Sep 2001
Location: NC
Posts: 224
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by yearrgh
First guess would be that it's broken. not sure how much you know about electronics, but a relay is like an electromatic switch. that's why they click, its the solenoid in them moving. If it's not burnt out, then whatever circuit that activates the relay has a problem, and that's gonna be harder to find.
First guess would be that it's broken. not sure how much you know about electronics, but a relay is like an electromatic switch. that's why they click, its the solenoid in them moving. If it's not burnt out, then whatever circuit that activates the relay has a problem, and that's gonna be harder to find.
#4
Must...scrub...parts...
I'm a little confused... Are you saying it will turn on without you bypassing the relay, but will stall quickly. And even if you do bypass the relay, it will die after 15 mins?
#6
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Are you talking about the yellow plug in the engine bay, or are you bypassing the circuit opening relay under the dash? If it's the plug, you're actually bypassing the safety switch in the airflow meter. If the switch isn't closing when the AFM's flap opens, you'll probably need to replace the AFM. If you're actually bypassing the relay, it could be the switch or the relay. Check the FSM for details on testing them both, then go to a wrecker and find a replacement. Either way, this is an important safety feature, so don't just leave it bypassed.
#7
Full Member
Thread Starter
Join Date: Sep 2001
Location: NC
Posts: 224
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by NZConvertible
Are you talking about the yellow plug in the engine bay, or are you bypassing the circuit opening relay under the dash? If it's the plug, you're actually bypassing the safety switch in the airflow meter. If the switch isn't closing when the AFM's flap opens, you'll probably need to replace the AFM. If you're actually bypassing the relay, it could be the switch or the relay. Check the FSM for details on testing them both, then go to a wrecker and find a replacement. Either way, this is an important safety feature, so don't just leave it bypassed.
Are you talking about the yellow plug in the engine bay, or are you bypassing the circuit opening relay under the dash? If it's the plug, you're actually bypassing the safety switch in the airflow meter. If the switch isn't closing when the AFM's flap opens, you'll probably need to replace the AFM. If you're actually bypassing the relay, it could be the switch or the relay. Check the FSM for details on testing them both, then go to a wrecker and find a replacement. Either way, this is an important safety feature, so don't just leave it bypassed.
the car works fine with the bypass for like 15-20 minutes... then it srtuggles and i just shutt it off and on and its fine again.. i had it like this for like 2 months..
Trending Topics
#10
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally posted by Quenepahead_racing
ok ok there is a plug that is between the air flow and the engine... i just plugged a connector thats going no where...i opened the circuit opening relay and when i have the bypass on.. it leaves the circuit opening relay on at all time...
ok ok there is a plug that is between the air flow and the engine... i just plugged a connector thats going no where...i opened the circuit opening relay and when i have the bypass on.. it leaves the circuit opening relay on at all time...
Either way, download the EFI chapter of the FSM and read the sections on how to test the AFM and the relay to figure out which one is the problem. It's very simple.
#14
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally posted by Quenepahead_racing
yes im jumping the yellow plug.
yes im jumping the yellow plug.
where can i download the "download the EFI chapter of the FSM" from?
Last edited by NZConvertible; 03-12-03 at 01:41 AM.
#15
Full Member
Thread Starter
Join Date: Sep 2001
Location: NC
Posts: 224
Likes: 0
Received 0 Likes
on
0 Posts
i checked the that relay the c. opening relay.. i took out the top cover and disc the jump that i was doing with the yellow plug..the relay will close then it wil open and the car will turn off.. then when i jump the yellow plug it will stay on...
#18
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
To kill the fuel pump when you have a wreck.

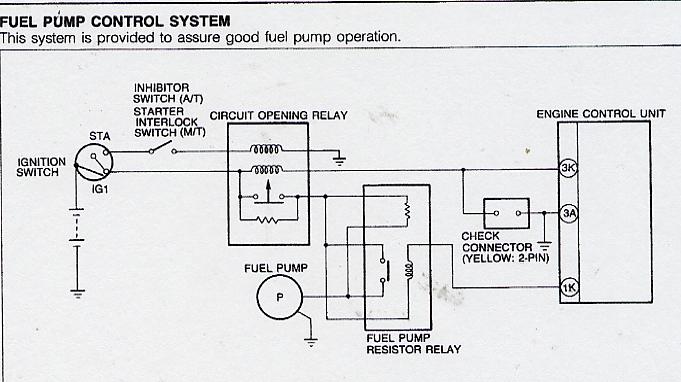

If you have a series five car, Pin 3K has to put a ground on the Circuit Opening Relay when the afm is sensing the engine is running. Put a meter on 3K, turn the key to ON, shove the afm's cone in an aft position, and see if you get a ground on 3K. If its putting out a ground signal, the relay should pull in, and KEEP the fuel pump running.
When you HOLD the key to START, you make a circuit to the fuel pump, but ONLY if the key is held to START. If the engine starts, then the cone in the afm lets the ECU know the engine is now running, and puts a permanent ground on the Circuit Opening Relay to keep the fuel pump running even when you let go of the key and are not in START anymore.
If you have a series five car, Pin 3K has to put a ground on the Circuit Opening Relay when the afm is sensing the engine is running. Put a meter on 3K, turn the key to ON, shove the afm's cone in an aft position, and see if you get a ground on 3K. If its putting out a ground signal, the relay should pull in, and KEEP the fuel pump running.
When you HOLD the key to START, you make a circuit to the fuel pump, but ONLY if the key is held to START. If the engine starts, then the cone in the afm lets the ECU know the engine is now running, and puts a permanent ground on the Circuit Opening Relay to keep the fuel pump running even when you let go of the key and are not in START anymore.
Last edited by HAILERS; 03-14-03 at 11:35 AM.
#19
Full Member
Thread Starter
Join Date: Sep 2001
Location: NC
Posts: 224
Likes: 0
Received 0 Likes
on
0 Posts
OKOKOK so that means that the Circuit Opening Relay should always stay on. right? as long as the car is on.. the relay should not turn off after the car starts. right.
see, like i said i open the top cover of the relay...then i turned on the car.. the relay turned on then it cut off....so your saying that the relay should stay on when the car is on. right? so then the relay is bad..right?
see, like i said i open the top cover of the relay...then i turned on the car.. the relay turned on then it cut off....so your saying that the relay should stay on when the car is on. right? so then the relay is bad..right?
#20
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
The relay should be pulled in:
1. When the key is HELD to START.
2. When the engine is runnig.
The relay is NOT pulled in:
1. When the key is to any other position other than START and the engine is not running.
When the engine is running, you should have a ground put on the relay by pin 3K of the ECU. The ground pulls the relay in. Assuming that the 12v is already there on the coil, which it probably is.
1. When the key is HELD to START.
2. When the engine is runnig.
The relay is NOT pulled in:
1. When the key is to any other position other than START and the engine is not running.
When the engine is running, you should have a ground put on the relay by pin 3K of the ECU. The ground pulls the relay in. Assuming that the 12v is already there on the coil, which it probably is.
