I just broke my car - upper rad hose elbow to block
#1
I just broke my car - upper rad hose elbow to block

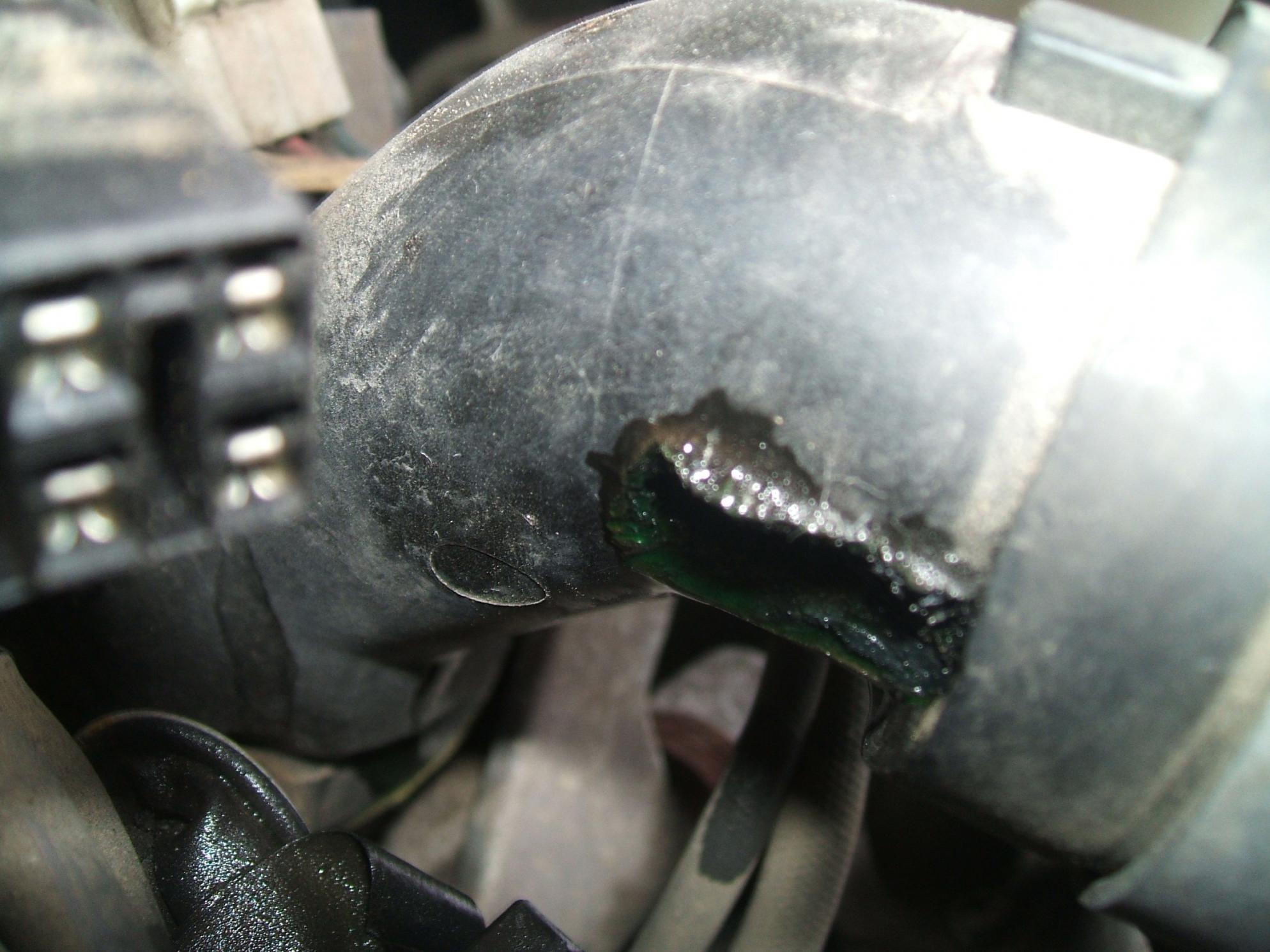

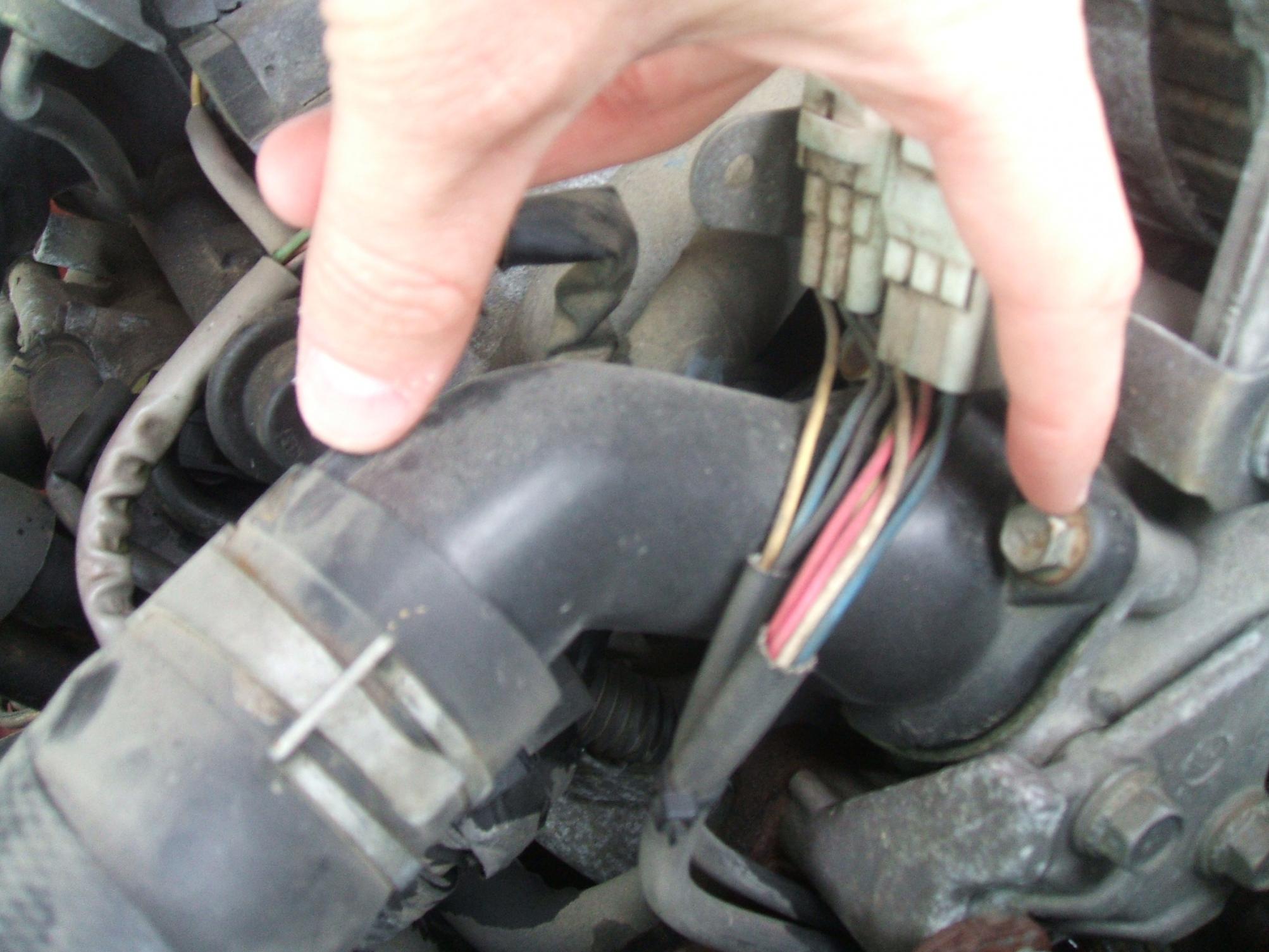

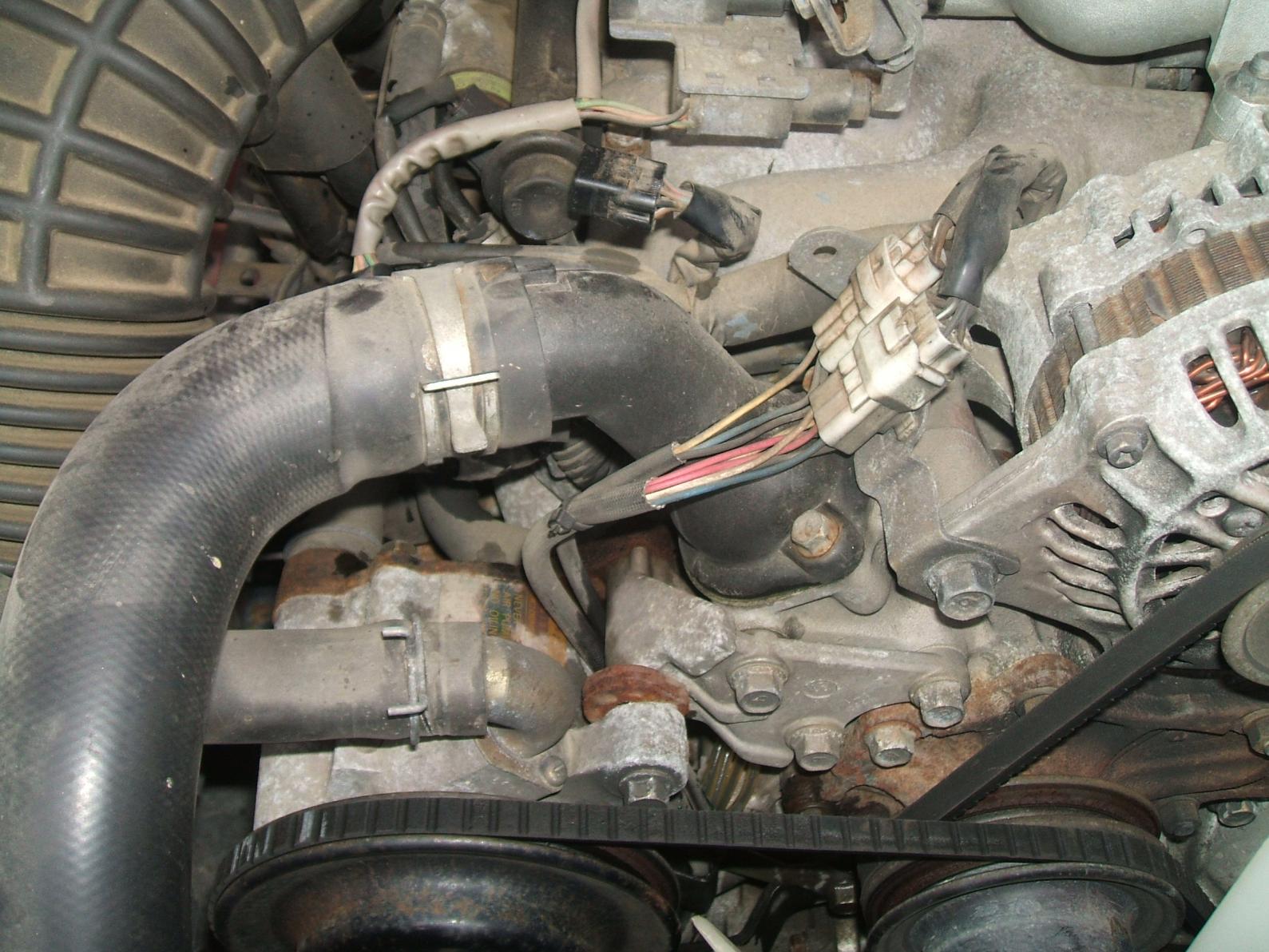

I was just trying to get my TPS plug detached from the rad hose so I could test it with a voltmeter a bit easier, and while trying to undo the very tough bolt holding the bracket that the plug sits on I tore a chunk out of the elbow that attaches the upper rad hose to the block. Needless to say the car is officially undriveable like this.
I've attached pics of what I mean. What is this piece called so I know what to look for? I've tried googling the hell out of combinations of "13b rx7 fc3s throttle elbow upper radiator hose to block" and I can't find anything that looks the same. Then again I could just be misjudging due to the angle. Any ideas? I would really love some help on this because it's my daily driver.
Also I know my engine bay is filthy, I just got it a couple months ago and making it look good has taken a back seat to making it run well. :P
edit: Car is a 1990 RX7 n/a.
I've attached pics of what I mean. What is this piece called so I know what to look for? I've tried googling the hell out of combinations of "13b rx7 fc3s throttle elbow upper radiator hose to block" and I can't find anything that looks the same. Then again I could just be misjudging due to the angle. Any ideas? I would really love some help on this because it's my daily driver.
Also I know my engine bay is filthy, I just got it a couple months ago and making it look good has taken a back seat to making it run well. :P
edit: Car is a 1990 RX7 n/a.
Last edited by Stevobob; 06-13-09 at 12:33 PM.
#5
I did call a parts store and he told me I'd only be able to get that particular part from a dealer, so I just ordered it from Mazdatrix because it felt like getting one locally would be a hassle. Now we'll see if I can get the bolts out that hold the housing to the block - I pulled on em a bit with a socket wrench and they didn't even budge, I'll work on em with a wrench or breaker bar when the new one gets here.
What are the chances that the rubber rad hose has somewhat melted to the hard plastic housing, making THAT impossible to get off without tearing too? :-/
What are the chances that the rubber rad hose has somewhat melted to the hard plastic housing, making THAT impossible to get off without tearing too? :-/
Trending Topics
#8
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
I put on a 12mm Wrench and "slap it".you usually hear a "ping" when the Bolt breaks free.(hit the wrench like you are Tapping some Idiot on the Forehead!..Whack..)..do it quick.It works Pretty good for Stuck bolts.
If you put constant pressure on the Bolt,it is Bound to NOT Break the grasp of the Threads.Using a Quick "hit' it jars the bilt into Breaking free.You can then turn it out...
OH..plastic Thermo housing?.Crap from an S5..(there are some Metal ones out there though.)..I got Both..For Sale.cough.
Good luck with the bolt.it has to Come out sometime,as you need them Out to replace the thermo housing.I would put in a New Thermostat and gasket(OEM.not Stant or Motorad) while there.
If you put constant pressure on the Bolt,it is Bound to NOT Break the grasp of the Threads.Using a Quick "hit' it jars the bilt into Breaking free.You can then turn it out...
OH..plastic Thermo housing?.Crap from an S5..(there are some Metal ones out there though.)..I got Both..For Sale.cough.
Good luck with the bolt.it has to Come out sometime,as you need them Out to replace the thermo housing.I would put in a New Thermostat and gasket(OEM.not Stant or Motorad) while there.
#9
International Expert
iTrader: (1)
Join Date: May 2009
Location: Avondale, AZ
Posts: 262
Likes: 0
Received 0 Likes
on
0 Posts
If you can get a brass drift or something put it straight on the bolt and tap it with a hammer. It will jolt the bolt and break off some of the build up that makes it stick. Also spray some WD-40, or some other brand of penetrating oil. Thats what i have always had to do when working on some of these exhausts. Oh and like he said be gentle with the bolt when taking it out. dont wanna break it then be forced to drill it out. That just takes more time.
#11
That is exactly the kinda tip I need, thanks a ton. Is a new thermostat absolutely necessary (taking housing off breaks it somehow?) or does it just make sense since it'll fail eventually and I'll just have to take the housing off again?
misterstyx, check your PMs please.
misterstyx, check your PMs please.
#12
International Expert
iTrader: (1)
Join Date: May 2009
Location: Avondale, AZ
Posts: 262
Likes: 0
Received 0 Likes
on
0 Posts
One of those things thats normally cheap enough and easier to change while you have it apart. "Preventative Maintenance." Like doing a rear main sear when you do your clutch. Just easier when you have it apart. But it shouldn't be a mandatory thing.
#14
International Expert
iTrader: (1)
Join Date: May 2009
Location: Avondale, AZ
Posts: 262
Likes: 0
Received 0 Likes
on
0 Posts
I work at a dealer so i always recommend the oem gaskets. Its your call though. As long as you get it to seal and its not so much to clean up later RTV works. Just make sure you get the right stuff. Some of that stuff is a pain to clean up next time you have it off.
