I finally painted my 10AE (Black) Pics
#1
What R U thinking self?
Thread Starter
Join Date: Mar 2002
Location: Stockton, CA
Posts: 2,333
Likes: 0
Received 0 Likes
on
0 Posts
I finally painted my 10AE (Black) Pics

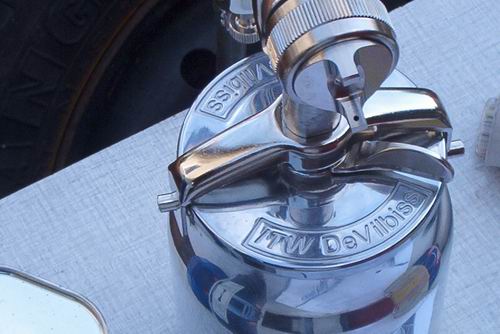

Well I got tired of spending my paint savings on other toys, so I did it myself. 5 weekends of work, 5 star self etching primer, Dupont 3.5 VOC ful-thane high solids black urethane paint, a 26 gallon Cambell Hausfeld compressor with an 11 gallon add on tank, and Devbliss finish line 3 HVLP spray gun. It was A LOT of work, I mean insane! Almost as many hrs as I have wrenching on this thing. It's still not done, I only have the hood on phase one of the buffing, but I should have it all cleaned up and buffed out in the next weekend or so.
Robert
Keep in mind it's not close to done yet, here are the pics;
AE pics
Click where is says "Full Size" for a better view.
Robert
Keep in mind it's not close to done yet, here are the pics;
AE pics
Click where is says "Full Size" for a better view.
Last edited by Rpeck; 09-23-03 at 12:24 AM.
#3
What R U thinking self?
Thread Starter
Join Date: Mar 2002
Location: Stockton, CA
Posts: 2,333
Likes: 0
Received 0 Likes
on
0 Posts
Ohh, it's comming out fantastic, It will be perfect when I am done. All the white all over, and in the body lines is just the 3M buffing compounds I have not wiped out of the cracks, or off the un buffed parts yet. I will post more pics when it's totaly done.
#7
What R U thinking self?
Thread Starter
Join Date: Mar 2002
Location: Stockton, CA
Posts: 2,333
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by BlackIceGuitar
Looks like Its comming along good!
Looks like Its comming along good!
Robert
Trending Topics
#8
Senior Member
iTrader: (2)
Was your paint peeling? My AE has peeling paint and I have been contemplating getting it repainted, but I was told that I would have to strip the entire car first.
What did $700 include?
How much time did it take you to prep?
Did you have any body work to do (dents, dings, etc.)
What did $700 include?
How much time did it take you to prep?
Did you have any body work to do (dents, dings, etc.)
#9
What R U thinking self?
Thread Starter
Join Date: Mar 2002
Location: Stockton, CA
Posts: 2,333
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by cblake3
Was your paint peeling? My AE has peeling paint and I have been contemplating getting it repainted, but I was told that I would have to strip the entire car first.
What did $700 include?
How much time did it take you to prep?
Did you have any body work to do (dents, dings, etc.)
Was your paint peeling? My AE has peeling paint and I have been contemplating getting it repainted, but I was told that I would have to strip the entire car first.
What did $700 include?
How much time did it take you to prep?
Did you have any body work to do (dents, dings, etc.)
The prep took about 80 Hrs I would gestimate, lots and lots of sanding until my hands bled, alot of places to small to use any power sanders. The body was very strait not a ounce of bondo anywhere, no bodywork at all.
$700 included the sand papers, the hardner, the wax and grease remover, the self etching primer (1 gallon), the tack cloths, drop cloths, 2 fans, the HVLP spray gun, 1 gallon of Dupont paint, the catalist, the mixing cups, the 3 step 3M post paint buffing compounds (fine rubbing compound, swirl mark remover, finishing glaze) Masking tape, and all other paint accesories minus the Air compressor (I already had) and the Electric buffer (already had)
Last edited by Rpeck; 09-23-03 at 05:01 PM.
#10
Rotary Enthusiast
iTrader: (31)
Looks good. I too am in the middle of paint work and that's how my car will be at SS6, cause I"m taking it... even if it's primered and in the middle of body work...
I am a bit concerned that you didn't take all the paint off to primer since there is still a chance that the white will pull from the primer... but other wise it looks good, and you may never have a problem.
Just to be safe (and super ****) on my repaint I took it to metal, but that adds a ton of work with metal prep etc.
It's kinda fun to do this stuff yourself... but very time consuming.
-Chris
I am a bit concerned that you didn't take all the paint off to primer since there is still a chance that the white will pull from the primer... but other wise it looks good, and you may never have a problem.
Just to be safe (and super ****) on my repaint I took it to metal, but that adds a ton of work with metal prep etc.
It's kinda fun to do this stuff yourself... but very time consuming.
-Chris
#11
What R U thinking self?
Thread Starter
Join Date: Mar 2002
Location: Stockton, CA
Posts: 2,333
Likes: 0
Received 0 Likes
on
0 Posts
I am not to worried about any paint peeling, the self etching primer/sealer is on very thick, and designed to penetrate and stop any of that. Also the existing paint I left did not come off from 125 PSI of direct water pressure and 320 sand paper till feathered, so I think it's good for life. I also put 4 semi think coats of paint on the primer.
I will keep you posted though.
Good luck on your project, and if you have any questions feel free to ask. I read a couple of books before I started this, and read alot of forums on do it yourself auto body work.
Robert
I will keep you posted though.
Good luck on your project, and if you have any questions feel free to ask. I read a couple of books before I started this, and read alot of forums on do it yourself auto body work.
Robert
#12
12 parsecs, bitches
Join Date: May 2003
Location: Margaritaville
Posts: 468
Likes: 0
Received 0 Likes
on
0 Posts
Not to be a dick, but did you redo both the door jams and the engine bay? In looking at your hood you can see between the fender and hood to the white paint inside. I know Chris just redid his engine bay and that was hella work, and since you're going white to black I was just curious to know if you're doing the whole car or just the exterior. So far it looks good. Body work is a bitch, I learned that this weekend.
#13
What R U thinking self?
Thread Starter
Join Date: Mar 2002
Location: Stockton, CA
Posts: 2,333
Likes: 0
Received 0 Likes
on
0 Posts
Yes I did the engine bay months ago (when I rebuilt the motor) , and I did do the edges of the hood, and all the jams. Thats not white paint you see, thats the buffing compounds that got flung in the cracks I have not wiped any of it out yet, I explained this above
#16
What R U thinking self?
Thread Starter
Join Date: Mar 2002
Location: Stockton, CA
Posts: 2,333
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by 2ndGen.rocket
looks nice. I love black FC's. thats what color mine is gonna be soon.
looks nice. I love black FC's. thats what color mine is gonna be soon.
Robert
Last edited by Rpeck; 09-24-03 at 11:15 AM.
#17
Ho's and Cadillac Doors
yeah, definitely alloys or a light gunmetal finish like the Volk rims. I also agree that 10AE's should have been black. It makes the lines of the car so much cleaner, and it does look much classier. White IMO is too bright, and it doesn't go good with the car, especially with white rims as well. It may have looked cool in 88', but im not a fan in 03'. no offense to any stock 10ae owners by the way.
#18
Senior Member
iTrader: (10)
Join Date: Sep 2002
Location: Chicago
Posts: 469
Likes: 0
Received 0 Likes
on
0 Posts
I love black fc's. Especially 10AE's.
Seeing that a lot of people seem to be painting their cars, i think i will undergo the challenge when the time comes. I can't wait to see the finished product.
Seeing that a lot of people seem to be painting their cars, i think i will undergo the challenge when the time comes. I can't wait to see the finished product.
#22
What R U thinking self?
Thread Starter
Join Date: Mar 2002
Location: Stockton, CA
Posts: 2,333
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by eViLRotor
This isn't sweet????
Damm!!!
This isn't sweet????
Damm!!!
Robert
Last edited by Rpeck; 09-24-03 at 03:46 PM.
#23
Brother of the Rotary
iTrader: (2)
Originally posted by Rpeck
No, that looks real good! Evil, But I see you dumped the AE rims But thats not a stock look either, with the FMIC showing, the nose, and the headlight. I just say if I imagine that exact same car there in black it looks even sweet'er to me. But, I have a black/red jetski, black truck, black/red motorcycle, I just love the look of a clean black paint job.
Robert
No, that looks real good! Evil, But I see you dumped the AE rims But thats not a stock look either, with the FMIC showing, the nose, and the headlight. I just say if I imagine that exact same car there in black it looks even sweet'er to me. But, I have a black/red jetski, black truck, black/red motorcycle, I just love the look of a clean black paint job.
Robert
I just wanted to see if you can still acknowledge the quality of a car, even if it is white. Kinda like saying a hot girl isn't hot because she's a brunette...
My car isn't white either...its pearl
#25
FC guy
iTrader: (8)
good for you, only thing I would add is in the future lay out the money for better paint that all.
I know you used DuPont, I love DuPont, but the Nason line is very budget, mostly used on trailers and things like that. Spend the extra dollars so a few years down the road the paint job holds up. same goes for primers, a paint job is only as good as its primer and its main bond, so if that white paint that was flaking off underneath decides to start again, your white paint will fly off with the primer and paint you applied on top of it going along for the ride.
I know you used DuPont, I love DuPont, but the Nason line is very budget, mostly used on trailers and things like that. Spend the extra dollars so a few years down the road the paint job holds up. same goes for primers, a paint job is only as good as its primer and its main bond, so if that white paint that was flaking off underneath decides to start again, your white paint will fly off with the primer and paint you applied on top of it going along for the ride.
