how to tell the difference between low imped harness and high imped harness?
#4
mattg prob nt coming back
Thread Starter
iTrader: (3)
Join Date: Feb 2005
Location: OrangePark FL
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts

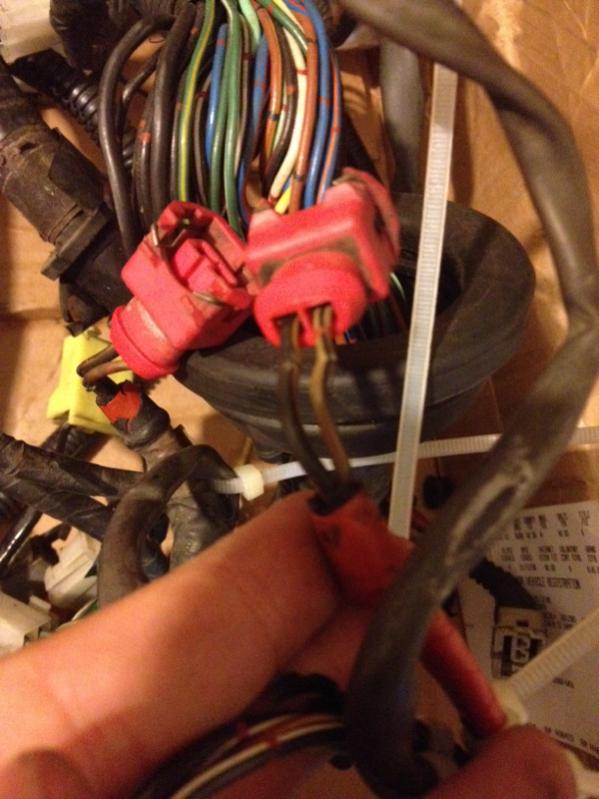

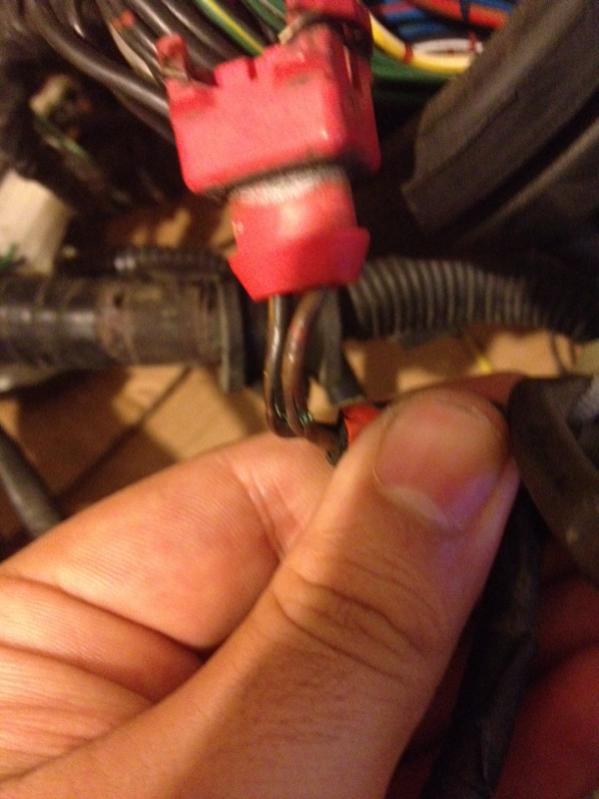

This is to identify a harness outside of the car.
Any other way of telling besides the wires to the injectors as the injectors have that black tar-ish boot that covers them
Any other way of telling besides the wires to the injectors as the injectors have that black tar-ish boot that covers them
Trending Topics
#9
Moderator
iTrader: (1)
https://www.rx7club.com/2nd-generati...es-do-1007910/
And the Brown wires which feed voltage to the injectors have two ends to the wire, one at the injector and one at the other end of the harness thus there would be two places to look at.
And the Brown wires which feed voltage to the injectors have two ends to the wire, one at the injector and one at the other end of the harness thus there would be two places to look at.
Last edited by satch; 11-03-13 at 02:39 PM.
#10
mattg prob nt coming back
Thread Starter
iTrader: (3)
Join Date: Feb 2005
Location: OrangePark FL
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Ok I have a new question. Which color wires go to which housing? I'm confused looking at the wire schematic as to which is the front rotor's primary and secondary injector plugs/wires
#12
mattg prob nt coming back
Thread Starter
iTrader: (3)
Join Date: Feb 2005
Location: OrangePark FL
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Both primary and secondary are light green?
Edit* I'm retarded. They are all light green. I am looking for the light green/brown and the light green/brown white for primary and secondary
Thanks Satch :P
Edit* I'm retarded. They are all light green. I am looking for the light green/brown and the light green/brown white for primary and secondary
Thanks Satch :P
#16
Moderator
iTrader: (1)
If you have the low resistor harness then the wires powering the injectors would be Brown. If they were high impedance the wires would be Black/Yellow and this was stated in post #2. If you have B/Y wires instead of Br wires then the Light Green wires are still connected to the injectors in the same fashion; Light Green to FP. LG/W to FS. LG/B to RP. and LG/R to RS.
