How to measure intake temperature?
#1
Full Member
Thread Starter
Join Date: Jun 2004
Location: f
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
How to measure intake temperature?
I'm wanting to check what sort of intake temps i've got after the intercooler, does anyone know any good ways of checking this? Is there any guages you can buy for this purpose?
#4
Senior Member
iTrader: (6)
I have a digital gauge that I bought a year ago I'd be willing to sell to you cheap.
It consists of a probe and a digital Celsius readout. You can also set an alarm to go off at certain temps.
If you're interested, let me know and I'll take a coupla pics and send to you.
It consists of a probe and a digital Celsius readout. You can also set an alarm to go off at certain temps.
If you're interested, let me know and I'll take a coupla pics and send to you.
#5
Full Member
Thread Starter
Join Date: Jun 2004
Location: f
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
yeah problem is i'm in australia, and i can get a front mount set up for about what that autometer guage costs
thanks though, but wouldn't be worth the international postage
thanks though, but wouldn't be worth the international postage
#6
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
You can measure the voltage at the stock air temp sensor. Of course it's then your problem to convert that to a real temperature value.
Or, mount a GM temp sensor to your intake tract as values for that sensor are easily found with a little Google searching...
Or, mount a GM temp sensor to your intake tract as values for that sensor are easily found with a little Google searching...
#7
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by RyosukeFC3C
thanks, i've done a google on them, fark they are really expensive
like $600 AU dollars, that's bullshit! i'm not paying that much for a guage
like $600 AU dollars, that's bullshit! i'm not paying that much for a guage
I use a NZ$45 digital LCD temp display with the probe inserted into the IC-TB elbow. It works well but it's not back-lit. If you want something a bit flasher, places like Dakota Digital and Nordskog Performance make nice stuff.
Last edited by NZConvertible; 05-27-06 at 08:45 PM.
Trending Topics
#8
Full Member
Thread Starter
Join Date: Jun 2004
Location: f
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by NZConvertible
I don't know what the hell you were looking at, but I'm sure it wasn't anything to do with this topic...
I use a NZ$45 digital LCD temp display with the probe inserted into the IC-TB elbow. It works well but it's not back-lit. If you want something a bit flasher, places like Dakota Digital and Nordskog Performance make nice stuff.
I use a NZ$45 digital LCD temp display with the probe inserted into the IC-TB elbow. It works well but it's not back-lit. If you want something a bit flasher, places like Dakota Digital and Nordskog Performance make nice stuff.
http://www.modyourcar.com.au/product...roducts_id=251
http://www.wheelspin.com.au/catalog/...roducts_id=347
http://www.xspeed.com.au/shop/index....26_167_170_173
it's all there, around 600$, but i might check out that jaycar one
actually i just bought the jaycar one, it's cheap, hopefully it'll work properly and be responsive.
What sort of temps do you look for normally and what sort of temps are a big warning?
#9
Damn Right It's Me
iTrader: (1)
Join Date: Jan 2003
Location: Chino Hills, Cali
Posts: 1,331
Likes: 0
Received 0 Likes
on
0 Posts
SP Intercooler Temp. Gauge (Amber) $295.00
SP's intercooler temp gauge is made from real aircraft material and will measure the inlet and outlet temperatures in fahrenheit. The gauge will also measure the differences in the two temperatures. Dimension: 2.50 x 1.10 x 1.00. ***Complete Kit***
http://www.sp-power.com/catalog/prod...oducts_id=1218
SP's intercooler temp gauge is made from real aircraft material and will measure the inlet and outlet temperatures in fahrenheit. The gauge will also measure the differences in the two temperatures. Dimension: 2.50 x 1.10 x 1.00. ***Complete Kit***
http://www.sp-power.com/catalog/prod...oducts_id=1218
#10
Full Member
Thread Starter
Join Date: Jun 2004
Location: f
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by MrFuzzy
SP Intercooler Temp. Gauge (Amber) $295.00
SP's intercooler temp gauge is made from real aircraft material and will measure the inlet and outlet temperatures in fahrenheit. The gauge will also measure the differences in the two temperatures. Dimension: 2.50 x 1.10 x 1.00. ***Complete Kit***
http://www.sp-power.com/catalog/prod...oducts_id=1218
SP's intercooler temp gauge is made from real aircraft material and will measure the inlet and outlet temperatures in fahrenheit. The gauge will also measure the differences in the two temperatures. Dimension: 2.50 x 1.10 x 1.00. ***Complete Kit***
http://www.sp-power.com/catalog/prod...oducts_id=1218
yeah, that's american though, like i said, wayyyyy expensive
thanks though
#11
Full Member
Thread Starter
Join Date: Jun 2004
Location: f
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
While i'm on this
How high is too high?
I've heard of people getting 80 degrees celcius (176 farren) on the top mount
down to 50 degrees, then down to 30-40 degrees for custom air to water.
What's a dangerous level?
How high is too high?
I've heard of people getting 80 degrees celcius (176 farren) on the top mount
down to 50 degrees, then down to 30-40 degrees for custom air to water.
What's a dangerous level?
#12
Haven't we ALL heard this
I guess the danger depends on your boost level, are you retarding your ignition, what gas are you running, what plugs are you running, how hot it is outside,
I mean if you are running 14psi with the aid of a FCD so that means your ign advance would be that of 9psi on a S5, your running 89 octane, its hot outside, and you are running the stock plugs 7s and 9s....then anything would be danger
James
Edit - I have one of these gauges...I like it
http://www.omorimeter.com/52mm_intake_temp_gauge.htm
James
I mean if you are running 14psi with the aid of a FCD so that means your ign advance would be that of 9psi on a S5, your running 89 octane, its hot outside, and you are running the stock plugs 7s and 9s....then anything would be danger
James
Edit - I have one of these gauges...I like it
http://www.omorimeter.com/52mm_intake_temp_gauge.htm
James
#13
Full Member
Thread Starter
Join Date: Jun 2004
Location: f
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Wankel7
I guess the danger depends on your boost level, are you retarding your ignition, what gas are you running, what plugs are you running, how hot it is outside,
I mean if you are running 14psi with the aid of a FCD so that means your ign advance would be that of 9psi on a S5, your running 89 octane, its hot outside, and you are running the stock plugs 7s and 9s....then anything would be danger
James
I mean if you are running 14psi with the aid of a FCD so that means your ign advance would be that of 9psi on a S5, your running 89 octane, its hot outside, and you are running the stock plugs 7s and 9s....then anything would be danger
James
Well boost is 15psi, remmapped ecu, ignitions probably retarded (not entirely sure but it would have to be) running 98RON UPUMP, plugs not sure, it's about 70 farrenheight outside majority of the time for a high temp, so it's pretty cold here
it's not at all running rich either, pretty stoic if that makes a differnece
#14
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by RyosukeFC3C
it's all there, around 600$
Plus, If you buy an "intercooler temp gauge" or an "intake temp display" from a place that sells over-priced aftermarket car parts, you should expect to be bent over a rain barrel. If you buy something designed to measure temps, any temps on anything you want, then you'll pay much more reasonable prices.
actually i just bought the jaycar one, it's cheap, hopefully it'll work properly and be responsive.
http://www.jaycar.com.au/productView.asp?ID=KC5376
What sort of temps do you look for normally and what sort of temps are a big warning?
#16
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

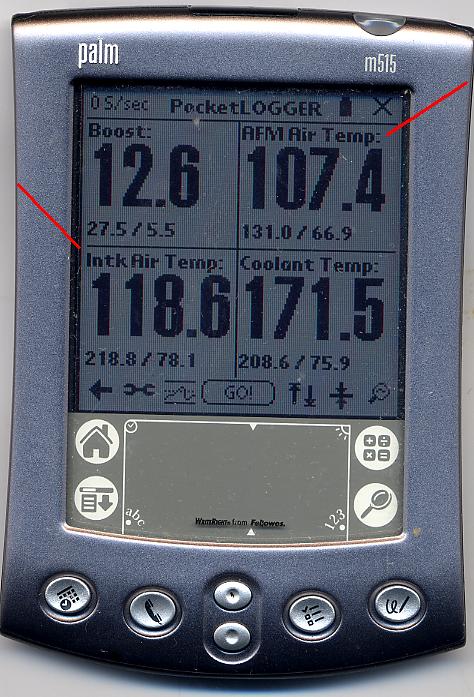

The RTEK2.0 displays both afm temps and intake temps as shown in an attached jpg of a Palm doing so.

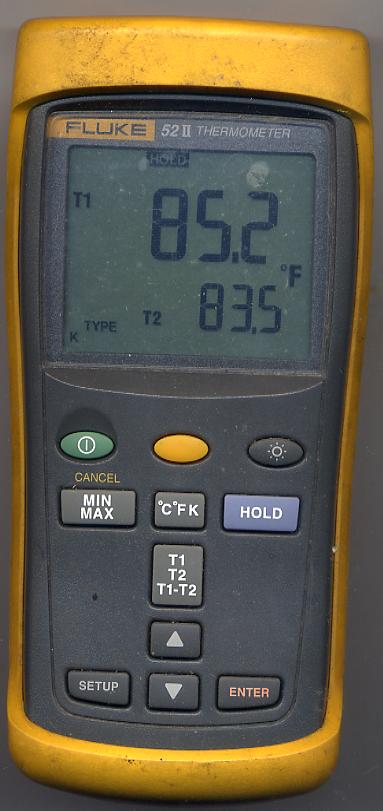

The FLUKE 52 II shown in the other jpg uses K probes (picture a piece of wire about the size of a clothes hanger), and its less intrusive than some of the devices in above posts. The probe is only requires a hole be drilled of about 3/32nds in the duct and the probe inserted. MUCH quicker readings than the thermistor type probes.
The JAYCAR stuff works fine. I've built a couple of their Simple Voltage switches and their Frequency Switch (better than the SummitRacing one).
The FLUKE 52 II shown in the other jpg uses K probes (picture a piece of wire about the size of a clothes hanger), and its less intrusive than some of the devices in above posts. The probe is only requires a hole be drilled of about 3/32nds in the duct and the probe inserted. MUCH quicker readings than the thermistor type probes.
The JAYCAR stuff works fine. I've built a couple of their Simple Voltage switches and their Frequency Switch (better than the SummitRacing one).
