housing ? with pix

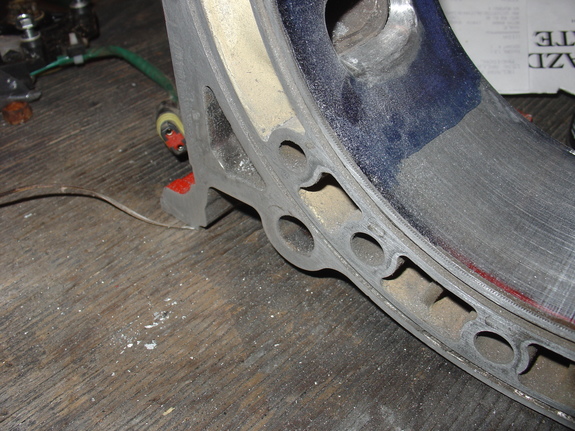

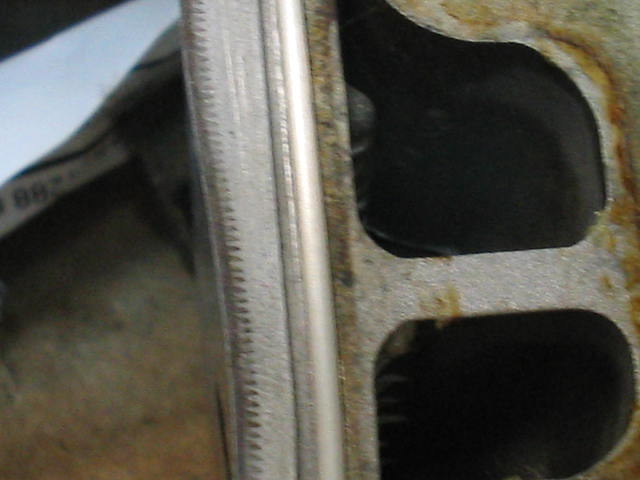

sup guys, i have this one turbo housing to use in my rebuild and it seems to have its own spot for a water jacket seal and none of my N/A housimgs have the same, can anyone shed some light on this for me?
thanks
Dennis
thanks
Dennis
Last edited by kanuk93gt; 08-10-06 at 09:46 AM.
#4
Boost in..Apex seals out.
Join Date: Nov 2003
Location: Maryland, 21794
Posts: 1,931
Likes: 0
Received 0 Likes
on
0 Posts
I'm betting the port sizes are different..
You'd have to do some hellacious port-matching to get them to flow equally. That and...its older...most likely the S4+ has revised coolant areas, etc...
I wouldn't use it :\
You'd have to do some hellacious port-matching to get them to flow equally. That and...its older...most likely the S4+ has revised coolant areas, etc...
I wouldn't use it :\
#5
Engineering Student
Thread Starter
Join Date: May 2005
Location: Tennessee Tech University
Posts: 414
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by adrock3217
I'm betting the port sizes are different..
You'd have to do some hellacious port-matching to get them to flow equally. That and...its older...most likely the S4+ has revised coolant areas, etc...
I wouldn't use it :\
You'd have to do some hellacious port-matching to get them to flow equally. That and...its older...most likely the S4+ has revised coolant areas, etc...
I wouldn't use it :\
Last edited by kanuk93gt; 08-10-06 at 11:40 AM.
#6
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
You can't use it. If you look at your S4 irons, they have a groove cut in them for the water jacket o-ring. If you use that housing, there is no surface on the housing for the ring to seal against....The S4-S6 housings are not grooved and are totally flat...

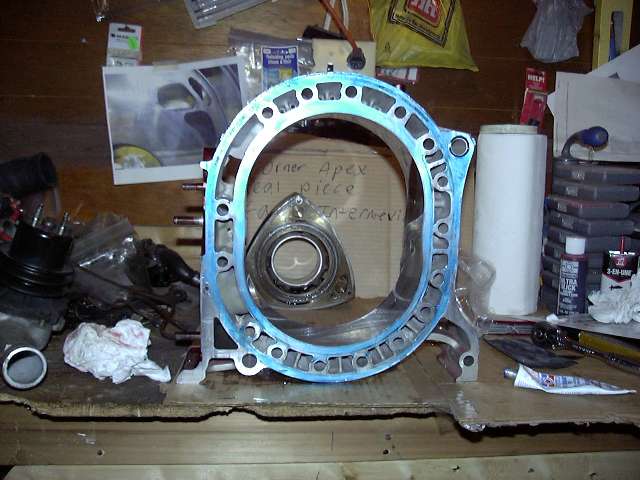

Here's an S4 housing:"

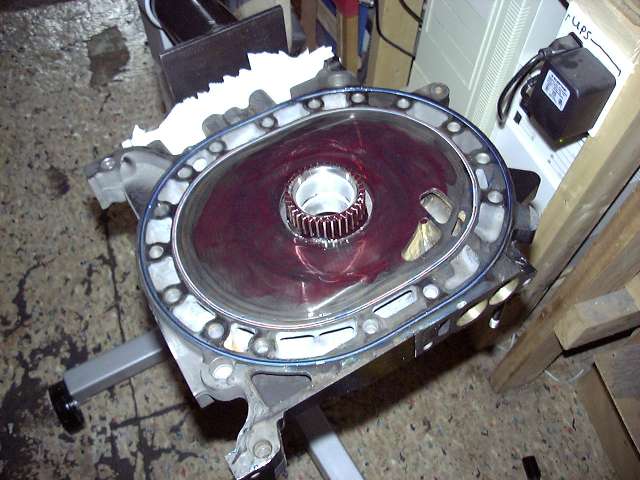

And the iron to match:
See the difference in water o-ring locations?
Here's an S4 housing:"
And the iron to match:
See the difference in water o-ring locations?
Trending Topics
#8
What Subscription?
Join Date: Apr 2001
Location: Aiken SC USA
Posts: 5,926
Likes: 0
Received 0 Likes
on
0 Posts
You can fill in one set of the grooves, I've done it. And if that isnt good enough Daryl Drummond does it. Just use DEVCON Liquid Steel B and follow their tech instructions to the letter. I have pics posted over on the other site of a set of irons I filled the water seal groove on for a P-Port engine
I am using 84 Housings with a S5 Front iron, works fine
I am using 84 Housings with a S5 Front iron, works fine
#11
NASA geek
iTrader: (2)

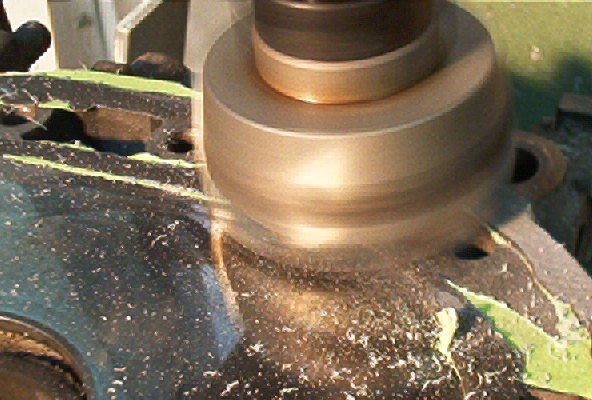

Possible to use it, YES (if your particular in your work and have a end mill or a very well set up drill press with a moving bed). But it’s a bad idea for someone who doesn't posses those tools or who has little patience for attention to detail. Just get the proper housing. Used ones aren't expensive.
~Mike.............
~Mike.............
#14
What Subscription?
Join Date: Apr 2001
Location: Aiken SC USA
Posts: 5,926
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 1Revvin7
haha, John you jackass!
Thank you, I'll be here all week; please remember to tip your waitress!
Now back to our regularly scheduled programming
#15
Engineering Student
Thread Starter
Join Date: May 2005
Location: Tennessee Tech University
Posts: 414
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RacerXtreme7
Used ones aren't expensive.
~Mike.............
~Mike.............
but a mill and drill press, i may have....
