Hmmm..Tie-rod help
#1
Hmmm..Tie-rod help
I started my tie-rod (inner & outer) and I have 2 questions:

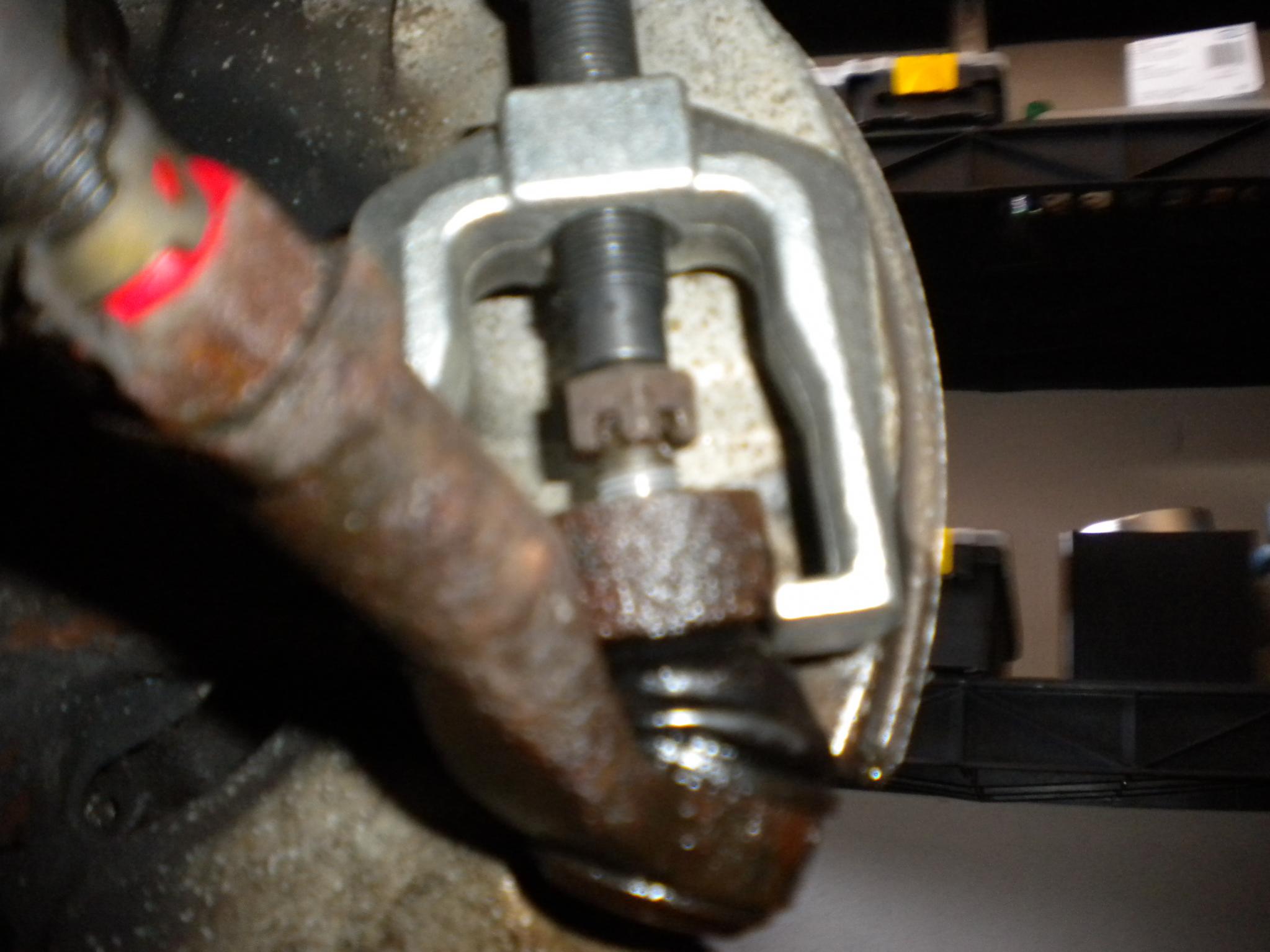

1) Picture of outer tie-rod using the separator tool. It popped loose, but when I went to remove the nut, unknowingly it got cocked and I can-t remove it. The tie-rod stud its threaded on just spins. Thought I'd just dremel the nut off but someone borrowed it and I was hoping someone had a method they used to get the nut off??

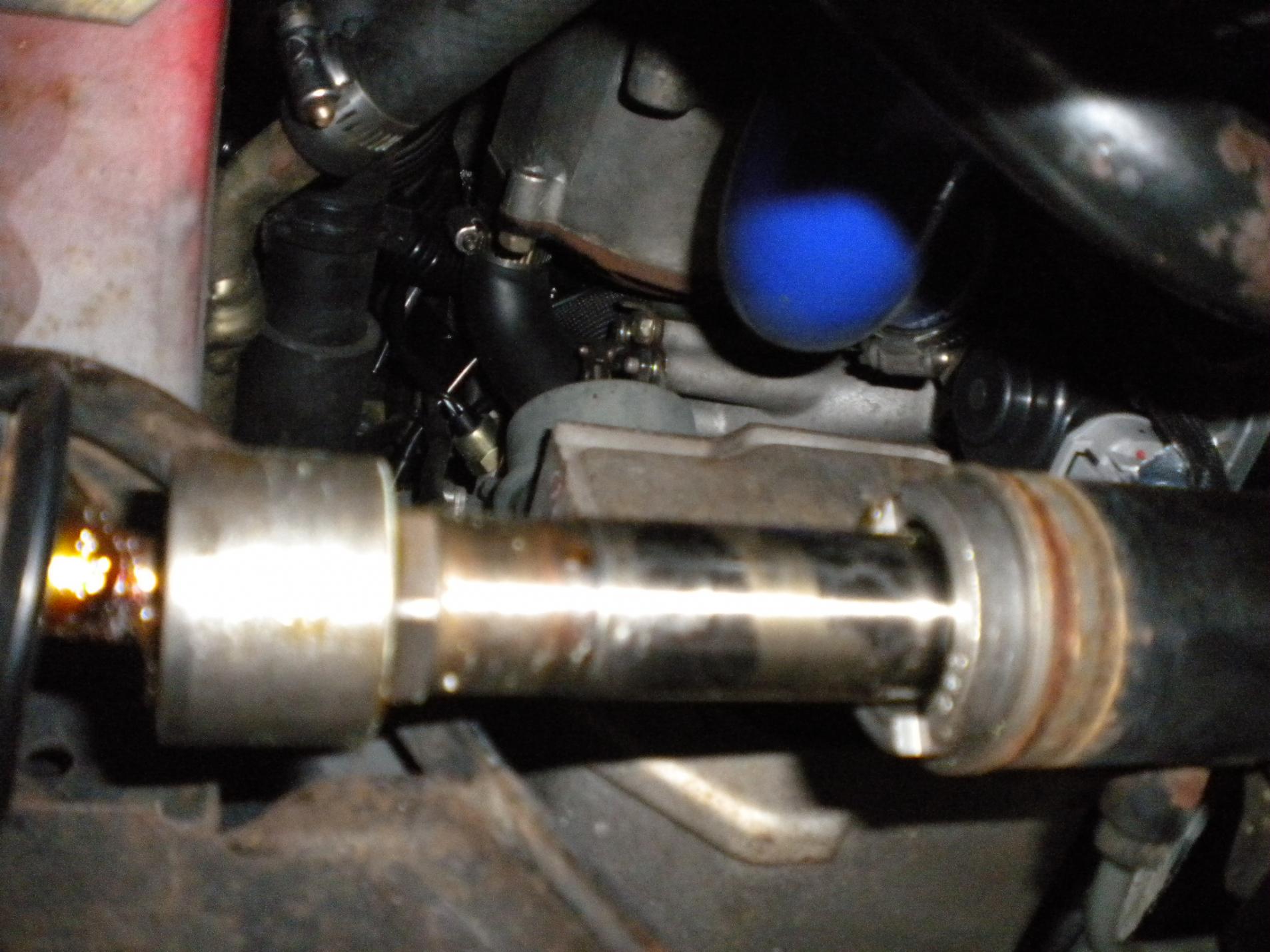

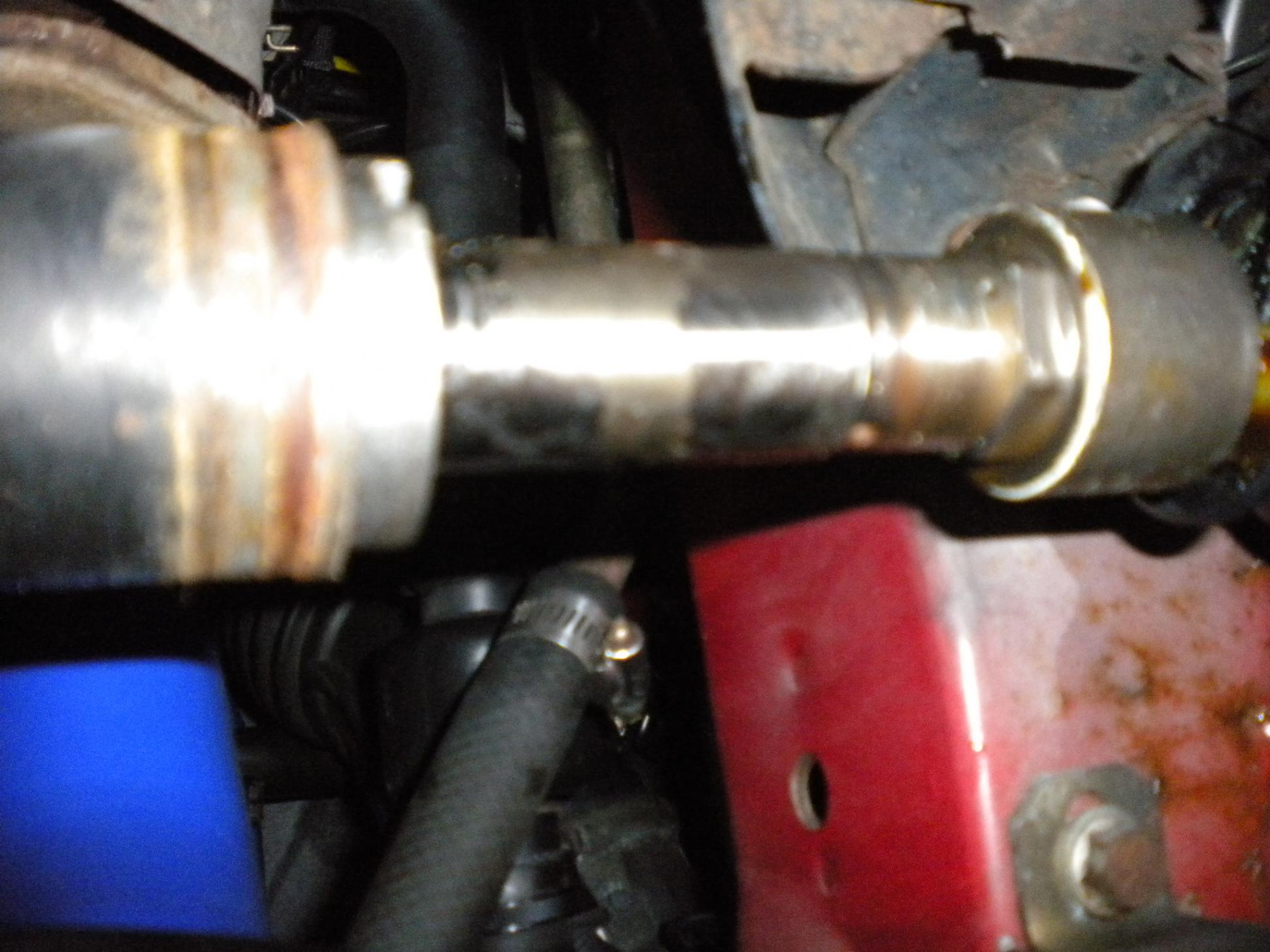

2) I modified a 24mm wrench like Wankel7 had to for the inner tie-rod, but looks like I don't need it (other pictures). A regular wrench fits on, but there is no teeth to hold the inner steering shaft from moving. It is round with no grab points to hold it still. Is it safe to loosen the inner tie-rod w/o holding the steering rod?
1) Picture of outer tie-rod using the separator tool. It popped loose, but when I went to remove the nut, unknowingly it got cocked and I can-t remove it. The tie-rod stud its threaded on just spins. Thought I'd just dremel the nut off but someone borrowed it and I was hoping someone had a method they used to get the nut off??
2) I modified a 24mm wrench like Wankel7 had to for the inner tie-rod, but looks like I don't need it (other pictures). A regular wrench fits on, but there is no teeth to hold the inner steering shaft from moving. It is round with no grab points to hold it still. Is it safe to loosen the inner tie-rod w/o holding the steering rod?
#5
Ban Peak
iTrader: (49)
Don't put the outer rod back into the knuckle, remove that puller and beat it back up in from the bottom, Then try to take the castle nut off.
For the inner tie rods, just let the steering column lock then break it loose.
For the inner tie rods, just let the steering column lock then break it loose.
#6
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
If Molotov's advice doesn't work or the nut is stuck,Get a hack saw and cut the son of a Beotch off.
You can see a nice place to cut between the nut and the Spindle assembly.
Hit the spindle with a Hammer on the rounded part of where it surrounds that tie rod "shaft".
It should POP the tie rod right out.
I've never used a tie rod puller,and pickle forks just kill the boot of you want to put the tie rod back on.
You can see a nice place to cut between the nut and the Spindle assembly.
Hit the spindle with a Hammer on the rounded part of where it surrounds that tie rod "shaft".
It should POP the tie rod right out.
I've never used a tie rod puller,and pickle forks just kill the boot of you want to put the tie rod back on.
#7
Ended up running to store and getting another Dremel and cut it off in like 5 minutes. Thanks for the tips though (i tried most of them).
I checked to make sure my steering wheel was straight before removing, but I noticed the column lock like Molotovman mentioned is not active? It was operational earlier before starting this.
I checked to make sure my steering wheel was straight before removing, but I noticed the column lock like Molotovman mentioned is not active? It was operational earlier before starting this.
Trending Topics
#8
Rotary Enthusiast
iTrader: (1)
Ended up running to store and getting another Dremel and cut it off in like 5 minutes. Thanks for the tips though (i tried most of them).
I checked to make sure my steering wheel was straight before removing, but I noticed the column lock like Molotovman mentioned is not active? It was operational earlier before starting this.
I checked to make sure my steering wheel was straight before removing, but I noticed the column lock like Molotovman mentioned is not active? It was operational earlier before starting this.
If you did that, then maybe something else is broken, but that isn't a huge issue anyways
#9
Duh, you are right, steering is locked now. Thank you. Got the driver's side but I have to wait until my 24mm crowfoot wrench comes so I can torque it.

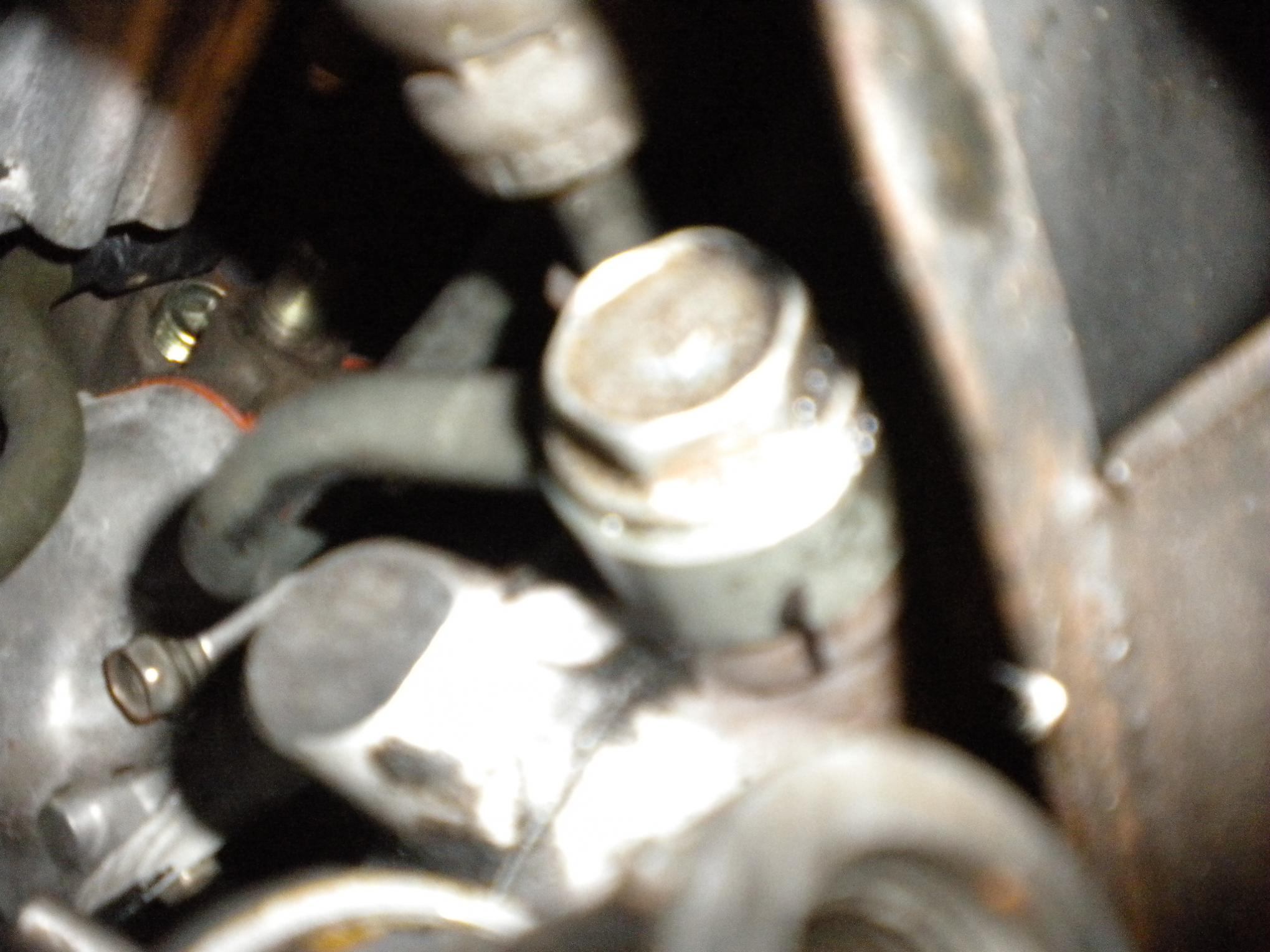

I have a slow leak at the p/s hose where it goes into the steering rack. See pic with black sharpie mark, are there suppose to be crush washers??? One between bolt head and p/s hose line and one between p/s hose line and steering rack??? I don't have any so I'm thinking that is why the slow leak. I don't see any referenced in the book though.
I have a slow leak at the p/s hose where it goes into the steering rack. See pic with black sharpie mark, are there suppose to be crush washers??? One between bolt head and p/s hose line and one between p/s hose line and steering rack??? I don't have any so I'm thinking that is why the slow leak. I don't see any referenced in the book though.
