help with wiring
03-07-09, 09:03 PM
#1
Junior Member
Thread Starter
Join Date: Mar 2009
Location: North carolina
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
help with wiring
need help with wiring up a 87 13b in another chassis using factory ecu ????? any help is great i have the whole car as a donor for my VW engine swap have done a carby before but want to step up to fuel injection maybe going turboII in future but not yet baby on the way is taking project money so ems isnt really an option unless its impossible also am going to be fairly stock so ems is a waste ?? thanks
03-07-09, 09:27 PM
#2
Rotary Enthusiast
iTrader: (1)
Join Date: Aug 2005
Location: Canada
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
need help with wiring up a 87 13b in another chassis using factory ecu ????? any help is great i have the whole car as a donor for my VW engine swap have done a carby before but want to step up to fuel injection maybe going turboII in future but not yet baby on the way is taking project money so ems isnt really an option unless its impossible also am going to be fairly stock so ems is a waste ?? thanks
Wtf?! You lost me at VW...You want to put a 1.3B in your VW but the TII baby is on the way so you want a stock ems that would be a waste?
Use punctuation man! Its quite useful for others if you are not writing yourself notes.
Spec.
03-08-09, 02:07 PM
#3
Junior Member
Thread Starter
Join Date: Mar 2009
Location: North carolina
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
ok, i have a 72 super beetle and a 87 rx7 NA . i am putting the 13b in the VW. i need sorting thru wiring the 13 b up with a factory ecu because its going to be stock. So a Ems like a haltech or megsquirt will be pretty much a waste. I had plans for a TurboII motor but my wife is pregnant so theres no $$$$ right now for an EMS or Turbo motor . Better ? thanks
03-08-09, 04:53 PM
#5
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Go to the FUEL AND EMISSIONS section of the FSM.

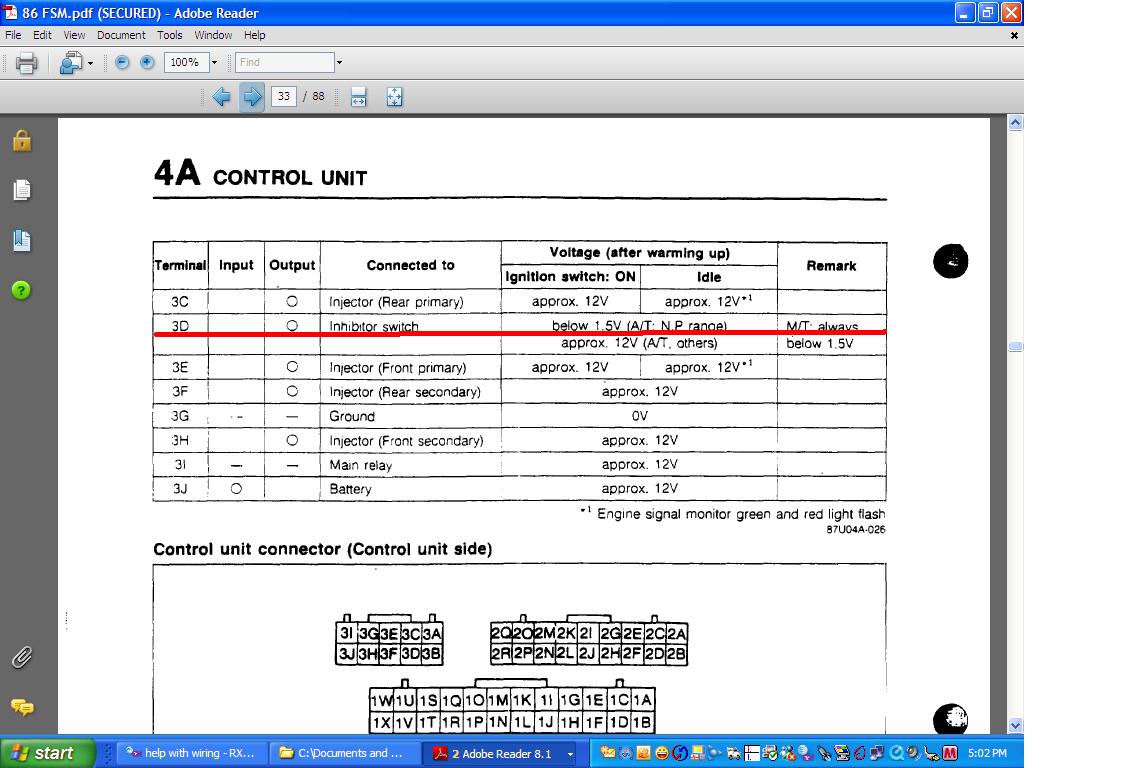

Find the pages called CONTROL UNIT. It shows what each wire in the three plugs does for a living.
A number of those wires can be deleted. Some can never be deleted if you want it to work.
Then you can go to the wiring diagrams and see where each of the wires your going to use, go to and from.
Most of the wiring diagrams are just so much trash. Like the radio bs and the abs bs and the wiper bs, the meters and warning systems bs, the cooling fan bs,.
Your only interested in the pages like EGI EMISSIONS CONTROL AND IGNITIONS SYSTEM and the pages called Starting and Charging system and Fuel Pump pages. Like maybe four pages in total.

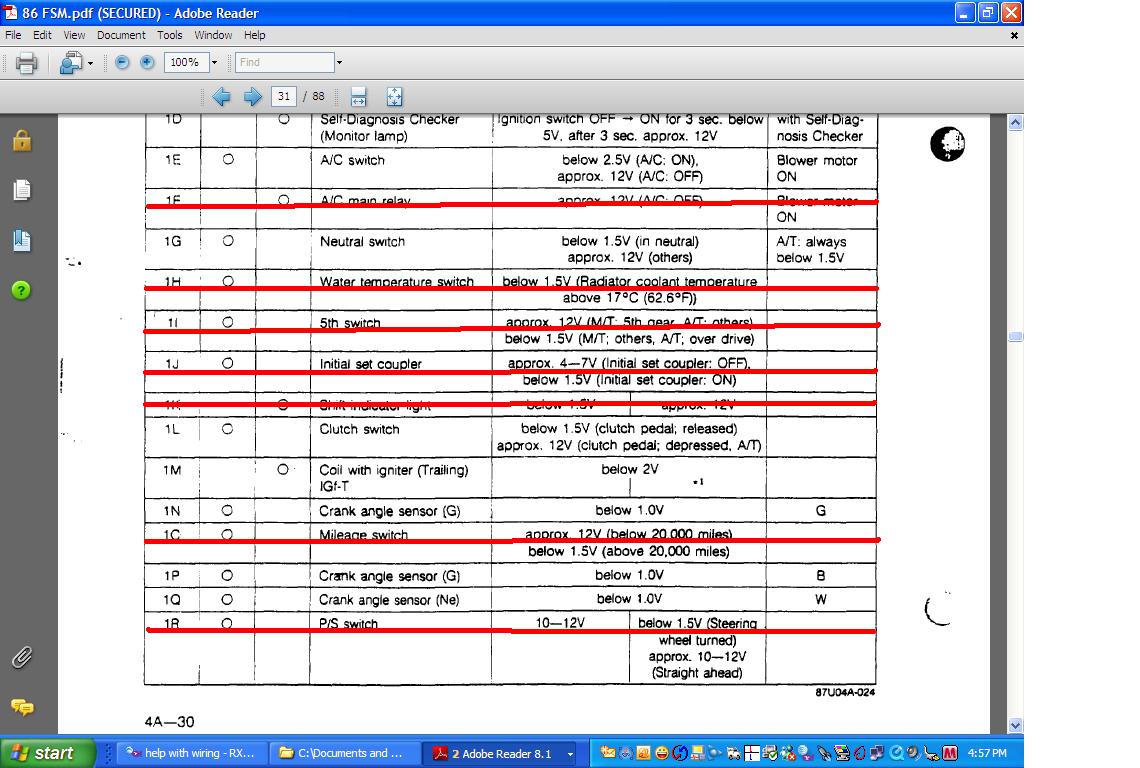

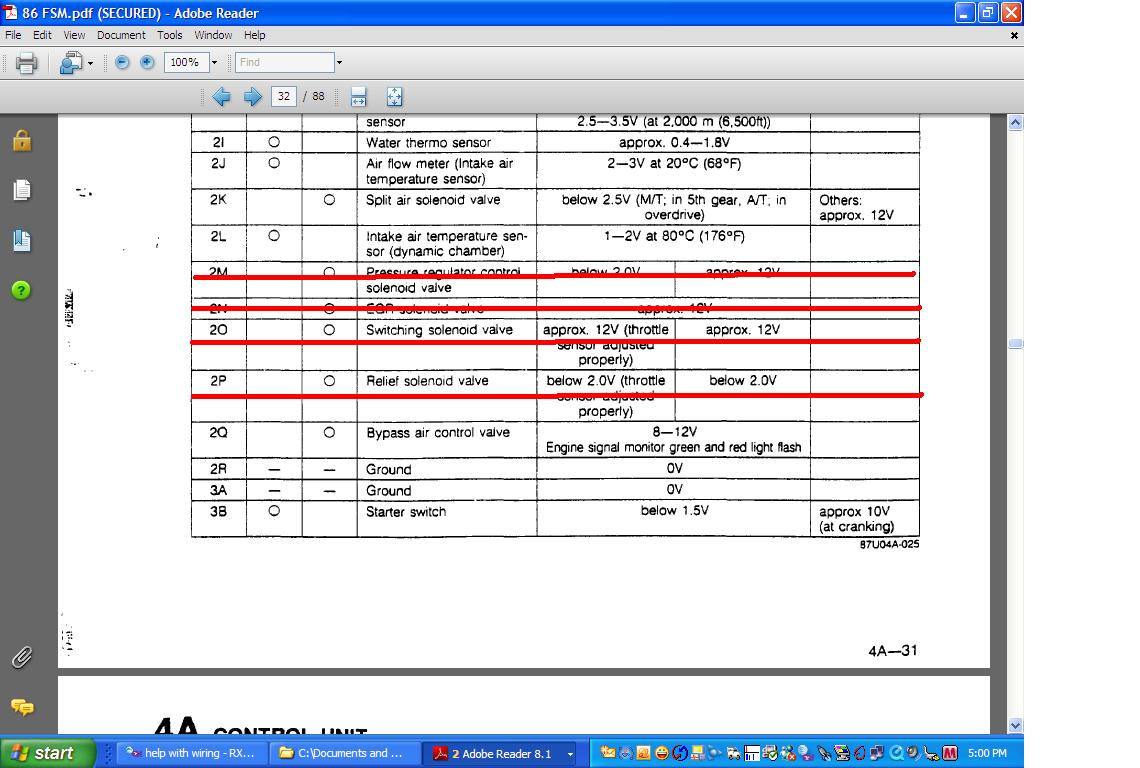

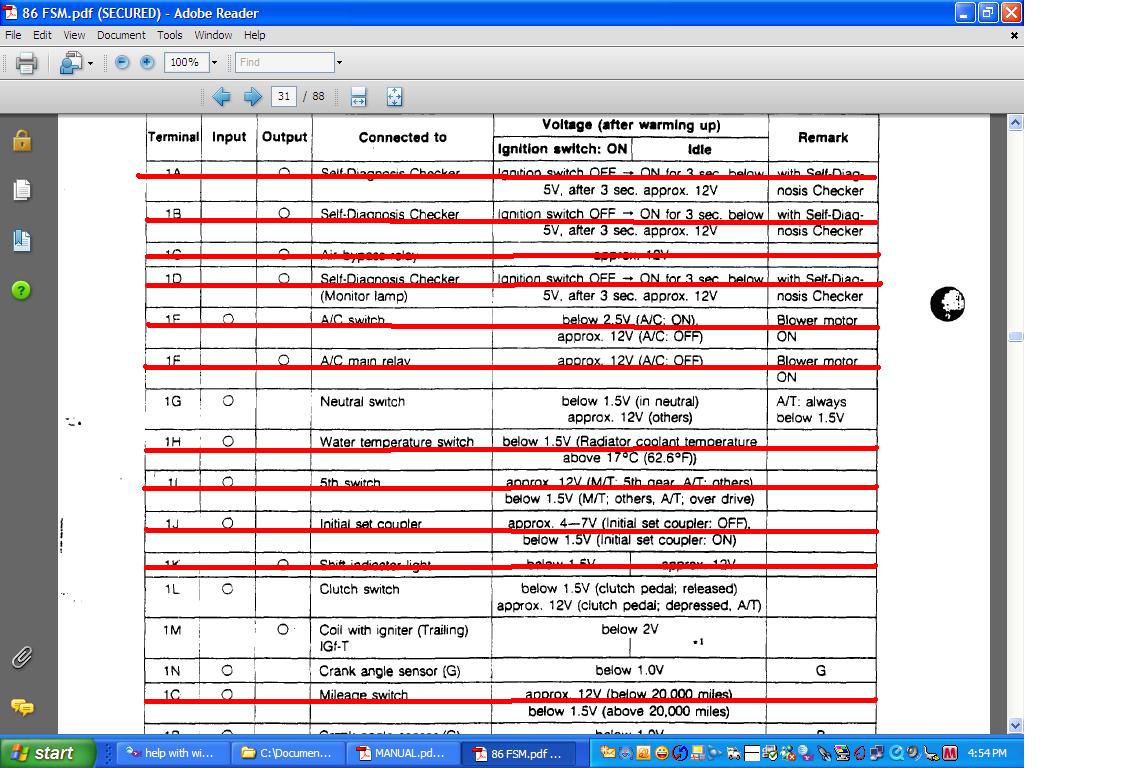

A couple of examples are attached. Seems RB used to make VW conversion kits to fit RX engines. Just the engine/clutch etc, not wiring.
Find the pages called CONTROL UNIT. It shows what each wire in the three plugs does for a living.
A number of those wires can be deleted. Some can never be deleted if you want it to work.
Then you can go to the wiring diagrams and see where each of the wires your going to use, go to and from.
Most of the wiring diagrams are just so much trash. Like the radio bs and the abs bs and the wiper bs, the meters and warning systems bs, the cooling fan bs,.
Your only interested in the pages like EGI EMISSIONS CONTROL AND IGNITIONS SYSTEM and the pages called Starting and Charging system and Fuel Pump pages. Like maybe four pages in total.
A couple of examples are attached. Seems RB used to make VW conversion kits to fit RX engines. Just the engine/clutch etc, not wiring.
03-09-09, 06:08 PM
#7
Junior Member
Thread Starter
Join Date: Mar 2009
Location: North carolina
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
thanks for all the help, it really is just a few wires and a power supply and ground harness. thanks again i just wasnt sure of what had to be there and what doesnt. i am basically building a new harness with all new wires and connector pigtails and wanted it to look clean, i also want it to work and not have a bunch of wires that are unecessary in another chassis
