Help timing 13b

can someone please tell me the procedure for making sure my timing is correct on my 1989 stock 13b rx-7 in the easiest and most comprehensive way .. thank you ..

p.s. ... please dont reply and say to read the book ... thanks

Aug 4, 2009 | 10:12 AM

HAILERS2

Rotary Freak

Joined: Jul 2008

Posts: 1,660

Likes: 2

From: FORT WORTH TEXAS

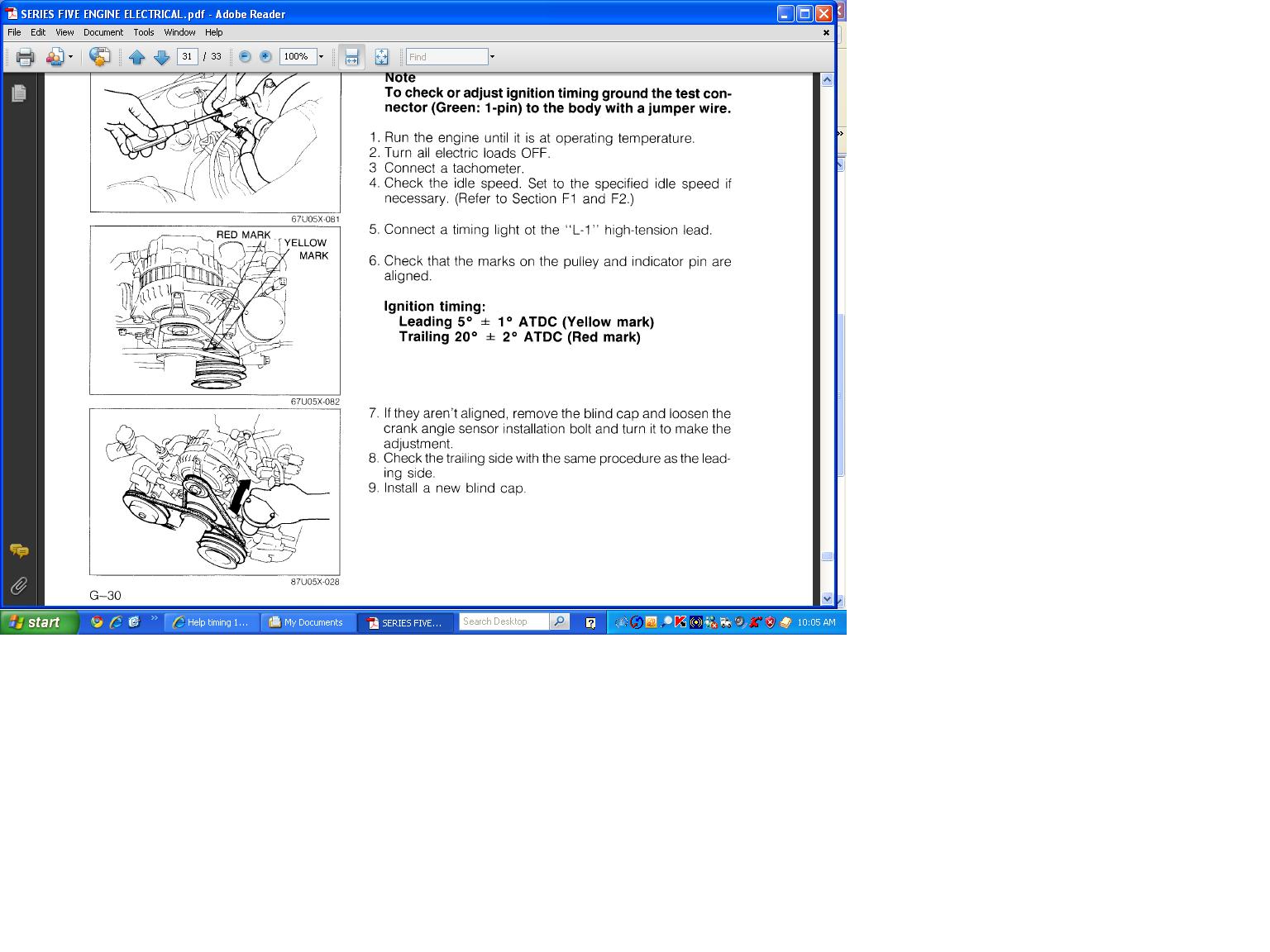

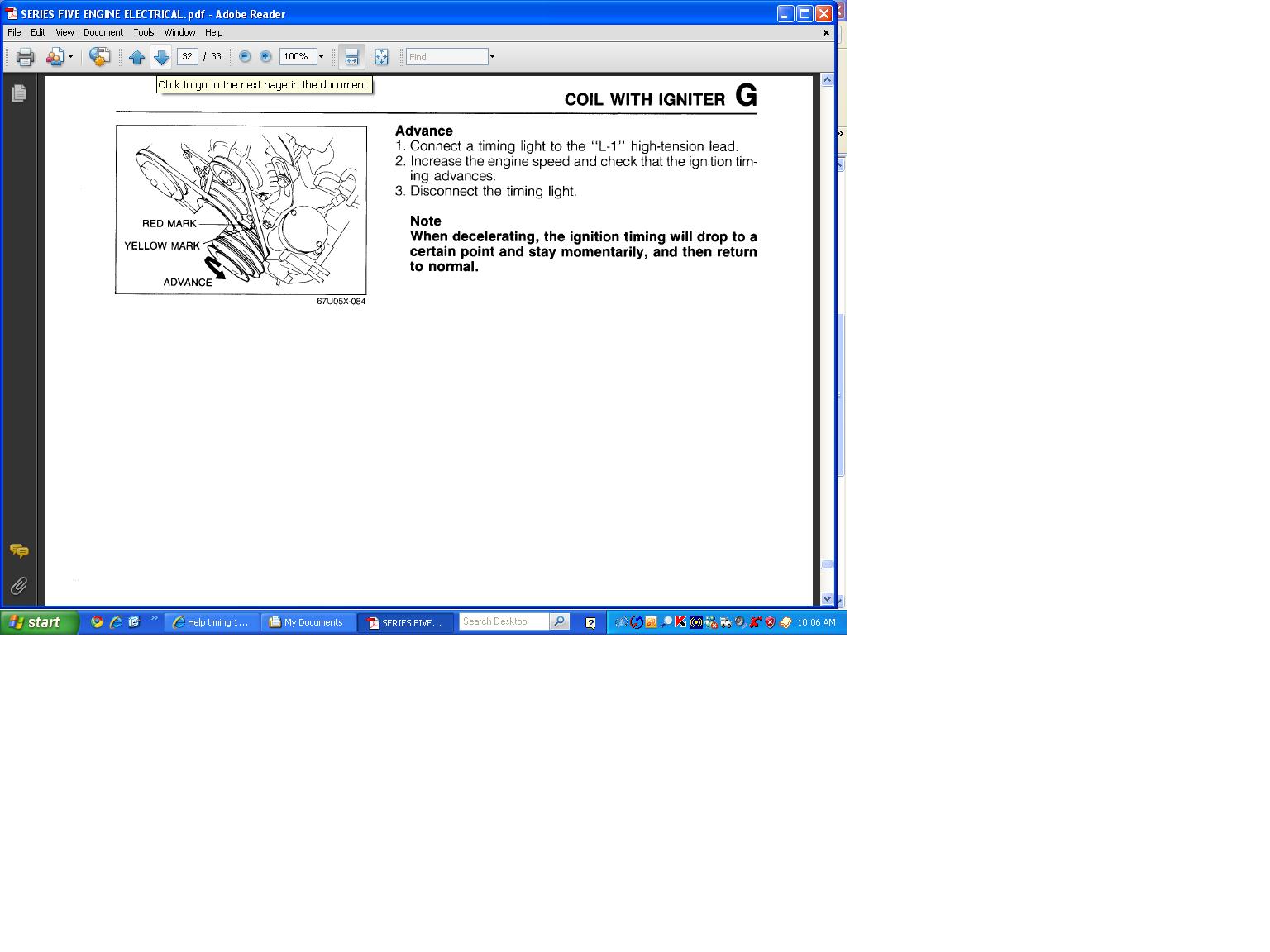

The jpgs below come from the ENGINE ELECTRICAL section of the series five FSM that is online. I don't have anything to add to what they wrote in the FSM. Seems straight forward..to me.

Attached Thumbnails

Aug 4, 2009 | 10:15 AM

Aaron Cake

Engine, Not Motor

iTrader: (1)

Joined: Feb 2001

Posts: 29,798

Likes: 128

From: London, Ontario, Canada

I'm closing this thread because it was already posted to the New Member Technical and the whole post comes accross as lazy and rude.

HAILERS2 answered the question here, and I did over in the new user area.
