Help me identify these nipples.

Car is a 1990 Turbo

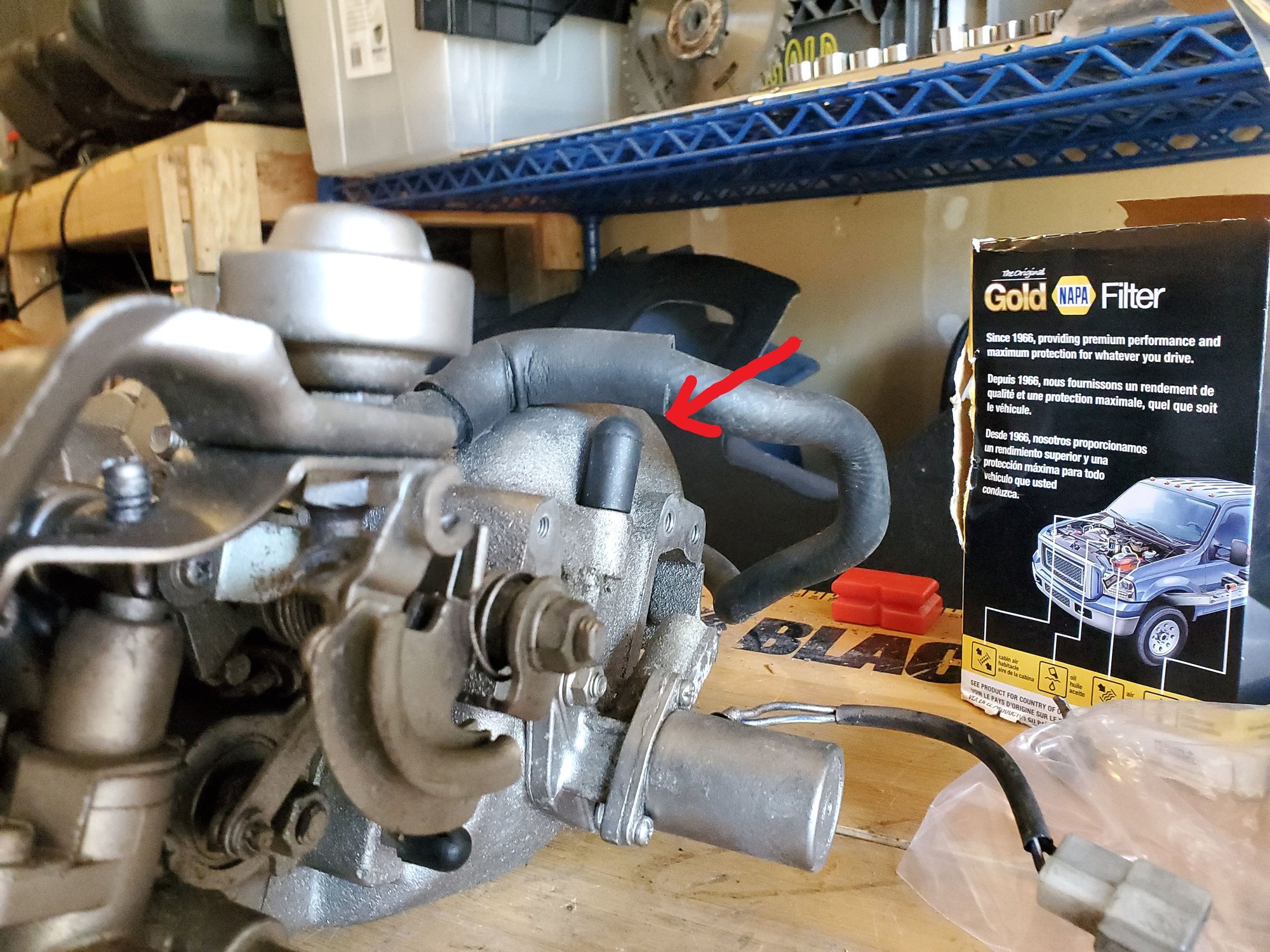

So I'm wondering what these capped off nipples would normally go to.
The one on the lower has the hose blocked with a golf T





All help Appreciated

Eric
Reply
Old Aug 28, 2020 | 06:46 AM
  #2
FührerTüner's Avatar
Penis Healthy
Tenured Member: 10 Years
Liked
Loved
Community Favorite
iTrader: (5)

Joined: Jul 2013
Posts: 2,596
Likes: 799
From: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
NIPPLES!

Reply
Old Aug 28, 2020 | 10:21 AM
  #3
j9fd3s's Avatar
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,833
Likes: 3,232
From: https://www2.mazda.com/en/100th/
the one in the top picture is for the AWS.

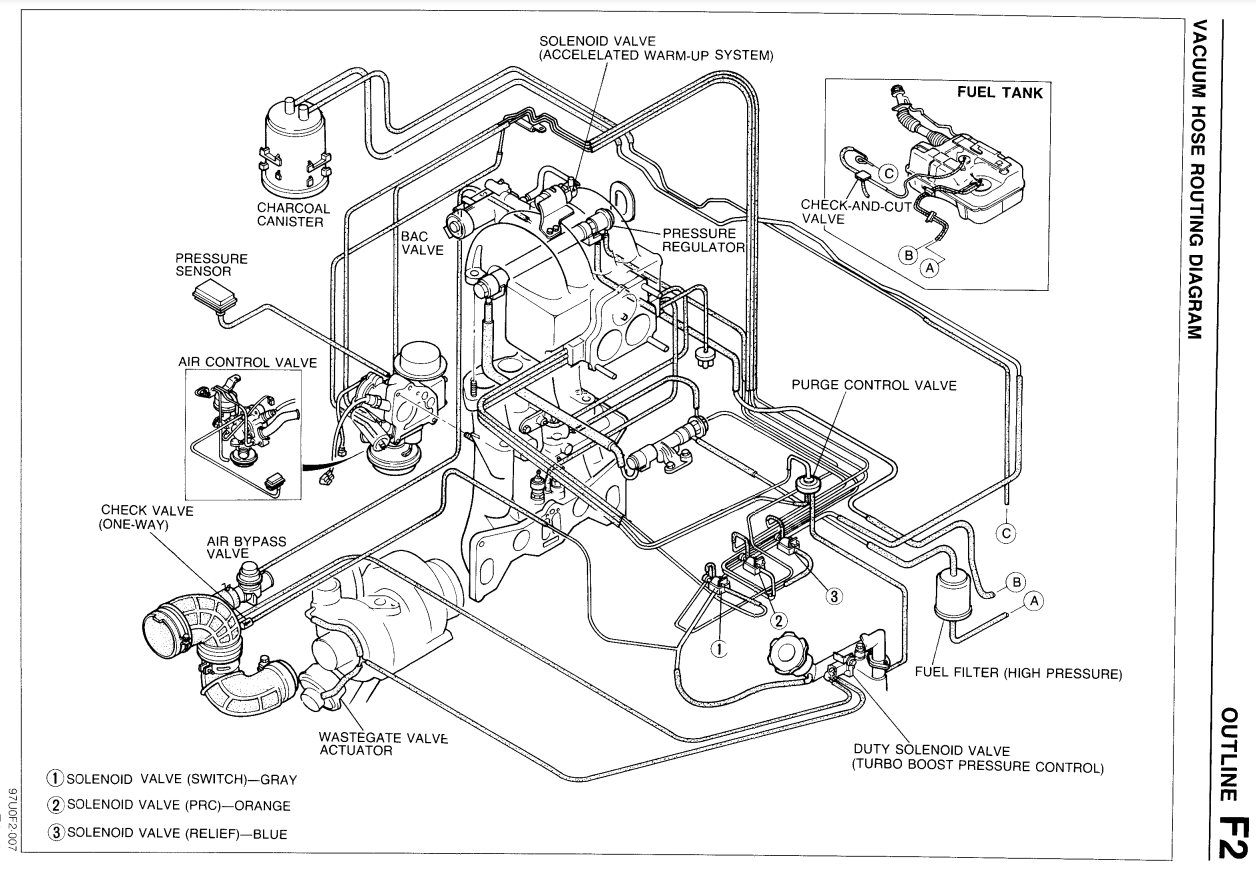

the bottom i think is the FPR, but the diagram isn't good enough, i usually end up taking the hose off on both ends and making sure its going where its supposed too
Reply
