Help installing aftermarket air filter in a N/A 88 SE
Need help installing a new aftermarket air filter i got
not too familiar with cars just so ya guys know but im trying to learn
I have the filter connected to the big hose
the problem im having is where the hell do i connect the smaller hose for the air vacuum and where do i connect the wires that ran into the original air box? can anyone help
not too familiar with cars just so ya guys know but im trying to learn
I have the filter connected to the big hose
the problem im having is where the hell do i connect the smaller hose for the air vacuum and where do i connect the wires that ran into the original air box? can anyone help
#2
re-amemiya body vert
iTrader: (2)
Join Date: Oct 2003
Location: Calgary, Canada
Posts: 503
Likes: 0
Received 0 Likes
on
0 Posts
So, if I'm inferring correctly, you bought a cone fillter, removed everything connected to "the big hose" and then just attached the cone filter to the black hose?
Edit: I'm going to jump to the conclusion that you removed everything including the MAF (air flow sensor). You need to remove it from the air box and put it inbetween your filter and "the big hose". Of course, I hope I am just jumping to conclusions, but I don't want to see a new owner do something they will regret.

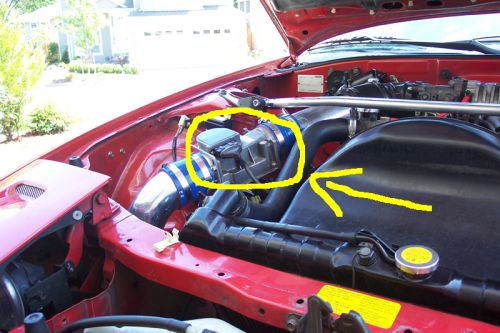

Now if I'm right have a look at the picture. See the yellow arrow pointing to the yellow circle? The circled area is the MAF, the original place where the "wiring" what connected to. You need this!!!
Edit: I'm going to jump to the conclusion that you removed everything including the MAF (air flow sensor). You need to remove it from the air box and put it inbetween your filter and "the big hose". Of course, I hope I am just jumping to conclusions, but I don't want to see a new owner do something they will regret.
Now if I'm right have a look at the picture. See the yellow arrow pointing to the yellow circle? The circled area is the MAF, the original place where the "wiring" what connected to. You need this!!!
Last edited by Flash; 09-16-05 at 05:50 PM.
#5
backslash beanbagrace
iTrader: (1)
You'll need to get an adapter plate so that the new cone filter will mate up to the AFM.
Gimme a min and I'll find one...
Ok, here's the adapter plate you will need. This one is from rx7.com, but you can find a much better deal on eBay.
http://rx7.com/store/rx7/FCMafAdaptor.html
And you can use this "breather" to put on the end of the air inlet tube that goes to the airpump. This is probably better as an eBay buy also.
http://rx7.com/store/rx7/FCAirPumpFilter.html
Gimme a min and I'll find one...
Ok, here's the adapter plate you will need. This one is from rx7.com, but you can find a much better deal on eBay.
http://rx7.com/store/rx7/FCMafAdaptor.html
And you can use this "breather" to put on the end of the air inlet tube that goes to the airpump. This is probably better as an eBay buy also.
http://rx7.com/store/rx7/FCAirPumpFilter.html
Last edited by White87FC; 09-16-05 at 11:42 PM.
