help identifying ground and bracket on body harness pics included
just put my engine back in and cant remember where these go somebody help me
I need to know where the 90 degree bracket, and the what looks like a ground with a rubber case go
I need to know where the 90 degree bracket, and the what looks like a ground with a rubber case go
09-20-10, 01:03 PM
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,844
Received 2,605 Likes
on
1,848 Posts

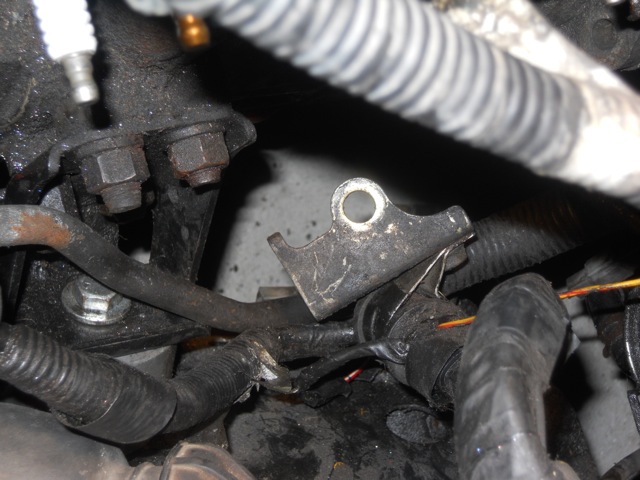

pic #1 goes on the starter, as does pic #2

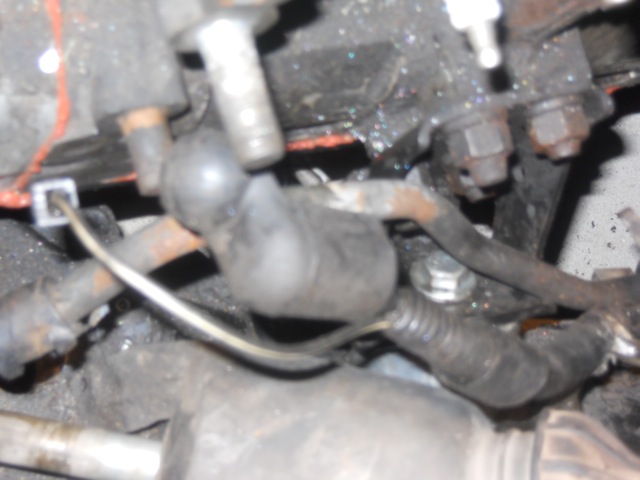

pic #3 is bolted to the motor with the lower bellhousing bolt
pic #3 is bolted to the motor with the lower bellhousing bolt
09-20-10, 10:19 PM
#7
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
Put your long TOP starter bolt through that Bracket,and then Proceed through the Engine/Trans and starter.Place nut on it.

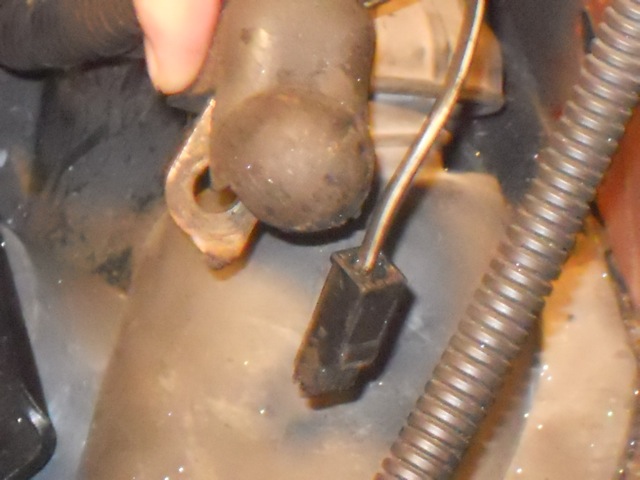

The 90 Degree bracket with the Rubber boot is actually the Positive Feed wire for the Starter.it goes on the BIG Stud on the starter.There would also be a Spade like connector to Feed the Solenoid( switched 12 volts) that is your KEYED wire which gives the solenoid power to Activate the starter when you hit the Key to Start.
The 90 Degree bracket with the Rubber boot is actually the Positive Feed wire for the Starter.it goes on the BIG Stud on the starter.There would also be a Spade like connector to Feed the Solenoid( switched 12 volts) that is your KEYED wire which gives the solenoid power to Activate the starter when you hit the Key to Start.
