Help with fuel pump install
Thread Starter
Full Member
Joined: Oct 2017
Posts: 89
Likes: 6
From: Georgia
Oops here is the question

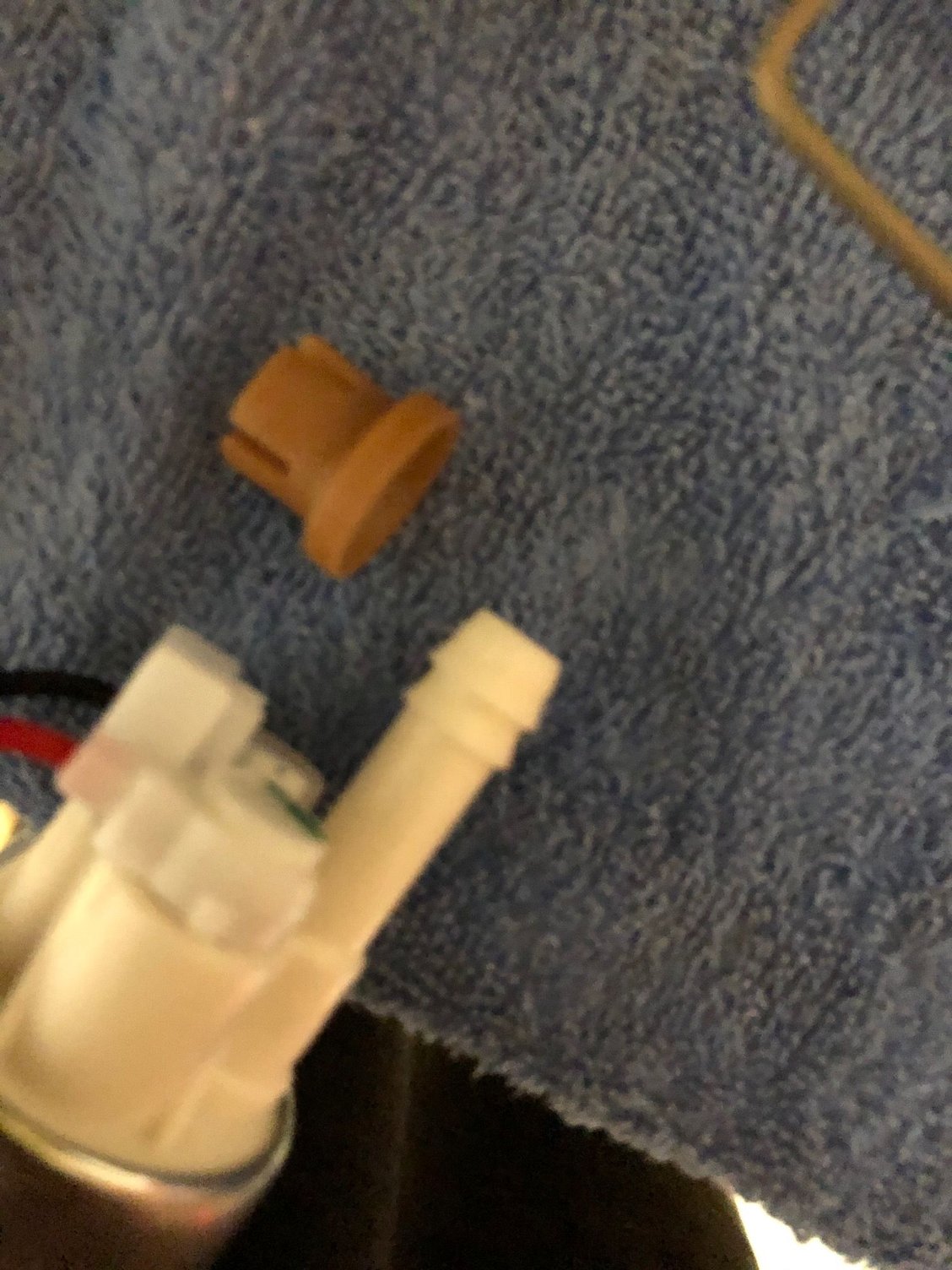

So the fuel pick up tube(?) is flared at the end and has some adaptor that goes over the smooth tube end on the original pump.
Am I missing some sort of adaptor?
i found a video of someone changing one, but his pick up didn’t have the flared portion, rather a section of tubing going from the pump to the tube
Did he cut the pick up maybe? Or is it that mine is S5 and his was maybe S4?
Am I missing some sort of adaptor?
i found a video of someone changing one, but his pick up didn’t have the flared portion, rather a section of tubing going from the pump to the tube
Did he cut the pick up maybe? Or is it that mine is S5 and his was maybe S4?
Joined: Mar 2001
Posts: 31,833
Likes: 3,232
From: https://www2.mazda.com/en/100th/
the S5 and FD have that O Ring setup, BP02-13-ZE5
if your pump can't accommodate it, then you should cut the tube, and use a hose with clamps like the S4
if you power the pump up on the bracket, you'll see why they have such an odd mounting, the thing moves!
if your pump can't accommodate it, then you should cut the tube, and use a hose with clamps like the S4
if you power the pump up on the bracket, you'll see why they have such an odd mounting, the thing moves!
Joined: Mar 2001
Posts: 31,833
Likes: 3,232
From: https://www2.mazda.com/en/100th/
Thread Starter
Full Member
Joined: Oct 2017
Posts: 89
Likes: 6
From: Georgia
It did, but i don't care for the hose it has. Looks to me like a thinner version of a plastic cup straw from a big gulp. Plus, i'm only going to need 2 1/2 to 3 inches of hose, and the supplied tube is 6 or so, can't trim it down or you lose the flat connection area.
