rx7fitz

iTrader: (1)

so i have a gxl with a jdm swapped motor and the wastegate arm is twisted so im boosting up to like 15 psi so i figured a boost controller would help tone it down. so i got a greddy profec b spec ii and had a rotary shop put it in and even when i try messing with the setting it doesnt make a difference and im not really sure what the deal is. the valve control unit has two nipples on it and one goes to the turbo or wastegate right on the front i cant really see it all that well and the other one is blocked off right on the control unit. shouldnt that go to something?

Problem 2:

my car get terrible gas milage im guessing like maybe 10mpg idk but when i mash the gas sometimes not even high rpm i can smell gas as if im at the gas station filling up.

please help

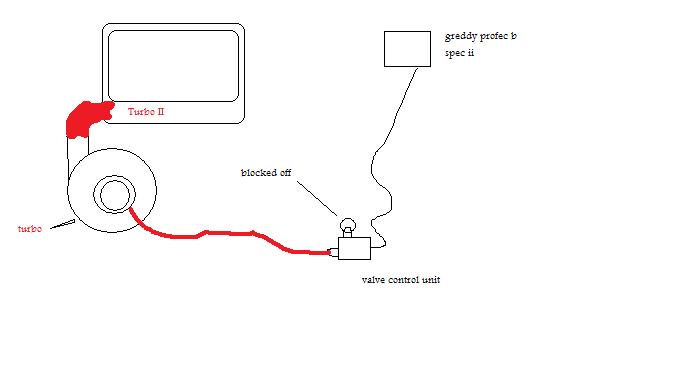

also rough diagram of boost controller setup

RotaryRocket88

iTrader: (7)

As has been said many times, boost controllers CANNOT lower boost. If your wastgate arm is messed up, you need to fix it. Remove the turbo and fix it on a bench if necessary.

arghx

iTrader: (3)

yes you should be able to achieve a stable boost pattern running no boost controller (straight wastegate pressure to the actuator or EBC turn off). once that has been achieved you can set up the EBC.

rx7fitz

iTrader: (1)

ahhh fml!

1SWEET7

iTrader: (1)

Also there shouldn't be anything blocked off on the Profec B. There should be one hose running from the compressor housing of the turbo to the "NO" port on the GReddy unit. Then from the wastegate actuator to the "COM" port of the GReddy unit. The "NC" port should be open with no plug. Also you need to be able to keep your boost under control with just your wastegate before you get a boost controller to turn up the boost.

lastphaseofthis

iTrader: (8)

series 5 turbos waste gate arms are all BENT. take a pic of it and post it. and for **** sake... state what year the car it is, S4's dont have EBC.... and There was alot more S4 GXLs then s5.

rx7fitz

iTrader: (1)

its s5 gxl with s5 turbo motor i will post pic in the morning and this 7 is driving me nuts. i just replaced a gaskets for the oil return from the turbo to stop leaking everywhere... on my way home i hit a small dead animal and now my coolant is leaking from the back of the block. what should i look for first and try and fix
