fuse box picture on 86 na

Hi, does anyone have a picture/diagram of the fuse box assembly on a 1986 n/a gxl? You know the cover on the fuse box inside the car that tells what fuse is which/amps.. I looked in the FSM under body/engine electrical, but had no luck. Thanks in advance.

Dec 25, 2003 | 04:38 PM

sEeMiNhThEdEmOn

Full Member

Joined: Jul 2002

Posts: 216

Likes: 0

From: So Cal

ill snap a pic later today if i can borrow my friends digi cam

Dec 25, 2003 | 05:09 PM

HAILERS

HAILERS

Joined: May 2001

Posts: 20,563

Likes: 27

From: FORT WORTH, TEXAS,USA

https://www.rx7club.com/forum/showth...fuse+and+cover

Last edited by HAILERS; Dec 25, 2003 at 05:16 PM.

Dec 25, 2003 | 05:17 PM

xXHybridXx

Thread Starter

Junior Member

Joined: Dec 2003

Posts: 34

Likes: 0

From: Houston, TX

is it the same for a N/A?

Dec 25, 2003 | 05:28 PM

razorback

You've Been Punk'd

Joined: Jun 2002

Posts: 4,727

Likes: 1

From: Branson, Missouri

does anyone have this for the main fuse box under the hood?

Dec 25, 2003 | 05:32 PM

xXHybridXx

Thread Starter

Junior Member

Joined: Dec 2003

Posts: 34

Likes: 0

From: Houston, TX

got it sorted, thanks guys

Dec 25, 2003 | 05:34 PM

1987RX7guy

Eat Rice Don't Drive it.

iTrader: (3)

Joined: Nov 2002

Posts: 12,752

Likes: 1

From: Laredo, Tx

Quote:

Originally posted by razorback
does anyone have this for the main fuse box under the hood?

I can get that in a bit.

HERE WE GO

Last edited by 1987RX7guy; Dec 25, 2003 at 05:42 PM.

Trending Topics

Ttt steering rack thoughts

13

501
6k ignition break up and tach goes wild simultaneously no matter the...

10

332
FrankenRex Will Rise: stuffing a GSL-SE into a'79 SA

309

31.7k
Engine o ring failure?

10

312
RX-7 SA 1979 - European - Aurora White "ETHEREAL"

7

212

Dec 25, 2003 | 05:47 PM

HAILERS

HAILERS

Joined: May 2001

Posts: 20,563

Likes: 27

From: FORT WORTH, TEXAS,USA

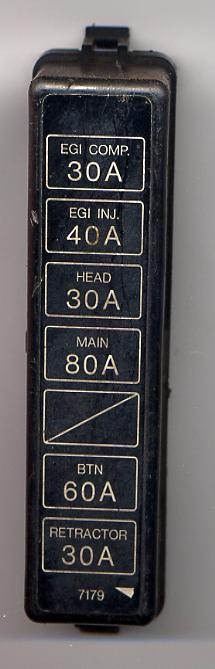

Or...

Dec 25, 2003 | 05:49 PM

razorback

You've Been Punk'd

Joined: Jun 2002

Posts: 4,727

Likes: 1

From: Branson, Missouri

ok thanks. ive looked every where for one. which one controls the gas? the top two?

Dec 25, 2003 | 05:52 PM

#10

1987RX7guy

Eat Rice Don't Drive it.

iTrader: (3)

Joined: Nov 2002

Posts: 12,752

Likes: 1

From: Laredo, Tx

oh I forgot to say that the one I posted is for an S5 TII

Dec 25, 2003 | 05:53 PM

#11

razorback

You've Been Punk'd

Joined: Jun 2002

Posts: 4,727

Likes: 1

From: Branson, Missouri

mine is an s4. the one that hailers posted looks right.

Dec 25, 2003 | 05:57 PM

#12

HAILERS

HAILERS

Joined: May 2001

Posts: 20,563

Likes: 27

From: FORT WORTH, TEXAS,USA

The 40amp one in combination with the ENGINE fuse in the crew compartment.

The fuel pump only comes on when:
1. the key is HELD to START

2. The engine actually starts and a switch is MADE in the afm which puts a ground on the CIRCUIT OPENING RELAY and then keeps the pump running even though the key is relaxed to ON.

3. IF the engine did not start, and you let the key return to ON.....the pump stops a pumpin.

4. The alternate to the two above is when the fuel pump check plug is jumpered between it's two sockets and the key is to ON. Then it will run without the engine running.
