^ Yah Frank, I am really good with mental imagery, but sometimes it helps to make a model so I can convey my ideas. Also makes it easier to build off of an idea I already have.
This may help to prevent downward crush. Connect to the driveshaft tunnel or the chassis cross brace. Still brainstorming...........
This may help to prevent downward crush. Connect to the driveshaft tunnel or the chassis cross brace. Still brainstorming...........
#54
Rotary Enthusiast
iTrader: (1)
Join Date: Jun 2001
Location: Apex, NC, USA
Posts: 1,294
Likes: 0
Received 0 Likes
on
0 Posts
George, it's a bit hard to see the roll bar in most of those pics. Where do the rear legs attach to the floor? It also appears that you had to make a custom boot cover to allow for the targa top sitting on said legs. Is this correct? If you could post any detailed pics of this setup that Mitch crafted, I would greatly appreciated it.
When Mitch designed the bar, he put two "eahs" (ears - he's from New Zealand, so he has a bit of an accent) on the two rear braces for the top to rest on. I've driven at highway speeds with the top resting there and had no problems. However, I preferred to have a boot that would cover the top, since I wasn't sure it would stay in place a 150+ mph on the track. As an unintended advantage, the area under the top provides a nice storage/luggage area which wasn't available with the top in the stock position. The custom boot cost about $150, which is less than 1/6th the cost of a stock one.
I'll post pictures in a few days.
#55
Rotary Enthusiast
iTrader: (1)
Join Date: Jun 2001
Location: Apex, NC, USA
Posts: 1,294
Likes: 0
Received 0 Likes
on
0 Posts

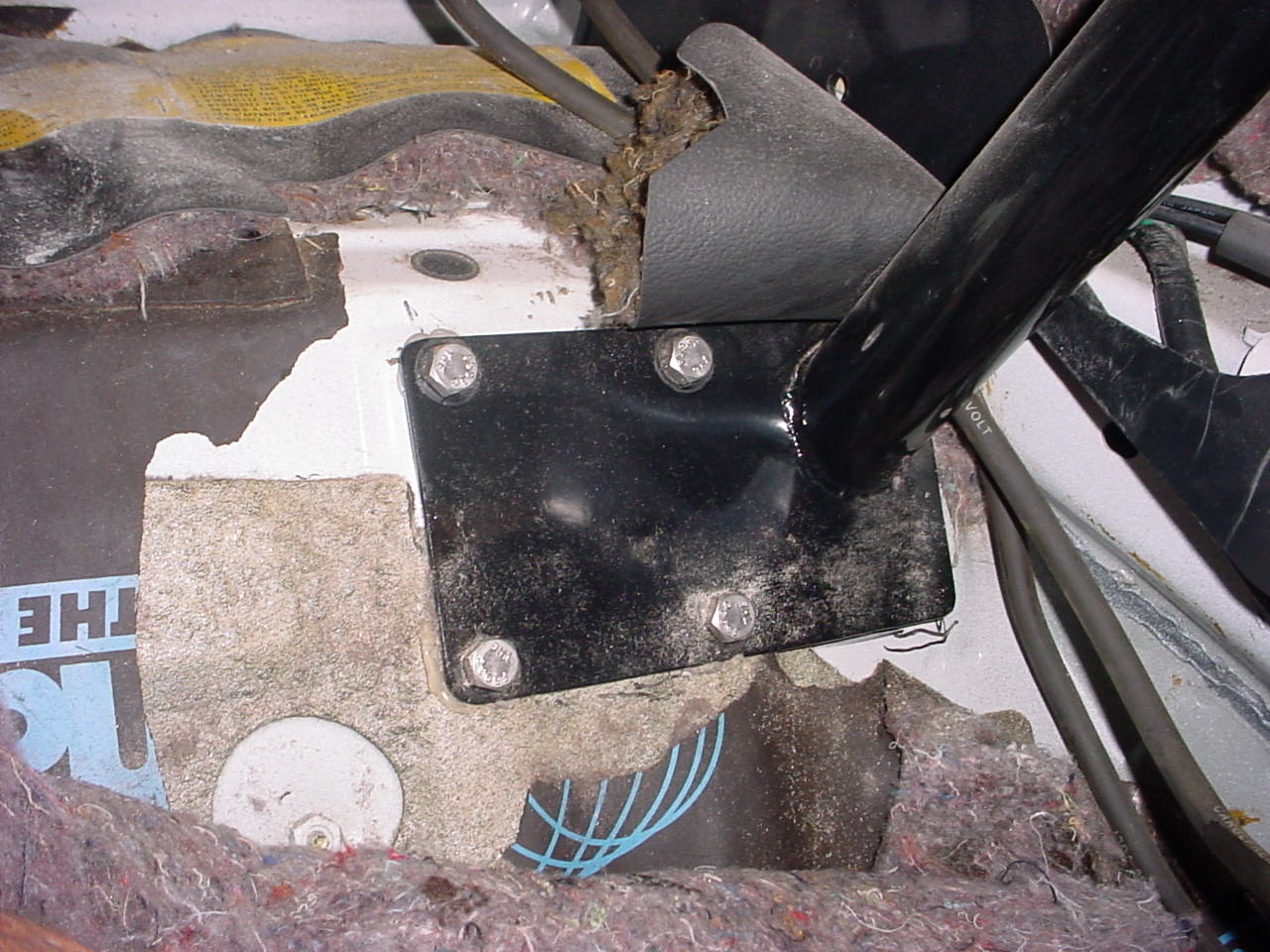

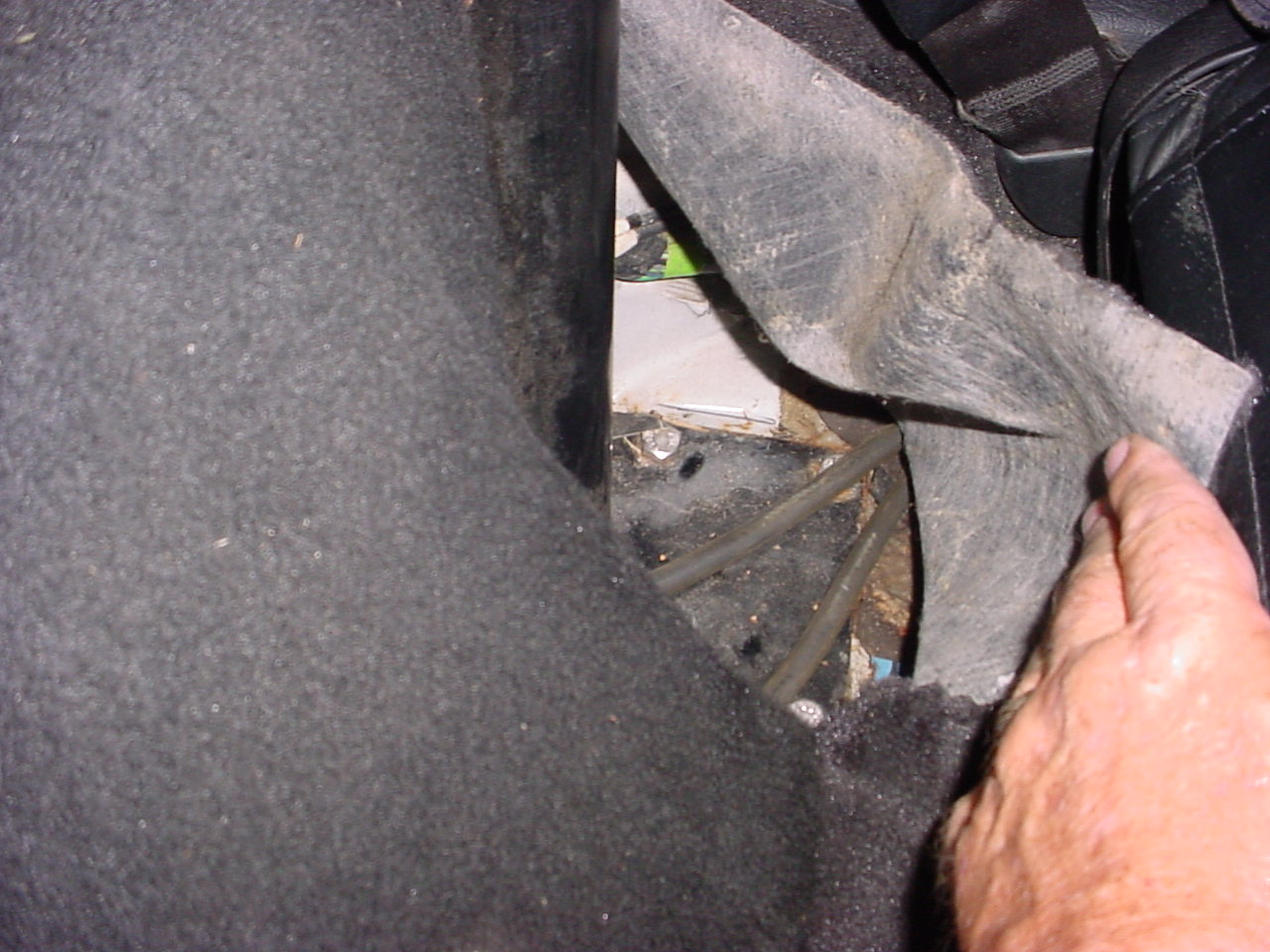

Here are four pictures of the rollbar. I hope you find them useful. The first just shows the base of the main hoop behind the driver's seat. The second and third are taken with the seats leaned forward so that you're looking from the center towards the left and right rear braces. The last shows driver's side mounting plate.
#57
Mr. Nice Guy
Thread Starter
iTrader: (87)
Join Date: Jan 2006
Location: Jamesport, NY..."Movin' on up, to the east side!"
Posts: 3,284
Received 0 Likes
on
0 Posts
Yes, thank you George. Your pics and time are very helpful.
Edit: I hope you don't mind me taking the liberty of posting a pic of the RXX-7 for comparison and reference.
Edit: I hope you don't mind me taking the liberty of posting a pic of the RXX-7 for comparison and reference.
Last edited by lov-2-rev; 12-09-07 at 10:27 AM.
#58
putting it down daily
I have always thought of the RXX7 as the prime iteration of our FC3C- and on a purely cosmetic note, I rather like the "top stack" from the side view with the modified "eeas" and raised targa section. Storage is def. a bonus as you all know it is on short supply in these cars
#59
Saiga-12 Power!
iTrader: (4)
Join Date: Oct 2004
Location: N of Chicago
Posts: 4,384
Likes: 0
Received 0 Likes
on
0 Posts
The only thing I don't like about that setup is how far forward the passenger seat has to be. For me that really ruins it. Other than that its really nice.
George can you take some pics of the ears that the targa top rests on?
George can you take some pics of the ears that the targa top rests on?
#61
Rotary Enthusiast
iTrader: (1)
Join Date: Jun 2001
Location: Apex, NC, USA
Posts: 1,294
Likes: 0
Received 0 Likes
on
0 Posts
Yes, the top is fully functional. That's why I went with Mitch's design. FWIW, that's also why it doesn't meet SCCA race standards.
No, I don't remove the targa; it rests on the "eahs" that I mentioned in the earlier post.
I don't know how long ago that post was. I'd recommend that you get the current number off his website at www.pipermotorsports.com
#63
Rotary Enthusiast
iTrader: (1)
Join Date: Jun 2001
Location: Apex, NC, USA
Posts: 1,294
Likes: 0
Received 0 Likes
on
0 Posts
As I mentioned in another post, it'll be a few days.
FWIW, you can see part of the passenger side ear in the third picture. Look for a small, brown patch peeking around the rear brace. The brown part is a felt furniture pad that I got at a hardware store. (You normally put them on the bottoms of chaie legs to prevent them from scratching a hardwood floor.) I added them to avoid the metal-to-metal contact between the ear and the top.
#64
Mr. Nice Guy
Thread Starter
iTrader: (87)
Join Date: Jan 2006
Location: Jamesport, NY..."Movin' on up, to the east side!"
Posts: 3,284
Received 0 Likes
on
0 Posts
I am really leaning in favor of the 2-hoop design idea. The deciding factor will be the price. The material costs should be comparable, but I'm quite sure that all the extra time on the mandrel bender will add up. Once I get the time to bring the car over to the fabricators shop, and we get a good understanding of what I want to accomplish, I will then make my deceision.
