Fuel pump wont turn on HELP
Ok so I am finishing up my turbo II swap but the fuel pump wont turn on. What are the reasons why that could happen? Ive searched and came up with only the main relay fuse is blown. I checked the fuse box in the egine bay on the driver's strut tower and the fuse labeled "MAIN" is good.
Also I am positive the my intake system is not hooked up right. I have searched but cannot find a picture of an intake system hooked up right to save my life. Any help/pictures would be appreciated.
Thanks,
Spencer
Also I am positive the my intake system is not hooked up right. I have searched but cannot find a picture of an intake system hooked up right to save my life. Any help/pictures would be appreciated.
Thanks,
Spencer
#2
Top Down, Boost Up
iTrader: (7)
Your AFM probably has a bad fuel pump safety switch. Try starting the car with the AFM flapper door propped open or with your old NA AFM in place. Other suggestions in this thread:
https://www.rx7club.com/showthread.p...=fuel+pump+afm

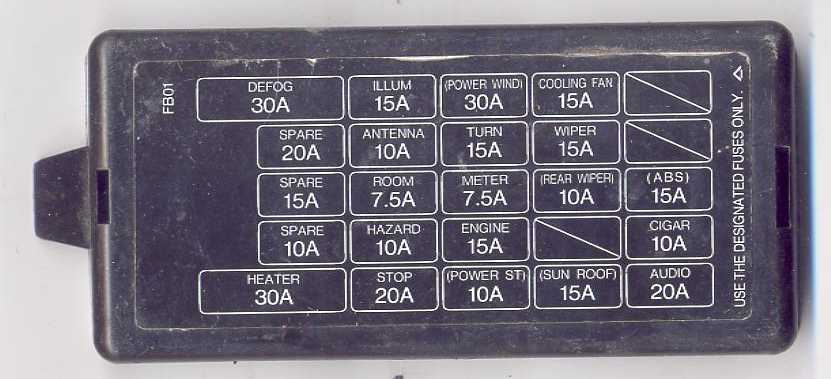

Besides that, check ALL the fuses, including the ones under the driverside kick panel.
https://www.rx7club.com/showthread.p...=fuel+pump+afm
Besides that, check ALL the fuses, including the ones under the driverside kick panel.
#4
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
ENGINE and EGI fuses must be good.
The relay that controls the fuel pump has two coils that can make the relay pull in. One coil is used when the key is HELD to START.
Pull the fuel pressure line off the engine. PUll the small blade connector off the STARTER solenoid. Turn the key to START. Did fuel come out the fuel line? Starter SHOULD not work, but the pump should run IF the key is HELD to start.
IF this is a 86 car and you put a turbo in it, the wiring should not be effected for the fuel pump. You used the non turbo EM haress on the engine? Good. OR?????
Digital meters save time and money. IF you pull the fuel pumps plug on the aft side of the left rear strut tower, and put the meter positive lead on the LARGE BLUE wire in the harness side of that connector, AND hold the key to START, batt voltage should show up, showing the wiring is good.
Power to the pump follows the Green line I drew on the attached jpg.
And the ground for the fuel pump, black wire, has to be......grounded.
The relay that controls the fuel pump has two coils that can make the relay pull in. One coil is used when the key is HELD to START.
Pull the fuel pressure line off the engine. PUll the small blade connector off the STARTER solenoid. Turn the key to START. Did fuel come out the fuel line? Starter SHOULD not work, but the pump should run IF the key is HELD to start.
IF this is a 86 car and you put a turbo in it, the wiring should not be effected for the fuel pump. You used the non turbo EM haress on the engine? Good. OR?????
Digital meters save time and money. IF you pull the fuel pumps plug on the aft side of the left rear strut tower, and put the meter positive lead on the LARGE BLUE wire in the harness side of that connector, AND hold the key to START, batt voltage should show up, showing the wiring is good.
Power to the pump follows the Green line I drew on the attached jpg.
And the ground for the fuel pump, black wire, has to be......grounded.
Last edited by HAILERS; 07-09-08 at 06:06 PM.
#5
Full Member
Thread Starter
Join Date: Sep 2007
Location: Bothell, WA
Posts: 72
Likes: 0
Received 0 Likes
on
0 Posts
they are good.
Done and no fuel
I used a TII harness
Voltage shows- wiring is good.
it is
Digital meters save time and money. IF you pull the fuel pumps plug on the aft side of the left rear strut tower, and put the meter positive lead on the LARGE BLUE wire in the harness side of that connector, AND hold the key to START, batt voltage should show up, showing the wiring is good.
it is
#6
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Wait a darn minute here. If the large blue wire has voltage, and the black wire is going to ground, then if the pump isn't whirring when you hold the key to Start, the fuel pump is bad or its wiring in the tank is wrong.
The fuel pump will also run if the afm vane is pushed aft a quarter inch or so and the key is ON.
Or will run if the yellow fuel pump check connector near the right front strut tower is jumpered and key is ON.
There's some other wires in the fuel pump check connector that have voltage when the key is to ON, BUT there is only ONE large Blue wire that feeds the fuel pump.
I say bad fuel pump. Take that old pump you have and connect it to the harness. Go to START or any of the other ways mentioned and see if the old fuel pump will whirr.
IF you used the TURBOII EM harness on the engine, and did not take action with a couple of wires in it where the EM harness mates with the Front harness, then the ENGINE fuse will blow quite often. But you say you have power on the LARGE blue wire at the fuel pump connector, so the ENGINE fuse has to be good.
The fuel pump will also run if the afm vane is pushed aft a quarter inch or so and the key is ON.
Or will run if the yellow fuel pump check connector near the right front strut tower is jumpered and key is ON.
There's some other wires in the fuel pump check connector that have voltage when the key is to ON, BUT there is only ONE large Blue wire that feeds the fuel pump.
I say bad fuel pump. Take that old pump you have and connect it to the harness. Go to START or any of the other ways mentioned and see if the old fuel pump will whirr.
IF you used the TURBOII EM harness on the engine, and did not take action with a couple of wires in it where the EM harness mates with the Front harness, then the ENGINE fuse will blow quite often. But you say you have power on the LARGE blue wire at the fuel pump connector, so the ENGINE fuse has to be good.
