Question Fuel Injector Identification/replacement help

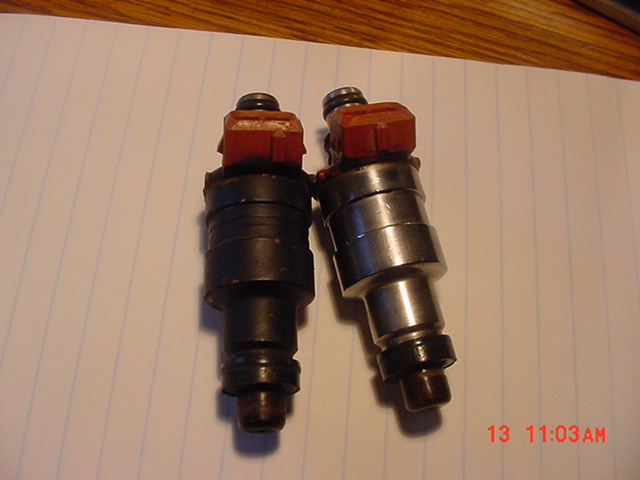

I picked up some used injectors for my 88 vert (N/A) and when I went to put them in, i realized the electrical connection was different.. The "key" on electrical connection of the ones I took out are off-centered. The ones I bought are centered. They both appear to have the same numbers on them (195500-1350) My question is, whats the difference? or perhaps, more importantly, how do I specify what kind I need? Of course, part of me wants to just cut the key off and see what happens, but i suppose they were manufactured differently for a reason
Attached Thumbnails Fuel Injector Identification/replacement help-mvc-071s.jpg
Old 04-13-06, 11:38 AM
  #2
Alcohol Fueled!

iTrader: (2)

J-Rat's Avatar

Join Date: Jan 2002
Location: Hood River oregon
Posts: 11,093
Likes: 0
Received 2 Likes on 2 Posts
From the lovable Kevin Landers' site:

84-85 13B NT low square center 680cc orange 195500-0900
86-87 13B NT low square center 460cc red 195500-1350
86-87 13B T low square center 550cc tan 195500-1370
88 13B NT high square offset 460cc purple 195500-1350
88 13b T high square offset 550cc purple 195500-1370
89-91 13B NT high oval center 460cc red 195500-2010
89-91 13B T high oval center 550cc purple 195500-2020
