Like the title says. I'd like to see someone that did this. I tried searching, but I only found one person and his pictures didn't help at all at how he routed his piping. I want to see how you routed your piping and placement of the actual IC is what is important to me. Doesn't matter whether or not you have your AC/power steering pump. I ditched my stuff a long time ago. Thanks.
#4
Hozz: Your car was actually the one I saw I believe? I liked you FMIC setup but those kits are getting hard to come by. Do you have any pictures of your setup facing the bumper from the clutch master or windshield wiper motor point of view? I'm trying to keep the number of holes drilled to a minimum.
#5
I break Diff mounts
iTrader: (1)
Here's my NPR setup.
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/installing-isuzu-npr-fmic-782097/
No bumper mod needed.
Did have to lose PS though(unless you go GSL-SE lower PS mount)
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/installing-isuzu-npr-fmic-782097/
No bumper mod needed.
Did have to lose PS though(unless you go GSL-SE lower PS mount)
#6
Here's my NPR setup.
https://www.rx7club.com/showthread.php?t=782097
No bumper mod needed.
Did have to lose PS though(unless you go GSL-SE lower PS mount)
https://www.rx7club.com/showthread.php?t=782097
No bumper mod needed.
Did have to lose PS though(unless you go GSL-SE lower PS mount)
Trending Topics
#8
Do you have any pics of how its setup, in regards to the pipe routing? I had my hands on one a while back from maczpayne I believe? But it didn't come with piping so I never got to mount it. Ended up selling the core.
#10
Do you have pictures of the actual holes drilled in the chassis, and where the pipes actually pass through? What kind of flange do you have welded on there? Is it the stock TRUST flange or did you change it. Can't really differentiate the BOV. Looks like an old school HKS bov. Sorry for all the neurotic questions. I just like to be well prepared when spending money.
#11
Rotary Enthusiast
I've done it. But its ALL custom.
heres my thread. https://www.rx7club.com/showthread.p...highlight=fmic
heres my thread. https://www.rx7club.com/showthread.p...highlight=fmic
#12
FD Daily
iTrader: (26)

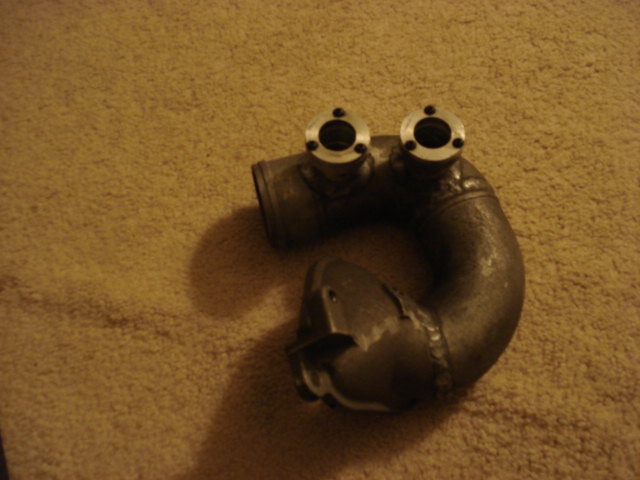

the stock setup doesn't have a BOV flange, so i added an HKS flange to it. i don't have any pics of the cutting, but greddy still has the instructions available online that show what needs to be done.
http://www.greddy.com/img/PHP/products/pdf/791.pdf
my kit isn't complete, only comes with what i have pictured here, though the rest is easy to fab with 2.5" aluminum pipes/bends/couplers
the person that had it before me chopped some of the piping up and used jb weld to make beads...pretty much ruined, but you can have it if you want.
I only got rid of the kit because i swapped to an FD UIM.
http://www.greddy.com/img/PHP/products/pdf/791.pdf
my kit isn't complete, only comes with what i have pictured here, though the rest is easy to fab with 2.5" aluminum pipes/bends/couplers
the person that had it before me chopped some of the piping up and used jb weld to make beads...pretty much ruined, but you can have it if you want.
I only got rid of the kit because i swapped to an FD UIM.
#17
Driving RX7's since 1979
iTrader: (43)
Join Date: Aug 2001
Location: So Cal where the OC/LA/SB counties meet
Posts: 6,096
Likes: 0
Received 8 Likes
on
8 Posts
Gunner,

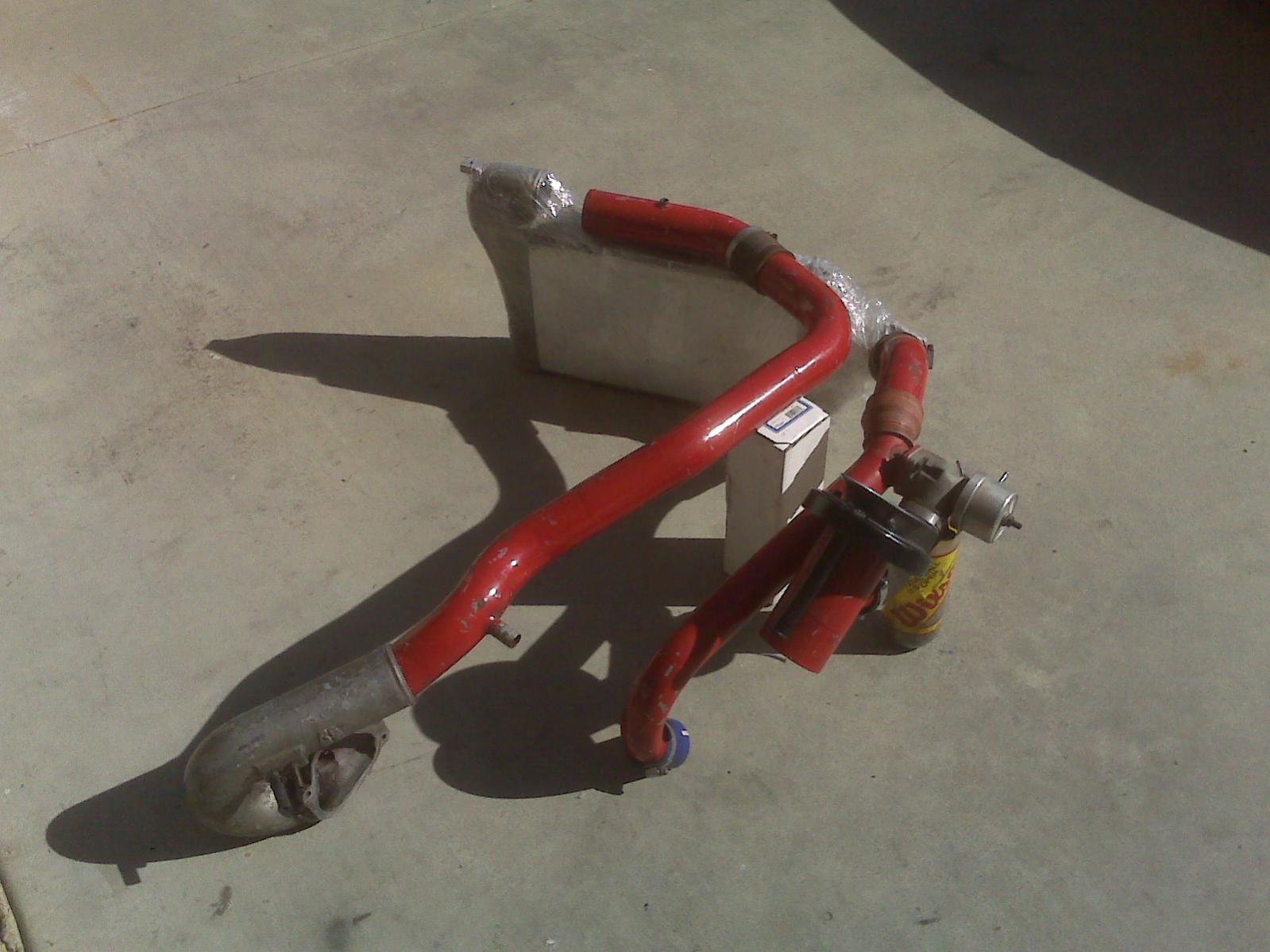

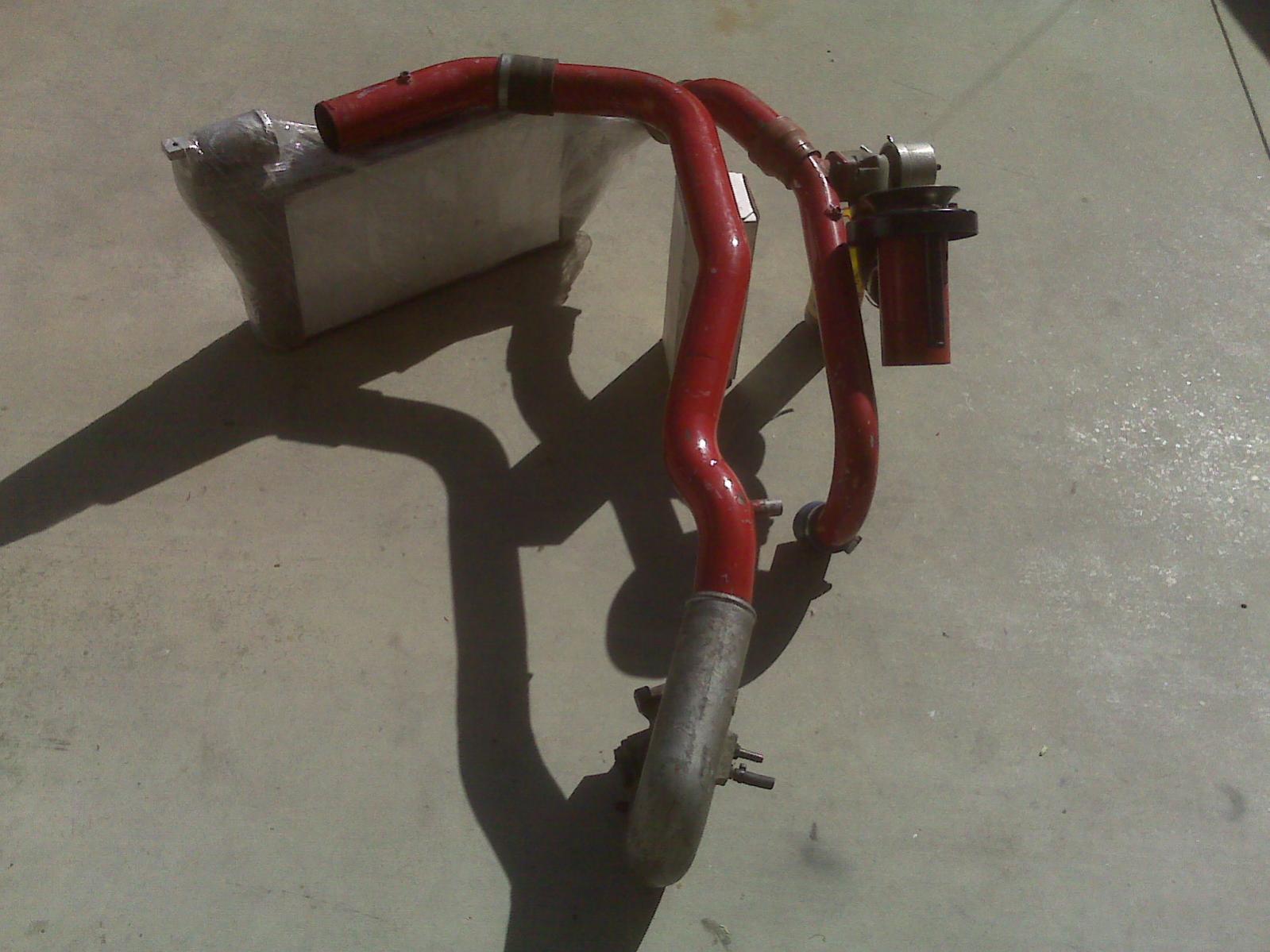

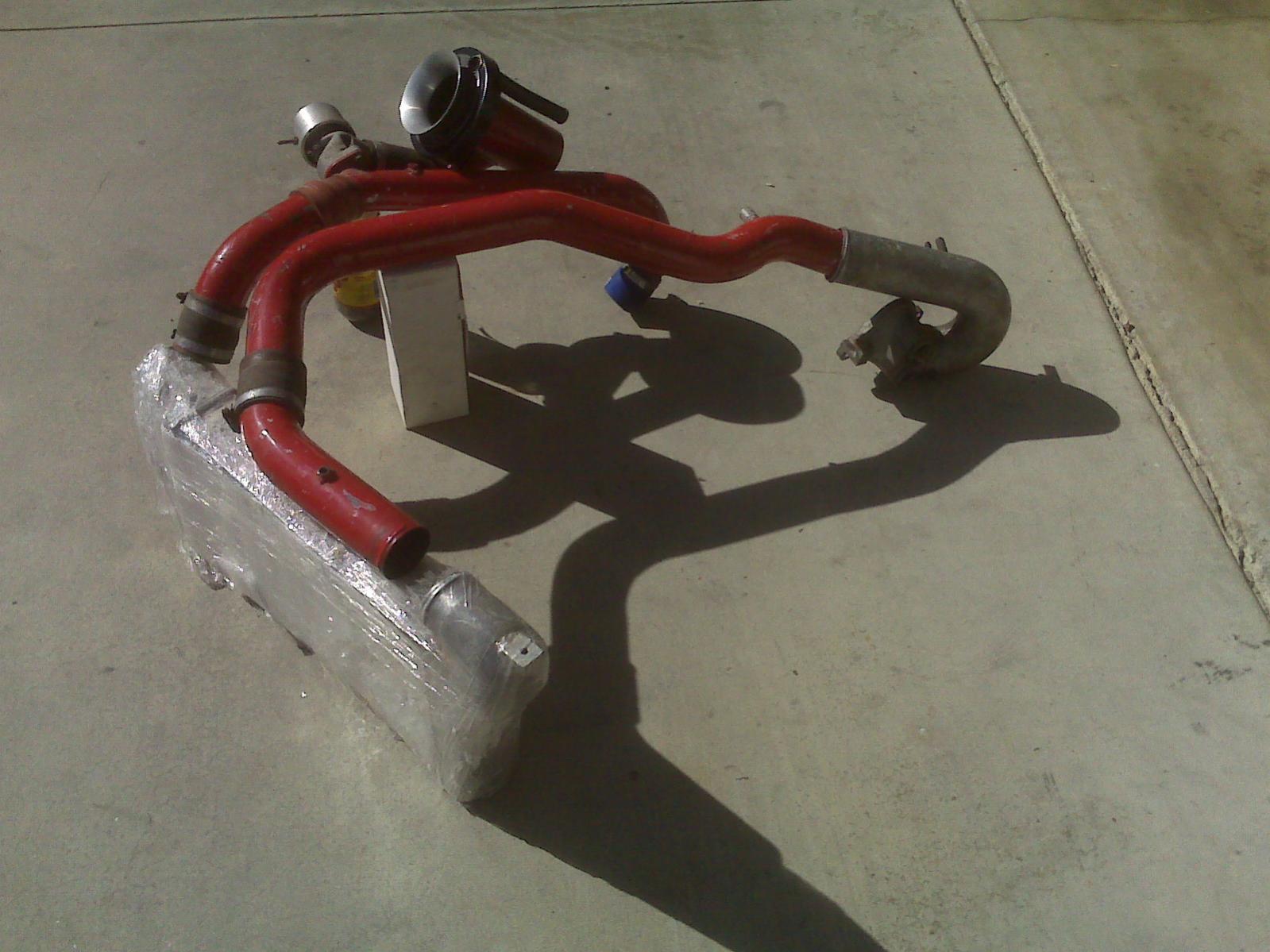

I'd go for the below if you want to follow my lead in FMIC. It looks similar to my HKS which got me to just over 300 rwhp running up to 14 pounds of boost (a little over a Bar) and my T04E turbo. The big pipe pictured I recognize as what comes off the Compression tube. See mine pictured below at right. And I've got a compression tube similar to my HKS one left over that should work with it. See picture below at left. Make an offer and it's yours.

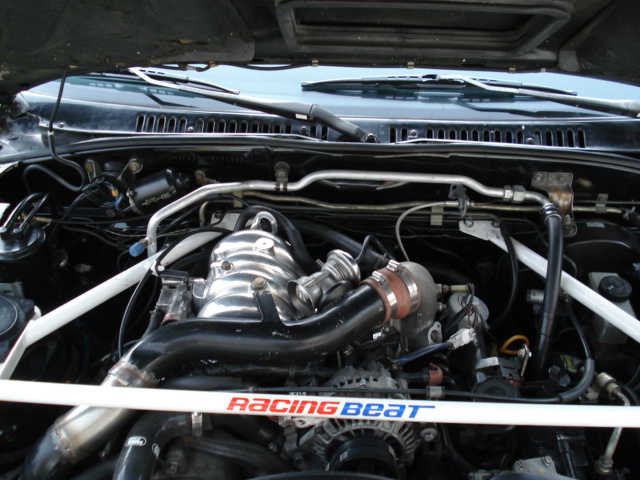

As I recall, two pieces and your connected to the top of the FMIC. Using the U shaped pipe, you can probably complete the air circuit to the turbo with two or three more fabed pipe pieces. Pictured middle below is an RE Amemiya set up I sold off a while back that is similar to my HKS in design as to piping from compression tube to FMIC. Give you an idea how the Greddy pipe would connect to things. One little hole under the stock air box for the run to the FMIC is all the cutting needed. The run from the FMIC comes up from underneath, so no cutting needed for the return.
I'd go for the below if you want to follow my lead in FMIC. It looks similar to my HKS which got me to just over 300 rwhp running up to 14 pounds of boost (a little over a Bar) and my T04E turbo. The big pipe pictured I recognize as what comes off the Compression tube. See mine pictured below at right. And I've got a compression tube similar to my HKS one left over that should work with it. See picture below at left. Make an offer and it's yours.
As I recall, two pieces and your connected to the top of the FMIC. Using the U shaped pipe, you can probably complete the air circuit to the turbo with two or three more fabed pipe pieces. Pictured middle below is an RE Amemiya set up I sold off a while back that is similar to my HKS in design as to piping from compression tube to FMIC. Give you an idea how the Greddy pipe would connect to things. One little hole under the stock air box for the run to the FMIC is all the cutting needed. The run from the FMIC comes up from underneath, so no cutting needed for the return.
the stock setup doesn't have a BOV flange, so i added an HKS flange to it. i don't have any pics of the cutting, but greddy still has the instructions available online that show what needs to be done.
http://www.greddy.com/img/PHP/products/pdf/791.pdf
my kit isn't complete, only comes with what i have pictured here, though the rest is easy to fab with 2.5" aluminum pipes/bends/couplers
the person that had it before me chopped some of the piping up and used jb weld to make beads...pretty much ruined, but you can have it if you want.
I only got rid of the kit because i swapped to an FD UIM.
http://www.greddy.com/img/PHP/products/pdf/791.pdf
my kit isn't complete, only comes with what i have pictured here, though the rest is easy to fab with 2.5" aluminum pipes/bends/couplers
the person that had it before me chopped some of the piping up and used jb weld to make beads...pretty much ruined, but you can have it if you want.
I only got rid of the kit because i swapped to an FD UIM.
#18
Sharp Claws
iTrader: (30)
there is other cores that will allow the fog lamps to still be fitted like the saab core, NPR or vmount styles.
#19
New Turbo time!
iTrader: (2)
Join Date: Sep 2005
Location: New Zealand
Posts: 91
Likes: 0
Received 0 Likes
on
0 Posts

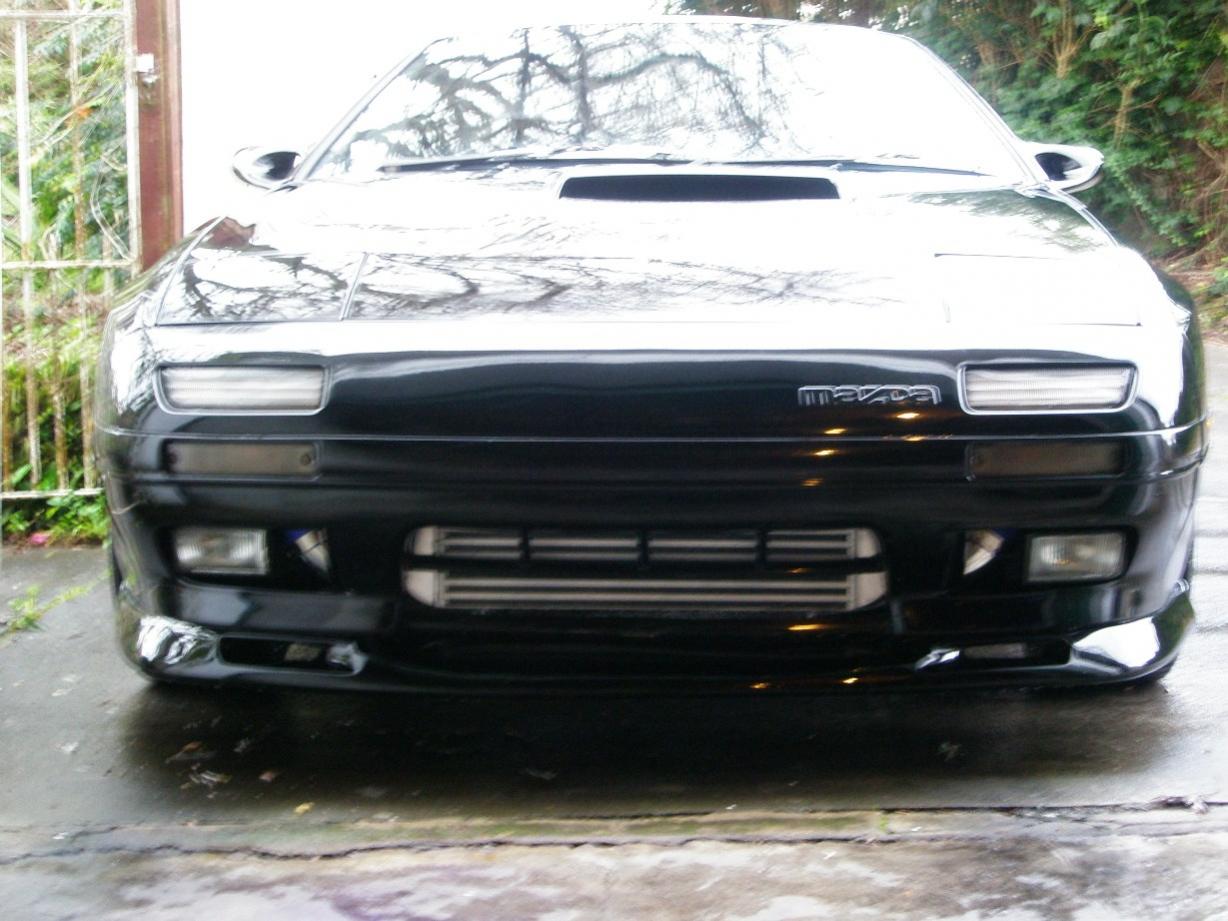

https://www.rx7club.com/album.php?albumid=1640
check out this album and you'll see what your in for, if you want it to look like this....
check out this album and you'll see what your in for, if you want it to look like this....
#22
I've done it. But its ALL custom.
heres my thread. https://www.rx7club.com/showthread.p...highlight=fmic
heres my thread. https://www.rx7club.com/showthread.p...highlight=fmic
