2713ddddavid

iTrader: (1)

Look what I found while pulling the upper intake getting ready for some much needed upgrades. I never saw or smelled it leak a drop but it was only a matter of time.

mazdaverx713b

iTrader: (91)

the screw on the pressure regulator backing out. common. i have a 93 camry that i bought with an "exploded injector". it was that the screw backed out and was spraying gas all over the place. i threaded it back in and the car runs superb! your choice whether you want to thread it back in or replace it.

mazdaverx713b

iTrader: (91)

double post. darn proxy error.

My5ABaby

iTrader: (7)

Pulsation dampener.

gxl90rx7

iTrader: (1)

i hear putting a dab of epoxy or jbweld will keep the screw from backing out

2713ddddavid

iTrader: (1)

As I progress through my upgrades I`ll be doing the "banjo bolt mod" to deal with this issue. Don`t start in on me over this method. I`ve read a shitload of posts concerning this and I believe I`ll side with Rotary Ressurection on this. The man has worked on many more of these engines than most of us ever will. Down the road I`ll most likely go with an aftermarket FPR and will select one that has a built in dampener.

fastrotaries

This is pretty much common knowledge. You can put threadlocker on that OR replace it with an S5 model

2713ddddavid

iTrader: (1)

Yes I know its A common problem I just wanted to bring it up for the new, less experianced members. After all this IS the main cause of RX7 death by fire is it not?

RotaryEvolution

iTrader: (30)

problem with JB weld is the PD vibrates and expands/contracts so it won't stick and threadlocker will only hold it for so long. just because the screw is backed out doesn't mean it is leaking but it does seal it in case the diaphragm does begin to leak.

nothing wrong with the banjo bolt mod IMO, i use it in my car as well.

fredster102

okay lol i dont want to sound dumb but where around the intake is the PD , on a 88N/a

Mushy B

or perhaps some blue threadlocker?

Mushy B

sorry i guess i should've read the rest of the thread replies before i opened my big mouth, and about the banjo bolt mod.... to each his own

mazdaverx713b

iTrader: (91)

yeah, i did mean the damper, lol. i'm glad you posted about it. a lot of the newer guys here aren't aware of the danger of how its prone to leaking. perhaps someone could post pics and a step by step on how to prevent leakage. i personally am a fan of the jb weld idea. if its applied correctly and it dries properly, it should last a long time.

mightymite

iTrader: (1)

its mounted to the middle iron under the intanke manifold runners

drago86

The screw being out does not mean it has failed.

DO NOT put epoxy over it, that will tear the diaphram on a brand new PD. the screw moves in and out slightly while the PD is working.

reinstall the screw with red loctite, careful not to overtighten as this can tear the diaphram too.

or, Buy a new PD, they should be replaced every few year to be safe.

RETed

Stop posting DANGEROUS advice.


-Ted

My5ABaby

iTrader: (7)

I've been told you can braze something over the hole (bronze?).

RETed

That's still really bad advice.
The fuel can leak through the crimp seams on the PD itself.


-Ted

Goofy

The S5 model pulsation damper is not more robust than the S4.

Icemark

NO,

DO NOT put anything that can stop the screws movement on the screw head.

Look guys, the screw moves in and out. If you JB weld or expoxy or even use a bugar from your nose, the screw can and will hit it, leading to the internal diapharam ripping all the sooner.

There is a reason the plastic cap is there. It is there to prevent dirt and hoses and wires and anything else from hitting the top of the screw.

loskeezy

not ttrying to butt-in, but how can you tell if an S5 PD has failed since it's internal?

SirCygnus

iTrader: (1)

um.... what? aslong as it doesnt leak externally, there is no problem.

Icemark

One of three things will happen.

The rubber tab will fall out
The rubber tab will stay in, but gas will start leaking out only when driving
The rubber tab will stay in, and gas will spray out/around it when the engine is running.

mazdaverx713b

iTrader: (91)

for the sake of asking, but not being doubtful mark, but how its it that the screw moves in and out when its threaded? i understand the concept that you're talking about, but i think i'd like more info on this.

Icemark

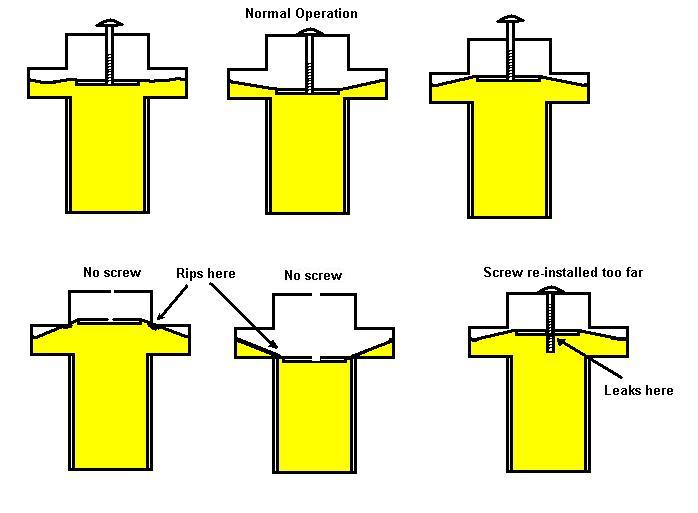

The screw attaches to a plate inside the PD.

In normal operation that plate moves up and down as needed and the plate moves up and down.

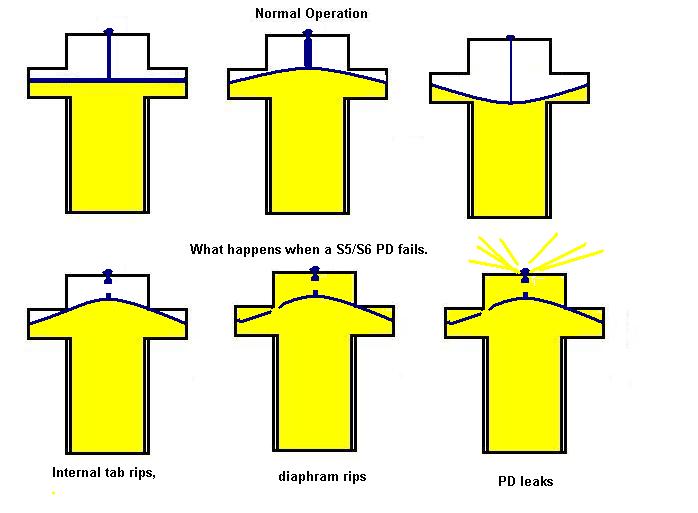

Then the S5/ S6 is simular:



Yellow (of course) is fuel
