FD Twin Turbos on an FC

Old 10-03-13, 11:23 AM
  #1
Full Member
Thread Starter

Join Date: Jul 2013
Location: NC
Posts: 81
Likes: 0
Liked 0 Times in 0 Posts
FD Twin Turbos on an FC

Found stock FD twin turbos on craigslist with wategate, piping, inter cooler and blow off valves for a good price. Will I be able to put them on my 1991 rx7 convertible
VasiliBrown is offline
Old 10-03-13, 11:35 AM
  #2
Full Member
Thread Starter

Join Date: Jul 2013
Location: NC
Posts: 81
Likes: 0
Liked 0 Times in 0 Posts
By the way my 91 rx7 is naturally aspirated at the moment
VasiliBrown is offline
Old 10-03-13, 11:44 AM
  #3
Full Member

Claytons91's Avatar

Join Date: Jun 2013
Location: Macon
Posts: 112
Likes: 0
Liked 0 Times in 0 Posts
short answer.... no.
Claytons91 is offline
Old 10-03-13, 12:06 PM
  #4
Senior Member

Join Date: Jun 2012
Location: Michigan
Posts: 462
Liked 0 Times in 0 Posts
Nope. The NA intake system won't fit. You sould try to add the REW intake but that would take a crap ton of modification. Not worth it.
Customisbetter is offline
Old 10-03-13, 12:11 PM
  #5
mattg prob nt coming back
iTrader: (3)

FC3S_nataku's Avatar

Join Date: Feb 2005
Location: OrangePark FL
Posts: 1,933
Likes: 0
Liked 0 Times in 0 Posts
What about on a 4 port? Would it make sense then?
FC3S_nataku is offline
Old 10-03-13, 12:22 PM
  #6
Senior Member

Join Date: Jun 2012
Location: Michigan
Posts: 462
Liked 0 Times in 0 Posts
It could work but you would need the FD upper and lower intake manifold. At that point I would just fab up a whole new intake setup.

You would also need a "good and working" solenoid spider from an FD of which there are few. Plus an FD ecu and Power FC.

But at that point I would also just buy/fab up a new exhaust manifold and runa single turbo.

There really isn't any reason to use twins anymore.
Customisbetter is offline
Old 10-03-13, 12:40 PM
  #7
Full Member
10 Year Member
iTrader: (2)

oinesra's Avatar

Join Date: Jun 2005
Location: Orange Park, FL
Posts: 237
Likes: 0
Liked 0 Times in 0 Posts
yes it can be done. I helped a buddy of mine do it on 6 port vert. but it's one of those things if you have to ask about it, you probably don't have the ability to do it.

Not being a dick. Its just a pretty involved project.
oinesra is offline
Old 10-03-13, 12:54 PM
  #8
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Likes: 0
Liked 12 Times in 11 Posts
will only fit with an FD intake manifold, which won't bolt to an FC engine without lots of modification.

then you will have fitment issues with the turbo and notching the frame.

then you will need a standalone to be able to adjust the fuel that the turbos will need.

then you will need to upgrade the **** poor n/a fuel system because it will cap out at about 200whp leaving you with a blown engine even if it makes it to 5psi.

then there is no rear turbo oil drain on the FC block, so you'd have to modify a drain into the oil pan.


stop listening to people who say "dude, that turbo will fit your car, it'll rip and should bolt right on." yes, the turbos and manifold will fit without an intake manifold on it, and nothing else on just the turbos themselves.

is all that worth it when an FC turbo will fit with less headache? no.

Last edited by RotaryEvolution; 10-03-13 at 12:59 PM.
RotaryEvolution is offline
Old 10-03-13, 12:59 PM
  #9
Senior Member

Join Date: Jun 2012
Location: Michigan
Posts: 462
Liked 0 Times in 0 Posts
Originally Posted by RotaryEvolution View Post
yes, the turbos and manifold will fit without an intake manifold on it, and nothing else on just the turbos themselves.
Those will be the shortest runners ever. lol
Customisbetter is offline
Old 10-03-13, 01:03 PM
  #10
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Likes: 0
Liked 12 Times in 11 Posts
plus the twins fall apart and have a lifespan of about 100k miles. why would you upgrade to the twins when you will need to change them out sooner or later? they aren't even really rebuildable because of the heat they have to tolerate.
RotaryEvolution is offline
Old 10-03-13, 03:39 PM
  #11
Full Member
10 Year Member
iTrader: (2)

oinesra's Avatar

Join Date: Jun 2005
Location: Orange Park, FL
Posts: 237
Likes: 0
Liked 0 Times in 0 Posts
Lol. Bolting the turbos on is the easy part.

Use a header flange as a spacer(with two gaskets obviously) the front compressor, and front secondary runner will need a little grinding for clearance.

This was 6port block with s4 turbo intake manifold.

The single biggest pain in the *** was the outlet Ypipe.

We even used an ebay 3rd gen down pipe as is.

But like I said, if you cant figure this out on your own, this project is kind of over your head.
oinesra is offline
Old 10-03-13, 04:37 PM
  #12
Super Raterhater
iTrader: (6)

SonicRaT's Avatar

Join Date: Dec 2001
Location: NY, MA, MI, OR, TX, and now LA or AZ!
Posts: 10,623
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by oinesra View Post
Lol. Bolting the turbos on is the easy part.

Use a header flange as a spacer(with two gaskets obviously) the front compressor, and front secondary runner will need a little grinding for clearance.

This was 6port block with s4 turbo intake manifold.

The single biggest pain in the *** was the outlet Ypipe.

We even used an ebay 3rd gen down pipe as is.

But like I said, if you cant figure this out on your own, this project is kind of over your head.
This man speaks truth. S5 LIM will give you a good bit more clearance, but the waterpump will be a nightmare. I modified mine a bit, which wasn't all that difficult.

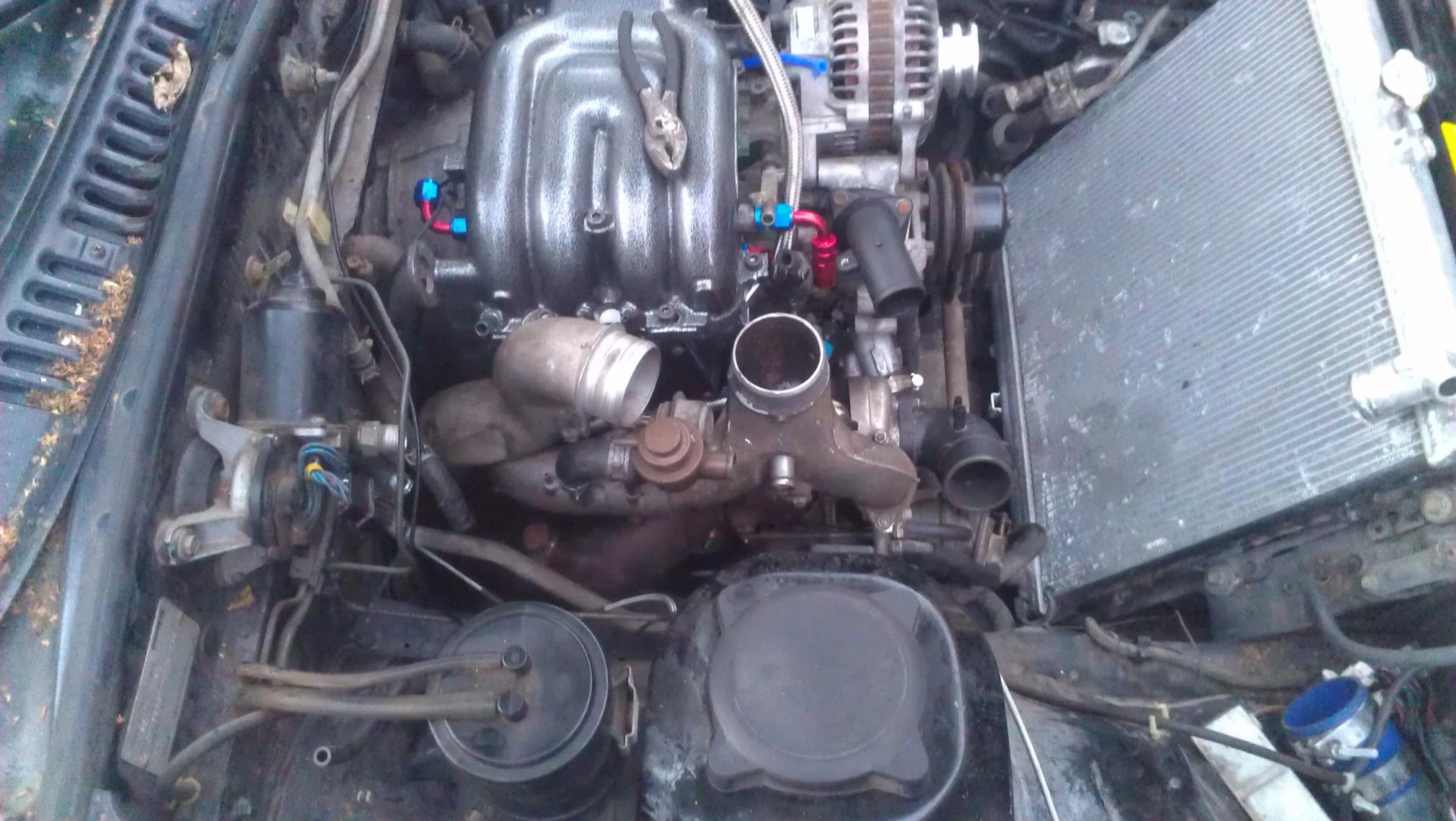

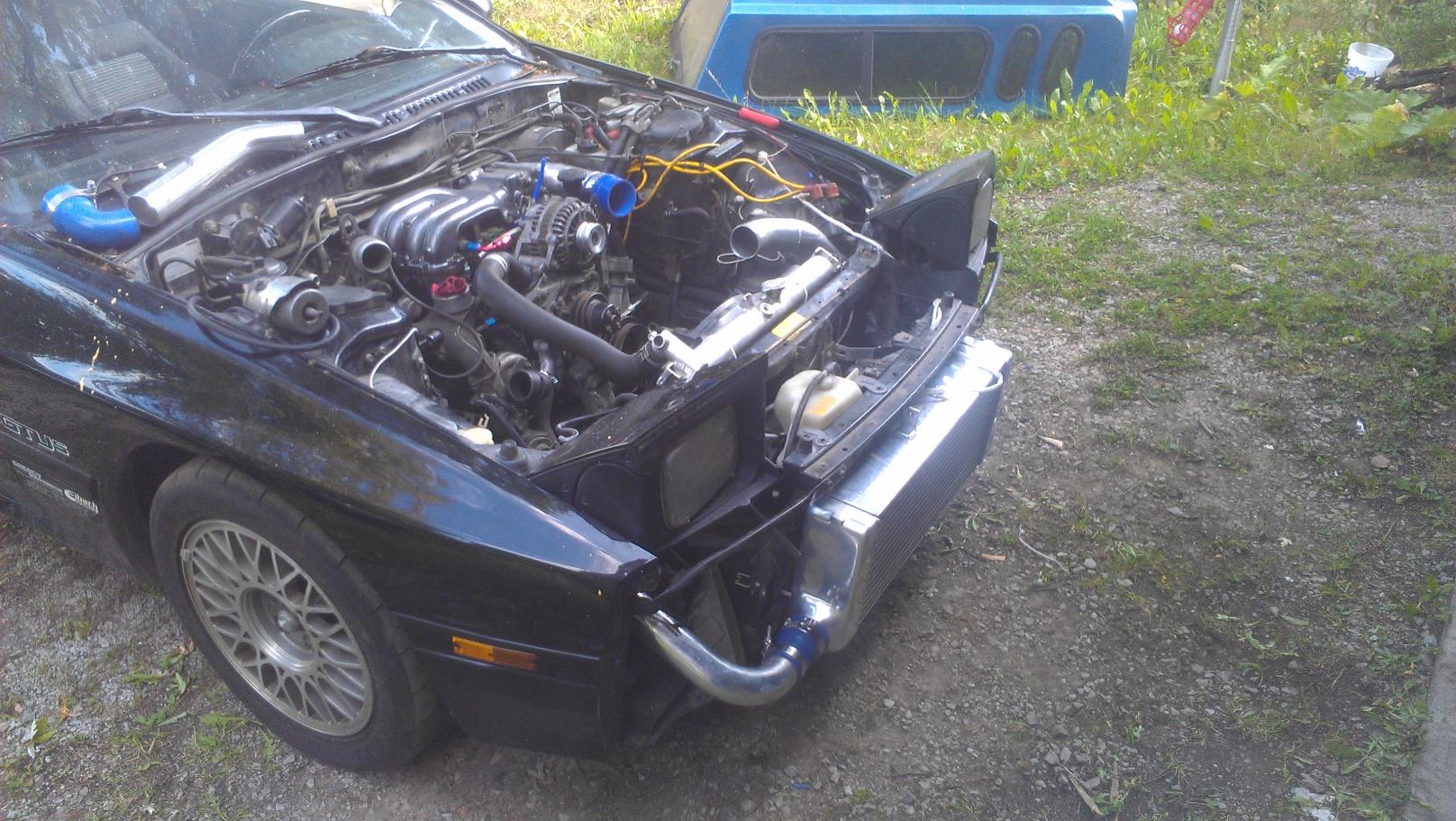

ETA: Attached are pictures of my "rebuild." Previously, I had used an FD LIM, however it constantly had leaking issues. So, I switched to a S5 LIM, as well as changed out a number of other things (bigger FMIC, fuel rails/lines/etc). I'll be documenting the "new" process in my build thread once I get around to it.

And yes, mine is still sequential.

Is it worth it? Absolutely not, unless you happened to have all of the parts laying around already, like I did. I parted another FD and had nearly everything left to do it, so it cost me next to nothing to build. It's hard to argue against free. The turbos were also known to be in good condition and didn't have a lot of miles, which was a considerable plus.
Attached Thumbnails FD Twin Turbos on an FC-imag0240.jpg   FD Twin Turbos on an FC-imag0301.jpg
SonicRaT is offline
Old 10-04-13, 05:50 PM
  #13
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Likes: 0
Liked 12 Times in 11 Posts
how did you go about draining the oil from the rear turbo?
RotaryEvolution is offline
Old 10-04-13, 05:52 PM
  #14
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,385
Likes: 0
Liked 107 Times in 97 Posts
Originally Posted by RotaryEvolution View Post
how did you go about draining the oil from the rear turbo?
he's in AZ, he probably just left it open :P
j9fd3s is online now
Old 10-04-13, 07:02 PM
  #15
Super Raterhater
iTrader: (6)

SonicRaT's Avatar

Join Date: Dec 2001
Location: NY, MA, MI, OR, TX, and now LA or AZ!
Posts: 10,623
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by RotaryEvolution View Post
how did you go about draining the oil from the rear turbo?
Now there's a loaded question that's sure to spawn an endless array of debate. Currently, I'm using a setup similar to Aaron's. I'm using a -10AN drain off the turbo into a -10AN fitting on the oil pan. Thus brings up the debate on if that line can overcome the hydraulic pressure of the oil level fast enough to displace the oil being pumped into it. I approached this by using a bit longer and more gradual drain than necessary, which both reduced the hydraulic pressure and increased the drain capacity before it would begin backing up. Consequently, I've never had a single issue with it (and I've used this drain setup for going on 10 years now).
SonicRaT is offline
Old 10-04-13, 10:14 PM
  #16
Junior Member
iTrader: (1)

Join Date: Aug 2012
Location: fairborn ohio
Posts: 31
Liked 0 Times in 0 Posts
As mentioned above.... It can be done if you use a exhaust flange as a spacer, ebay fd downpipe with 2" of clearance, fmic, mount the afm as a blow-thru(without standalone) and safc, the oil returns can be plumbed together then into front cover and there you go fd twins on a fc with the fc lim ...im doing it now to my sisters 6port

Last edited by jking; 10-04-13 at 10:21 PM.
jking is offline
Old 10-05-13, 07:49 PM
  #17
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Likes: 0
Liked 12 Times in 11 Posts
i could envision plumbing it to the oil pan but not routing it to the front cover, it's either going to have a major dip in the line or sit right on the scorching hot manifold with some major funky bends.
RotaryEvolution is offline
Old 10-05-13, 08:20 PM
  #18
My job is to blow **** up
iTrader: (8)

lastphaseofthis's Avatar

Join Date: Jan 2005
Location: palmyra Indiana
Posts: 2,878
Liked 0 Times in 0 Posts
i was gonna make a thread for mine, after it's running, not sure if' i'll even care to finish now.. enjoy the pics.

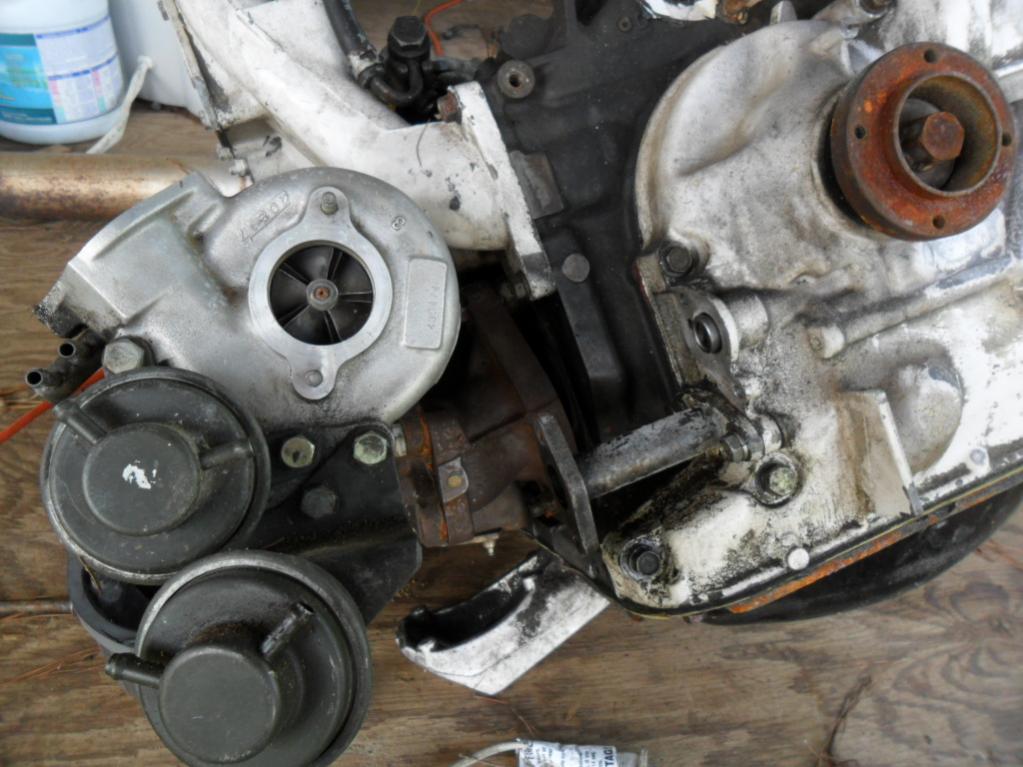

I cut a spare FD manifold in half at the perfect angle to get the manifolds to clear. all bolted up, ran the oil lines, had an idea of how to run the twins seq, but i've lost interest... the advantages just don't matter to me any more. who needs 17 psi at 1500 rpm.. the engine can't use the boost to make huge power until 3500-4000 for most port styles, and a modern turbo achieves this and 400+hp.

can't seem to find all the pix of the last time everything was installed... maybe that is what's on my dead camera..

to answer the original posters question. NO, YOU will not be able too. you will spend the value of your vert buying the turbo intake manifolds ecu, injectors, fuel pump, plus the cost of making the parts to retro fit it, like oil lines, intake piping, coolant. oil lines... yeah.
Attached Thumbnails FD Twin Turbos on an FC-sam_0166.jpg
lastphaseofthis is offline
Old 01-05-16, 06:03 PM
  #19
My job is to blow **** up
iTrader: (8)

lastphaseofthis's Avatar

Join Date: Jan 2005
Location: palmyra Indiana
Posts: 2,878
Liked 0 Times in 0 Posts
Originally Posted by jking View Post
As mentioned above.... It can be done if you use a exhaust flange as a spacer, ebay fd downpipe with 2" of clearance, fmic, mount the afm as a blow-thru(without standalone) and safc, the oil returns can be plumbed together then into front cover and there you go fd twins on a fc with the fc lim ...im doing it now to my sisters 6port
no mine works as a draw thru.. 3 years later?


i could envision plumbing it to the oil pan but not routing it to the front cover, it's either going to have a major dip in the line or sit right on the scorching hot manifold with some major funky bends.

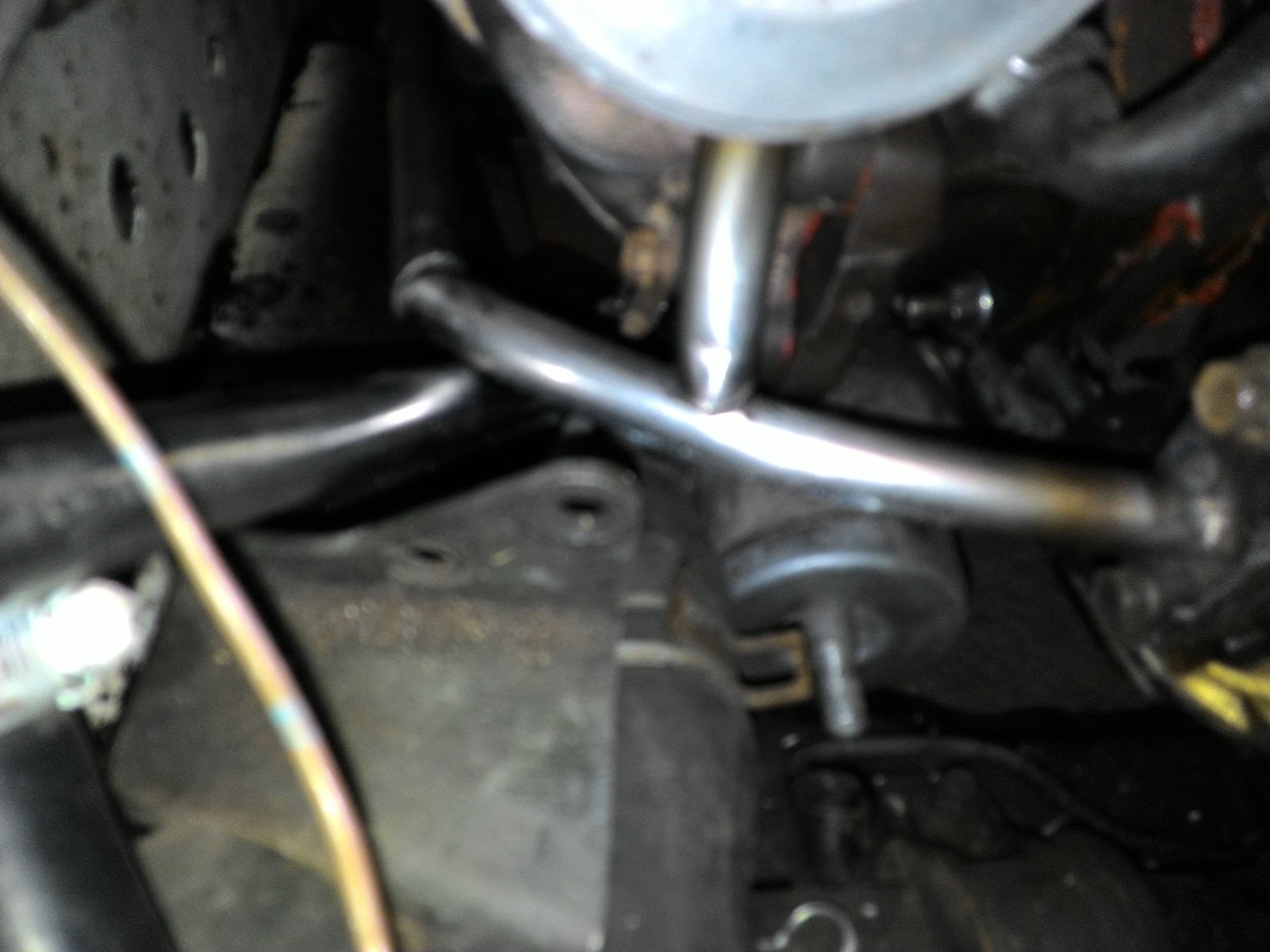

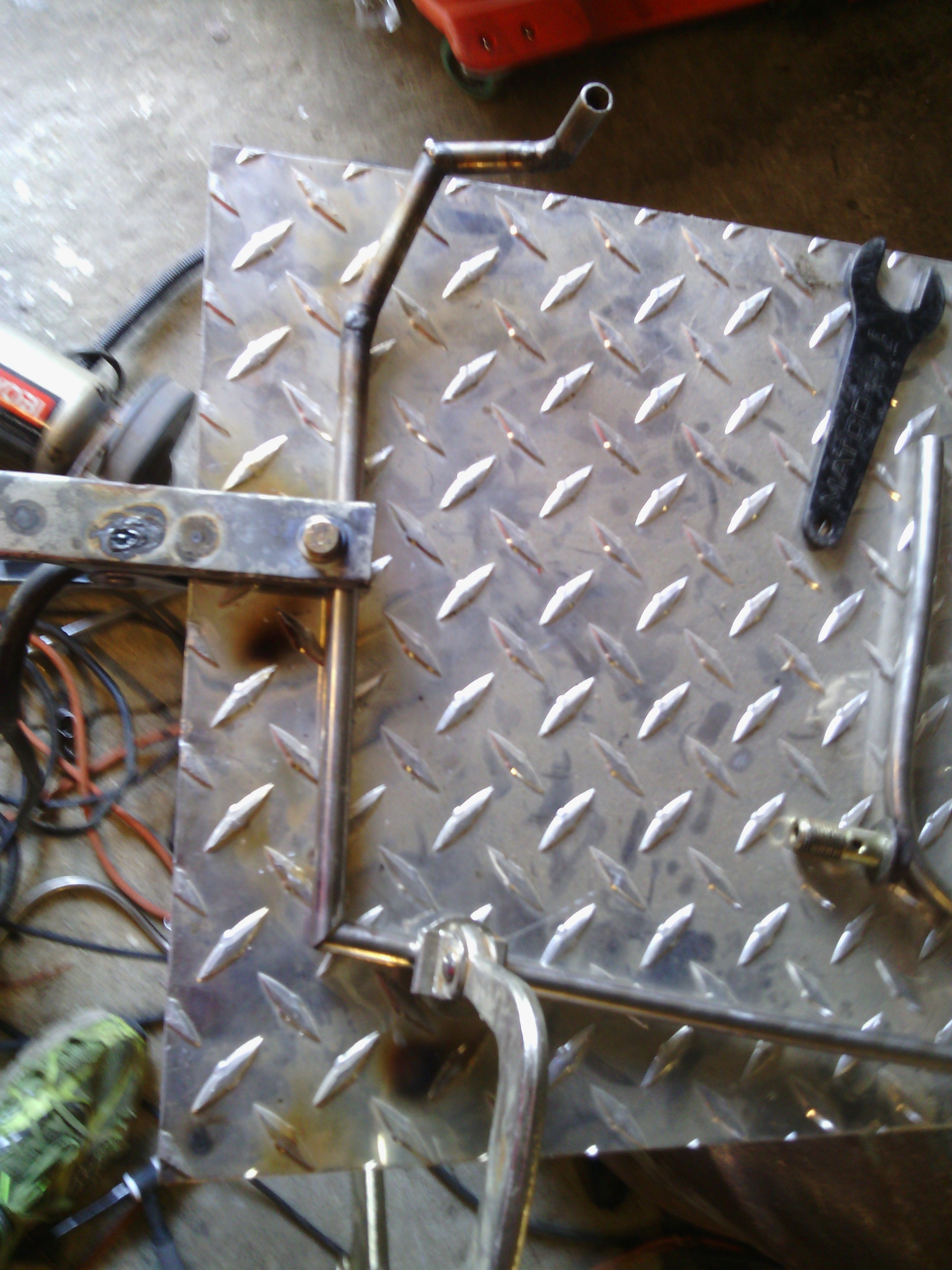

well, first is my small oil drain, which i didn't finish because i didn't like it.

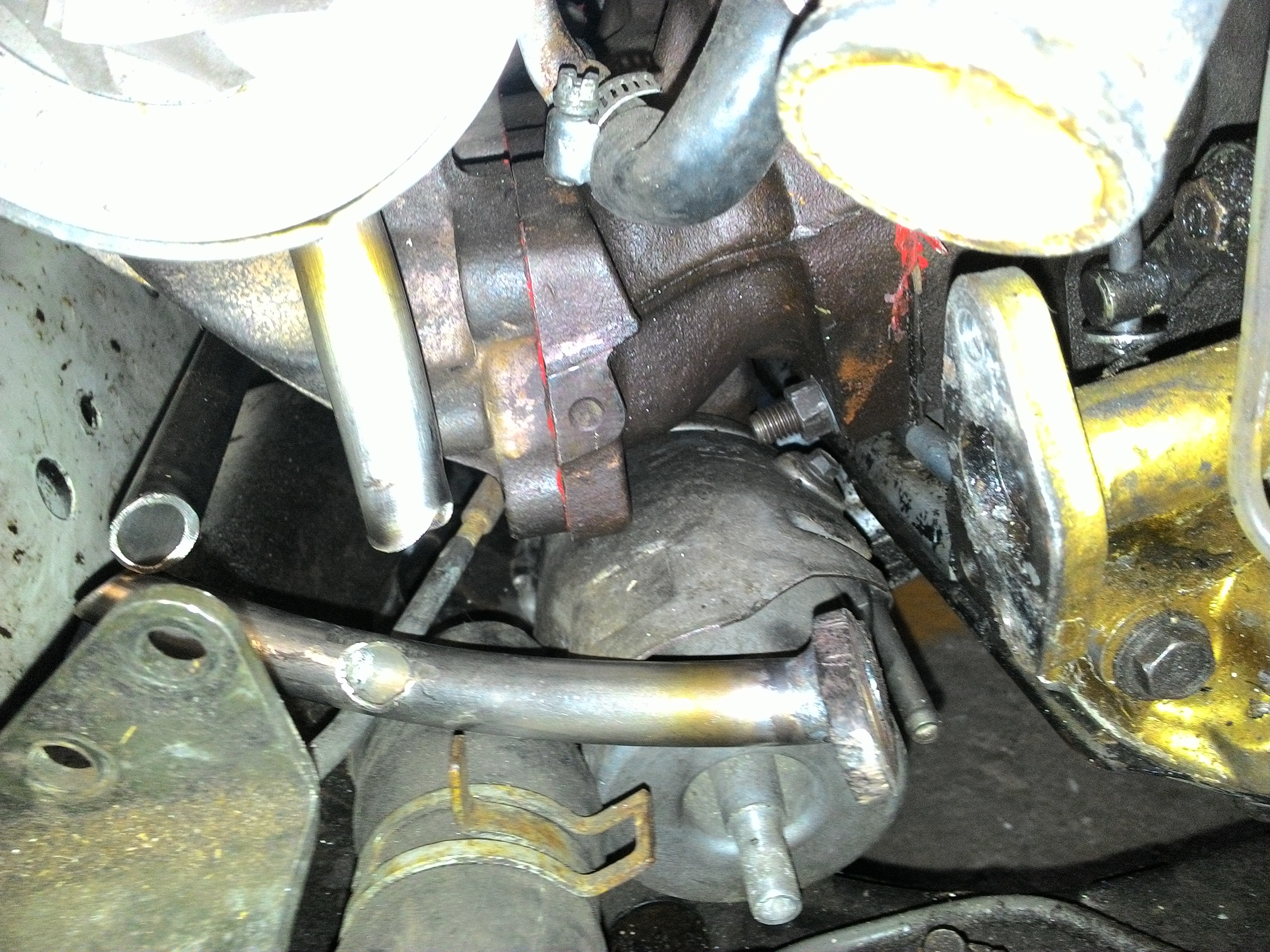

this is the final oil drain.

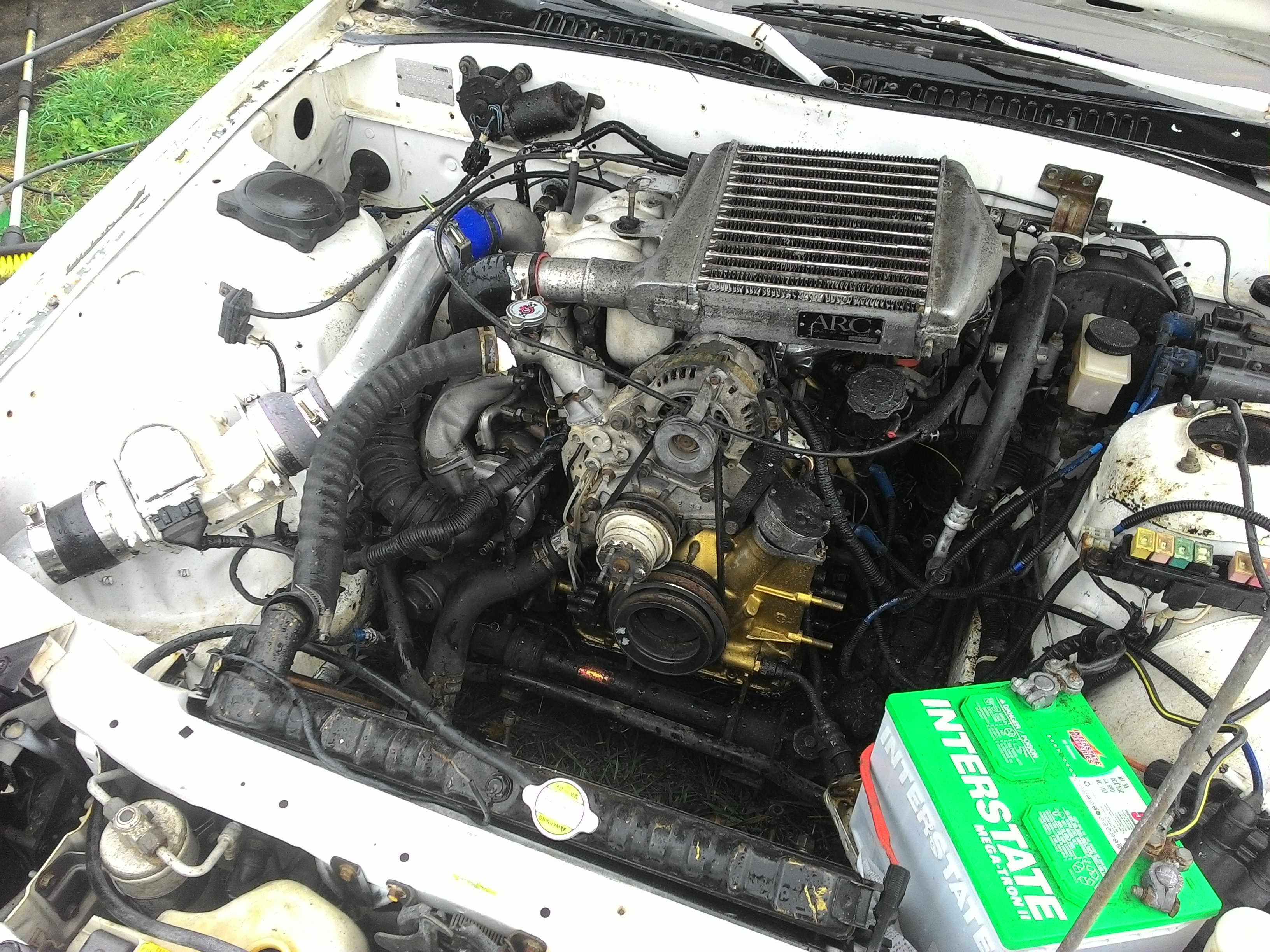

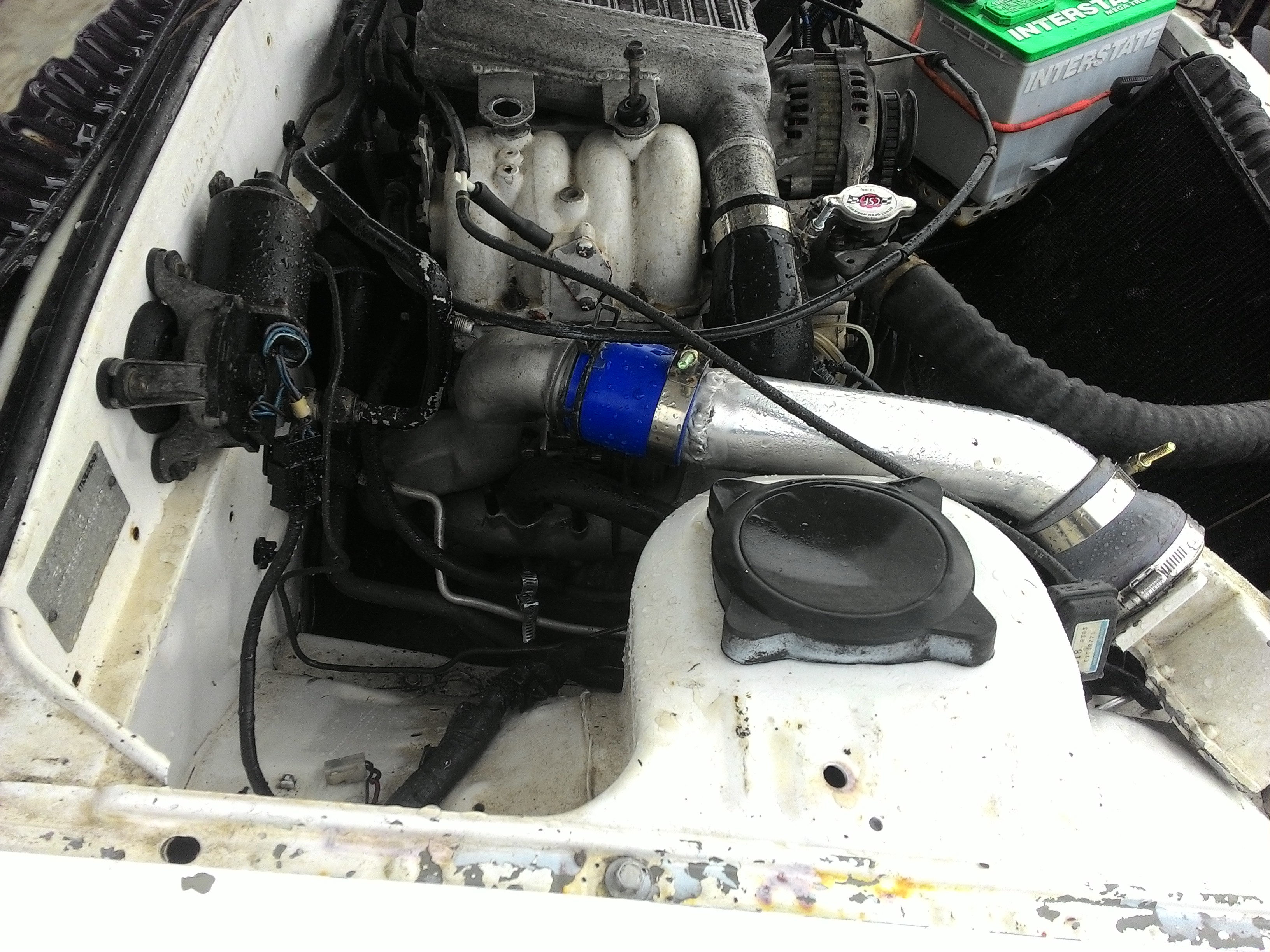

i drove it around the block first time today.. 10 psi at 2k rpm in 2nd GEAR.. 10 as soon as you punch down. amazing. i might do a full thread after i get it transitioning and dyno'd at over 300.( 2 months away?) i should be installing my seq control rack and vacuum stuff later this week. right now its just rigged to boost on the primary. not sure what would happen if i tried to go high rpm. just choke out alot..
Attached Thumbnails FD Twin Turbos on an FC-p_20151107_133716.jpg   FD Twin Turbos on an FC-p_20151107_133707.jpg   FD Twin Turbos on an FC-p_20151011_180228.jpg   FD Twin Turbos on an FC-p_20151011_180522.jpg   FD Twin Turbos on an FC-img_20150907_140527_443.jpg


Last edited by lastphaseofthis; 01-05-16 at 06:12 PM.
lastphaseofthis is offline
