fc3sfloor pan replacement???
10-13-07, 10:59 PM
#1
Concept Motorsports
Thread Starter
fc3sfloor pan replacement???
anyone ever replaced the entire floor pan or had it done?

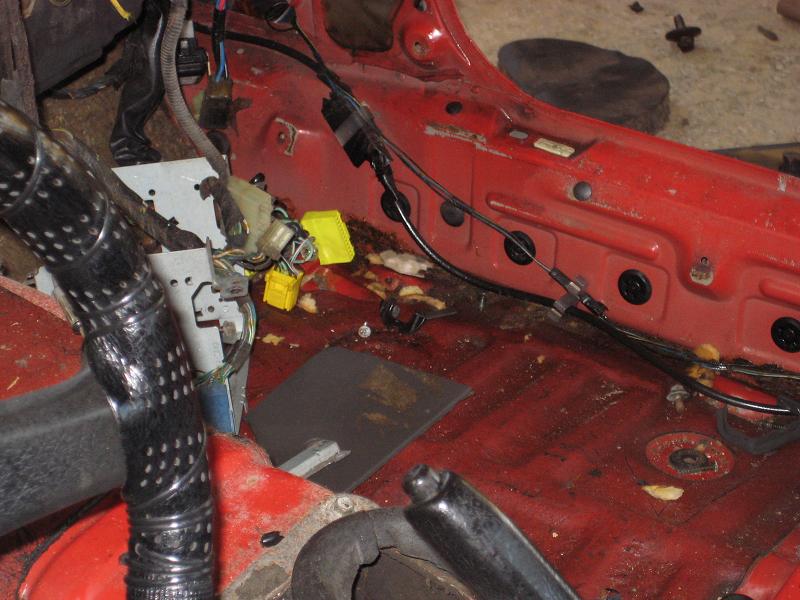

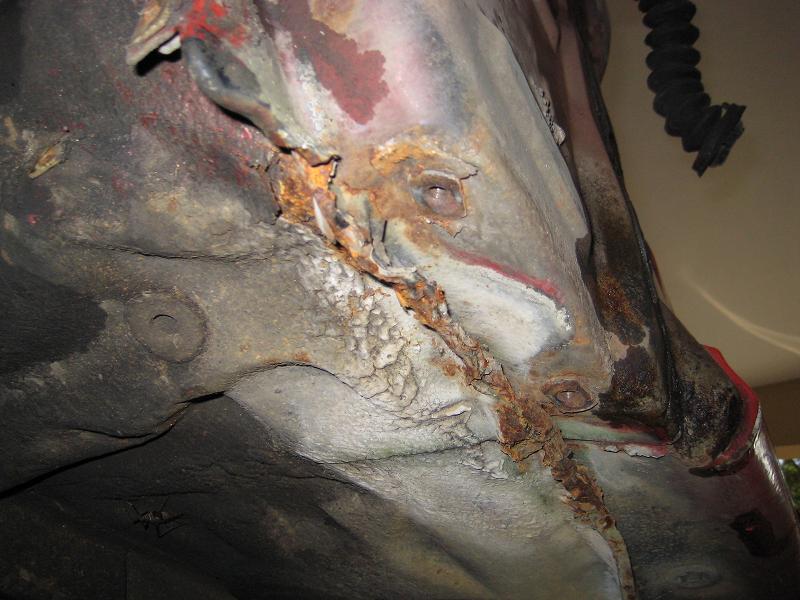

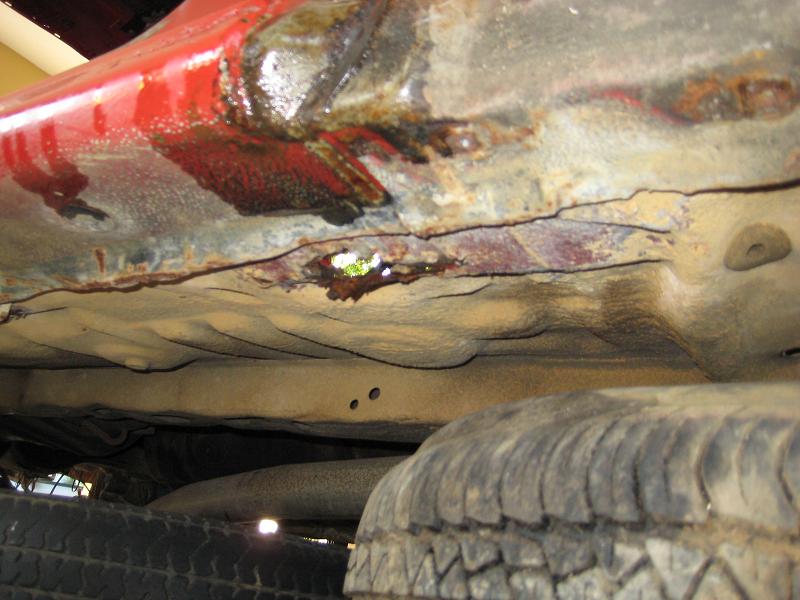

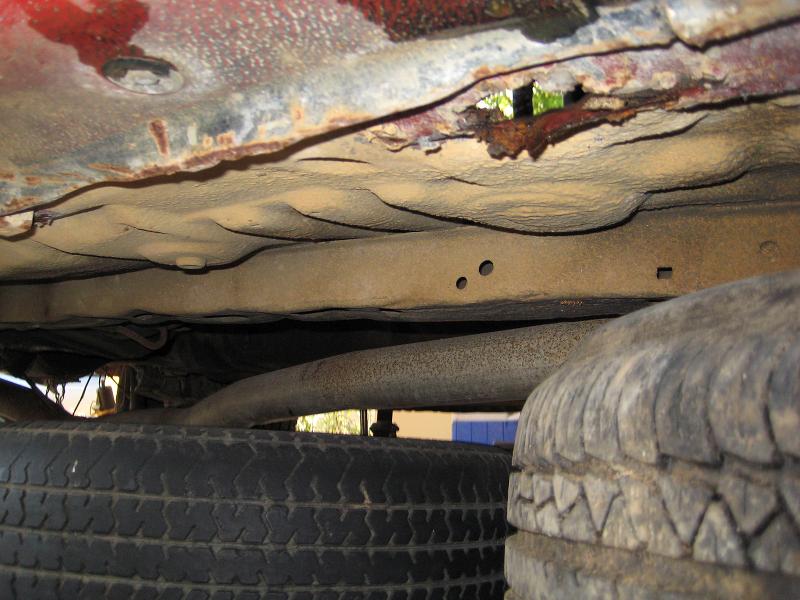

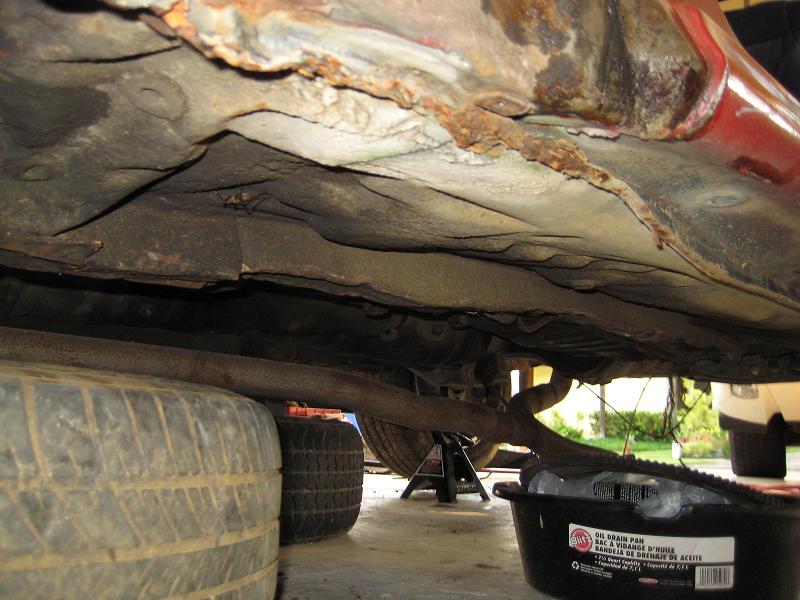

my floor is a bit rusty on the edges near the side rails but mostly dented i basically need a floor pan
my floor is a bit rusty on the edges near the side rails but mostly dented i basically need a floor pan
10-13-07, 11:15 PM
#2
Concept Motorsports
Thread Starter

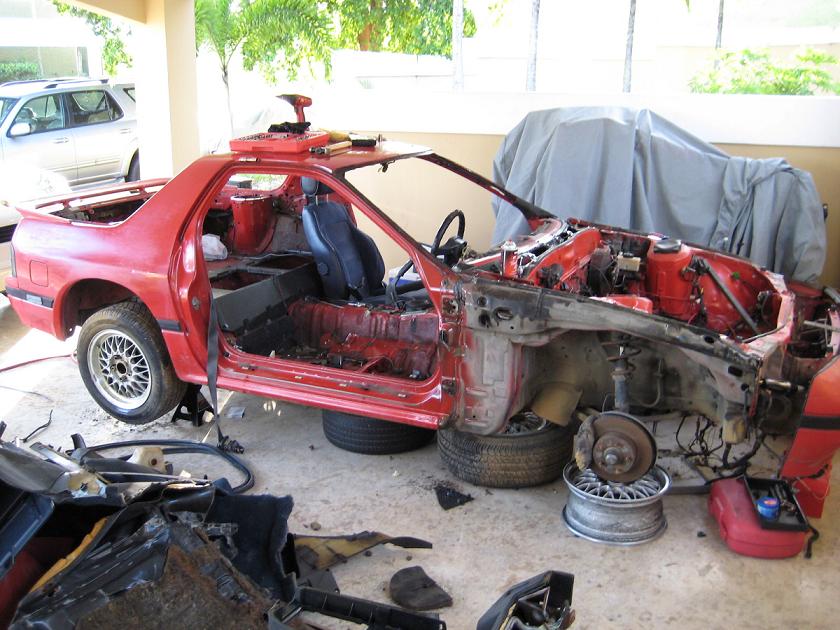

BTW this is my project its an 88 non-turbo, it has some rust, and the floors are banged up, but i think this car deserves a second chance as a race car.
I am building a track car from it , so after i fix the floors ill install a roll cage and seam weld the chassis.
good bodies are hard to find in Puerto Rico ,and most have worst rust or are as straight as the broke *** mountain cowboy.
wonder how much would it cost to have this panel replaced by a body shop.
I am building a track car from it , so after i fix the floors ill install a roll cage and seam weld the chassis.
good bodies are hard to find in Puerto Rico ,and most have worst rust or are as straight as the broke *** mountain cowboy.
wonder how much would it cost to have this panel replaced by a body shop.
10-14-07, 02:45 AM
#3
damn, well, i replaced mine in my datsun, that wasnt fun, even with direct replacement pans. basically, you have to reinforce the body with w/e before you start cutting, in able to avoid inevitable warpage.
so, without welding experience, and a good hand at cutting, good luck?
side not, dont use a plasma cutter, i learned that the hard way!
peace
so, without welding experience, and a good hand at cutting, good luck?
side not, dont use a plasma cutter, i learned that the hard way!
peace
10-14-07, 10:40 AM
#4
Thats nowhere near as bad as mine!
The floorpan and rockers are available from Mazda if you want to shell out serious cash, think $650 for a floorpan.
Best bet is to beg, borrow, or steal a sheet metal brake and bead roller.
A sawzall or electric sheet metal shears work well for cutting the original out.
The floorpan and rockers are available from Mazda if you want to shell out serious cash, think $650 for a floorpan.
Best bet is to beg, borrow, or steal a sheet metal brake and bead roller.
A sawzall or electric sheet metal shears work well for cutting the original out.
Trending Topics
10-14-07, 06:33 PM
#8
Concept Motorsports
Thread Starter
10-14-07, 06:40 PM
#10
Concept Motorsports
Thread Starter
10-14-07, 07:00 PM
#11
Concept Motorsports
Thread Starter
Thats nowhere near as bad as mine!
The floorpan and rockers are available from Mazda if you want to shell out serious cash, think $650 for a floorpan.
Best bet is to beg, borrow, or steal a sheet metal brake and bead roller.
A sawzall or electric sheet metal shears work well for cutting the original out.
The floorpan and rockers are available from Mazda if you want to shell out serious cash, think $650 for a floorpan.
Best bet is to beg, borrow, or steal a sheet metal brake and bead roller.
A sawzall or electric sheet metal shears work well for cutting the original out.
10-16-07, 04:38 PM
#15
Concept Motorsports
Thread Starter

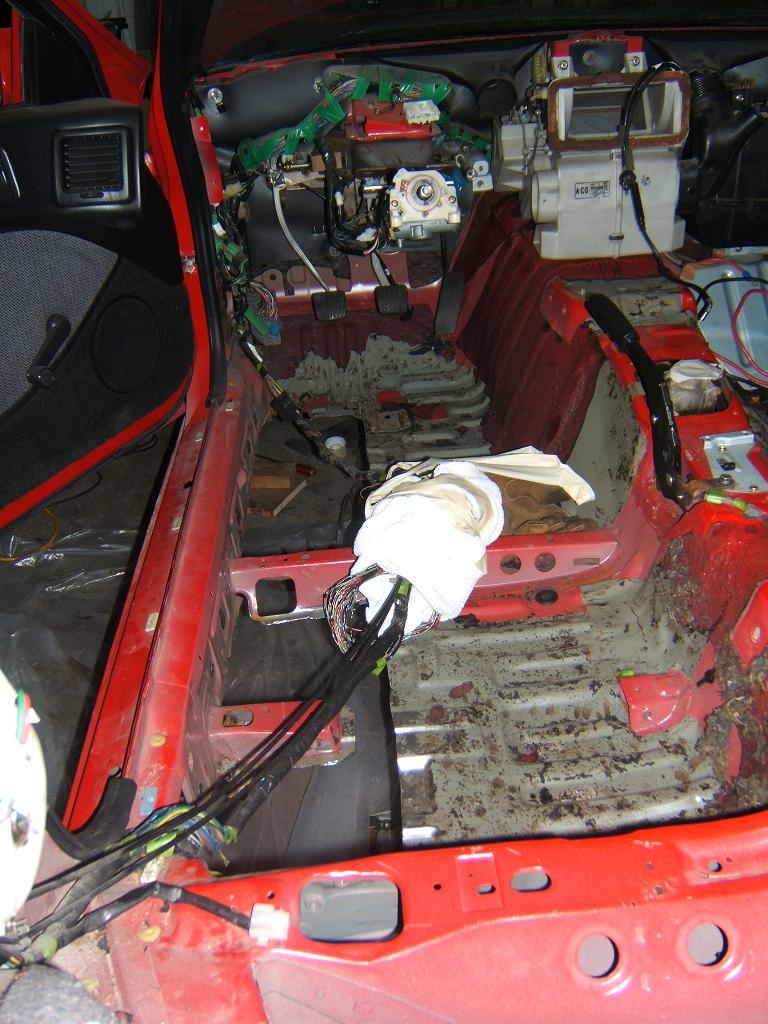

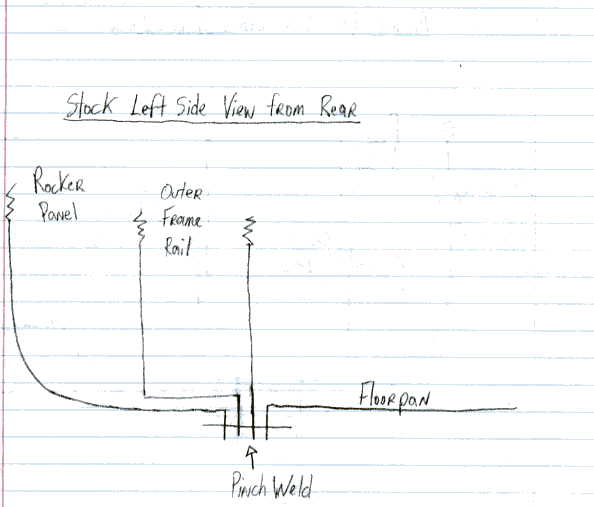

here are some pics of Yani's project

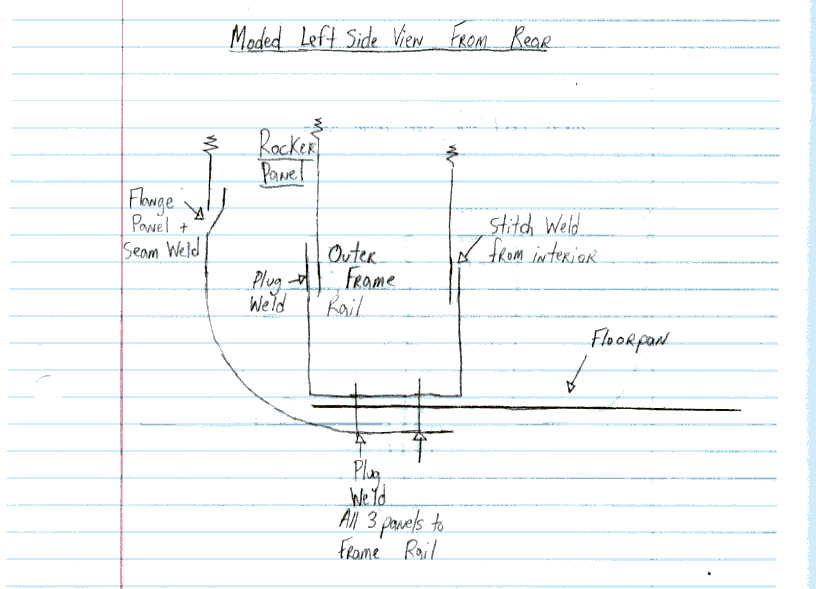

"To replace the section of the floor that I cut out I plan on bead
rolling a rectangular sheet only in the middle and leave a 2" strip
form the edges flat. It would have rigidity and still be flat on the
edges to weld to. The rust started at the pinch weld and worked its
way outward. It destroyed the bottom 1/3 of the rocker and outer frame
rail (the frame rail is enclosed inside the rocker) and sections of
the floor pan." - Yani
"Any size between 18-22 gauge should be fine. I am using 18 + 20 gauge
for the floor pan and inner frame rail and either 20 or 22 for the
rocker panel. Just remember when your welding to keep the tip mainly
on the new metal and work small circles to minimize burn through. It's
best to plan it out so that you can keep welding underneath the car to
a minimum. I used a saber saw and an electric metal shear to cutout
everything, then sandblast or grind the rest."- Yani
"To replace the section of the floor that I cut out I plan on bead
rolling a rectangular sheet only in the middle and leave a 2" strip
form the edges flat. It would have rigidity and still be flat on the
edges to weld to. The rust started at the pinch weld and worked its
way outward. It destroyed the bottom 1/3 of the rocker and outer frame
rail (the frame rail is enclosed inside the rocker) and sections of
the floor pan." - Yani
"Any size between 18-22 gauge should be fine. I am using 18 + 20 gauge
for the floor pan and inner frame rail and either 20 or 22 for the
rocker panel. Just remember when your welding to keep the tip mainly
on the new metal and work small circles to minimize burn through. It's
best to plan it out so that you can keep welding underneath the car to
a minimum. I used a saber saw and an electric metal shear to cutout
everything, then sandblast or grind the rest."- Yani
