Originally posted by Icemark
What number is the second TDC, the first is #9, where is the second??? It can't be #18, ebcause that is the start of the next cycle.+
I think you are mis-interpeting the info
What number is the second TDC, the first is #9, where is the second??? It can't be #18, ebcause that is the start of the next cycle.+
I think you are mis-interpeting the info
intake
compression
power
exhuast
in that order they happen
on pawl yaws explanation he shows all 4 cycles
of course the first one is intake
now as you ask where does the second cycle come in that is number 4
the rotor is at BDC (max displacement in the chamber)
so now no other place to go other then compress the mixture
hence the compression cycle
number 9 is the start of the third cycle
the power cycle or as he refers to it as the expansion cycle
the compression cycle has finished compressing the mixture
only place it has to go now is to expand and that expansion puts force on the e-shaft... hence power cycle or cycle number 3
number 14 is the 4th and final cycle
the exhuast cycle
the rotor is now at BDC once again and this time it it is there to get ready to push the exhuast out... hence exhuast cycle
so we have 4 seperate cycles/events there
#52
Former Moderator. RIP Icemark.
Lets make it even more simple, on a two stroke how many times is the combustion chamber compressed on a spark plug? Once
How many times on a 4 stroke??? twice
How many times on a rotary is a single combustion chamber compressed on a sparkplug? Once.
How many times on a 4 stroke??? twice
How many times on a rotary is a single combustion chamber compressed on a sparkplug? Once.
#53
Rotary Enthusiast
Join Date: Mar 2001
Location: Caldwell,ID
Posts: 968
Likes: 0
Received 0 Likes
on
0 Posts
on a sparkplug yes
but you can't use that 4 a comparison between a 4 stroke and a 2 stroke
diesle motors don't have spark plugs correct?
and not all have glow plugs either
but they have a 2 stroke and 4 stroke diesles
the difference between them is how many different events/cycles there are in the combustion proccess
2 events on the 2 cycle
4 on the 4 cycle
and the rotory has 4 seperate cycles in there as well
just like a 4 cycle piston motor
valves,pistons,sparkplugs, all that have nothing to do with 2/4 cycle
what makes it a 2 or 4 cycle is how many cycles you have
can you deny that a rotary has 4 seperate cycles to it?
doesn't it have
intake, compression, power, exhuast cycles?
on each rotary face doesn't it go through each cycle at a seperate time?
that is why the rotary is a 4 cycle
but you can't use that 4 a comparison between a 4 stroke and a 2 stroke
diesle motors don't have spark plugs correct?
and not all have glow plugs either
but they have a 2 stroke and 4 stroke diesles
the difference between them is how many different events/cycles there are in the combustion proccess
2 events on the 2 cycle
4 on the 4 cycle
and the rotory has 4 seperate cycles in there as well
just like a 4 cycle piston motor
valves,pistons,sparkplugs, all that have nothing to do with 2/4 cycle
what makes it a 2 or 4 cycle is how many cycles you have
can you deny that a rotary has 4 seperate cycles to it?
doesn't it have
intake, compression, power, exhuast cycles?
on each rotary face doesn't it go through each cycle at a seperate time?
that is why the rotary is a 4 cycle
Last edited by rxspeed87; 06-28-03 at 09:01 PM.
#55
Rotary Enthusiast
Join Date: Mar 2001
Location: Caldwell,ID
Posts: 968
Likes: 0
Received 0 Likes
on
0 Posts
at least answer this
does a rotary motor have an
intake cycle
compression cycle
power cycle
and exhuast cycle?
if you said yes that it has all 4 cycles
do each of them happen at different times per rotor face?
I can in a way see where you are comming from with this.
but can you admit that it has all 4 cycles though?
doesn't it suck in air?
doesn't it them compression air?
then it ignites air causing power?
then it gets rid of all the exhuast?
4 seperate cycles
does a rotary motor have an
intake cycle
compression cycle
power cycle
and exhuast cycle?
if you said yes that it has all 4 cycles
do each of them happen at different times per rotor face?
I can in a way see where you are comming from with this.
but can you admit that it has all 4 cycles though?
doesn't it suck in air?
doesn't it them compression air?
then it ignites air causing power?
then it gets rid of all the exhuast?
4 seperate cycles
#58
Former Moderator. RIP Icemark.
Originally posted by rxspeed87
at least answer this
does a rotary motor have an
intake cycle
compression cycle
power cycle
and exhuast cycle?
if you said yes that it has all 4 cycles
do each of them happen at different times per rotor face?
I can in a way see where you are comming from with this.
but can you admit that it has all 4 cycles though?
doesn't it suck in air?
doesn't it them compression air?
then it ignites air causing power?
then it gets rid of all the exhuast?
4 seperate cycles
at least answer this
does a rotary motor have an
intake cycle
compression cycle
power cycle
and exhuast cycle?
if you said yes that it has all 4 cycles
do each of them happen at different times per rotor face?
I can in a way see where you are comming from with this.
but can you admit that it has all 4 cycles though?
doesn't it suck in air?
doesn't it them compression air?
then it ignites air causing power?
then it gets rid of all the exhuast?
4 seperate cycles
In fact the only 4 stroke that is even mildly close to this is the Miller Cycle engine and even then it is really only a valve timing issue in a 4 stroke configuration.
And again you are confusing cycles (which indicate a complete circle) with events during the cycle. Cycles are not strokes, and cycles are not events.
a two stroke also has your 4 events (what you call cycles in your post), yet you don't call a two stroke a 4 cycle/stroke engine. Why??? because there is only one complete travel on the combustion chamber per combustion event.
Again a 4 stroke, there are two complete travels of combustion face (or chamber in our case) per combustion event.
again:
Two-stroke engines fire once every revolution, while four-stroke engines fire once every other revolution.
I don't know how much clearer it can be.
So if you still chose to believe that because there are 4 events, that makes for a 4 stroke engine, then you need to start calling gas lawn mowers or snow mobiles or gas chain saws also 4 stroke engines.
But I am done argueing this. It is what it is.
Last edited by Icemark; 06-29-03 at 01:01 AM.
#59
Rotary Enthusiast
Join Date: Mar 2001
Location: Caldwell,ID
Posts: 968
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Icemark
No, it doesn't, since the intake event is part of the compression event (as in all two strokes). Again, If this was not the case the DEI wouldn't work. There also would not be left over (burned and un burned) mixture, if there was a event purgeing the exhaust (as found on a 4 stroke).
In fact the only 4 stroke that is even mildly close to this is the Miller Cycle engine and even then it is really only a valve timing issue in a 4 stroke configuration.
And again you are confusing cycles (which indicate a complete circle) with events during the cycle. Cycles are not strokes, and cycles are not events.
a two stroke also has your 4 events (what you call cycles in your post), yet you don't call a two stroke a 4 cycle/stroke engine. Why??? because there is only one complete travel on the combustion chamber per combustion event.
Again a 4 stroke, there are two complete travels of combustion face (or chamber in our case) per combustion event.
again:
Now does the combustion face travel twice for every fire or once? Again in our motors (as beautify outlined in your post on Kenichi Yamamoto and his diagrams) combustion happens only once.
I don't know how much clearer it can be.
So if you still chose to believe that because there are 4 events, that makes for a 4 stroke engine, then you need to start calling gas lawn mowers or snow mobiles or gas chain saws also 4 stroke engines.
But I am done argueing this. It is what it is.
No, it doesn't, since the intake event is part of the compression event (as in all two strokes). Again, If this was not the case the DEI wouldn't work. There also would not be left over (burned and un burned) mixture, if there was a event purgeing the exhaust (as found on a 4 stroke).
In fact the only 4 stroke that is even mildly close to this is the Miller Cycle engine and even then it is really only a valve timing issue in a 4 stroke configuration.
And again you are confusing cycles (which indicate a complete circle) with events during the cycle. Cycles are not strokes, and cycles are not events.
a two stroke also has your 4 events (what you call cycles in your post), yet you don't call a two stroke a 4 cycle/stroke engine. Why??? because there is only one complete travel on the combustion chamber per combustion event.
Again a 4 stroke, there are two complete travels of combustion face (or chamber in our case) per combustion event.
again:
Now does the combustion face travel twice for every fire or once? Again in our motors (as beautify outlined in your post on Kenichi Yamamoto and his diagrams) combustion happens only once.
I don't know how much clearer it can be.
So if you still chose to believe that because there are 4 events, that makes for a 4 stroke engine, then you need to start calling gas lawn mowers or snow mobiles or gas chain saws also 4 stroke engines.
But I am done argueing this. It is what it is.
first
you on aim or not?
also look at that post I made that you can find on paul yaws website even
he list all 4 strokes/cycles himself
and I think paul yaw knows the motors fairly well
1. 45° ATDC The intake stroke is just beginning.
9. TDC of the compression stroke
11. 135° ATDC The expansion stroke
14. BDC of the exhaust stroke
the intake is not part of the compression stroke
the intake starts to happen WELL BEFORE compression even starts
and ends not long after compression starts
sure you have some overlap but that happens in piston motors also. inertial ram charging is the reason behind that.
intake the rotary motors is a little weird being it starts a little after TDC but still it is a cycle all in it's own
intake happens from TDC to BDC
compression goes from BDC to TDC
power/exansion cycle goes from TDC to BDC
exhuast goes from BDC to TDC
4 seperate strokes
Again a 4 stroke, there are two complete travels of combustion face (or chamber in our case) per combustion event.
here take a look at this
how many times does the rotor face go from TDC to BDC
now lets not think as BDC and TDC the top of the motor and bottom of the motor
but rather
TDC equals smallest volume. or everything being compressed
BDC equals largest volume, expanded at maximum capacity
so basicly the motor is at TDC at two points going around the whole motor
same with BDC.
in a 2 stroke motor
you might have 4 events but they are not seperate events
the events aren't even going on with a little overlap (as you would find in most ANY motor) instead the events are happening at the same exact time through most of the stroke.
a 4 stroke has each event happening in it's own time
seperate from one another
a 4 stroke motor also hits TDC twice per combustion event
and BDC twice per combustion event
a rotary does so twice each per combustion event as I hope the next picture will show a little better
granted it might see BDC in two different places
but it does see BDC TWICE. per combustion event
same with TDC
so to asnwer this
Now does the combustion face travel twice for every fire or once? Again in our motors (as beautify outlined in your post on Kenichi Yamamoto and his diagrams) combustion happens only once.
does it change the fact that it seems TDC and BDC twice at at two different spots??
would that make it a 2 stroke even though the fact does travelt to both BDC and TDC twice?
and I'm not saying just because it has 4 events makes it a 4 stroke
what I am saying makes it a 4 stroke is that the events are SEPERATE
they don't happen at the same time
and the motor does see BDC twice and TDC twice
Last edited by rxspeed87; 06-29-03 at 01:53 AM.
#60
Former Moderator. RIP Icemark.
Originally posted by rxspeed87
first
you on aim or not?
also look at that post I made that you can find on paul yaws website even
he list all 4 strokes/cycles himself
and I think paul yaw knows the motors fairly well
1. 45° ATDC The intake stroke is just beginning.
9. TDC of the compression stroke
11. 135° ATDC The expansion stroke
14. BDC of the exhaust stroke
the intake is not part of the compression stroke
the intake starts to happen WELL BEFORE compression even starts
and ends not long after compression starts
sure you have some overlap but that happens in piston motors also. inertial ram charging is the reason behind that.
intake the rotary motors is a little weird being it starts a little after TDC but still it is a cycle all in it's own
intake happens from TDC to BDC
compression goes from BDC to TDC
power/exansion cycle goes from TDC to BDC
exhuast goes from BDC to TDC
4 seperate strokes
there is

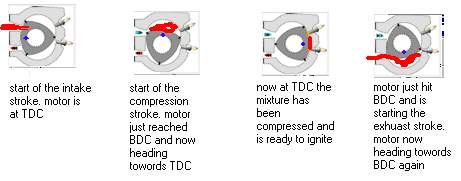

here take a look at this
[img]https://thirdgen.org/techbb2/avatar.php?userid=8999&dateline=1012517290[img]
how many times does the rotor face go from TDC to BDC
now lets not think as BDC and TDC the top of the motor and bottom of the motor
but rather
TDC equals smallest volume. or everything being compressed
BDC equals largest volume, expanded at maximum capacity
so basicly the motor is at TDC at two points going around the whole motor
same with BDC.
first
you on aim or not?
also look at that post I made that you can find on paul yaws website even
he list all 4 strokes/cycles himself
and I think paul yaw knows the motors fairly well
1. 45° ATDC The intake stroke is just beginning.
9. TDC of the compression stroke
11. 135° ATDC The expansion stroke
14. BDC of the exhaust stroke
the intake is not part of the compression stroke
the intake starts to happen WELL BEFORE compression even starts
and ends not long after compression starts
sure you have some overlap but that happens in piston motors also. inertial ram charging is the reason behind that.
intake the rotary motors is a little weird being it starts a little after TDC but still it is a cycle all in it's own
intake happens from TDC to BDC
compression goes from BDC to TDC
power/exansion cycle goes from TDC to BDC
exhuast goes from BDC to TDC
4 seperate strokes
there is
here take a look at this
[img]https://thirdgen.org/techbb2/avatar.php?userid=8999&dateline=1012517290[img]
how many times does the rotor face go from TDC to BDC
now lets not think as BDC and TDC the top of the motor and bottom of the motor
but rather
TDC equals smallest volume. or everything being compressed
BDC equals largest volume, expanded at maximum capacity
so basicly the motor is at TDC at two points going around the whole motor
same with BDC.
Which it does, so again that doesn't follow through with a definition of a 4 stroke motor. A 4 event motor, yes, but not a 4 stroke.
and I have a much better picture of the rotary engine operation on my web page
Last edited by Icemark; 06-29-03 at 01:59 AM.
#61
Rotary Enthusiast
Join Date: Mar 2001
Location: Caldwell,ID
Posts: 968
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Icemark
The only way that that concept even starts to work is if you decide that the rotor face does not have to make a complete cycle of the housing to make a complete combustion cycle.
Which it does, so again that doesn't follow through with a definition of a 4 stroke motor. A 4 event motor, yes, but not a 4 stroke.
The only way that that concept even starts to work is if you decide that the rotor face does not have to make a complete cycle of the housing to make a complete combustion cycle.
Which it does, so again that doesn't follow through with a definition of a 4 stroke motor. A 4 event motor, yes, but not a 4 stroke.
don't follow. how does that concept only work when the rotor face doesn't follow a complete cycle around the housing?
take a look at the picture on the bottom
the blue dot is the housing face that we are going to look at
it goes around the whole housing
yet it seems BDC and TDC twice
just like a 4 stroke piston motor would
what IU am trying to say with the 4 events is unlike a 2 stroke the events are done at the same time
not seperate
on a 4 cycle the events might have overlap ( and most ANY motor does) but the events are still SEPERATE
and once again is paul yaw wrong?
1. 45° ATDC The intake stroke is just beginning.
9. TDC of the compression stroke
11. 135° ATDC The expansion stroke
14. BDC of the exhaust stroke
#62
Rotary Enthusiast
Join Date: Mar 2001
Location: Caldwell,ID
Posts: 968
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Icemark
The only way that that concept even starts to work is if you decide that the rotor face does not have to make a complete cycle of the housing to make a complete combustion cycle.
Which it does, so again that doesn't follow through with a definition of a 4 stroke motor. A 4 event motor, yes, but not a 4 stroke.
The only way that that concept even starts to work is if you decide that the rotor face does not have to make a complete cycle of the housing to make a complete combustion cycle.
Which it does, so again that doesn't follow through with a definition of a 4 stroke motor. A 4 event motor, yes, but not a 4 stroke.
don't follow. how does that concept only work when the rotor face doesn't follow a complete cycle around the housing?
take a look at the picture on the bottom
the blue dot is the housing face that we are going to look at
it goes around the whole housing
yet it seems BDC and TDC twice
just like a 4 stroke piston motor would
what IU am trying to say with the 4 events is unlike a 2 stroke the events are done at the same time
not seperate
on a 4 cycle the events might have overlap ( and most ANY motor does) but the events are still SEPERATE
and once again is paul yaw wrong?
1. 45° ATDC The intake stroke is just beginning.
9. TDC of the compression stroke
11. 135° ATDC The expansion stroke
14. BDC of the exhaust stroke
'and I have better pictures also
but it was quick and easy to grab so eh
Last edited by rxspeed87; 06-29-03 at 02:12 AM.
#63
Former Moderator. RIP Icemark.
your pic:
Yes, he is wrong if he is saying what you are. He is using a 4 stroke piston engine anology for a 2 stroke operation.
The blue dot in your picture proves my point. a single revolution, per combustion event.
Again, I am done arguing this. Just further study how a two stroke motor works and you'll see that I am correct. Until then we will have to just agree to disagree.
Yes, he is wrong if he is saying what you are. He is using a 4 stroke piston engine anology for a 2 stroke operation.
The blue dot in your picture proves my point. a single revolution, per combustion event.
Again, I am done arguing this. Just further study how a two stroke motor works and you'll see that I am correct. Until then we will have to just agree to disagree.
#64
Rotary Enthusiast
Join Date: Mar 2001
Location: Caldwell,ID
Posts: 968
Likes: 0
Received 0 Likes
on
0 Posts
ok
one revolution yes
but doesn't it hit TDC twice
and BDC twice?
that would be equive to a 4 stroke by doing so
tDC->bDC first stroke for the intake
BDC->TDC second stroke compression
TDC->BDC third stroke for power
BDC->TDC fourth stroke exhuast
that is what I am getting at
each one of those is considered a stroke
and if were where to follow your idea even you would be wrong
it at this point wouldn't even be a two stroke but a single stroke being it rotates once for every combustion event
and to bring it back on topic
it still follows the rules of backpressure for a 4 stroke motor
not a two stroke
backpressure is bad evil and will harm power unless you need it to open the 6pi induction system like my car
one revolution yes
but doesn't it hit TDC twice
and BDC twice?
that would be equive to a 4 stroke by doing so
tDC->bDC first stroke for the intake
BDC->TDC second stroke compression
TDC->BDC third stroke for power
BDC->TDC fourth stroke exhuast
that is what I am getting at
each one of those is considered a stroke
and if were where to follow your idea even you would be wrong
it at this point wouldn't even be a two stroke but a single stroke being it rotates once for every combustion event
and to bring it back on topic
it still follows the rules of backpressure for a 4 stroke motor
not a two stroke
backpressure is bad evil and will harm power unless you need it to open the 6pi induction system like my car
Last edited by rxspeed87; 06-29-03 at 02:26 AM.
#65
Rotary Enthusiast
Join Date: Mar 2001
Location: Caldwell,ID
Posts: 968
Likes: 0
Received 0 Likes
on
0 Posts
I guess that is my thing
I see a stroke as going from TDC to BDC or BDC to TDC
this on a rotary happens twice for each of them so to me that means 4 strokes
it doesn't matter that the motion is circular
but also in a way if you want to get really techincal here
the rotor face does move
if you take one spot on the rotor
move it around the on the shaft it's distance from the very center of the e-shaft does change
try it sometime if you have a spare motor
if I had calipers I would do so on mine
eh might just take a ruler and try it though to get a rought idea
I see a stroke as going from TDC to BDC or BDC to TDC
this on a rotary happens twice for each of them so to me that means 4 strokes
it doesn't matter that the motion is circular
but also in a way if you want to get really techincal here
the rotor face does move
if you take one spot on the rotor
move it around the on the shaft it's distance from the very center of the e-shaft does change
try it sometime if you have a spare motor
if I had calipers I would do so on mine
eh might just take a ruler and try it though to get a rought idea
#66
Rotary Enthusiast
Join Date: Mar 2001
Location: Caldwell,ID
Posts: 968
Likes: 0
Received 0 Likes
on
0 Posts
ok just made a rough mesurement
seems the DC of the rotor face can be anywhere from 3 1/2 inches down to roughly 2 inches from DC of the E-shaft
it moes in that motion 4 times
another reasson why I was thinking 4 stroke
seems the DC of the rotor face can be anywhere from 3 1/2 inches down to roughly 2 inches from DC of the E-shaft
it moes in that motion 4 times
another reasson why I was thinking 4 stroke
#67
Senior Member
Join Date: May 2003
Location: Maryland
Posts: 438
Likes: 0
Received 0 Likes
on
0 Posts
input on custom exhaust
i was thinking about doing a "custom job" i would probably use a pair of N1 mufflers but other than that....
-what size piping should i use 2.5"
-should i run one cat and then split or split and do two cats
-should i try to keep as much stock or get rid of all those resinators/cats/precats under my FC
-and what about headers?
;86 NA stock so far;
thanks in advance for any help on this
-what size piping should i use 2.5"
-should i run one cat and then split or split and do two cats
-should i try to keep as much stock or get rid of all those resinators/cats/precats under my FC
-and what about headers?
;86 NA stock so far;
thanks in advance for any help on this
Thread
Thread Starter
Forum
Replies
Last Post
