Engine wire harness routing
Hi,
I took out the engine wire harness from my FC and now I canīt remember how it was routed from the firewall gromet to the strut tower and from there.
Could some one with those wires routed the original way please take a few pictures to guide me?
The attached pictures are of the area I need pictures of.
Thanks.
I took out the engine wire harness from my FC and now I canīt remember how it was routed from the firewall gromet to the strut tower and from there.
Could some one with those wires routed the original way please take a few pictures to guide me?
The attached pictures are of the area I need pictures of.
Thanks.
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,832
Received 2,603 Likes
on
1,847 Posts

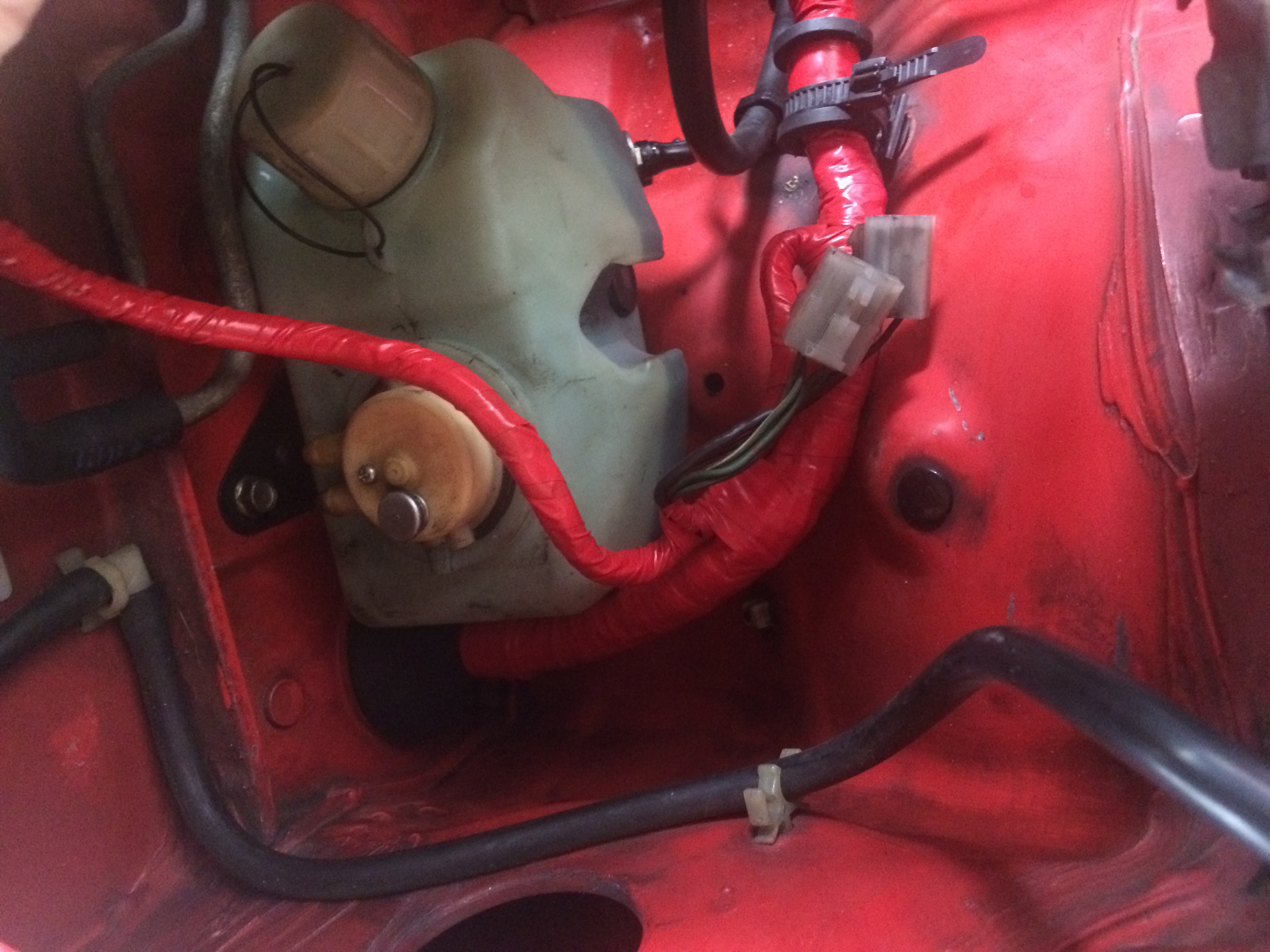

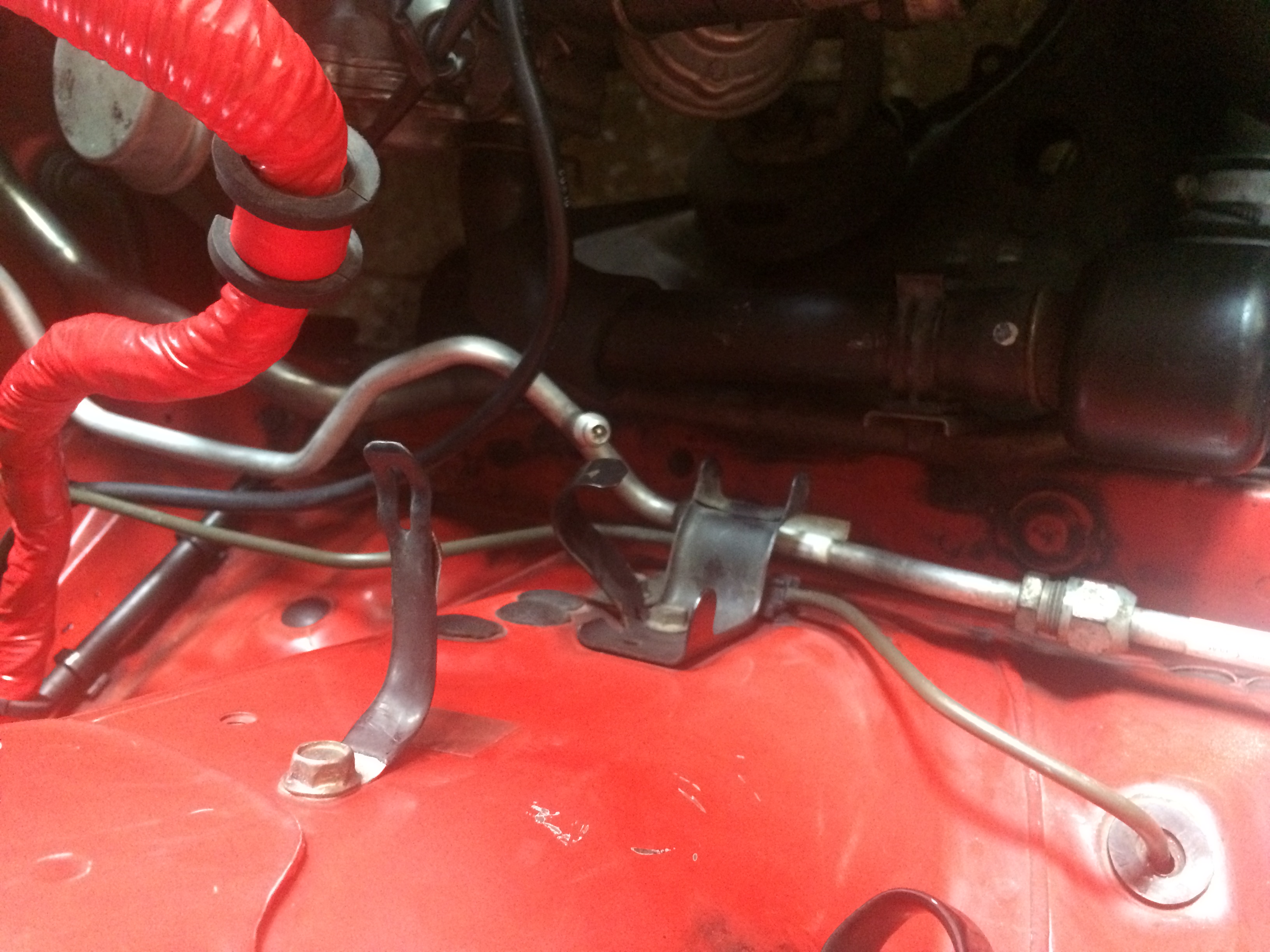

the first pic is correct, and then it goes under the brake line, gets ziptied to the heater hose, and then UP through the bracket in pic 3, and then some goes to the boost sensor/afm, and the rest hangs a right to the engine. there is a clip on the thermostat housing for the harness.
i usually find it easier to put the harness on the engine, and go to the ecu, but it should work the other way
i usually find it easier to put the harness on the engine, and go to the ecu, but it should work the other way
#4
Sharp Claws
iTrader: (30)
he explained plainly how it is suppose to be routed, you see the brake line that the harness is pointing to where it is zip tied to the fender? it goes under that brake line, straight to the metal heater tube that is bolted to the frame rail and zip tied to it while running forward it then comes straight up the RF strut tower and is mounted on 2 brackets there where it then jumps over to meet the backside of the thermostat housing.
the rubber grommet is held in place by that bracket in the last picture.
the rubber grommet is held in place by that bracket in the last picture.
