Engine Harness Question - CAS Shielding
Hello all. I'm currently in the process of re-wiring my project FC and have hit a small snag. After looking through a few threads and combing the FSM multiple times, I'm coming to you all for help. Between the Engine Harness and Front Harness connectors (FE-02), there is a Black/ White wire connected directly to the CAS shielding. I've tried to find what the wire is supposed to be with no success. Any help is appreciated.

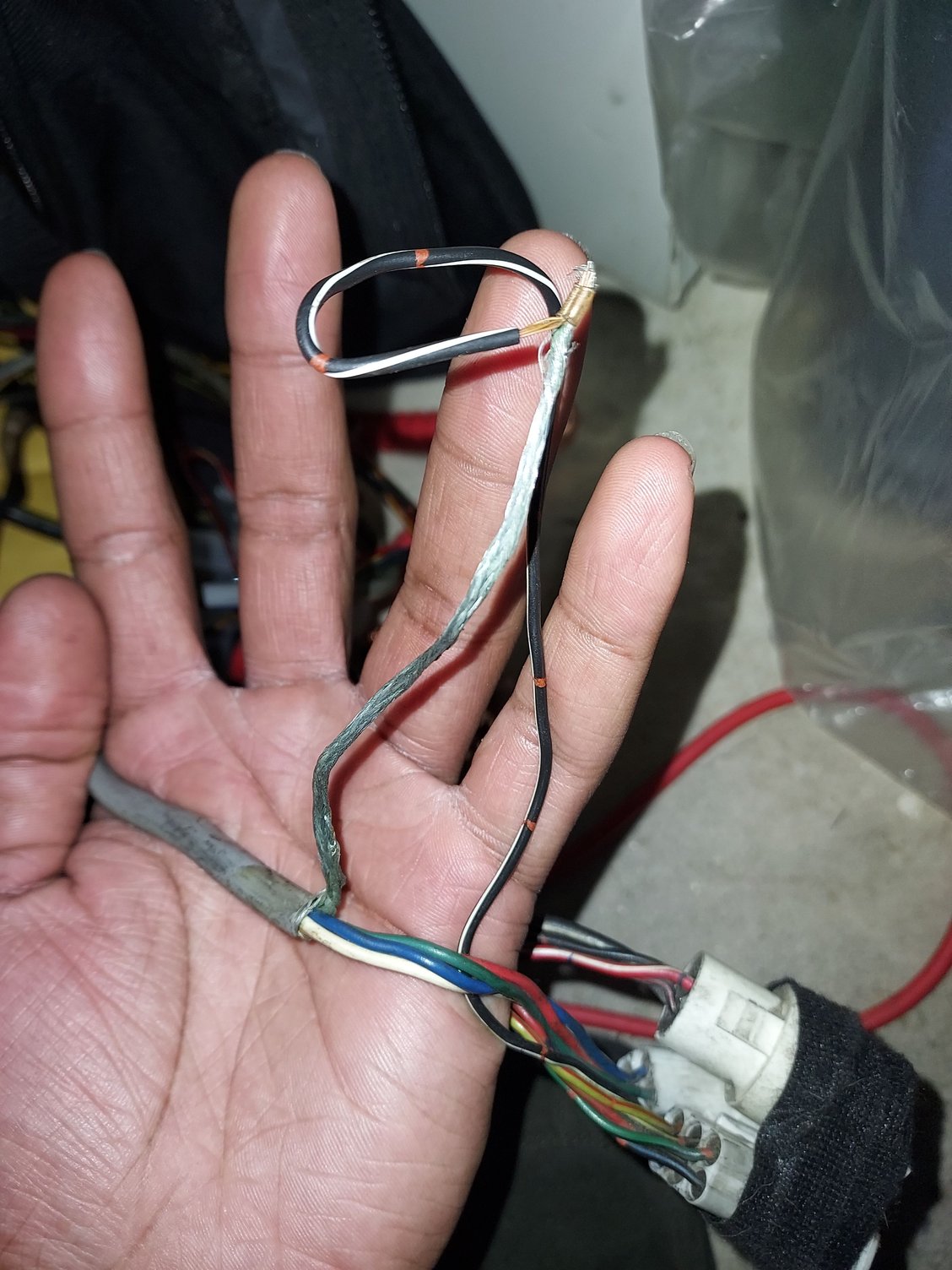

CAS Shielding Attached To B/W (FE-02)
CAS Shielding Attached To B/W (FE-02)
#2
Rotary Freak
It's a ground. Further into the harness that black wire will splice with the other grounds in the harness by the ECU.
The way the shield works is by being grounded on the one side and not connected on the other. The CAS side ends right near the connector, and is left disconnected. The harness side splices into that wire and grounds out with the rest of the ECU grounds IIRC
The way the shield works is by being grounded on the one side and not connected on the other. The CAS side ends right near the connector, and is left disconnected. The harness side splices into that wire and grounds out with the rest of the ECU grounds IIRC
