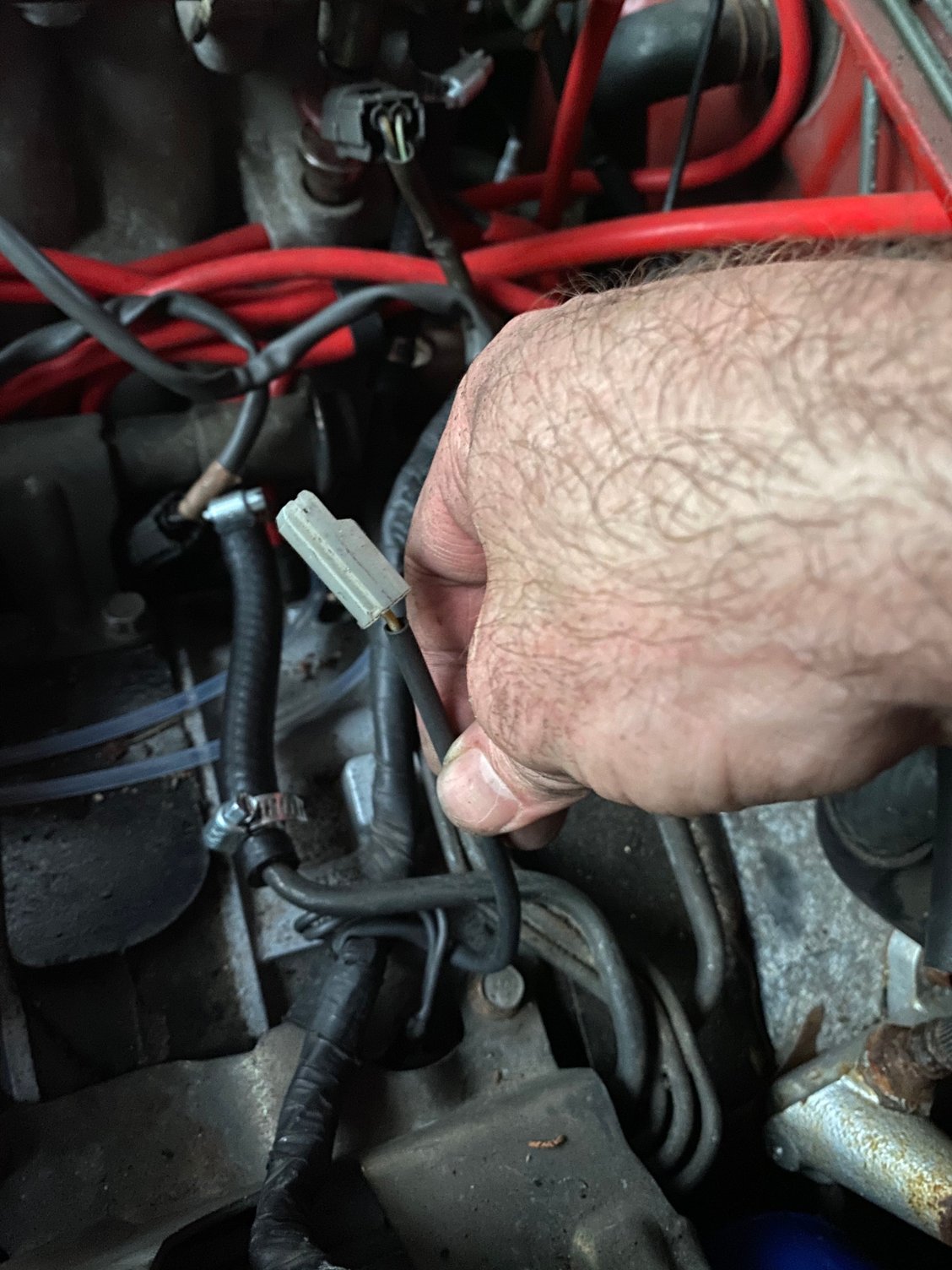

Hey! I’m looking to see if anyone has links or pics to how the engine harness lays for 90 tii. I’m pulling the UIM back off and trying to do this again but correctly. I’ve missed the plug for the water temp sensor and don’t think I have the injectors in the correct order. Everything just seems kinda crammed.
The white tape on the injector wires means front, so you have it incorrect. its an easy mistake to make, the NA is different from the T2

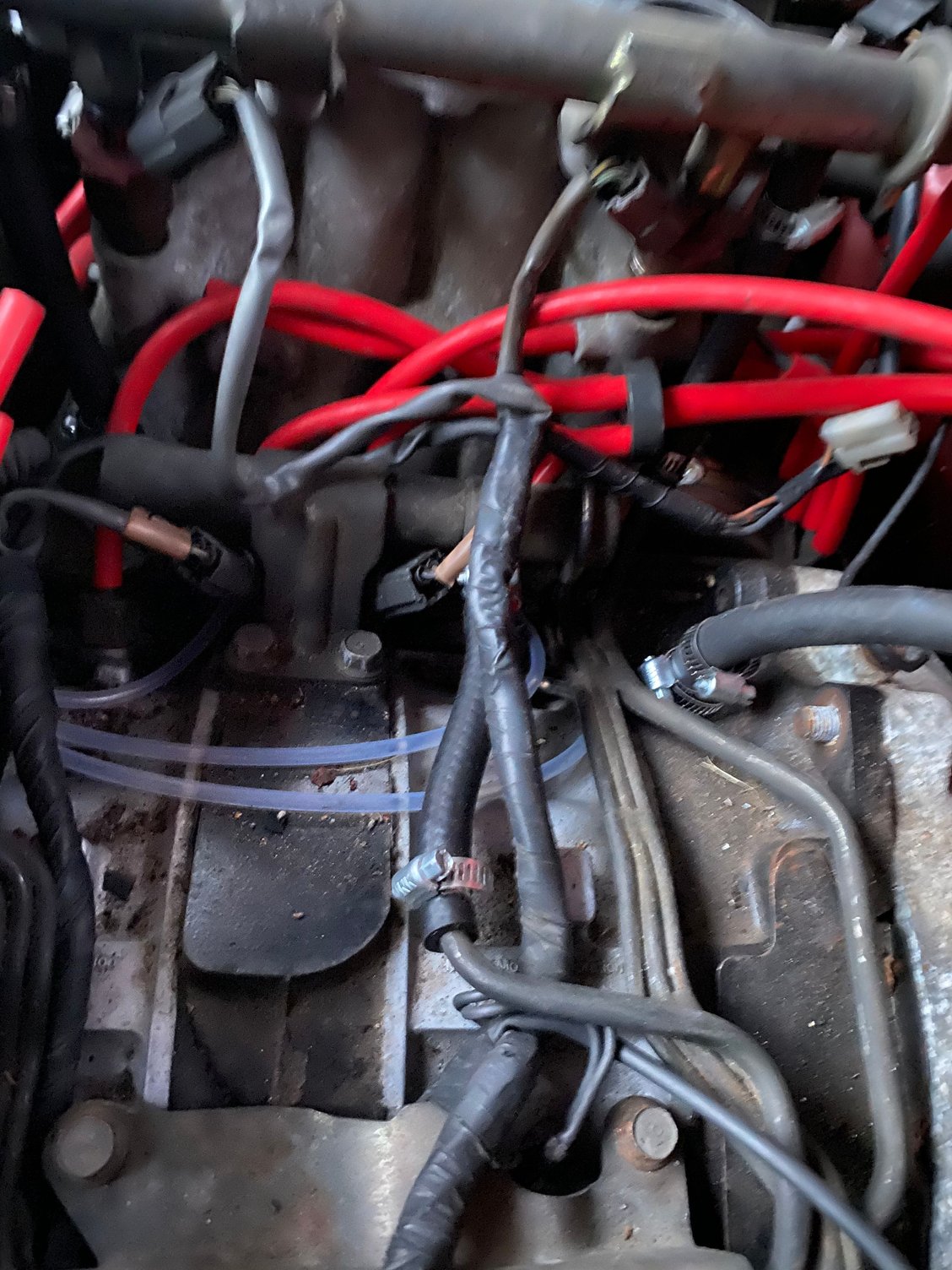

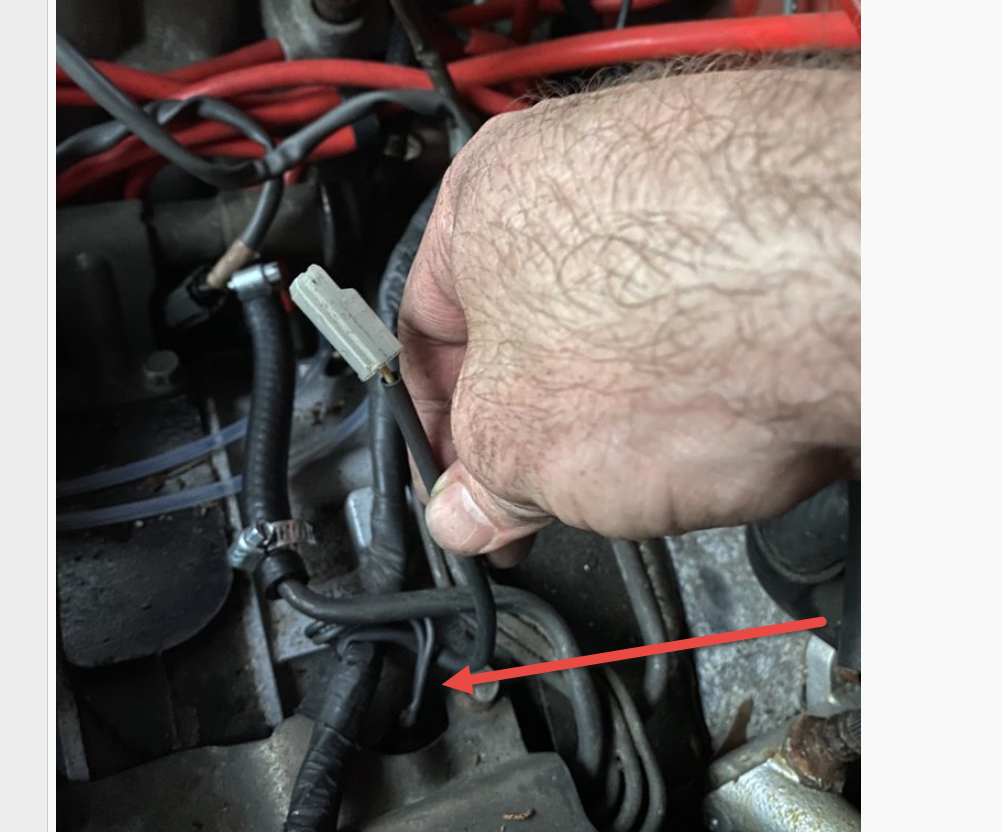

pic two, the harness goes under the IC mount thing, and then the wires the arrow is pointing at is the ground and it should go on that bolt right there, water temp goes under

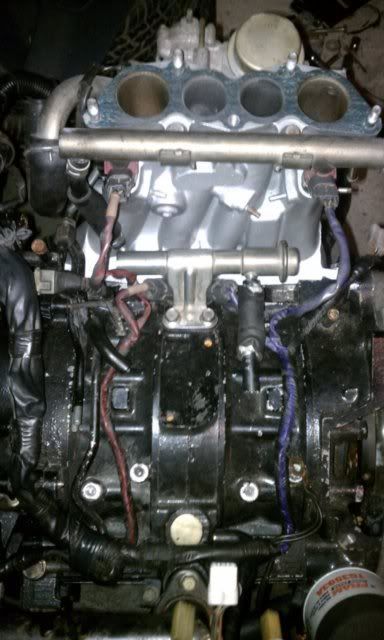

Ok awesome! Thanks for your reply. Based of what you said I found another image from an earlier post. Is this what you mean by front? The white tape goes on the front primary and secondary injectors?
