MN engine harness conectors

hey, i installed a new harness in my S5 TII. There are 2 connectors that are by where the air pump should be that look like they should be connected? both connectors are in the harness and have the same color wires going into them.

The black one has 3 wires blue, black w/ white stripe, n black. white one has a blue and black w/ white stripe. both connectors have power. What you guys think?

engine harness conectors-img_0343.jpg

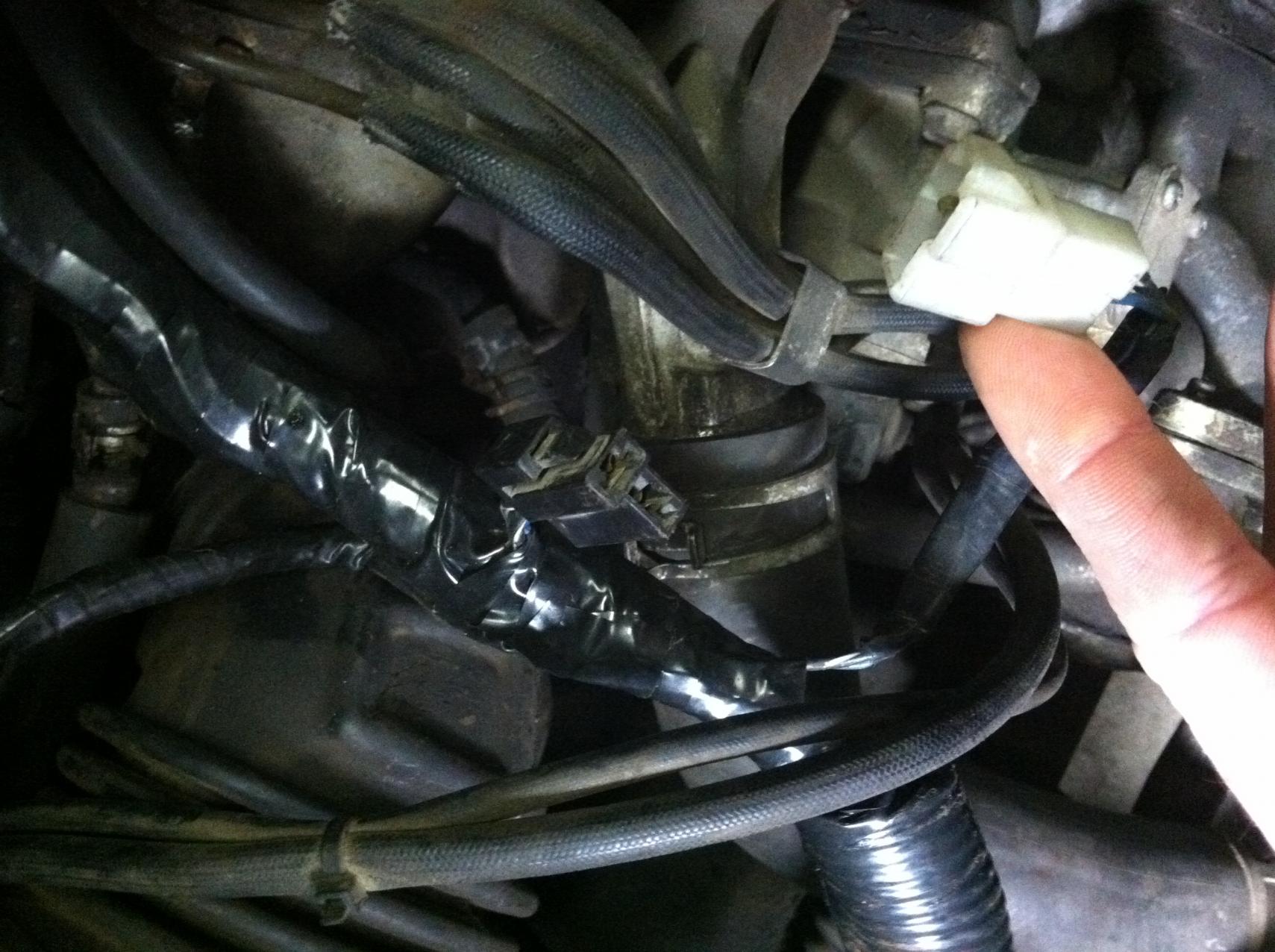

engine harness conectors-img_0344.jpg
Reply
Old Nov 7, 2012 | 12:00 PM
  #2
j9fd3s's Avatar
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,833
Likes: 3,232
From: https://www2.mazda.com/en/100th/
those go to the air control valve.
