devdog1one

Hello,

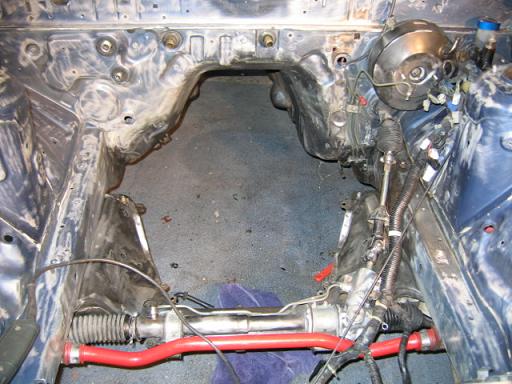

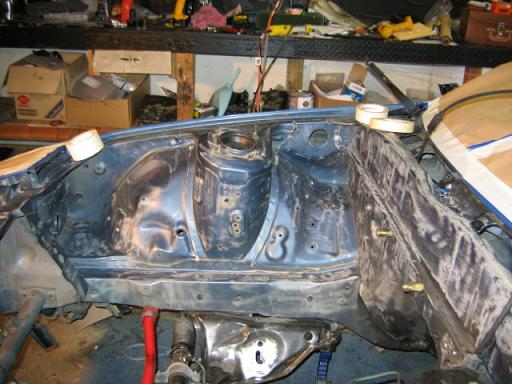

I have finally prepped and primered my engine bay prior to my TII swap going in. It was a lot of work, but it is looking pretty good so far. I have put two coats of an epoxy primer on it due to having bare metal in some areas.

This is my first attempt ever to paint something. Since it was 57 F here in Michigan today I thought this would be the perfect day to shoot it.

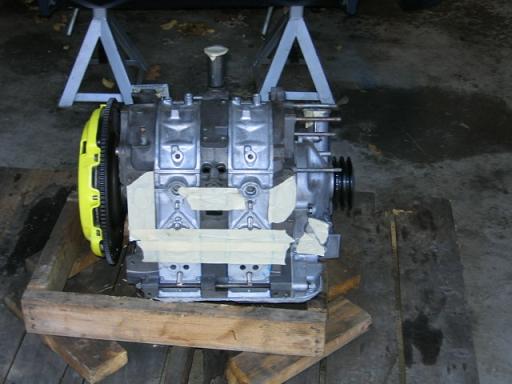

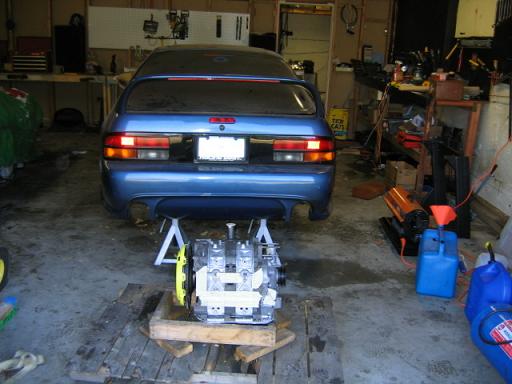

I also got my engine rebuild and streeport back from BDC. Damn, that is one fine looking motor B. I had B install the RB main pulley and the RB lightended steel flywheel. I also had him install the ACT Street/strip clutcth. The rebuild was done using a RA rebuld kit. I also had him install a RB oil baffle and RB high pressure oil regulator.

Thanx

Michael

devdog1one

Hello again,

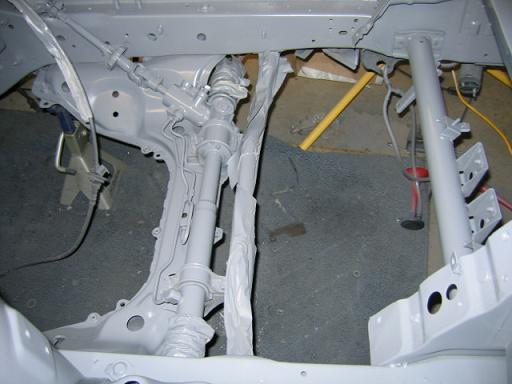

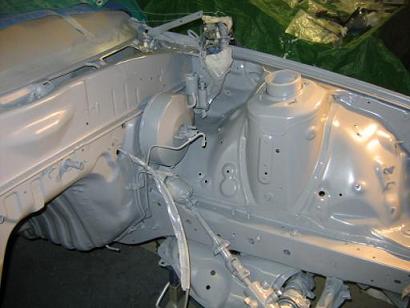

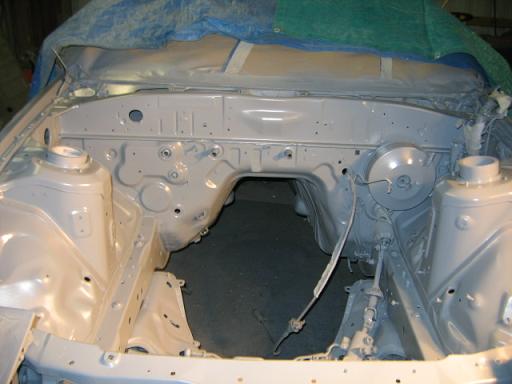

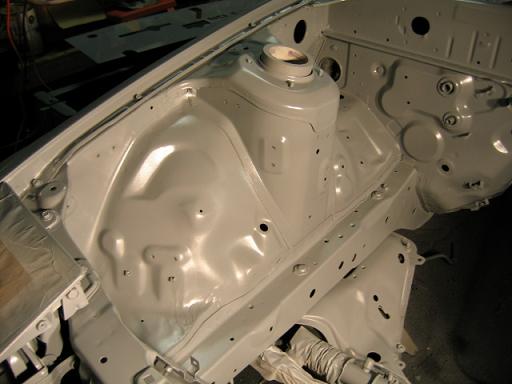

Here is the engine bay after two coats of primer.

I was wondering if most people paint the entire engine the same color as the body, or do they maitain the two tone (body color and black motor mount area/windshield wiper are in black( in the engiine bay.

Thanx

Michael

Bob_The_Normal

Aw... I was gonna do that, but I don't have the time/money heh... took me long enough to rebuild.

--Gary

Dan H

Awesome, I'm doing something similar too. Painting the engine bay and new rebuild to go along with it.

Just curious, why are you painting the subframe, steering rack, brake booster too??

RotaryEvolution

iTrader: (30)

i painted my irons black and bead blasted the rotor housings, looked good, i hate monotone engines.... but it really isn't necessary, you can barely see a T2 block under the turbo and intake systems..

devdog1one

What I was refering to was the area next to the sway bars where the motor mounts are attached to. In a stock engine bay this area is black, as well as the area at the bottom of the windshield where the wiper arms attach to. At least on my 87 base model these areas are black.

Thanx

Michael

devdog1one

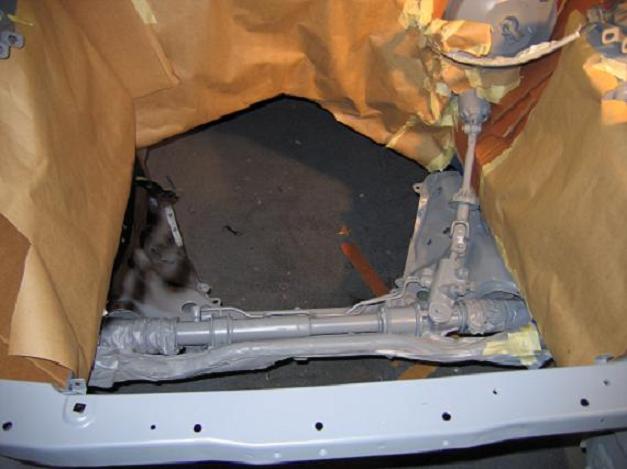

I primered them as well due to they needed it. I am debating about what color to paint these items. Right now I am leaning towards black (stock look).

Thnax

michael

Johny zoom

iTrader: (5)

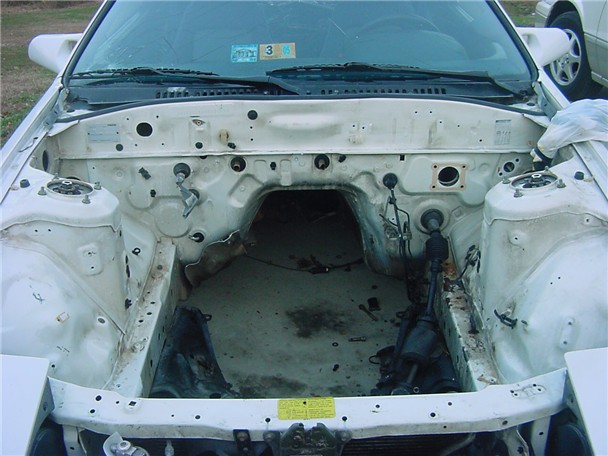

That engine bay looks all too familiar, I thought I was the only one foolish enough to unhook all those connectors. My car is at the painters getting painted inside and out

RotaryEvolution

iTrader: (30)

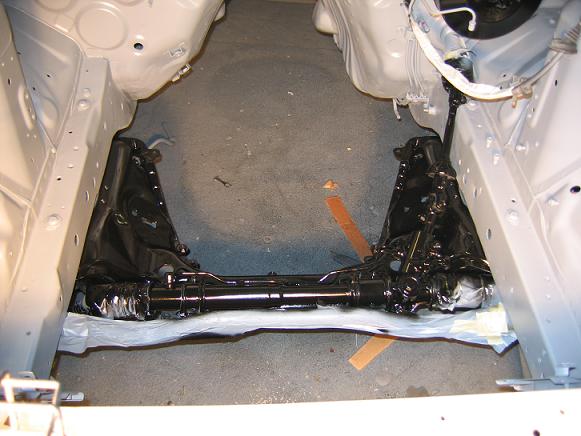

keep the K-frame(the suspension cradle you were referring to) gloss black, it will get dirty and it is easier to clean and looks better black since it is near the exhaust any other color might discolor from the heat or possible oil leaks.

devdog1one

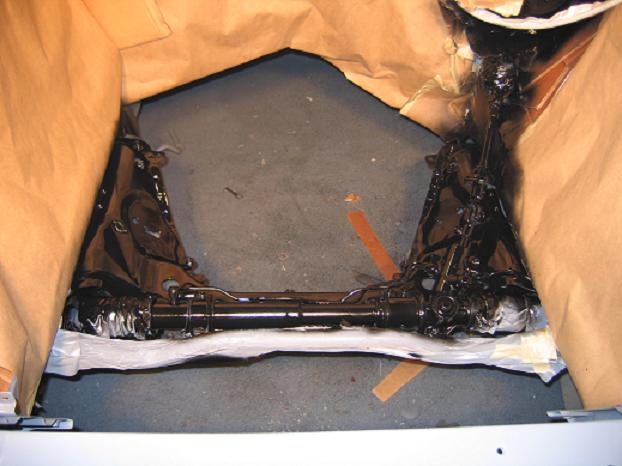

I have painted them black. So far so good.

Thanx for the input.

Happy New Year!!!

Michael

91mazdarx7

that looks real good so far what turbo are you going to run with your rebuild good job on the painting part to

devdog1one

I have a brand new, still in the box 1989 stock turbo for now. I sent it to BNR for the wastegate porting and have had the turbo manifold, turbo hotside, and the RB downpipe heat coated gloss black by AMR Coatings. May upgrade in a year or two, but not sure.

I will be runnig the Rtek 1.7 chip and will have new Greddy 550 primaries and 720 secondaries. With a boost controller I should be fine.

This thing has become very expensive due to my wanting everything new.

Thanx for the compliments on the painting

Michael

91mazdarx7

how much did you pay for them to port your wastegate i need mine ported and aint sure if i want to take on the job myself

devdog1one

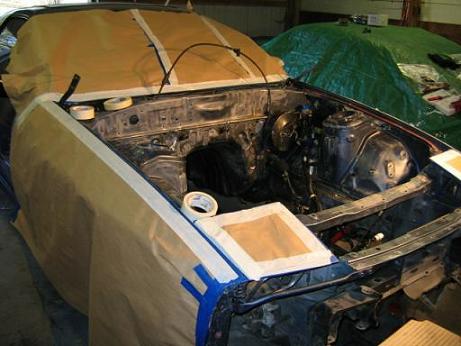

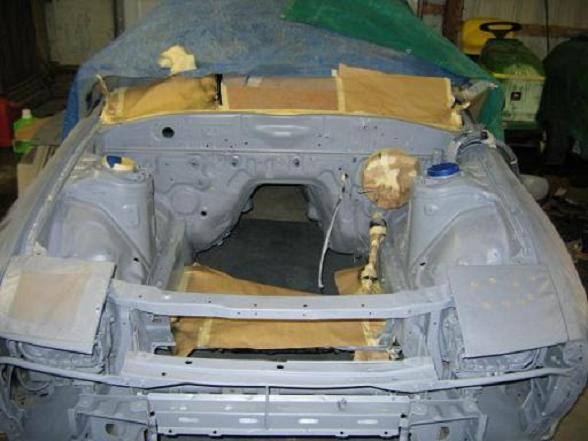

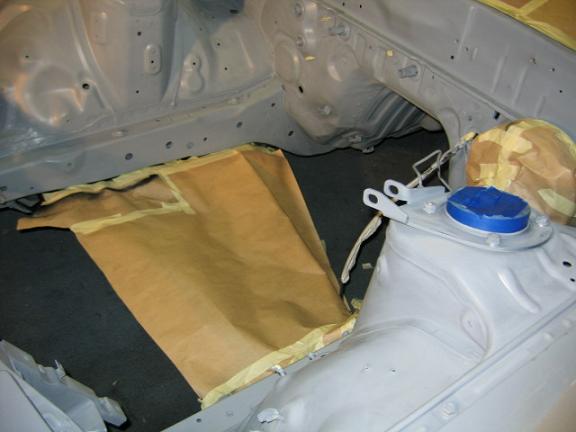

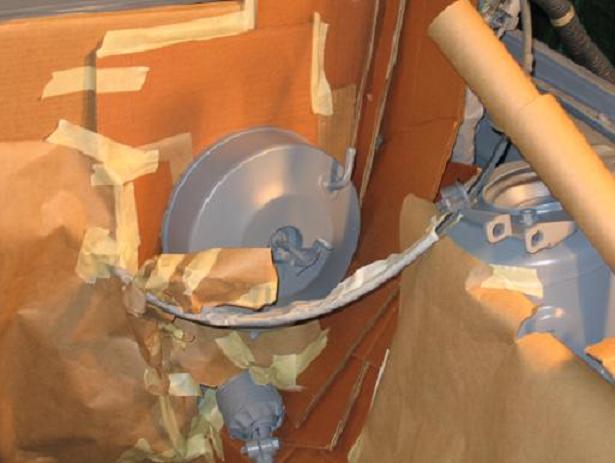

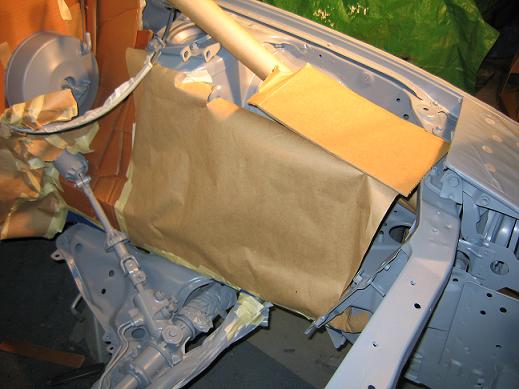

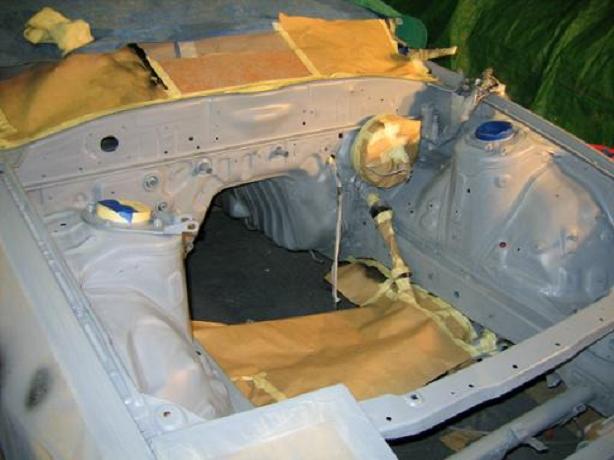

Here is an update of my progress. I have masked the enginie for final painting.

Here are the pics.

Thanx

Michael

devdog1one

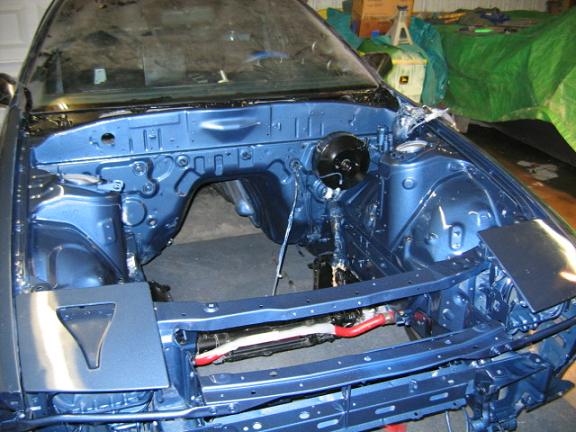

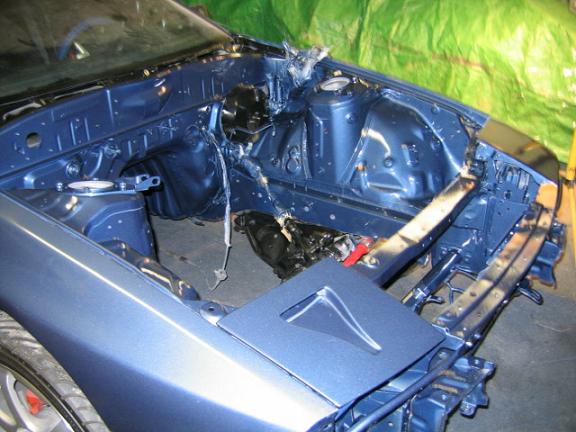

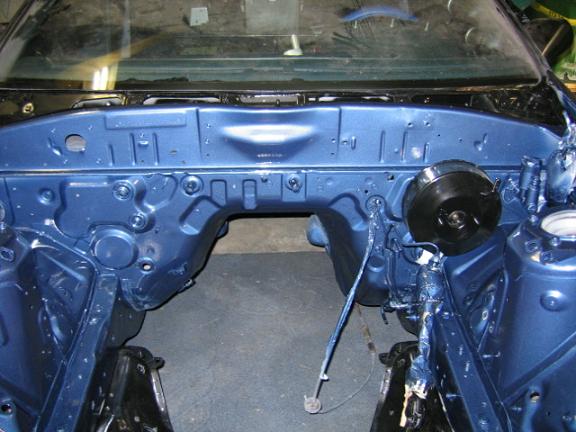

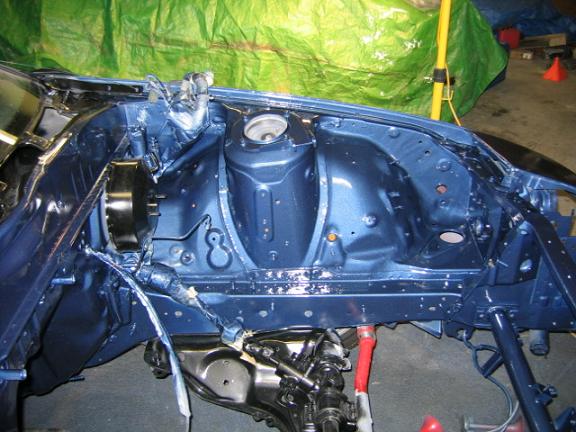

Here is the conclusion of my painting efforts.

I think it turned out fairly well for my first time. I am very pleased with the color.

Thanx for viewing.

Michael

Icemark

should have pulled the grommits instead of painting them. Looks very I am at home working in my garage non professional job because of that. Maybe you can pop them out and clean them off with some MEK or thinner.

sleejay

that is a really good job! congrats man, be proud
also, your wing is giant.

r@TarY_p0wERed

yeah seriously. luv the blue metallic.
did u add any clear coats with that? i ask b/c it looks too glossy.

i doubt u went cheap but was wondering if u used simple urethane rattle cans for the coatings?
or did u pay 500 for 4 quarts?

(i hope im saying this right or else im just looking like an idiot)

r@TarY_p0wERed

hey karack. my friend suggested i get me a bead blaster over a coarse grit orbital sander.
i know the bead blaster useful for removing bad metal like rust but im not sure about paint.

i know i should put this thread somewhere else but oh wellz.... lazy. =)

devdog1one

All grommets, as well as every single bolt, nut, clip, etc.... are being replaced with new items. If you look closely they are all missing, with the exception of the grommets. Amazing what people can pick out of a photo........it just amazes me.

I am at home working in my garage (pole barn) and it is a non-professional job.

There is no clearcoat involved here. Just paint, activator, and reducer. I paid $60 for a quart of custom paint, including the activator and reducer, 2 mixing sticks, two filters, and 1 mask.

All of the black paint is from a spray can (engine paint). The blue was shot of a spray gun at 40 psi.

Icemark - would you mind posting a pic of your engine bay? Just curious!!!!

Thanx for the postive feedback.

Michael

alwayssideways

I think it looks great .. good job .,, something i might have to look into doing before my engine goes back in

Icemark

I have several times, both when I had the Turbo motor in my vert and the non turbo.

In fact I think there is even one of my 10thAE with no engine.

I think you'll find clean, but not new or perfect by any means. And certinly not all detailed with every part shiny or color cordinated.

I seldom open the hood to show anyone anything, and keep it clean simply because it is easier to spot leaks and work on with clean motors.


And good to hear about the grommits being replaced, but it might be a bit much (in my book) to replace the screws as well.
