I have this summit water temp electric gauge, but I'm unsure where to tap into for the signal?

it has a few wires but I know what they do:
red - hot lne
black - ground
purple - dimmer
white - signal

it says for the signal wire to:

mate the white wire from the gauge with the wire wire from the sender.

but where is the sender? where do I tap into that?

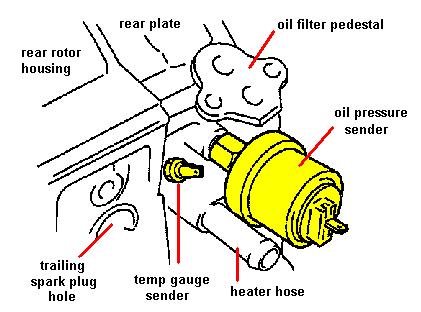

the sender is next to the oil pressure sender, but are just below the oil filter. the smaller one is for the water temp.



ah okay.

just tap white signal wire from the gauge to that small wire from the sender? seems easy enough lol.

now im debaiting if I want to do it today since its soo hot lol.



if that what it says to do... although I don't think it will work. 99% of after market gauges require their own sending unit. most gauges can't read the output signals that a different sender puts out.



yeah I saw that picture earlier I was hunting to find it, but if you just go to the car and look at it, its right there.

I bought this one:

http://store.summitracing.com/partde...5&autoview=sku

to be exact.

edit: **** I should read the damn product, I need the sender

where do I get these senders?



Cyberdynes are nice gauges.


http://store.summitracing.com/partde...5&autoview=sku



stock sender is garbage, you wouldnt want to use that even if you could.



well time to order that now, heh.



the gauge should have come with a sender unit or you are missing it, gauges are not universal to work with every sender unit out there.



Most Cyberdynes gauges require you to purchase the sending unit seperately. They do have "package deals" but only for certain gauges.



this one didnt, cause I didnt read the rest of the description.



i see, rather stupid of them to sell the gauge without the sending unit since you will need one regardless..



You need the Summit water temp sender with it. I have the Summit digital gauge and when I ordered it, the suggested parts bring up the sender - http://store.summitracing.com/partde...part=SUM-G2988
