Electric fan or find a stocker?
03-18-15, 04:04 PM
#1
Electric fan or find a stocker?
It seems like my stock fan is going, I think I'm going to need a replacement. I read somewhere that electric fans don't cool as good as the stock fans. Is this true?
If not, any recommendations on electric fans?
If not, any recommendations on electric fans?
03-18-15, 05:30 PM
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,770
Received 2,562 Likes
on
1,822 Posts
i agree with Rob, the stock fan works, and its stock.
as Clokker points out, electric fans do work. the FD and Rx8 (along with every car in the world except BMW) uses one.
i am actually curious about the Rx8 fan set.
edit button! the Rx8 fan blades are the same as the 99+ FD, the Rx8 has its own part number for motors, but they look to be similar... i wonder if they would fit in a miata shroud?
as Clokker points out, electric fans do work. the FD and Rx8 (along with every car in the world except BMW) uses one.
i am actually curious about the Rx8 fan set.
edit button! the Rx8 fan blades are the same as the 99+ FD, the Rx8 has its own part number for motors, but they look to be similar... i wonder if they would fit in a miata shroud?
Last edited by j9fd3s; 03-18-15 at 05:36 PM.
Trending Topics
03-18-15, 06:00 PM
#8
Besides, even a used efan has a major advantage over a used thermoclutch...it either works or it doesn't (and replacement electric motors are widely available) and it's easy to see if it does.
Now, compare the tests for a thermoclutch...does it increase its locking proportional to temp correctly?
Is it "freewheeling" as it should?
Who knows till you put it on and try.
03-18-15, 06:54 PM
#9
Why is a "unknown 20 year old fan" the only option to a used thermoclutch?
Besides, even a used efan has a major advantage over a used thermoclutch...it either works or it doesn't (and replacement electric motors are widely available) and it's easy to see if it does.
Now, compare the tests for a thermoclutch...does it increase its locking proportional to temp correctly?
Is it "freewheeling" as it should?
Who knows till you put it on and try.
Besides, even a used efan has a major advantage over a used thermoclutch...it either works or it doesn't (and replacement electric motors are widely available) and it's easy to see if it does.
Now, compare the tests for a thermoclutch...does it increase its locking proportional to temp correctly?
Is it "freewheeling" as it should?
Who knows till you put it on and try.
You never put any pick and pull time into sourcing out a replacement mechanical fan ?
Had a local 400hp vert that had a flex fan, no shroud AND a way too thick Ron Davis raiator all sucking through a greddy FMIC and he did great with it.
Wonder why more people dont try a faithful old flex fan?
03-19-15, 12:59 PM
#12
Information Regurgitator

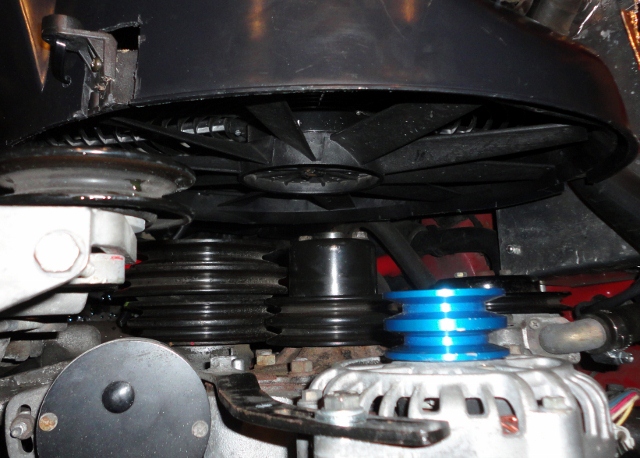

I have been using this one since 2000 or 2001.
http://www.summitracing.com/parts/prm-19115/overview/
It has now outlasted the stock one as I went Efan when the stocker died.
Makes changing belts much easier.
03-19-15, 02:11 PM
#13
dak- most "new ones" advertised at ridiculous CFMs are junk. Buy a new aftermarket Taurus or Mark VIII fan and the motor and wiring is half the size of the OEM units.
But again- there is a much larger margin for error if its a NA car, if its stockish turbo car, if it has no AC and if it has no FMIC. Trying to keep AC and sucking through a FMIC that is when you really need a fan that works
if your car is as you say it in your signature yes you could probably get away with just about any fan
But again- there is a much larger margin for error if its a NA car, if its stockish turbo car, if it has no AC and if it has no FMIC. Trying to keep AC and sucking through a FMIC that is when you really need a fan that works
if your car is as you say it in your signature yes you could probably get away with just about any fan
03-19-15, 04:23 PM
#15
I obviously did a *very thorough* inspection of each and every fan blade and made the determination that the fan itself, was still able to function, unfortunately the fan *as an assembly* is no longer functioning--leading me to believe that I would most likely have to replace it. .. .. the *it* being the fan assembly.
03-19-15, 04:32 PM
#16
249.32 at Mazdatrix.
So buy a new one. Depending on the fan it can still be cheaper than a new thermoclutch. Just wire it properly with a thermo-switch. I think Aaron Cake has a write-up.
I have been using this one since 2000 or 2001.
http://www.summitracing.com/parts/prm-19115/overview/
It has now outlasted the stock one as I went Efan when the stocker died.
Makes changing belts much easier.
So buy a new one. Depending on the fan it can still be cheaper than a new thermoclutch. Just wire it properly with a thermo-switch. I think Aaron Cake has a write-up.
I have been using this one since 2000 or 2001.
http://www.summitracing.com/parts/prm-19115/overview/
It has now outlasted the stock one as I went Efan when the stocker died.
Makes changing belts much easier.
03-19-15, 08:07 PM
#17
Information Regurgitator
dak- most "new ones" advertised at ridiculous CFMs are junk. Buy a new aftermarket Taurus or Mark VIII fan and the motor and wiring is half the size of the OEM units.
But again- there is a much larger margin for error if its a NA car, if its stockish turbo car, if it has no AC and if it has no FMIC. Trying to keep AC and sucking through a FMIC that is when you really need a fan that works
if your car is as you say it in your signature yes you could probably get away with just about any fan
But again- there is a much larger margin for error if its a NA car, if its stockish turbo car, if it has no AC and if it has no FMIC. Trying to keep AC and sucking through a FMIC that is when you really need a fan that works
if your car is as you say it in your signature yes you could probably get away with just about any fan
Car is like my sig other than I've had a Godspeed radiator for the past year. Before that it had a brass stock replacement.
03-19-15, 08:13 PM
#18
Information Regurgitator
88C is only 190F so that is ok. If your seeing temps of higher than 210F or 99C then start to worry. Damage can occur above 220F or 230F. How old is that hose? Maybe you should replace it.
03-20-15, 08:35 AM
#20
I agree and if I used a stock radiator, that's how I'd do it.
It has not been specifically stated yet but when considering an efan, your rad layout makes a big difference.
The stock unit, with tanks top and bottom, has a wide but relatively short core.
Aftermarket rads usually have tanks on the sides, so the core is more "square".

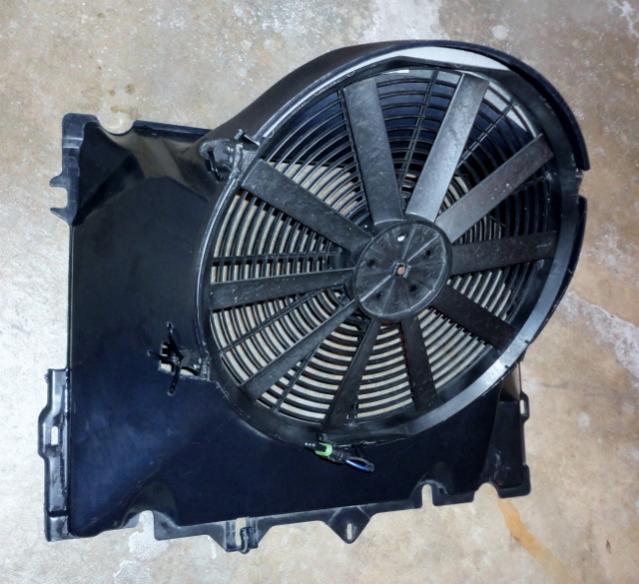

This proportion better suits the bigger 17" (taurus) and 18" (lincoln) fans/shrouds.
It has not been specifically stated yet but when considering an efan, your rad layout makes a big difference.
The stock unit, with tanks top and bottom, has a wide but relatively short core.
Aftermarket rads usually have tanks on the sides, so the core is more "square".
This proportion better suits the bigger 17" (taurus) and 18" (lincoln) fans/shrouds.
