EGT and wideband locations
09-19-09, 03:12 PM
#1
EGT and wideband locations
Well I welded up the wideband bung right after the downpipe curves and goes straight. I was thinking about using the 02 sensor location, but it just seemed like the wideband sensor would get to hot and potentially melt/malfunction. This was good logic im hoping ?
So now my question is wheres the best location to do an EGT sensor, and what if i want to do dual EGT's?
So now my question is wheres the best location to do an EGT sensor, and what if i want to do dual EGT's?
09-21-09, 12:04 PM
#6
In the shade
Join Date: Jun 2009
Location: PA
Posts: 249
Likes: 0
Received 0 Likes
on
0 Posts

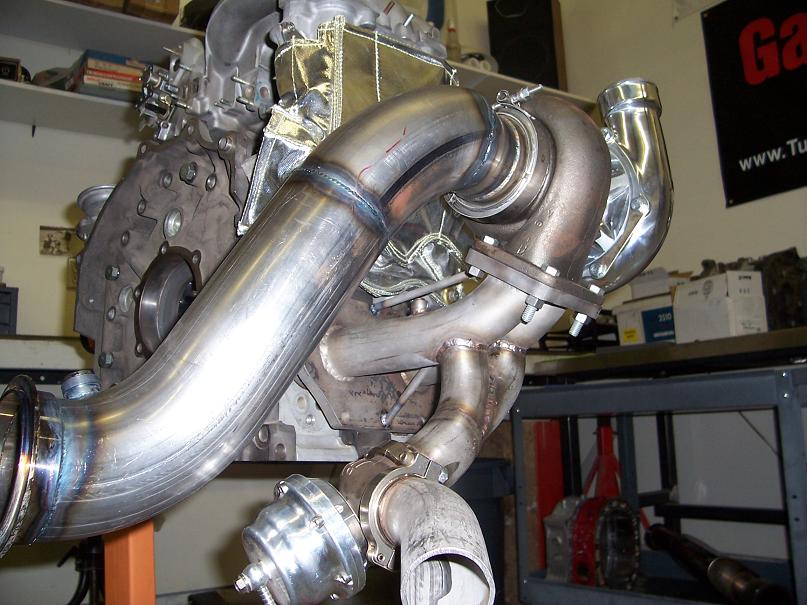

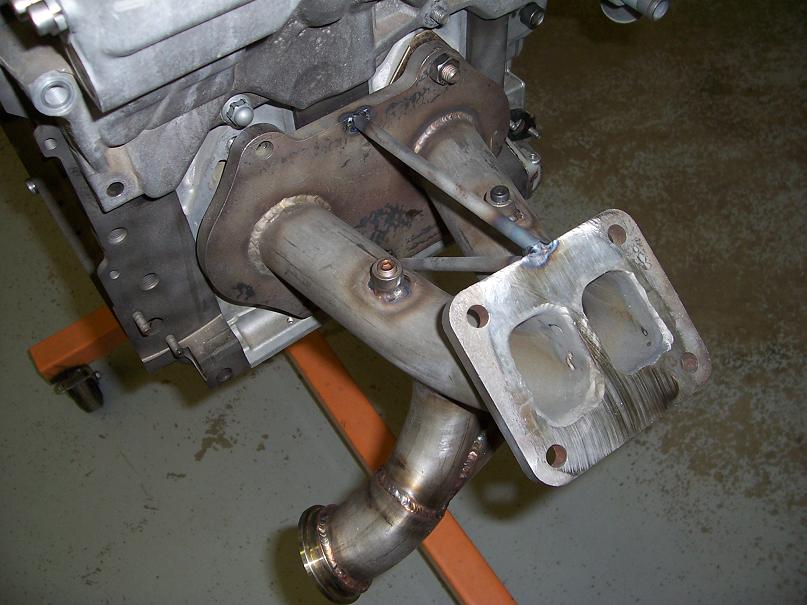

So you want your O2 sensor as far down the downpipe as you can? And your other two bungs in the manifold are for EGT and wideband right? Or am I understanding that picture wrong?
Are we talking 20 inches from the block or 20 inches from the turbo? ^^^Those guys widebands are in their manifolds? And I looked for a decent heat sink, and all the ones I found didn't look terribly reliable, is there one you were specifically thinking of that worked well?
Are we talking 20 inches from the block or 20 inches from the turbo? ^^^Those guys widebands are in their manifolds? And I looked for a decent heat sink, and all the ones I found didn't look terribly reliable, is there one you were specifically thinking of that worked well?
09-21-09, 01:00 PM
#7
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,828
Received 2,596 Likes
on
1,844 Posts
the EGT's should be close to the engine, the O2 can be just about anywhere. end of the DP is good, because its not too hot
Trending Topics
09-21-09, 11:14 PM
#8
So you want your O2 sensor as far down the downpipe as you can? And your other two bungs in the manifold are for EGT and wideband right? Or am I understanding that picture wrong?
Are we talking 20 inches from the block or 20 inches from the turbo? ^^^Those guys widebands are in their manifolds? And I looked for a decent heat sink, and all the ones I found didn't look terribly reliable, is there one you were specifically thinking of that worked well?
Are we talking 20 inches from the block or 20 inches from the turbo? ^^^Those guys widebands are in their manifolds? And I looked for a decent heat sink, and all the ones I found didn't look terribly reliable, is there one you were specifically thinking of that worked well?
