CA EGR Valve + Solenoid (I Searched I Promise)

Hello!

88 NA FC

So i was in class today and my teacher was talking about Emission related things in the car.

I want to test some of the Emissions stuff and i wanted to start the the EGR Valve and Solenoid.

I wanna test and see if its working first of all. and I want to possible remove it.

I did search! So i found some interesting ways to block it off...

So i took a look into my engine bay and tried to look for it. I started looking from the air intake and followed some lines and i couldnt find it. Or at least if i found it i didnt even know.

It doesnt look like anything i found in "All Data" at school. Maybe the computers wrong? But i can not find either.

Can someone show me a picture of an EGR Valve and Solenoid? 88 NA FC
Can someone also show me a picture of it removed/blocked? So i know what to do?

I appreciate the help =] Thanks Guys/Gals
Adverse is offline
Old 05-31-12, 03:02 PM
  #2
Moderator
5 Year Member
iTrader: (1)

Join Date: Jun 2005
Location: tulsa,ok.
Posts: 11,738
Liked 2 Times in 2 Posts
There are 4 or so solenoids all lined up in a row spanning about foot or so. This is on the driver's side of the engine. The solenoid that has an Orange sticker on it is the EGR solenoid. Should be the second from the left as the Blue solenoid (first position) is the Relief solenoid.
satch is offline
Old 05-31-12, 03:15 PM
  #3
Full Member
Thread Starter

Join Date: Feb 2012
Location: SJ
Posts: 55
Likes: 0
Liked 0 Times in 0 Posts
Okay ill take a look there. Thanks. What about the Valve?
Adverse is offline
Old 05-31-12, 03:32 PM
  #4
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,394
Likes: 0
Liked 108 Times in 98 Posts
valve is right on top of the center iron, under the intake manifold.

it looks like the one on the right in the pic http://mazdatrix.com/b-egr.htm
j9fd3s is offline
Old 05-31-12, 10:41 PM
  #5
Full Member
Thread Starter

Join Date: Feb 2012
Location: SJ
Posts: 55
Likes: 0
Liked 0 Times in 0 Posts
Okay thanks everyone ill take a look. But i looked good and hard and i dont know remember anything like that in there
Adverse is offline
Old 06-01-12, 05:28 PM
  #6
Rotary Freak

Join Date: Jul 2008
Location: FORT WORTH TEXAS
Posts: 1,660
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Adverse View Post
Okay thanks everyone ill take a look. But i looked good and hard and i dont know remember anything like that in there
It's really hard to see on a series four non turbo car. Like mentioned above, it's under the dynamic chamber on the intermediate housing (the housing that has the oil filler tubo on it, center housing).

I forget the color of the solenoid at the moment. Yellow I THINK mabe. It's shown in the online FSM secton called FUEL AND EMISSIOINS.

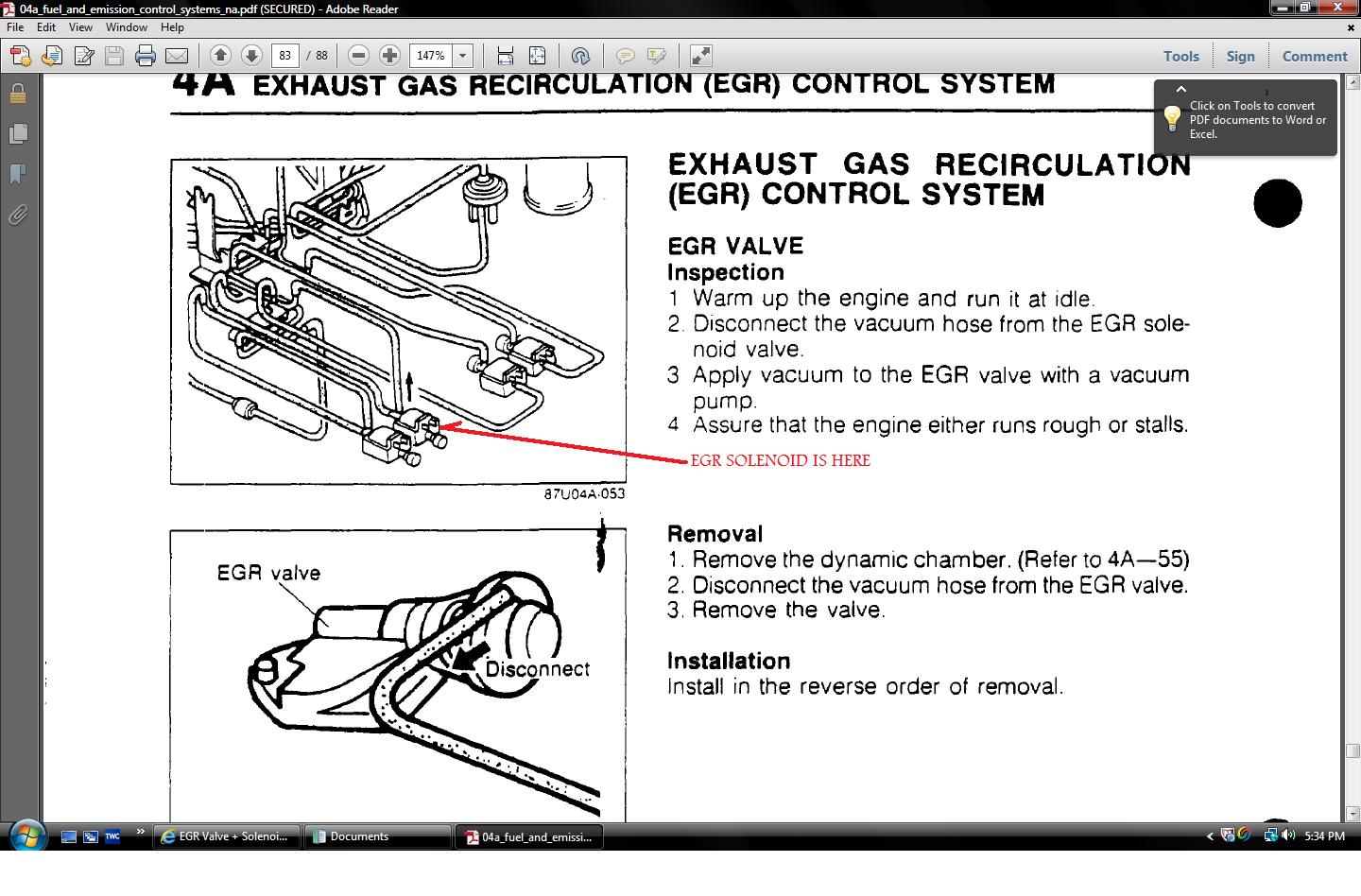

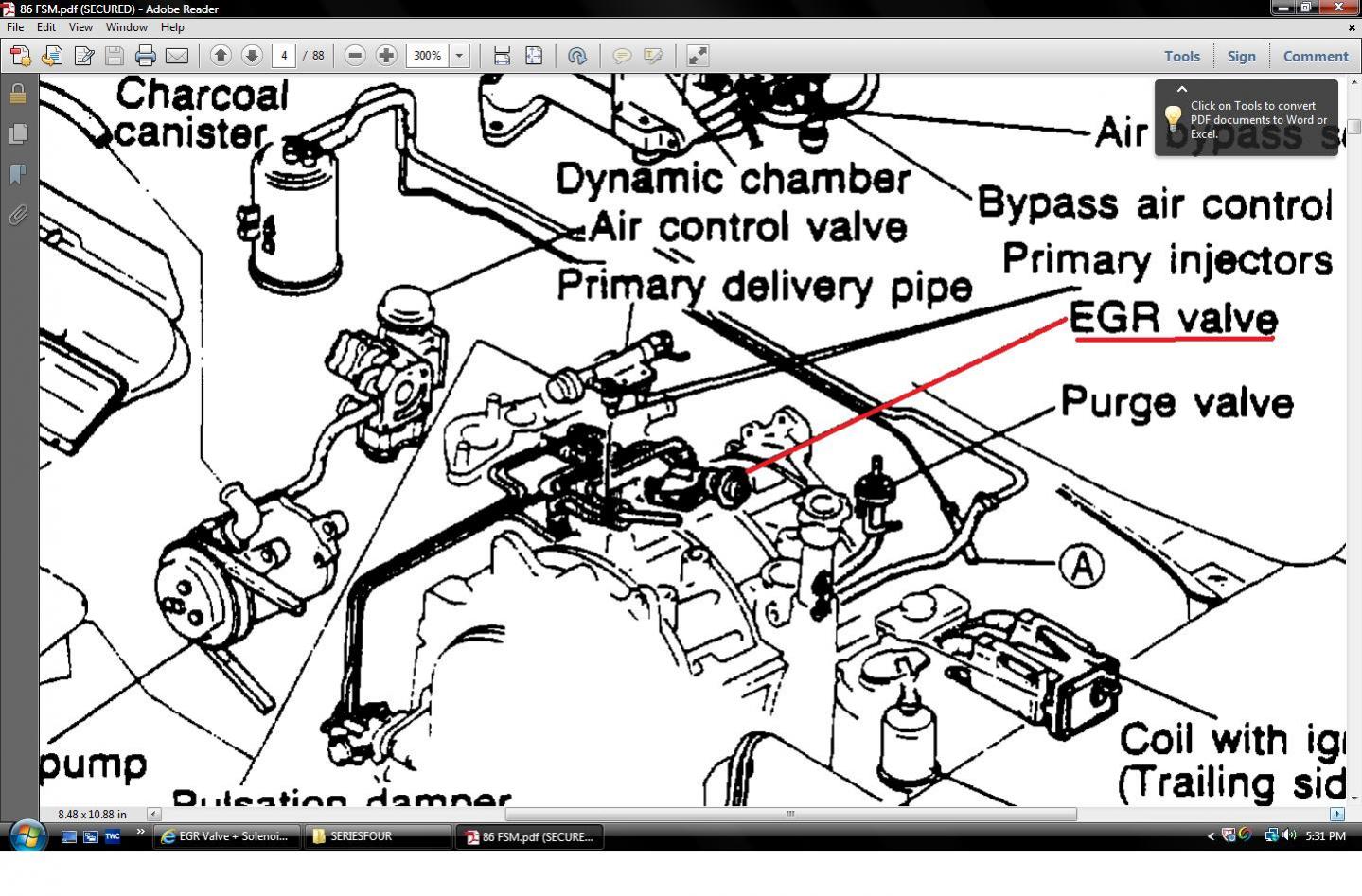

Attached Thumbnails EGR Valve + Solenoid (I Searched I Promise)-egr.jpg   EGR Valve + Solenoid (I Searched I Promise)-egrtwo.jpg   EGR Valve + Solenoid (I Searched I Promise)-egrthree.jpg
HAILERS2 is offline
Old 03-28-15, 12:40 PM
  #7
Hooked
5 Year Member
iTrader: (7)

HRnico's Avatar

Join Date: Dec 2011
Location: Hood River OR.
Posts: 402
Likes: 0
Liked 0 Times in 0 Posts
Air Supply Valve

Air Supply Valve. S4 FSM 4B-66 Wish I knew how to paste pic from PDF of page.
Looks like it to me. My JDM S5 intake track does not use it, but I have pieces of a S4 TII intake in my pile of parts and it has this
