ECU Question
anyone know what are the identifiying marks on an s4 ECU, as opposed to an s5 ecu for a turbo II?
mori9863 is offline
Reply Like
Old 03-31-08, 01:35 AM
  #2
rotorhead

iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 16,182
Received 430 Likes on 263 Posts
s4 should say N332 or N333 on it.
arghx is offline
Reply Like
Old 03-31-08, 02:33 AM
  #3
Full Member
Thread Starter

mori9863's Avatar

Join Date: Mar 2008
Location: everett
Posts: 50
Likes: 0
Received 0 Likes on 0 Posts
ok thanks
mori9863 is offline
Reply Like
Old 03-31-08, 02:36 AM
  #4
Full Member
Thread Starter

mori9863's Avatar

Join Date: Mar 2008
Location: everett
Posts: 50
Likes: 0
Received 0 Likes on 0 Posts
the reason i ask is i bought a hks PFC FCON, and the guy said that it was plug and play for S4 Turbo II, i get the thing, and it seems to be the wrong harness for it... i assume it is for an S5. The ECU's for S4 and S5 wouldnt be compatable to hook up would they?
mori9863 is offline
Reply Like
Old 03-31-08, 02:41 AM
  #5
#FakeCarEnthusaist

iTrader: (10)

Brody8877's Avatar

Join Date: Sep 2005
Location: San Francisco
Posts: 1,814
Received 9 Likes on 9 Posts
Originally Posted by mori9863
the reason i ask is i bought a hks PFC FCON, and the guy said that it was plug and play for S4 Turbo II, i get the thing, and it seems to be the wrong harness for it... i assume it is for an S5. The ECU's for S4 and S5 wouldnt be compatable to hook up would they?
they will not connect, S5 have similar plug pattern to the FD.

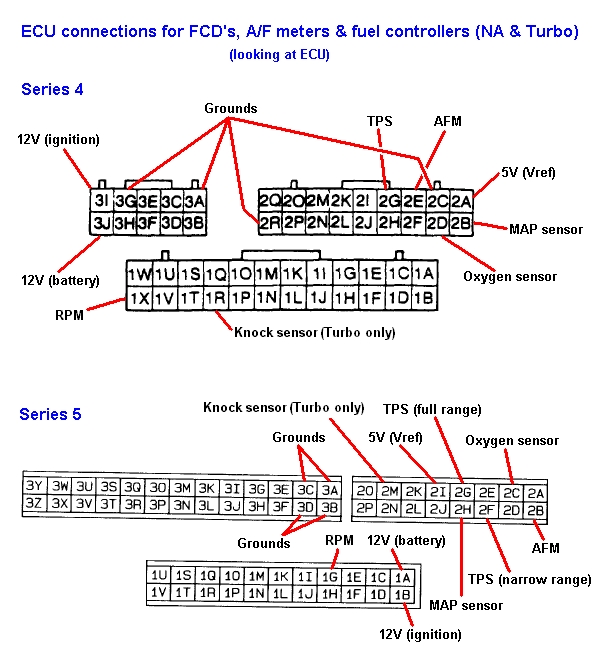

Attached Thumbnails ECU Question-ecu-pinouts-showing-ign-grounds-tps-afm-5v-rpm-etc.jpg
Brody8877 is offline
Reply Like
Old 03-31-08, 02:50 AM
  #6
Full Member
Thread Starter

mori9863's Avatar

Join Date: Mar 2008
Location: everett
Posts: 50
Likes: 0
Received 0 Likes on 0 Posts
so if i get the correct harness this fcon should be fine for s4 correct? its not s5 specifically set up.... chip wise or anything......
mori9863 is offline
Reply Like
Old 03-31-08, 02:53 AM
  #7
#FakeCarEnthusaist

iTrader: (10)

Brody8877's Avatar

Join Date: Sep 2005
Location: San Francisco
Posts: 1,814
Received 9 Likes on 9 Posts
Originally Posted by mori9863
so if i get the correct harness this fcon should be fine for s4 correct? its not s5 specifically set up.... chip wise or anything......
The harness will need to be solder on or splice on like the SAFC if i am not mistaken.
