Does anyone know all the fuel hoses in a 1991 n/a 7
Does anybody know all the fuel hoses in a 1991 n/a rx-7 coupe
a diagram or pics would help thanks
Trueno102 is offline
Reply Like
Old 07-12-06, 08:06 AM
  #2
Rotaries confuse me

iTrader: (7)

My5ABaby's Avatar

Join Date: May 2006
Location: Murfreesboro, TN
Posts: 4,219
Likes: 0
Received 3 Likes on 3 Posts
S4, but works.











Last edited by My5ABaby; 07-12-06 at 08:14 AM.
My5ABaby is offline
Reply Like
Old 07-12-06, 09:11 PM
  #3
Senior Member

Thread Starter
iTrader: (1)

Trueno102's Avatar

Join Date: Feb 2006
Location: California
Posts: 547
Received 6 Likes on 6 Posts
does anyone know the locations of the fuel hoses in a s5
Does anyone know the location of the fuel hoses in a s5
Trueno102 is offline
Reply Like
Old 07-12-06, 09:32 PM
  #4
Boost in..Apex seals out.


adrock3217's Avatar

Join Date: Nov 2003
Location: Maryland, 21794
Posts: 1,931
Likes: 0
Received 0 Likes on 0 Posts
They are under the intake manifolds, just like on all RX-7's
adrock3217 is offline
Reply Like
Old 07-12-06, 09:56 PM
  #5
Rotary Enthusiast


inflatablepets's Avatar

Join Date: Mar 2004
Location: St Louis
Posts: 1,473
Likes: 0
Received 0 Likes on 0 Posts
Under the hood. They even say "high pressure fuel hose"
inflatablepets is offline
Reply Like
Old 07-13-06, 07:07 AM
  #6
Rotaries confuse me

iTrader: (7)

My5ABaby's Avatar

Join Date: May 2006
Location: Murfreesboro, TN
Posts: 4,219
Likes: 0
Received 3 Likes on 3 Posts
Hope this helps.

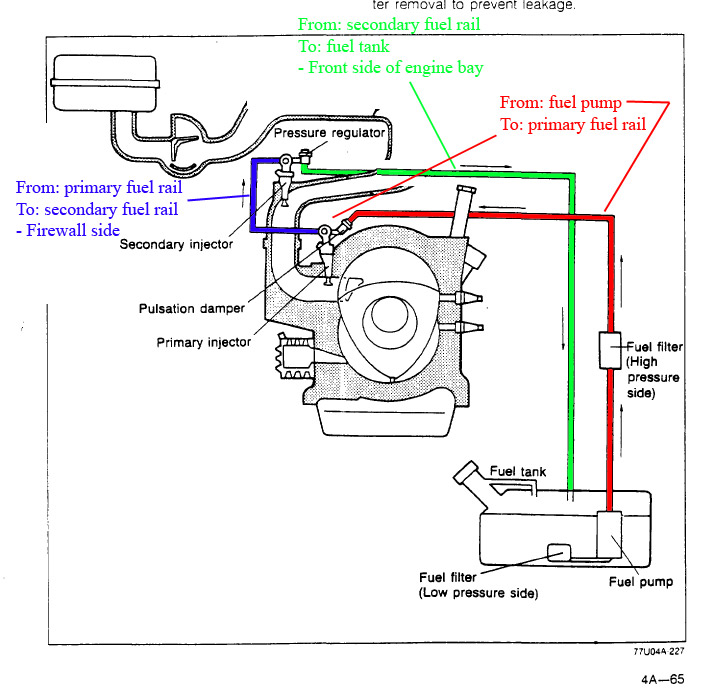

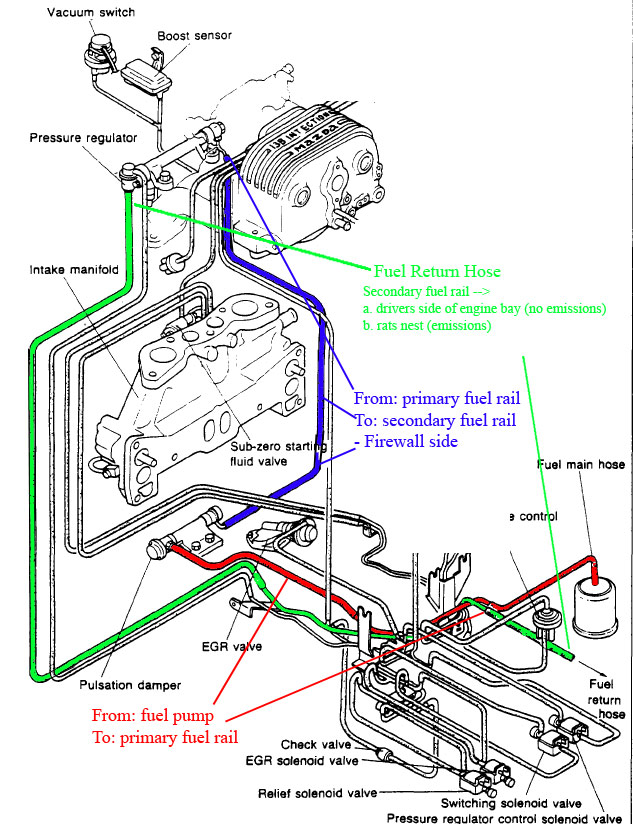

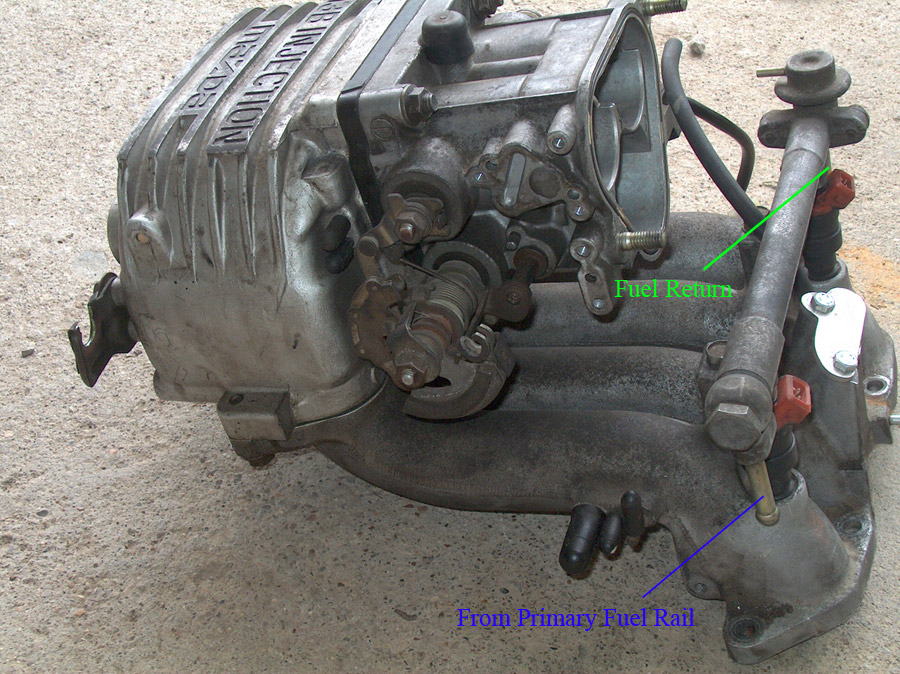

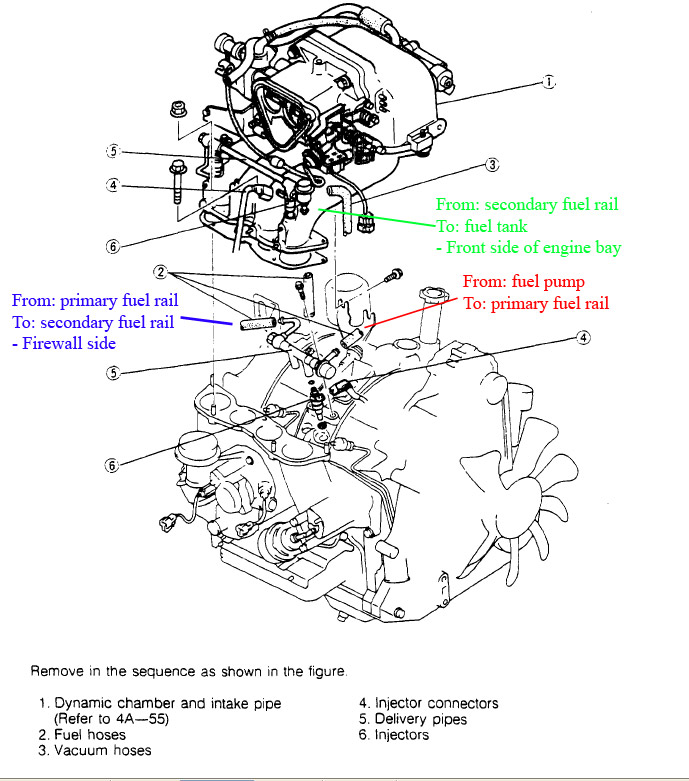

Attached Thumbnails does anyone know the locations of the fuel hoses in a s5-fuellines1.jpg   does anyone know the locations of the fuel hoses in a s5-fuellines2.jpg   does anyone know the locations of the fuel hoses in a s5-fuellines3.jpg   does anyone know the locations of the fuel hoses in a s5-fuellines4.jpg
Last edited by My5ABaby; 07-13-06 at 07:14 AM.
My5ABaby is offline
Reply Like
Old 07-13-06, 09:20 AM
  #7
Military Rotary Guru!!!


iTrader: (13)

zionfarm's Avatar

Join Date: May 2006
Location: Woodbridge VA / St.Croix U.S.V.I
Posts: 531
Received 2 Likes on 1 Post
So were would i put my Power neo

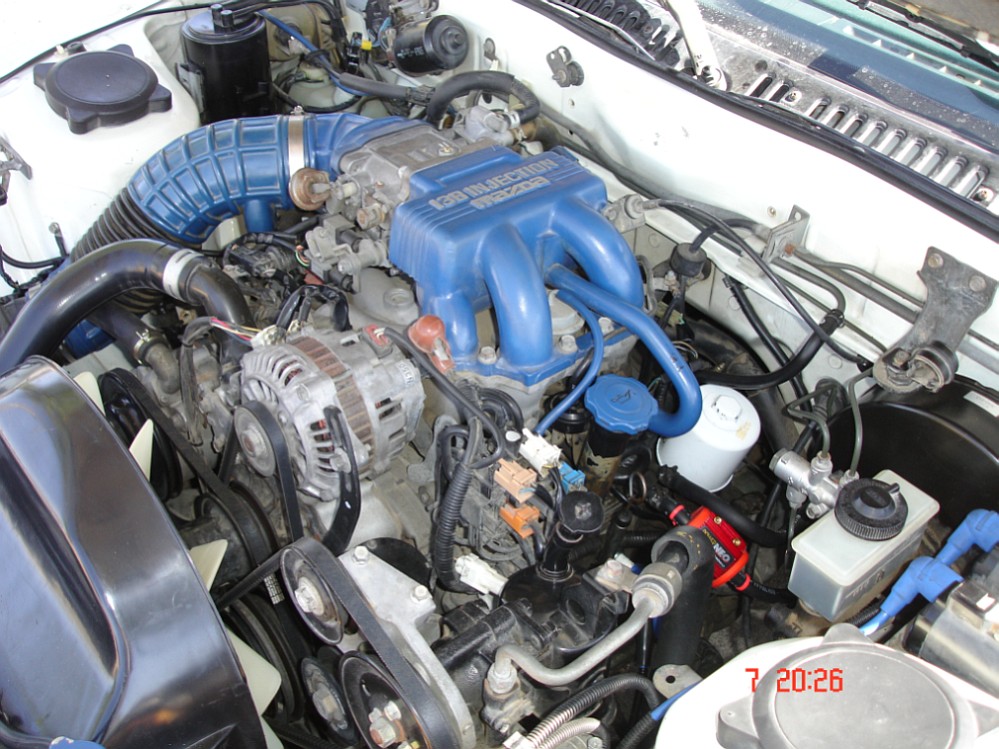

Is this right feul hose for my little baby, i installed it on the fuel line coming up from the fuel filter
Attached Thumbnails does anyone know the locations of the fuel hoses in a s5-dsc00712.jpg
