detonating on hard acceleration
#1
Senior Member
Thread Starter
iTrader: (3)
Join Date: May 2007
Location: San Diego
Posts: 316
Likes: 0
Received 0 Likes
on
0 Posts
detonating on hard acceleration
My stock S5 NA is detonating on hard acceleration. My question is:
Is detonating caused by:
To Lean?
To Rich?
Timing to advanced?
Timing to retraded?
The reasons those are the choice is because those are the only things I can think of. Any advice would be welcome.
Is detonating caused by:
To Lean?
To Rich?
Timing to advanced?
Timing to retraded?
The reasons those are the choice is because those are the only things I can think of. Any advice would be welcome.
#2
MECP Certified Installer
Have you worked on the car lately? Messed with the timing? If so...
More than likely your timing is too far advanced from the baseline. Generally, on an NA at least, any detonation under WOT occuring is caused by the A/F mixture being ignited too early and the rotor hasn't made it past TDC (well, our TDC equivalent). Thus, the mixtures pressure goes so high that it violently detonates. Basically, the pressure in the chamber reaches its critical limit before the rotor is at its highest mechanical compression.
Dial your baseline timing down a tad.
If you havent messed with it, you could be running lean, or your crank angle sensor could have come loose. Is this occuring at full throttle with low or high rpm?
More than likely your timing is too far advanced from the baseline. Generally, on an NA at least, any detonation under WOT occuring is caused by the A/F mixture being ignited too early and the rotor hasn't made it past TDC (well, our TDC equivalent). Thus, the mixtures pressure goes so high that it violently detonates. Basically, the pressure in the chamber reaches its critical limit before the rotor is at its highest mechanical compression.
Dial your baseline timing down a tad.
If you havent messed with it, you could be running lean, or your crank angle sensor could have come loose. Is this occuring at full throttle with low or high rpm?
#3
The Doctor
iTrader: (1)
Join Date: Apr 2008
Location: Cedar Rapids, IA
Posts: 1,185
Likes: 0
Received 0 Likes
on
0 Posts
Line the pin on the front cover up in between the 2 marks instead of on the yellow one like the FSM says. Then zero your CAS and drop it back in. Timing should be almost dead on 5° Leading and 20° Trailing.
#6
Smoke moar
Your timing is off.
I tweaked my timing a tad and on a very very very hot day on hard acceleration (or high rpms) I got detonating.
Don't run 91, or 89, run 87 no less, more is worse millage.
I tweaked my timing a tad and on a very very very hot day on hard acceleration (or high rpms) I got detonating.
Don't run 91, or 89, run 87 no less, more is worse millage.
#7
Banned. I got OWNED!!!
iTrader: (11)
because its available for one.
2. his motor is the highest compression ratio you can get in a 13b
3. mazda reccomends it.
i can go on and on but basically higher compression engines need a less volatile fuel. higher octane is not only less volatile it also has a slower burn rate. why would anyone that wants to keep their motor together put anything other than 91+ in their rotary?
its true, but healthy motor > fuel economy
but it probably can be solved with fixing the timing issues
2. his motor is the highest compression ratio you can get in a 13b
3. mazda reccomends it.
i can go on and on but basically higher compression engines need a less volatile fuel. higher octane is not only less volatile it also has a slower burn rate. why would anyone that wants to keep their motor together put anything other than 91+ in their rotary?
Don't run 91, or 89, run 87 no less, more is worse millage.
but it probably can be solved with fixing the timing issues
Trending Topics
#8
because its available for one.
2. his motor is the highest compression ratio you can get in a 13b
3. mazda reccomends it.
i can go on and on but basically higher compression engines need a less volatile fuel. higher octane is not only less volatile it also has a slower burn rate. why would anyone that wants to keep their motor together put anything other than 91+ in their rotary?
2. his motor is the highest compression ratio you can get in a 13b
3. mazda reccomends it.
i can go on and on but basically higher compression engines need a less volatile fuel. higher octane is not only less volatile it also has a slower burn rate. why would anyone that wants to keep their motor together put anything other than 91+ in their rotary?
#9
Smoke moar
because its available for one.
2. his motor is the highest compression ratio you can get in a 13b
3. mazda reccomends it.
i can go on and on but basically higher compression engines need a less volatile fuel. higher octane is not only less volatile it also has a slower burn rate. why would anyone that wants to keep their motor together put anything other than 91+ in their rotary?
its true, but healthy motor > fuel economy
but it probably can be solved with fixing the timing issues
2. his motor is the highest compression ratio you can get in a 13b
3. mazda reccomends it.
i can go on and on but basically higher compression engines need a less volatile fuel. higher octane is not only less volatile it also has a slower burn rate. why would anyone that wants to keep their motor together put anything other than 91+ in their rotary?
its true, but healthy motor > fuel economy
but it probably can be solved with fixing the timing issues
You're partly right, but not in the case of the rotary engine.
I ran 89 octane mostly in my old fc due to the advanced timing which prevented any possible detonation (Which I dunno why it id that one rly hot day.... maybe I had 87)
The n/a 13b in a fc is not tuned for 89, 91, or higher. It's tuned for 87 and probably slightly lower.
If you run higher octane fuel it'll not run properly due to not igniting it right with the slow burning of higher octane fuels, when I ran 91 in my n/a fc when it was stock timing it'd have little power till 6k rpm, then it'd be alil less than normal, it'd back fire more and waste gas.
Why?
It wasnt burning the fuel, anyways continue wasting your money
You can run a turbo high comp rotary engine, it needs to be tuned properly or run higher octane fuels to prevent detonation (along with a good tune) cars are often tuned for other octanes so when you take it to the track, etc.
#13
The Doctor
iTrader: (1)
Join Date: Apr 2008
Location: Cedar Rapids, IA
Posts: 1,185
Likes: 0
Received 0 Likes
on
0 Posts
On a N/A car, especially a street car, it doesn't matter if you put 87 or 93 in it. Hell, if their was a 85 or a 83 pump around here, I'd probably be putting that in my car.
But on a turbo car, always 93. Do you really want to risk detonating and popping your motor over a couple cents on gas?
#14
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
i'll third the 87... if it was making 250+ hp then, maybe you need a little more.
here is a list of stuff to check
1. timing, all the S5 na's ive had pinged in the midrange with more timing than stock...
2. plug wires, old ones crossfire, cossfire is like firing the plug way early, which is bad. in a high hp application, keeping the trailing apart from the leading wires is good practise
3. i've seen vacuum leaks cause pinging too, but on a stock ecu it wont idle
here is a list of stuff to check
1. timing, all the S5 na's ive had pinged in the midrange with more timing than stock...
2. plug wires, old ones crossfire, cossfire is like firing the plug way early, which is bad. in a high hp application, keeping the trailing apart from the leading wires is good practise
3. i've seen vacuum leaks cause pinging too, but on a stock ecu it wont idle
#15
DEADLY EXHAUST LEAK
any more suggestions i got nothing.
#16
Senior Member
Join Date: Aug 2009
Location: Los Angeles
Posts: 479
Likes: 0
Received 0 Likes
on
0 Posts
Detonation
Detonation results when the compressed fuel-air mixture reaches a combination of temperature and pressure that causes it to spontanously ignite. The entire charge in the combustion chamber goes off at once, rather than over a period of time (as designed) as the flame front makes its way across the combustion chamber.
Under detonation the peak pressures and temperatures during the power stroke are much higher than the designer intended, and damage can result.
It is often confused with pre-ignition, in which the charge is ignited before it should be, either by mis-timed spark, or a hot-spot insie the combustion chamber. Hot spots can result from a sharp edge, ie the edge of a crater where a piece has been taken out (possibly by detonation).
Detonation/pre-ignition can result from:
sharp edges/damage inside the combustion chamber
too lean mixture (too rich provides a cooler burn and protection against detonation)
timing wrong (especially spark too early/advanced)
EGR not functioning
and a variety of others...
I have a piston in my garage from a Pontiac that destroyed itself internally due to pre-ignition/detonation.
If you look in the Chilton manual, their first recommended step for diagnosing detonation is to have the combustion chamber borescoped, looking for sharp edges/damage.
Before I went to that trouble I would try to make sure that the timing was perfect.
You also might look at the secondary injectors. If you have a partially clogged secondary, it would provide an excessively lean mixture on that rotor but only above 3800 rpm and under heavy throttle... you might consider having the injectors cleaned and or flow tested and see if the problem goes away.
Just some ideas...
Under detonation the peak pressures and temperatures during the power stroke are much higher than the designer intended, and damage can result.
It is often confused with pre-ignition, in which the charge is ignited before it should be, either by mis-timed spark, or a hot-spot insie the combustion chamber. Hot spots can result from a sharp edge, ie the edge of a crater where a piece has been taken out (possibly by detonation).
Detonation/pre-ignition can result from:
sharp edges/damage inside the combustion chamber
too lean mixture (too rich provides a cooler burn and protection against detonation)
timing wrong (especially spark too early/advanced)
EGR not functioning
and a variety of others...
I have a piston in my garage from a Pontiac that destroyed itself internally due to pre-ignition/detonation.
If you look in the Chilton manual, their first recommended step for diagnosing detonation is to have the combustion chamber borescoped, looking for sharp edges/damage.
Before I went to that trouble I would try to make sure that the timing was perfect.
You also might look at the secondary injectors. If you have a partially clogged secondary, it would provide an excessively lean mixture on that rotor but only above 3800 rpm and under heavy throttle... you might consider having the injectors cleaned and or flow tested and see if the problem goes away.
Just some ideas...
#18
DEADLY EXHAUST LEAK
Detonation results when the compressed fuel-air mixture reaches a combination of temperature and pressure that causes it to spontanously ignite. The entire charge in the combustion chamber goes off at once, rather than over a period of time (as designed) as the flame front makes its way across the combustion chamber.
Under detonation the peak pressures and temperatures during the power stroke are much higher than the designer intended, and damage can result.
It is often confused with pre-ignition, in which the charge is ignited before it should be, either by mis-timed spark, or a hot-spot insie the combustion chamber. Hot spots can result from a sharp edge, ie the edge of a crater where a piece has been taken out (possibly by detonation).
Detonation/pre-ignition can result from:
sharp edges/damage inside the combustion chamber
too lean mixture (too rich provides a cooler burn and protection against detonation)
timing wrong (especially spark too early/advanced)
EGR not functioning
and a variety of others...
I have a piston in my garage from a Pontiac that destroyed itself internally due to pre-ignition/detonation.
If you look in the Chilton manual, their first recommended step for diagnosing detonation is to have the combustion chamber borescoped, looking for sharp edges/damage.
Before I went to that trouble I would try to make sure that the timing was perfect.
You also might look at the secondary injectors. If you have a partially clogged secondary, it would provide an excessively lean mixture on that rotor but only above 3800 rpm and under heavy throttle... you might consider having the injectors cleaned and or flow tested and see if the problem goes away.
Just some ideas...
Under detonation the peak pressures and temperatures during the power stroke are much higher than the designer intended, and damage can result.
It is often confused with pre-ignition, in which the charge is ignited before it should be, either by mis-timed spark, or a hot-spot insie the combustion chamber. Hot spots can result from a sharp edge, ie the edge of a crater where a piece has been taken out (possibly by detonation).
Detonation/pre-ignition can result from:
sharp edges/damage inside the combustion chamber
too lean mixture (too rich provides a cooler burn and protection against detonation)
timing wrong (especially spark too early/advanced)
EGR not functioning
and a variety of others...
I have a piston in my garage from a Pontiac that destroyed itself internally due to pre-ignition/detonation.
If you look in the Chilton manual, their first recommended step for diagnosing detonation is to have the combustion chamber borescoped, looking for sharp edges/damage.
Before I went to that trouble I would try to make sure that the timing was perfect.
You also might look at the secondary injectors. If you have a partially clogged secondary, it would provide an excessively lean mixture on that rotor but only above 3800 rpm and under heavy throttle... you might consider having the injectors cleaned and or flow tested and see if the problem goes away.
Just some ideas...
#19
Senior Member
Thread Starter
iTrader: (3)
Join Date: May 2007
Location: San Diego
Posts: 316
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for all the great advice guys. I was chasing a idle that was sometimes steady and sometimes dropped to zero. After driving on the freeway for a while (75-80 31-3500 rpm) and pulled onto surface streets, the car would occasionaly die at a light. I grounded out the test connector and adjusted the screw on top the intake and then adjusted (advance the timing) to match the timing mark at 750 rpm. Seems it advanced the timing to far as suggested. I think the timing is to advance or the mixture is to lean. The timeing is perfect, but that is with the screw on top the manifold almost at the stop. I'll try these tips on monday....except for the 92 octane thing. Just wondering how premixing effects performance when using 92 octane plus, when I've used it in the past, I've never noticed a performance change except cleaner tailpipes and a mile more to the gallon.
#22
Top Down, Boost Up
iTrader: (7)

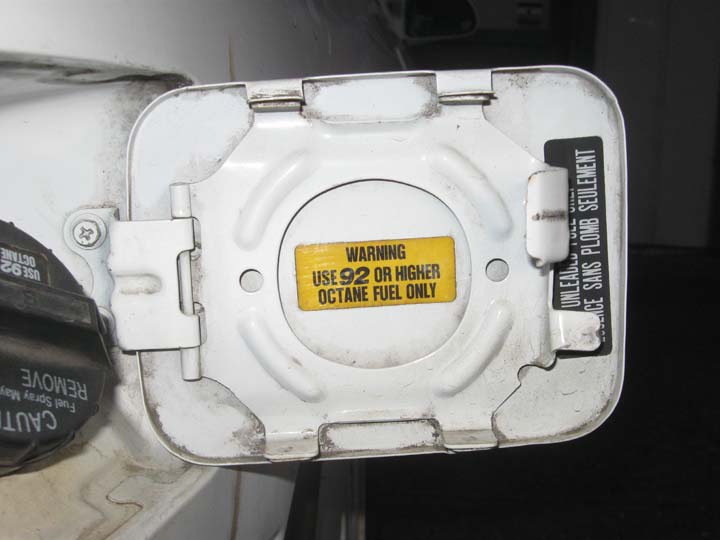

Those stickers look stock too, so I wonder where the discrepancy came from. Does anyone else have one like that? I can't remember if my TII did or not.
#23
Now With 10th AE Fun!
iTrader: (1)
Join Date: Jun 2005
Location: CA
Posts: 1,869
Likes: 0
Received 0 Likes
on
0 Posts
I have my original owners manual and it says "Your new Mazda is designed to obtain maximum performance with Unleaded Gasoline with an octane rating of 87 or higher (average of Research Octane Number and Motor Octane Number)."
Interesting too, is says you can use Gasohol (mixture of gasoline & ethanol) if the ethanol is less than 10%.
Interesting too, is says you can use Gasohol (mixture of gasoline & ethanol) if the ethanol is less than 10%.
#24
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
#25
Rotorhead
Join Date: Feb 2001
Location: Charlottesville, Virginia, USA
Posts: 9,136
Likes: 0
Received 39 Likes
on
33 Posts
http://www.btinternet.com/~madmole/R...RONMONPON.html
Adding oil to gasoline would decrease the octane rating and run a stock-EMS engine leaner when it operates in open loop mode. However, a correct pre-mix would not significantly lower the octane any more than the stock OMP. Also, since the stock EMS runs the engine on the rich side, a pre-mix fuel may actually run better.
In practice...
I haven't heard of any significant difference in performance, and therefore I decided that it is not worth my time to try any experiments to determine any significant difference which probably does not exist.
Unfortunately, E85 is about 30% less powerful than typical pump gas, so you would need to increase the boost in order to see any gains in performance. So far, vehicles that have been converted to E85 with no increase in boost level, compression ratio, etc., are yielding about 10-30% less power and fuel economy than they were with gasoline.
