Depressurizine gas tank??
#26
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
the vent line from the gas tank goes directly to the canister, its the small line.
the big line comes from the engine/purge valve. i would expect fluid to be coming from this line, but i usually just leave the whole system stock, so i don't have these problems
the big line comes from the engine/purge valve. i would expect fluid to be coming from this line, but i usually just leave the whole system stock, so i don't have these problems
#28
Rotary Freak
iTrader: (1)
I'm almost positive that I need to replace my check-and-cut valve, but have had no luck finding a replacement. Anyone know a source for them, or alternatively, how to build something that serves the same purpose from one-way valves or other fittings? Are they disassembleable?
It looks like it'd be a one-way check valve from atmospheric into the tank, and a one-way valve from the tank towards the charcoal canister. This wouldn't help in the event of a roll-over, but seems like it'd serve the purpose for emissions control
It looks like it'd be a one-way check valve from atmospheric into the tank, and a one-way valve from the tank towards the charcoal canister. This wouldn't help in the event of a roll-over, but seems like it'd serve the purpose for emissions control
#29
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,802
Received 2,577 Likes
on
1,831 Posts
FB01-42-910A is the Mazda part number, every FC uses the same one, list price is $68, so if you get any discount it'll be much cheaper
#30
Junior Member

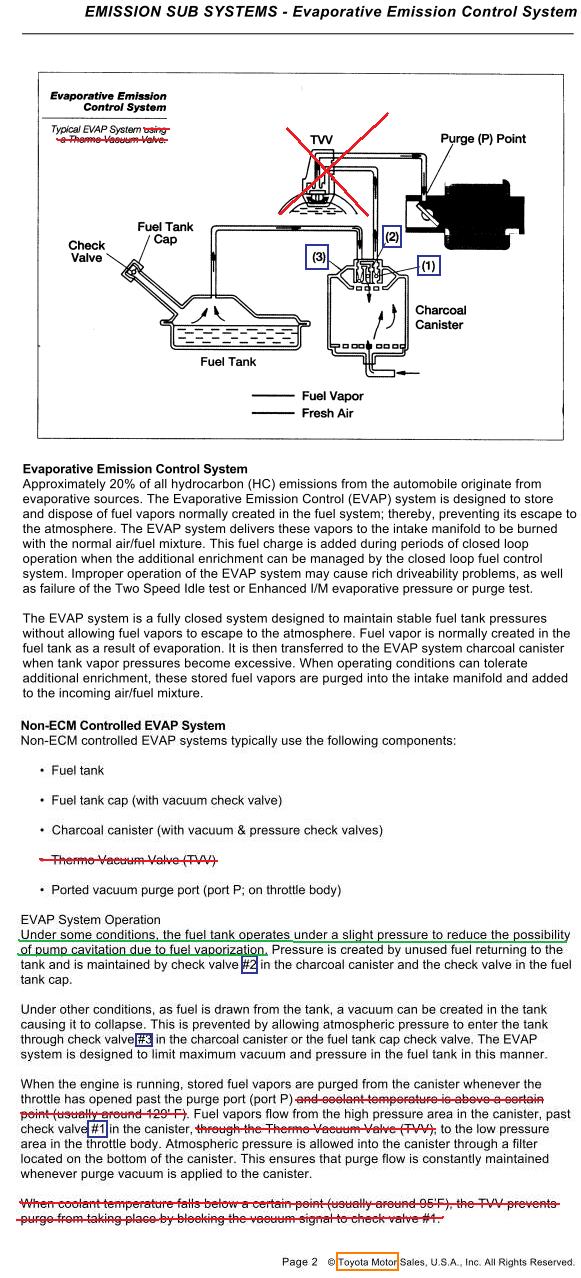

Here is a technical document about older style Toyota evaporative emissions systems. They are similiar to the ones on the FC. The FC does not have a coolant-controlled valve to control purge flow, and I have crossed out references to it in the document. I'm not sure if the purge flow is temperature regulated at all on the 2nd gens, although on the FD purge flow is duty controlled by the ECU through a solenoid valve. There may be some other minor differences between this Toyota system and the system on the FC, but the architecture is the same.

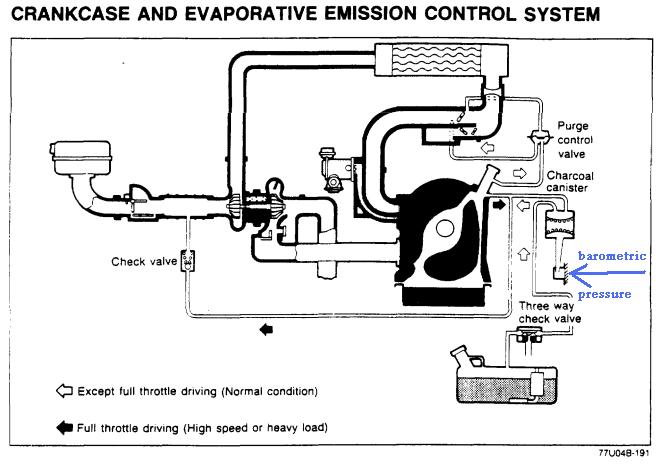

diagram from the S4 T2 emission section of the FSM:
diagram from the S4 T2 emission section of the FSM:
Thanks
#32
Opening thisnold thread, Im In the process of removing the factory supply and return fuel lines, It looks like the return from the charcoal canister runs to the check and cut valve, which sits just in front of the gas tank bolted to the chassis. As I am eliminating the charcoal canister, is it ok to remove this line and simply leave the nipple the check and cut valve open to the atmosphere, or is this valve not necessary at all anymore if the factory emissions control system is removed?
#33
Full Member
Breathing new life into this old thread instead of starting a new one...
I will occasionally smell some gas fumes when I drive my car, but lately it has gotten worse. Today it is warm outside but not really hot and I went for a long drive, and the gas fume smell was really bad. Additionally, sometimes when I drive the car on warmer days, like today, when I shut it off I can hear a noise coming from the gas tank area, like a low hum sort of, but if I crack the gas cap I can hear the pressure equalize and the noise stops. From reading this thread it kind of sounds like the check and cut valve might be bad, or maybe that and /or the charcoal canister. Only other possible factor for me is that I have an aftermarket (Autozone) gas cap.
I want to fix this so the gas smell goes away, and the tank is correctly pressurized. I plan to inspect the check and cut valve, but it looks like it is no longer available. Does anyone have a source for that?
Is it possible that the non-OEM gas cap could be contributing to this issue?
Any other ideas on things to look at?
I will occasionally smell some gas fumes when I drive my car, but lately it has gotten worse. Today it is warm outside but not really hot and I went for a long drive, and the gas fume smell was really bad. Additionally, sometimes when I drive the car on warmer days, like today, when I shut it off I can hear a noise coming from the gas tank area, like a low hum sort of, but if I crack the gas cap I can hear the pressure equalize and the noise stops. From reading this thread it kind of sounds like the check and cut valve might be bad, or maybe that and /or the charcoal canister. Only other possible factor for me is that I have an aftermarket (Autozone) gas cap.
I want to fix this so the gas smell goes away, and the tank is correctly pressurized. I plan to inspect the check and cut valve, but it looks like it is no longer available. Does anyone have a source for that?
Is it possible that the non-OEM gas cap could be contributing to this issue?
Any other ideas on things to look at?
#34
Senior Member
Check and cut valve stays closed unless you flip over.
What you will want to check first is that the evaporator/vent line running from your fuel pump to your charcoal canister is unobstructed. I replaced mine back in 2014 because the tank would pressure and the line was rusted shut so no vapors could pass to the charcoal canister. If you have the charcoal canister evap system removed, you'll be getting same issues.
See if you can blow air through yours. If not, you can create a replacement line with some brake line tubing and a cheap hand bender.
What you will want to check first is that the evaporator/vent line running from your fuel pump to your charcoal canister is unobstructed. I replaced mine back in 2014 because the tank would pressure and the line was rusted shut so no vapors could pass to the charcoal canister. If you have the charcoal canister evap system removed, you'll be getting same issues.
See if you can blow air through yours. If not, you can create a replacement line with some brake line tubing and a cheap hand bender.
The following users liked this post:
alexrotor (05-07-20)
#35
Full Member
Check and cut valve stays closed unless you flip over.
What you will want to check first is that the evaporator/vent line running from your fuel pump to your charcoal canister is unobstructed. I replaced mine back in 2014 because the tank would pressure and the line was rusted shut so no vapors could pass to the charcoal canister. If you have the charcoal canister evap system removed, you'll be getting same issues.
See if you can blow air through yours. If not, you can create a replacement line with some brake line tubing and a cheap hand bender.
What you will want to check first is that the evaporator/vent line running from your fuel pump to your charcoal canister is unobstructed. I replaced mine back in 2014 because the tank would pressure and the line was rusted shut so no vapors could pass to the charcoal canister. If you have the charcoal canister evap system removed, you'll be getting same issues.
See if you can blow air through yours. If not, you can create a replacement line with some brake line tubing and a cheap hand bender.
There seems to be some confusion on what the check and cut (3-way check valve in the diagram above) does. Other reading I've done on the forum says it is the valve that directs pressure to the charcoal canister, or lets in air in the case if vacuum in the tank.
